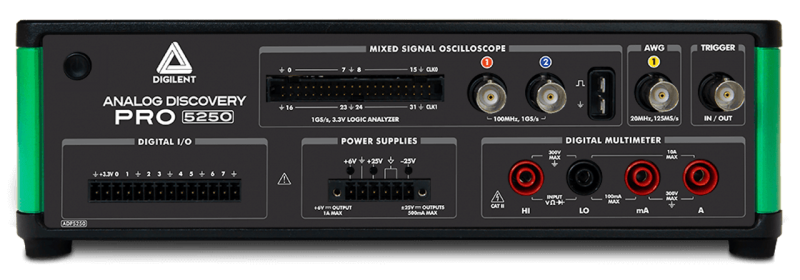

Analog Inputs:

• Used in the Oscilloscope, Data Logger, Network Analyzer, Spectrum Analyzer, and Impedance Analyzer
• Two analog input channels accessible via front panel BNC connectors
• Channel type: single ended
• Analog bandwidth: 100 MHz @ -3 dB
• 8-bit resolution
• Max sampling rate: 1 GS/s single channel
• Maximum input range: 40 V peak to peak
• AC or DC coupling
• Maximum record length: 1 MS per channel
• Front panel connector generating a 5 V, 1 kHz, square wave for convenient compensation of BNC oscilloscope probes

Analog Outputs:

• Used in the Waveform Generator, Impedance Analyzer, and Network Analyzer
• One channel accessible via a front panel BNC connector
• 14-bit resolution
• AC amplitude (max): ±12 V
• Maximum analog bandwidth: 5 MHz @ -3 dB
• Maximum sampling rate: 125 MS/s
• Software-switchable filter: 36 MHz lowpass, 7-pole, elliptical

Power Supplies:

• Digital supply: 3.3 V, 20 mA
• DC power supplies:

  • 0 to 6 V variable, 1 A max current
  • 0 to 25 V variable, 500 mA max current (isolated)
  • 0 to -25 V variable, 500 mA max current (isolated)

Digital Multimeter:

• Used in the DMM instrument
• Functions: DC voltage, AC voltage, DC current, AC current, resistance, diode, continuity
• Resolution: 5 1/2 digits
• Sample rate 5 S/s
• Input protection:
  • Resistance, diode: up to 300 V DC
  • DC and AC voltage: up to 300 V DC or 265 VAC (rms) 400 V AC (peak)
  • DMM A current connector fuse: internal ceramic fuse, 10 A 250 V, time-delay, 5 x 20 mm, T 10 A H 250 V
  • DMM mA current connector fuse: internal ceramic fuse, 1.25 A 250 V, time-delay, 5 x 20 mm, T 1.25 A H 250 V
  • Maximum common-mode voltage: 300 V DC or AC (rms)

Digital Inputs:

• Used in the Logic Analyzer
• Channels: 32
• Input voltage: 0 V to 5 V
• Input threshold: 0 V to 2 V
• Max sampling rate: 1 GS/s
• Typical record length: 1 MS

Digital Inputs and Outputs:

• Used in the Static I/O instrument
• Channels: 8
• Input logic standard: 5 V compatible TTL
• Output logic standard: 3.3 V LVTTL

• Trigger sources: oscilloscope analog channels, function generator start, digital inputs, digital I/O, power line frequency, external trigger
• Trigger modes
  • Normal, auto, force, single
• Analog trigger
  • Edge with hysteresis
• Digital trigger
  • Edge, level, pattern, glitch
• External trigger:

  • 5 V compatible TTL input or 3.3V LVTTL output
  • 4 mA drive strength

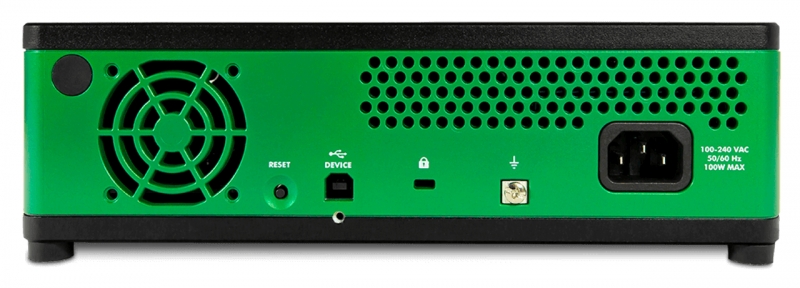

Connectivity:

• Device to computer: USB 2.0 Hi-Speed

Other:

• Auxiliary powered
• Dimensions: 25.40 cm x 19.05 cm x 7.77 cm (10.00 in x 7.50 in x 3.06 in)
• Weight: 2.05 kg (4 lb 8.3 oz)
• Shock and vibration tested (details in the specification sheet)

Product Compliance:

• HTC: 8471809000
• ECCN: 3A992.a

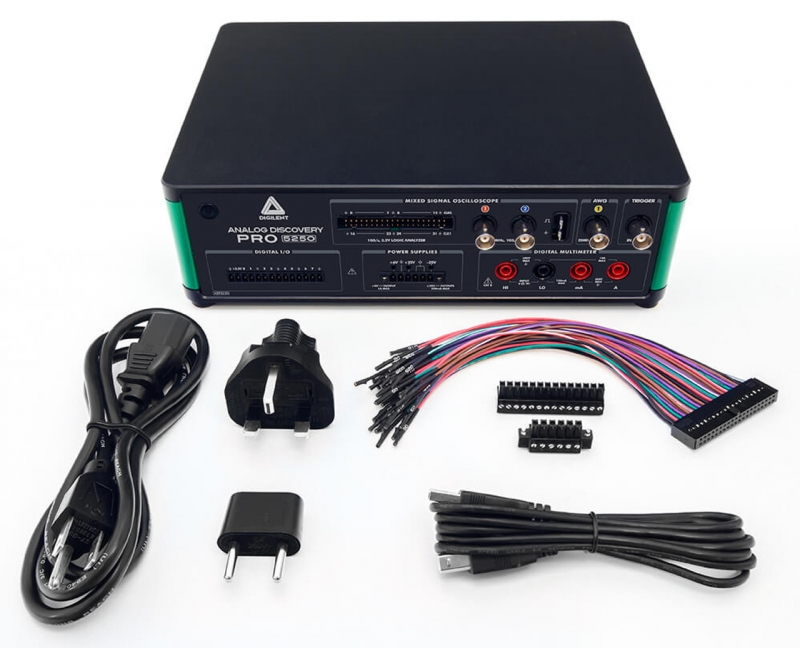

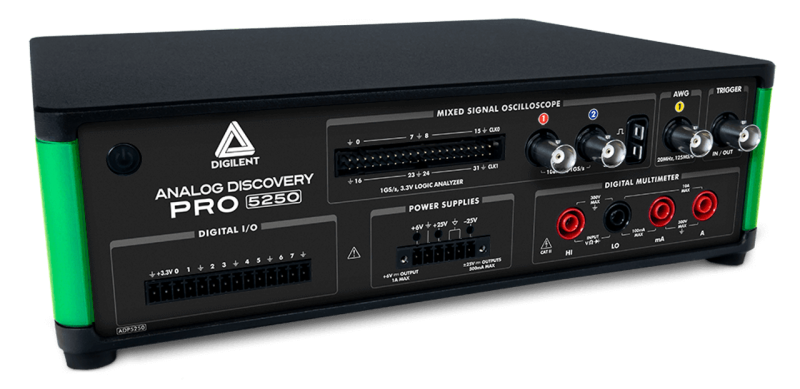

ADP5250:

• 1 ADP5250
• 1 USB A to B cable
• 1 1x14 Digital I/O Screw Terminal Adapter
• 1 1x6 Power Supply Screw Terminal Adapter
• 1 2x18 Logic Analyzer MTE Cable
• 1 US IEC Cable
• 1 EU Adapter
• 1 UK Adapter

ADP5250 Probe Bundle:

• 1 ADP5250
• 1 USB A to B cable
• 1 1x14 Digital I/O Screw Terminal Adapter
• 1 1x6 Power Supply Screw Terminal Adapter
• 1 2x18 Logic Analyzer MTE Cable
• 1 US IEC Cable
• 1 EU Adapter
• 1 UK Adapter
• 2 P2150 150MHz Oscilloscope Probe
• 2 BNC to Mini-grabber Cable
• 1 Set of Red and Black DMM Probes

What is WaveForms?

WaveForms is the free software application for the ADP5250 and enables use of the available analog and digital instruments. The software has been refined by customer feedback for over 10 years and features a computer and laptop friendly user interface that has the feel of traditional benchtop software. The device communicates with WaveForms via a USB connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. WaveForms can be downloaded and installed in under 60 seconds and can be tested without hardware using its demo mode feature. In addition to the use of instruments in the application, the WaveForms application has a script editor tool, which allows custom scripting of the instrument in JavaScript. WaveForms is designed to be run on a laptop or desktop computer.

The ADP5250 is Windows® only.

For even more customization potential, the WaveForms Software Development Kit (SDK) can be used to create custom applications and scripts in Python®, C, and additional languages.

While not officially supported, the ADP5250 is also compatible with NI's VirtualBench C API and VirtualBench LabVIEW™ VIs.

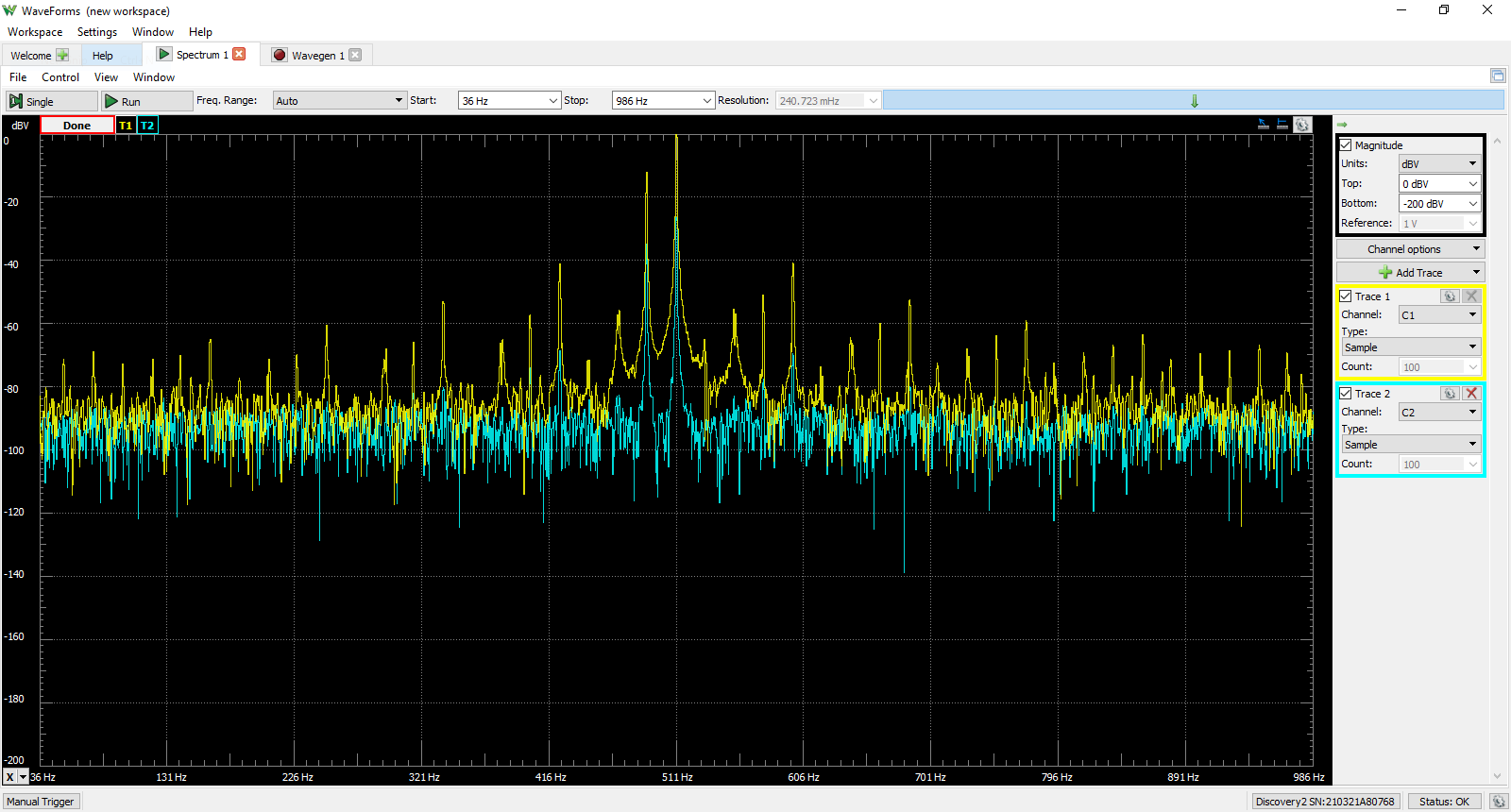

The following instruments are available in the WaveForms application for the ADP5250:
