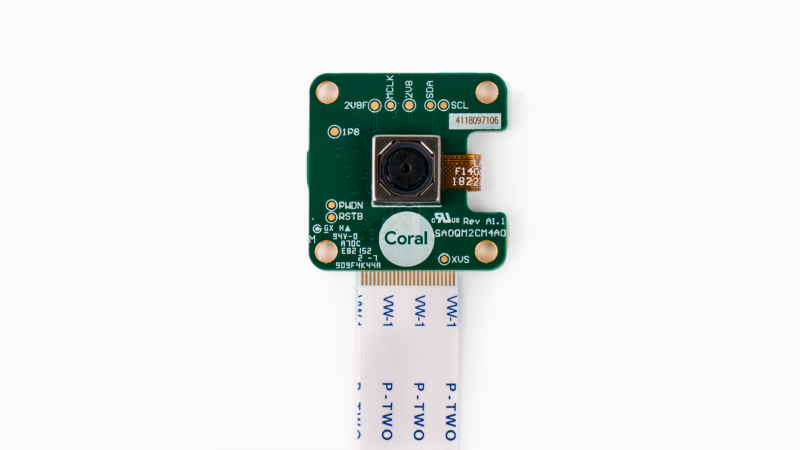

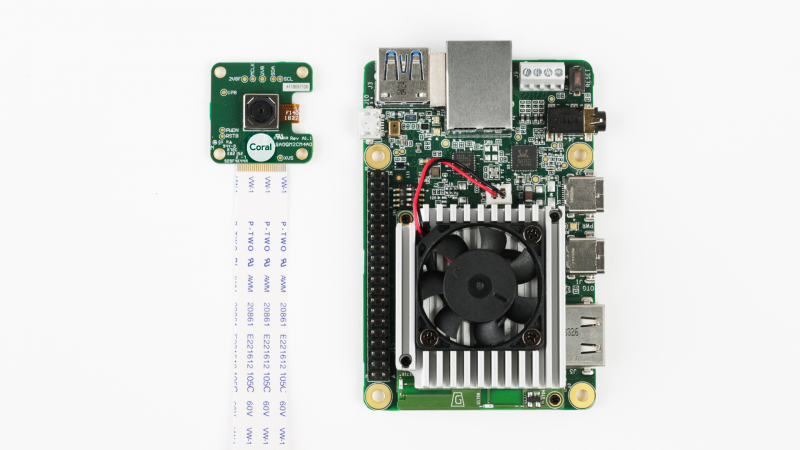

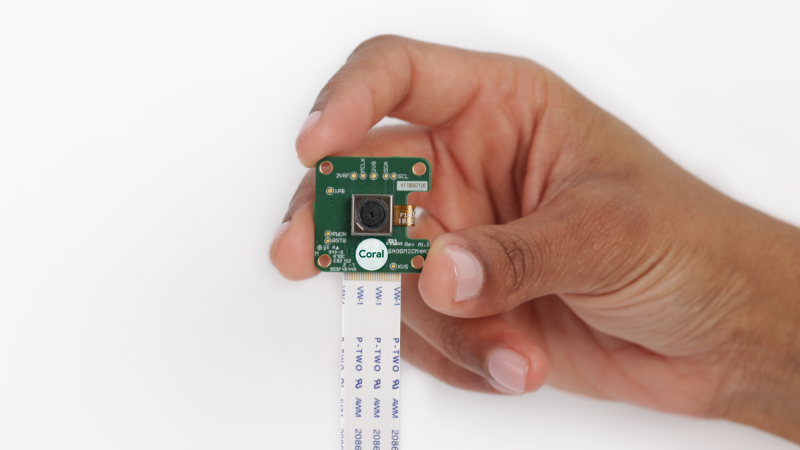

The Coral Camera is a 5MP camera designed for use with the Coral Dev Board, providing input for computer vision use cases.  The camera attaches to the Coral Dev Board’s MIPI CSI interface with a with a 24-pin FFC.

Coral is a division of Google, that helps you build intelligent ideas with our platform for local AI. Our Dev Board features Google’s Edge TPU chip for fast ML inferencing on device.

Features

• ISP function: Automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz lumination, automatic blacklevel calibration (ABLC).
• Image quality control: color saturation, hue, gamma, sharpness, lens correction, defective pixel canceling, and noise canceling.
• Support autofocus control (AFC) with embedded AF VCM Driver.
• For more information about the sensor, read about the Omnivision SOC.

Specs

• 5-megapixel OmniVision sensor

  ·1.4um x 1.4um pixel

  ·Active array size 2582x1933

• Optical size: ¼”
• Field of view: 84.0° / 87.6°
• F-number: F=2.2 ±5%
• TV distortion: <1.5%
• Focal length: 2.5mm
• Focusing range: 10cm ~ ∞
• Dual lane MIPI output interface
• Board dimensions: 25 x 25 mm
