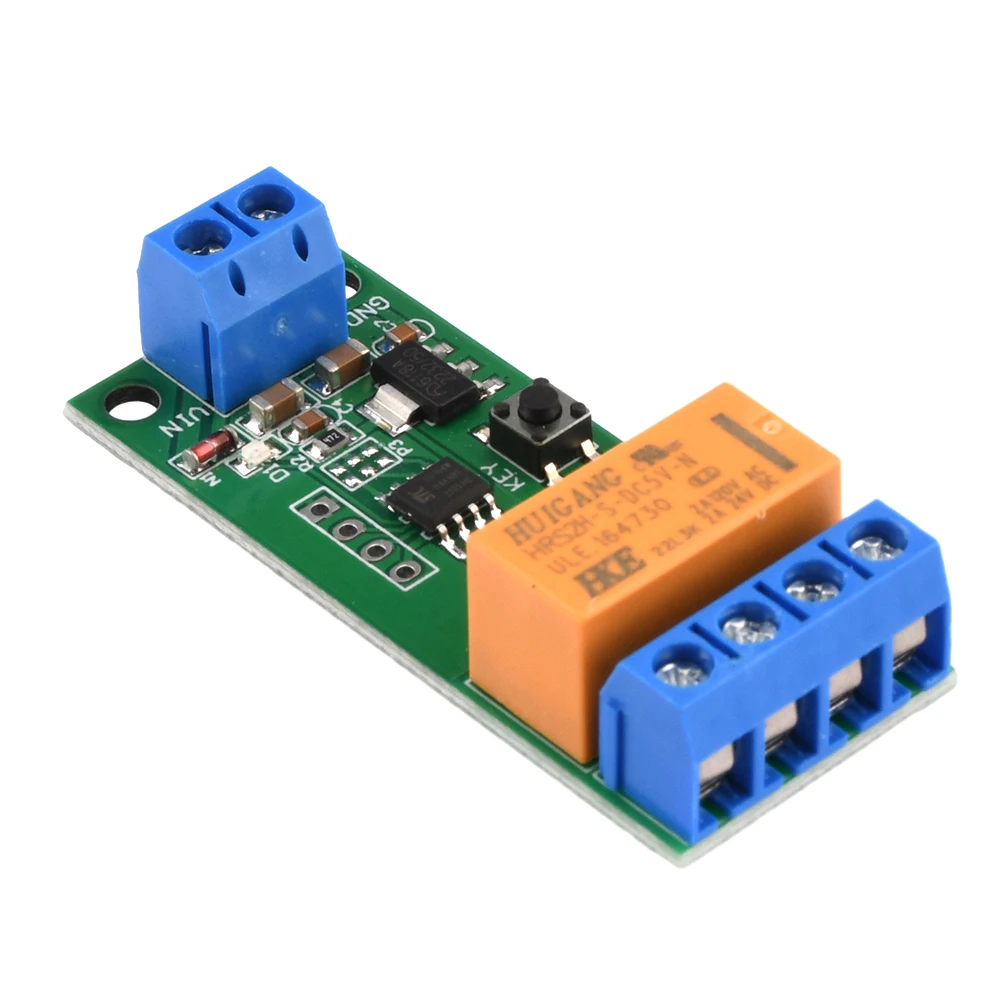

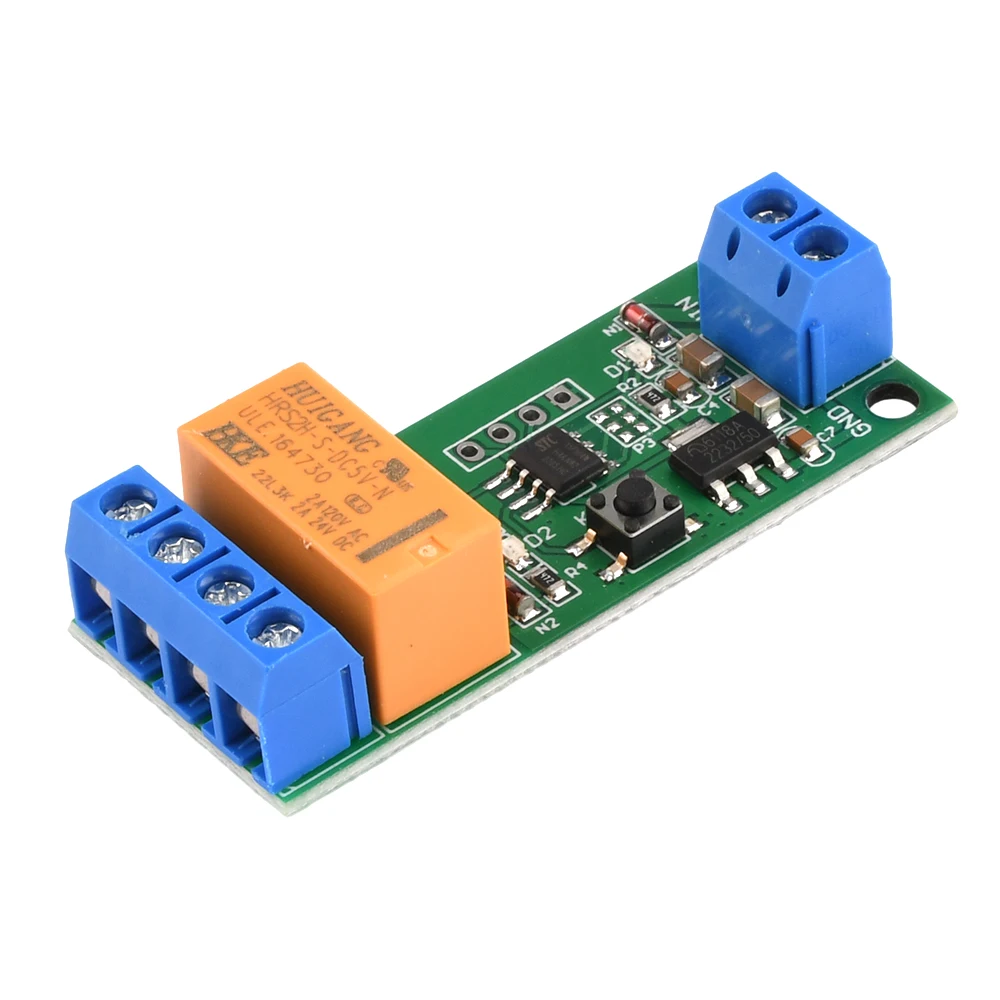

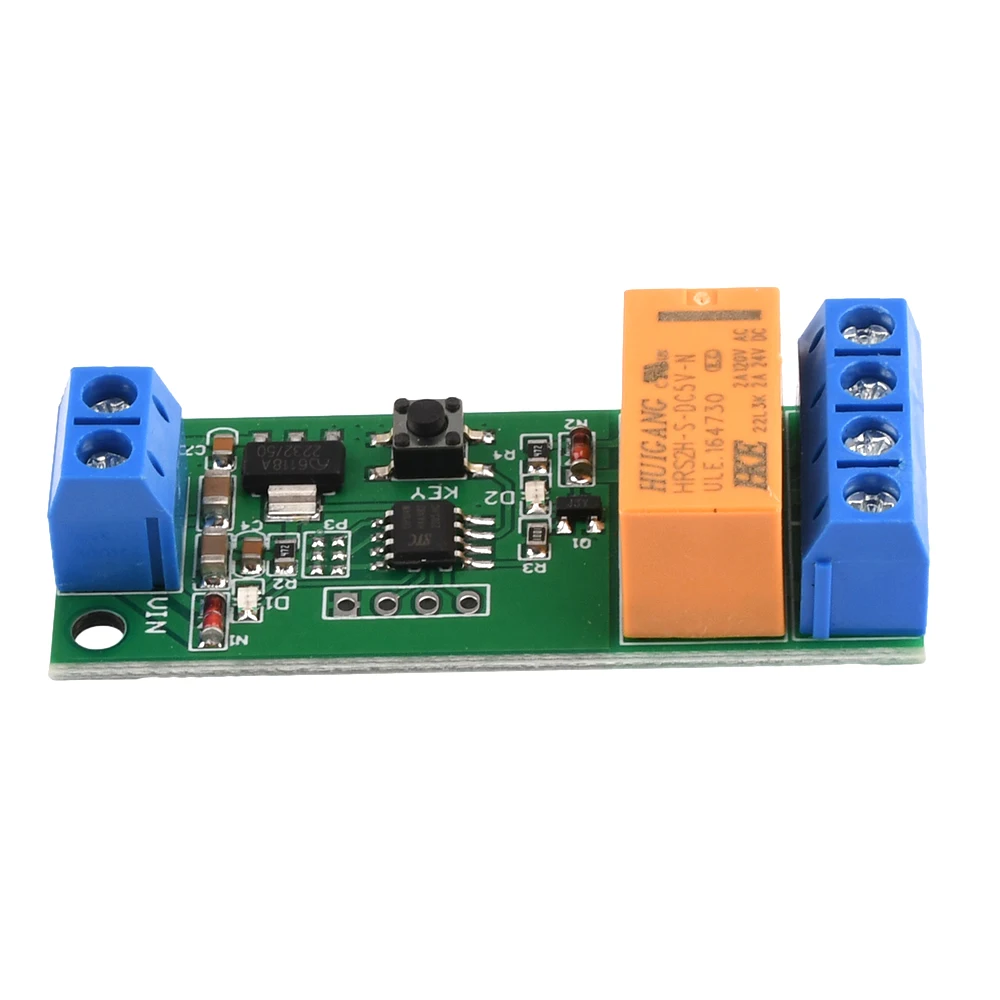

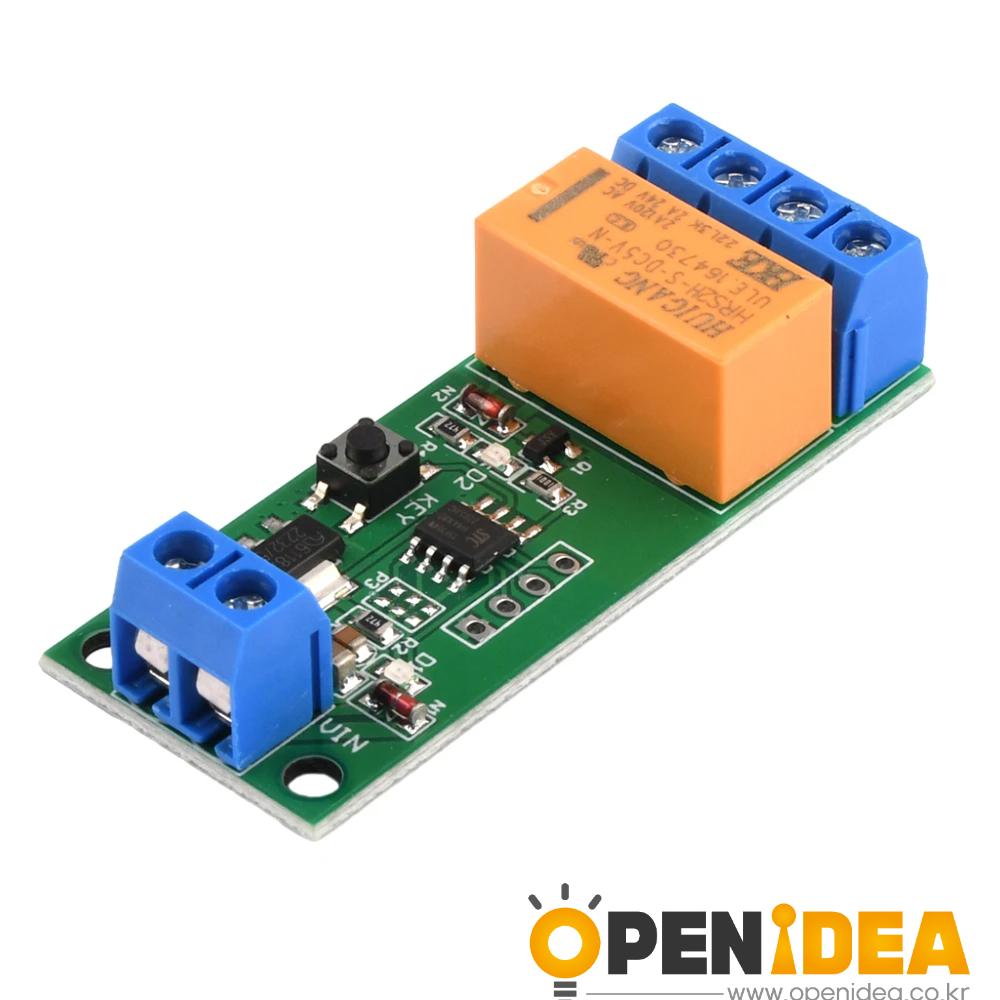

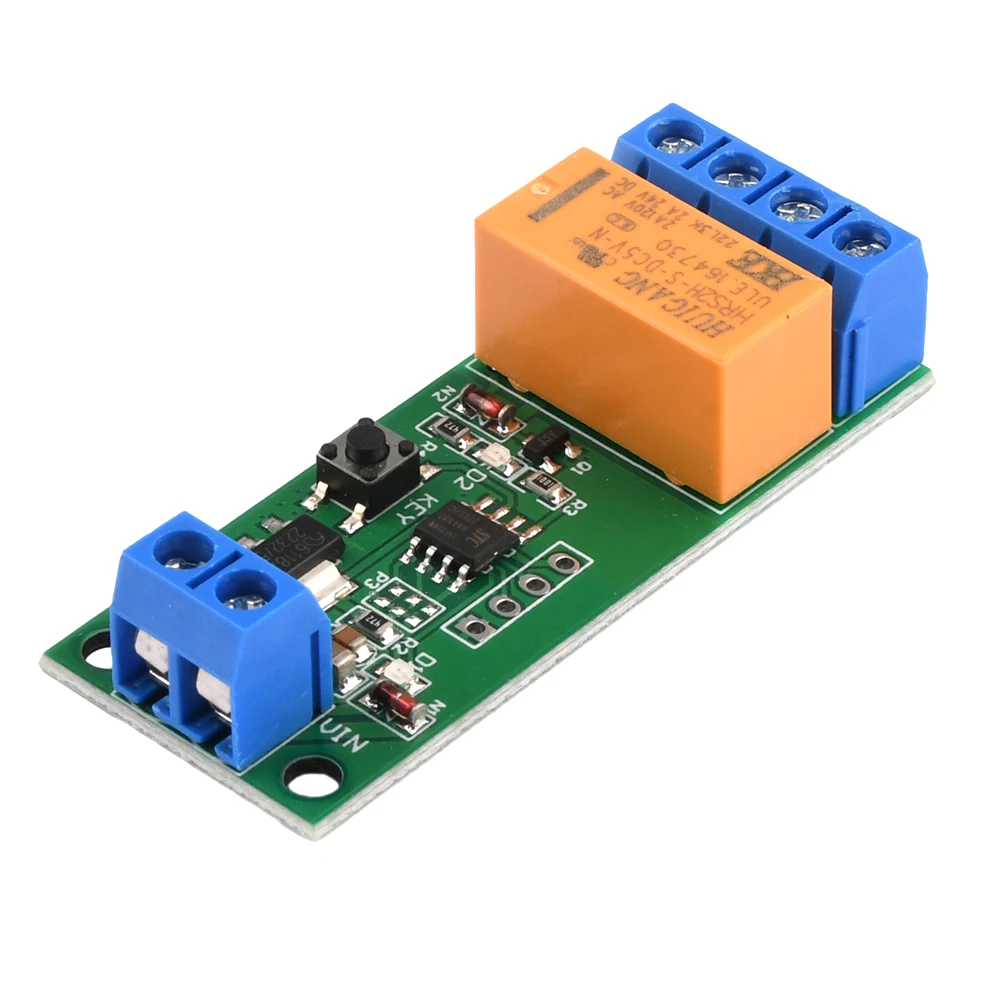

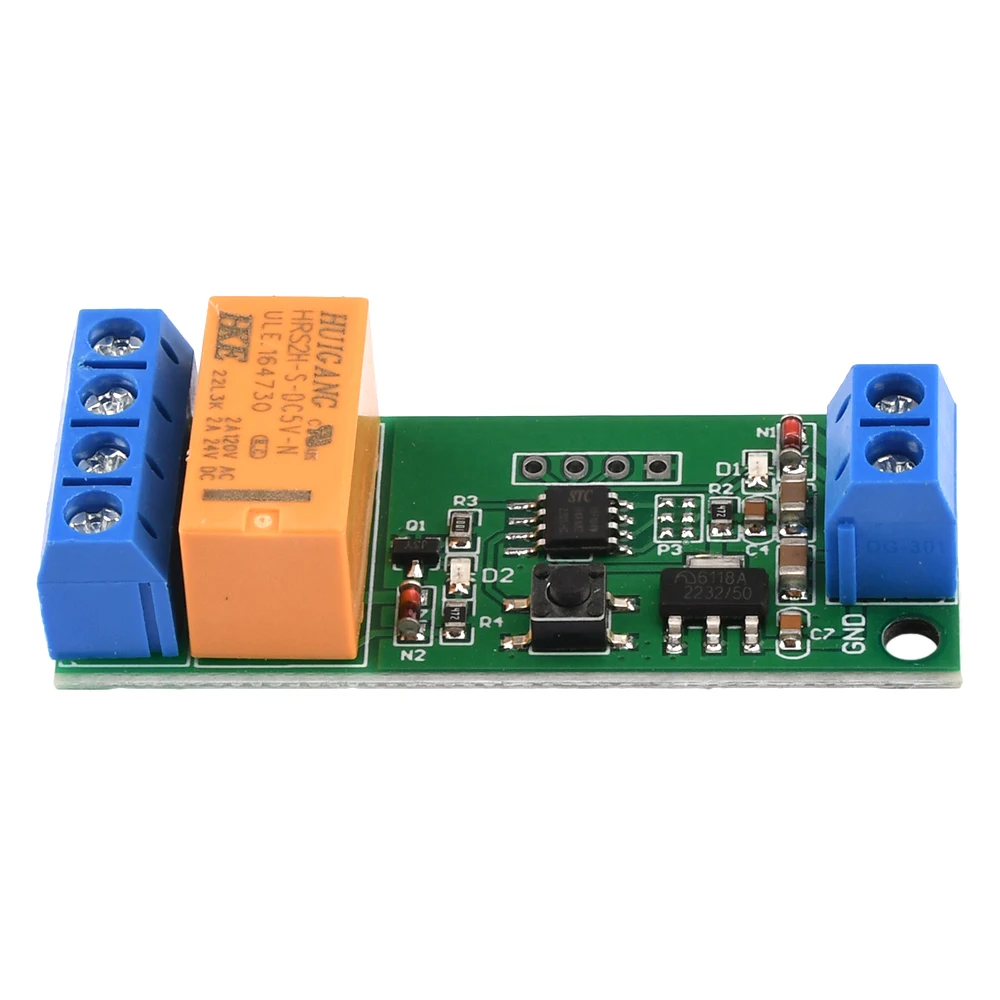

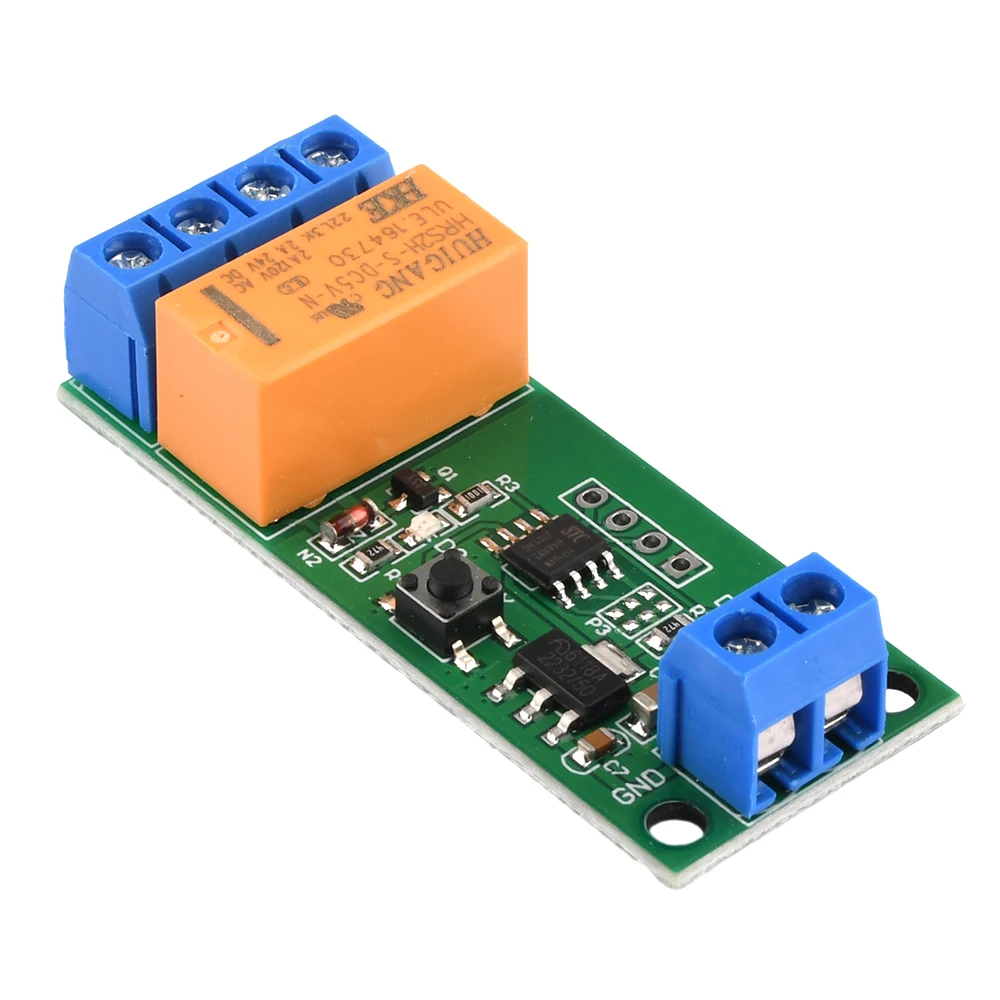

1. The use of high-quality materials is guaranteed

2. Stable performance and wide voltage range

3. Easy to use, easy to understand wiring

4. Exquisite and compact appearance

5. Wide range of applications, suitable for various industrial occasions

Product parameters:

Working voltage: DC 5-13V

Working current:

5V Forward rotation: 4ma; Reverse rotation: 36ma

12V Forward rotation: 6ma; Reverse rotation: 44ma

Load voltage: DC1-48V or AC 85-265V

Load current: maximum 2A

The maximum forward rotation time: 5000 seconds (40000 seconds can be reached by shorting the pad), step by 0.1 seconds

Maximum reversal time: 5000 seconds (up to 40000 seconds by shorting the pad), step by 0.1 seconds

Instructions:

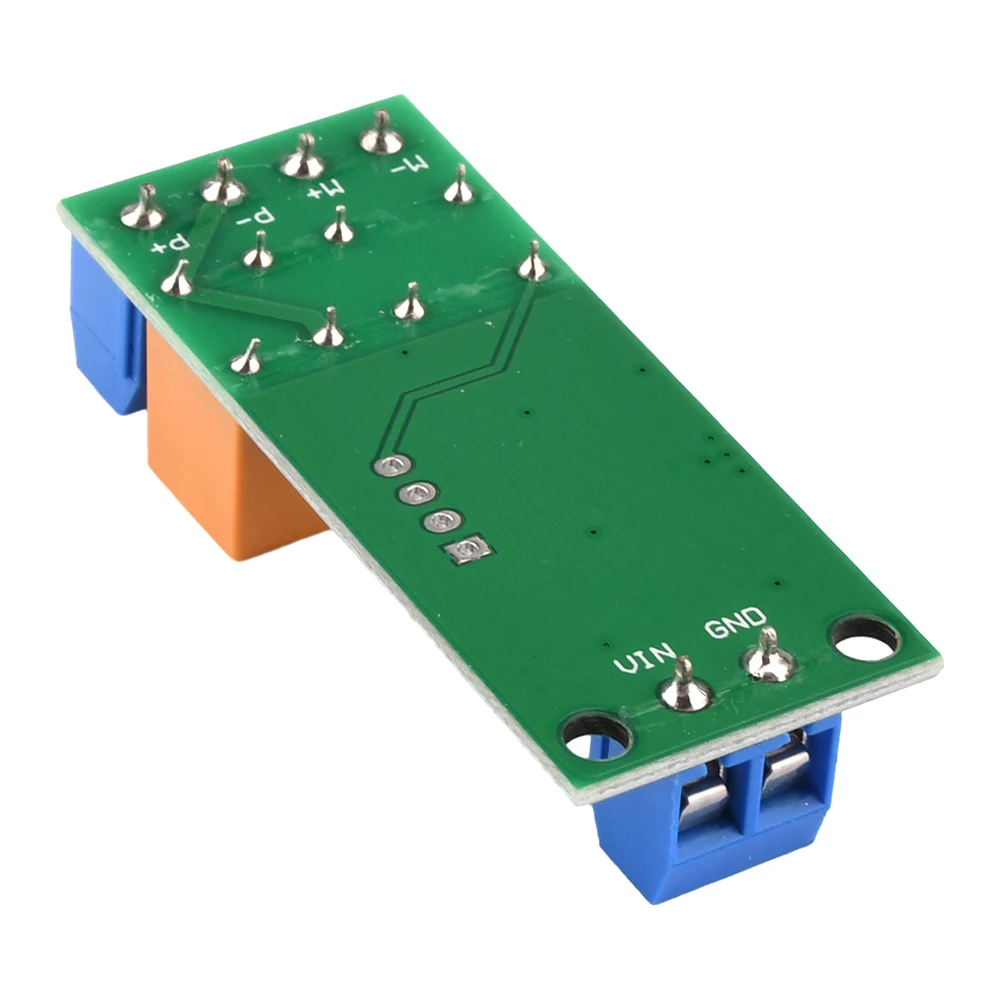

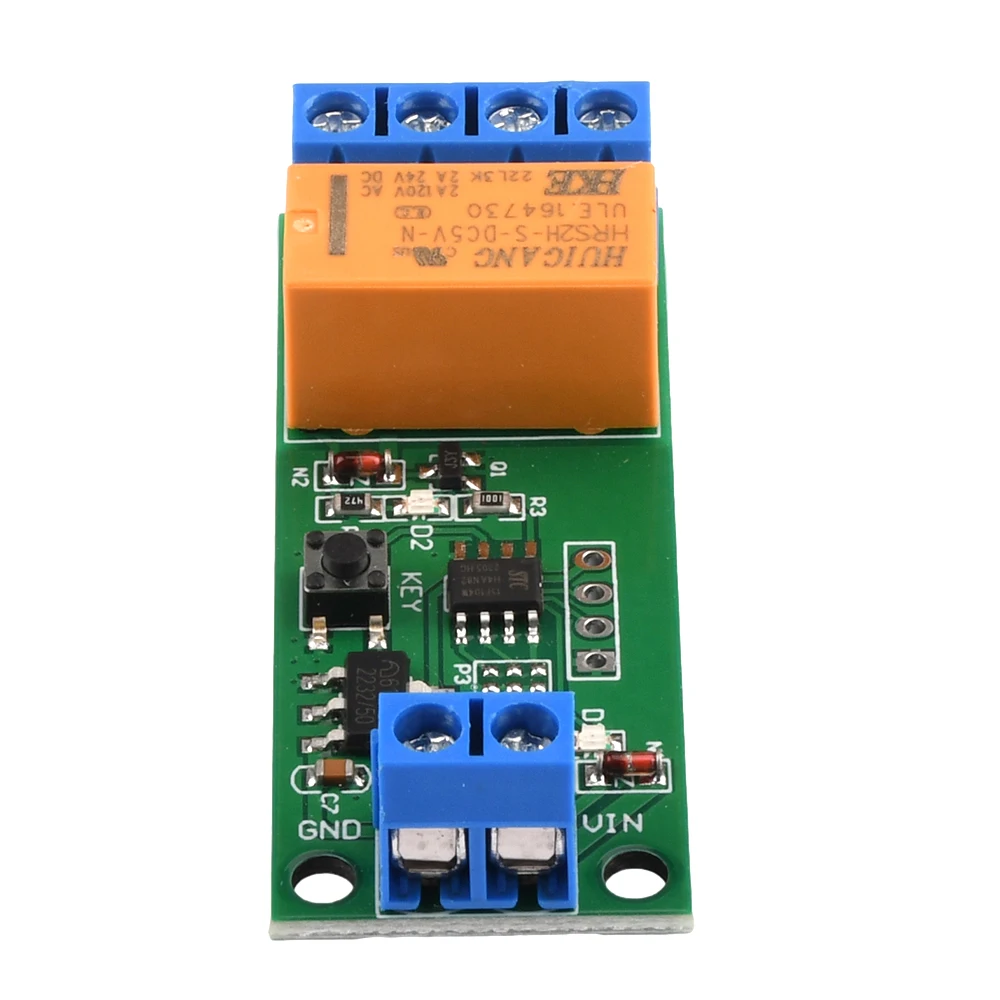

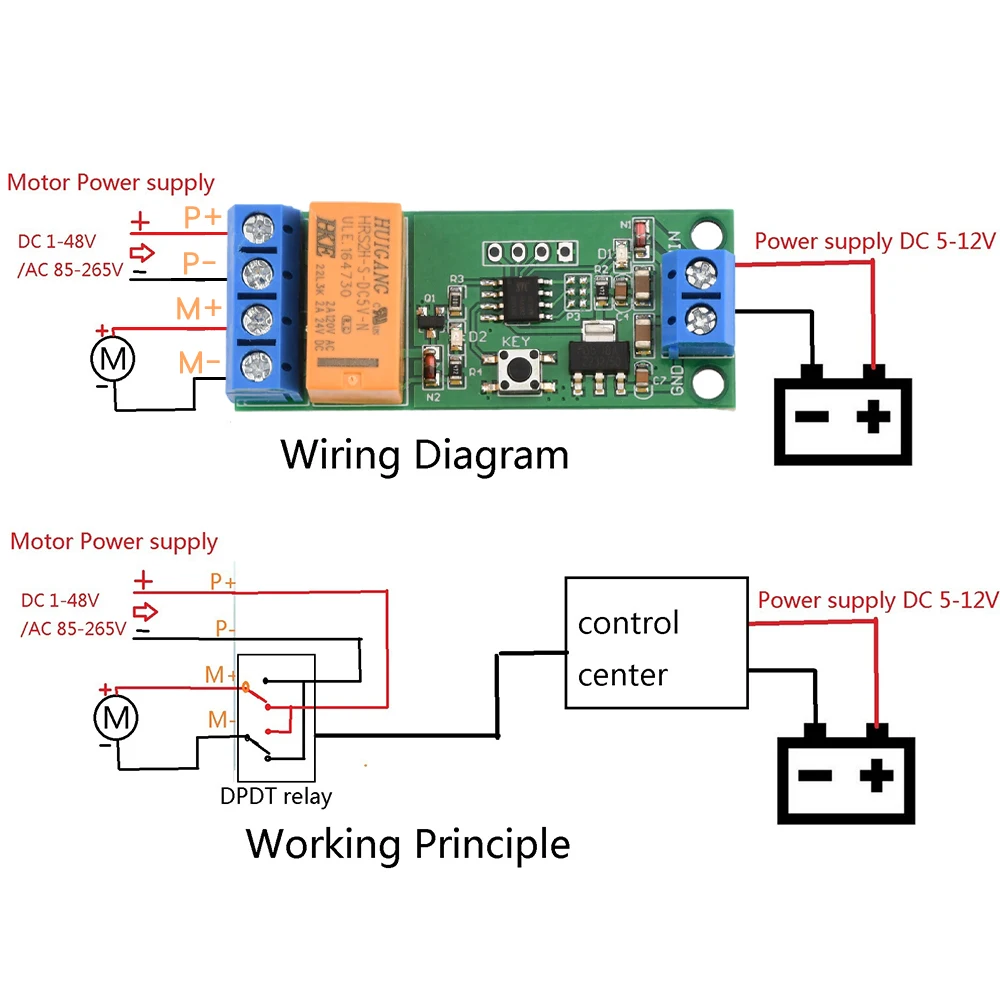

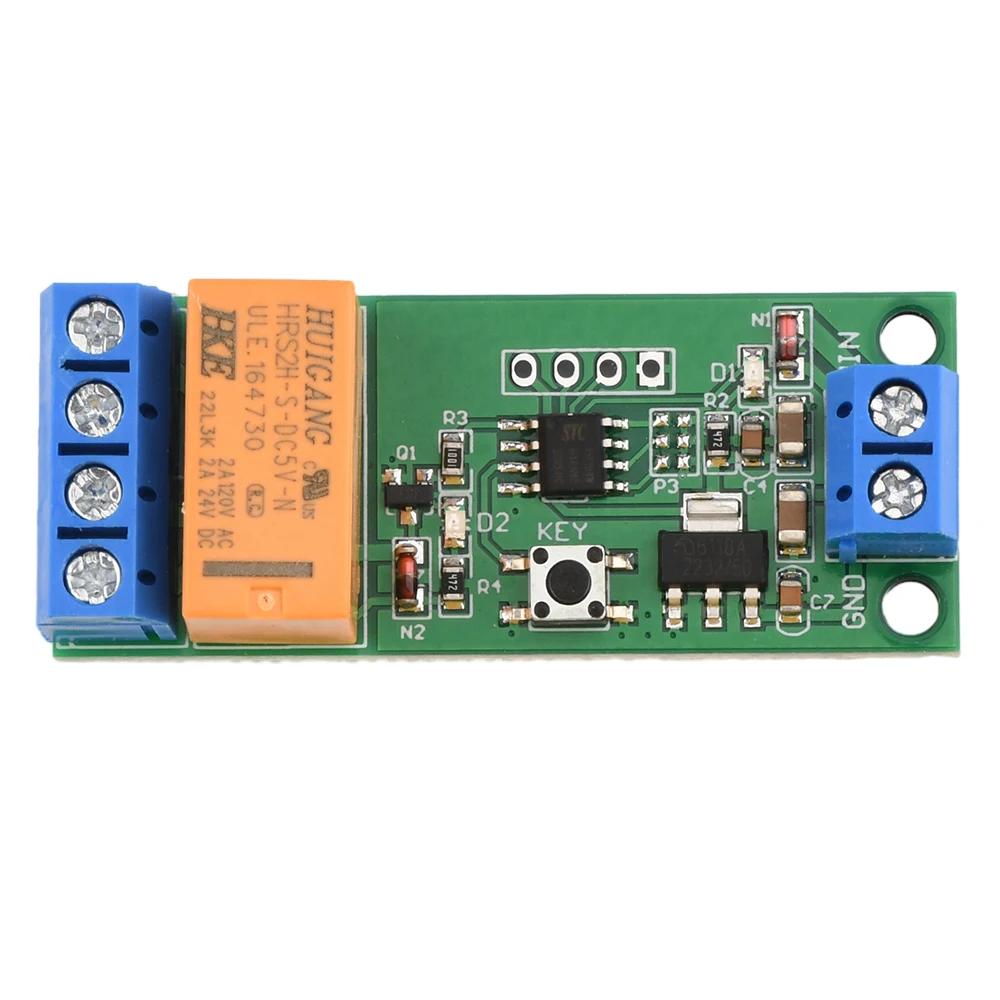

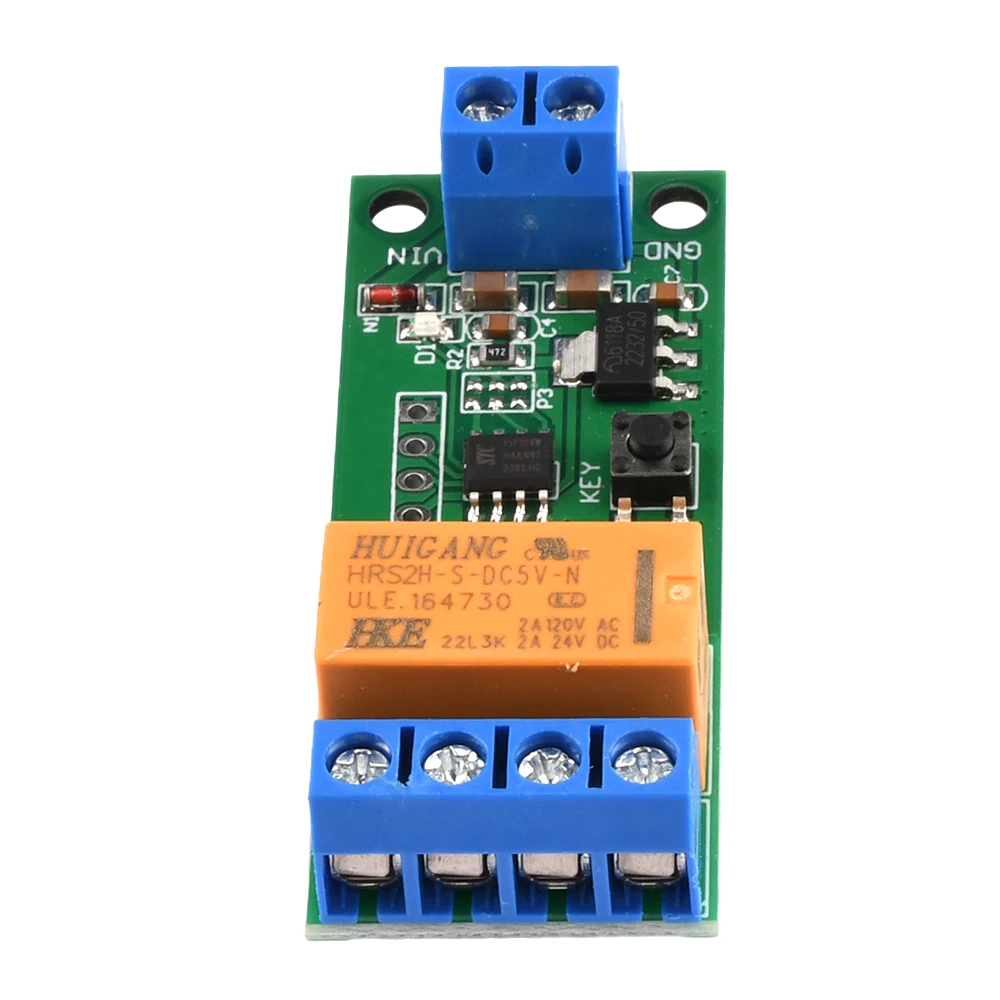

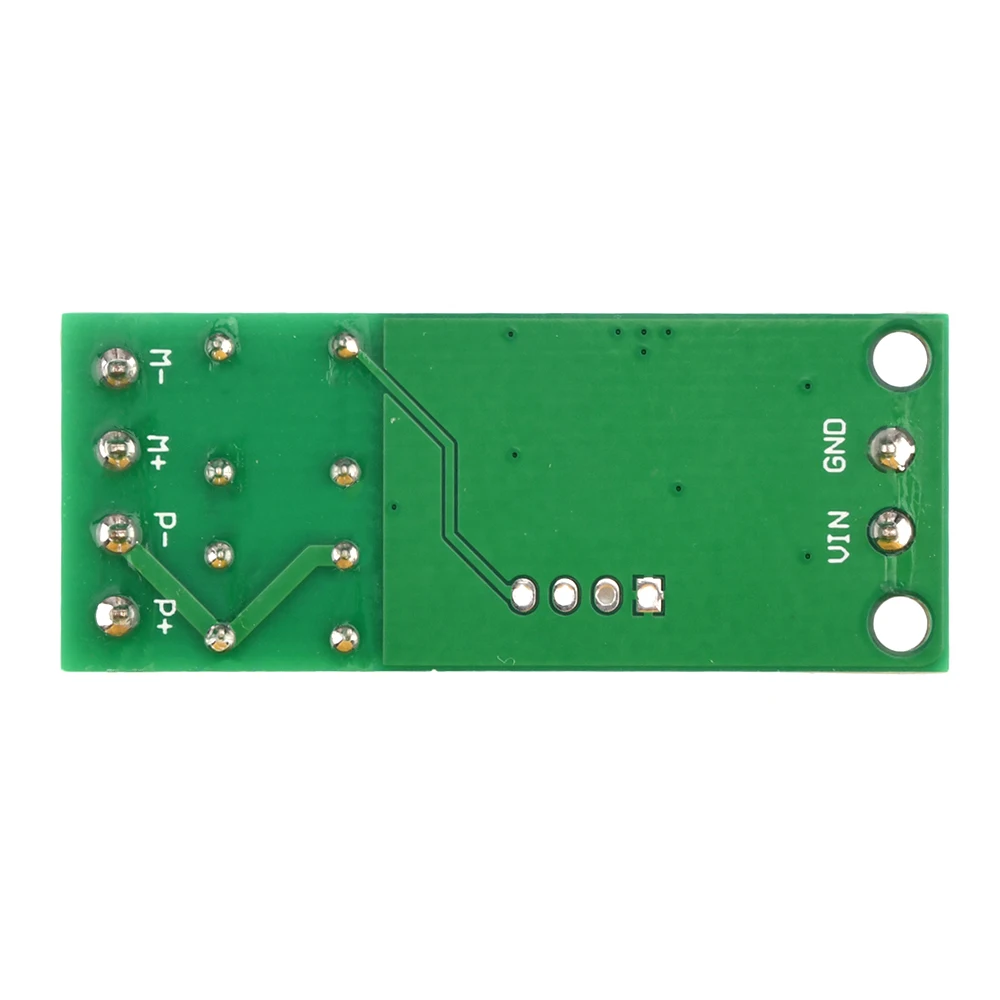

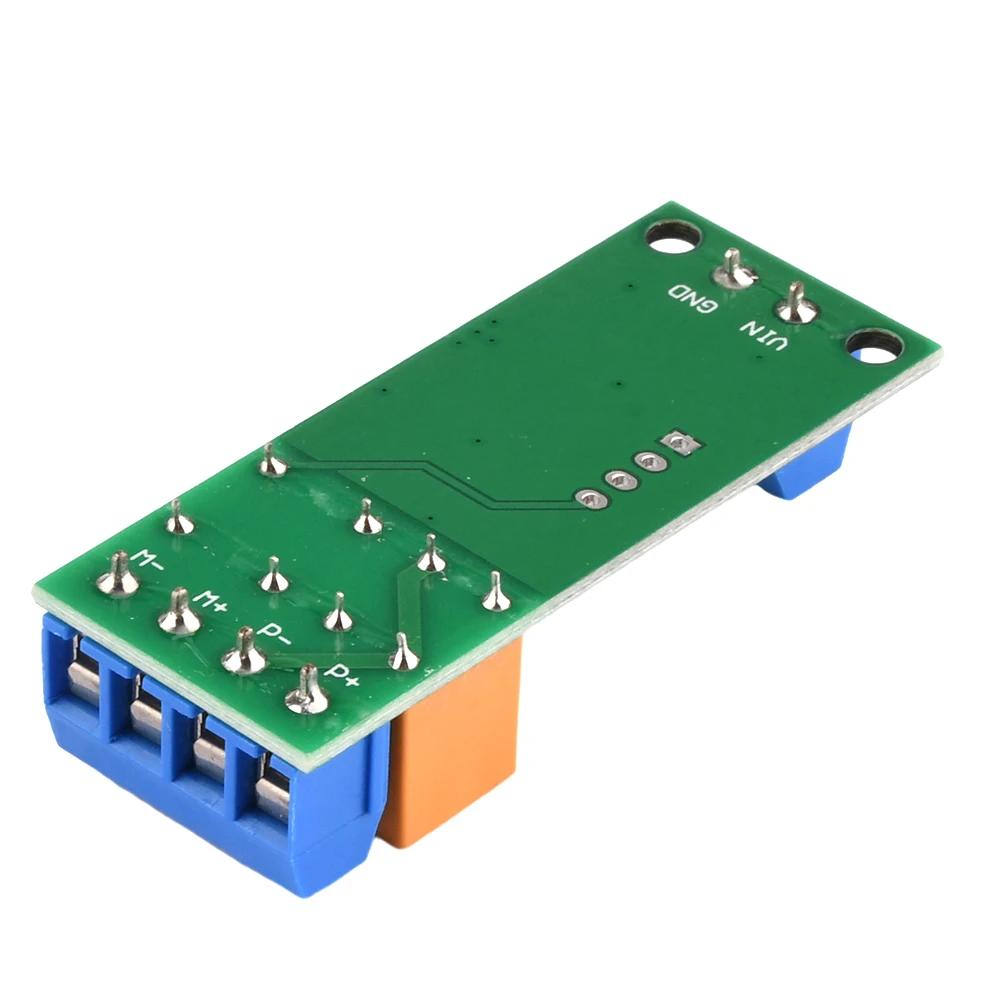

VIN is connected to the positive pole of the working power supply, GND is connected to the negative pole of the working power supply; P+ is connected to the positive pole of the motor power supply, and P- is connected to the negative pole of the motor power supply. M+ is connected to the motor input terminal 1 (the motor does not distinguish between positive and negative poles), and M- is connected to the motor input terminal 2. After power on, D1 flashes 3 times and then goes off, D2 goes off, M+ outputs positive, M- outputs negative, and the motor rotates forward; after a delay of T1, D2 lights up, M+ outputs negative, M- outputs positive, and the motor reverses; delay After T2 time, D2 goes out, M+ outputs positive, M- outputs negative, the motor rotates forward, and so on.

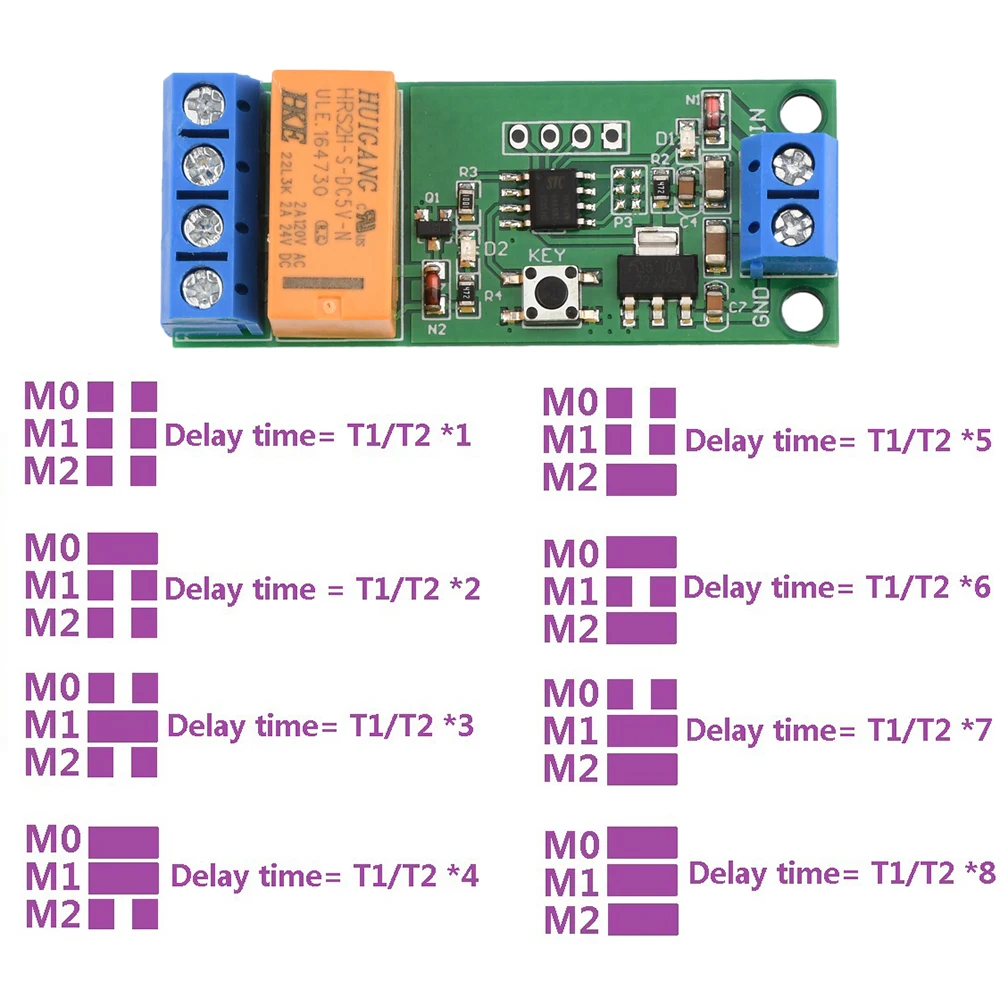

T1: Indicates the forward rotation delay time, the default is adjustable from 0.1 to 5000 seconds (stepping 0.1 seconds), and the delay can be set to 1-8 times through the pad (up to 40000 seconds)

T2: Indicates the reverse delay time, the default is adjustable from 0.1-5000 seconds (step 0.1 seconds), and the delay can be set to 1-8 times through the pad (up to 40000 seconds)

packing list:

Delay module*1
