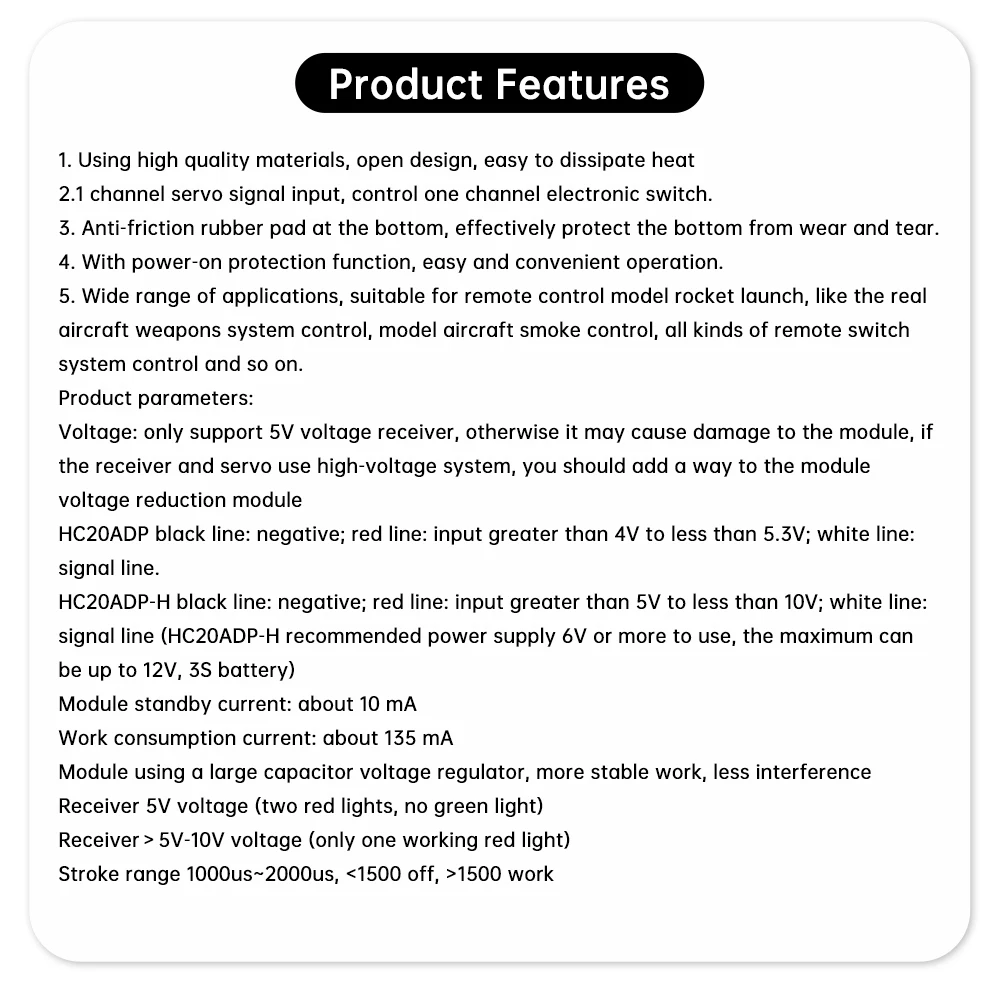

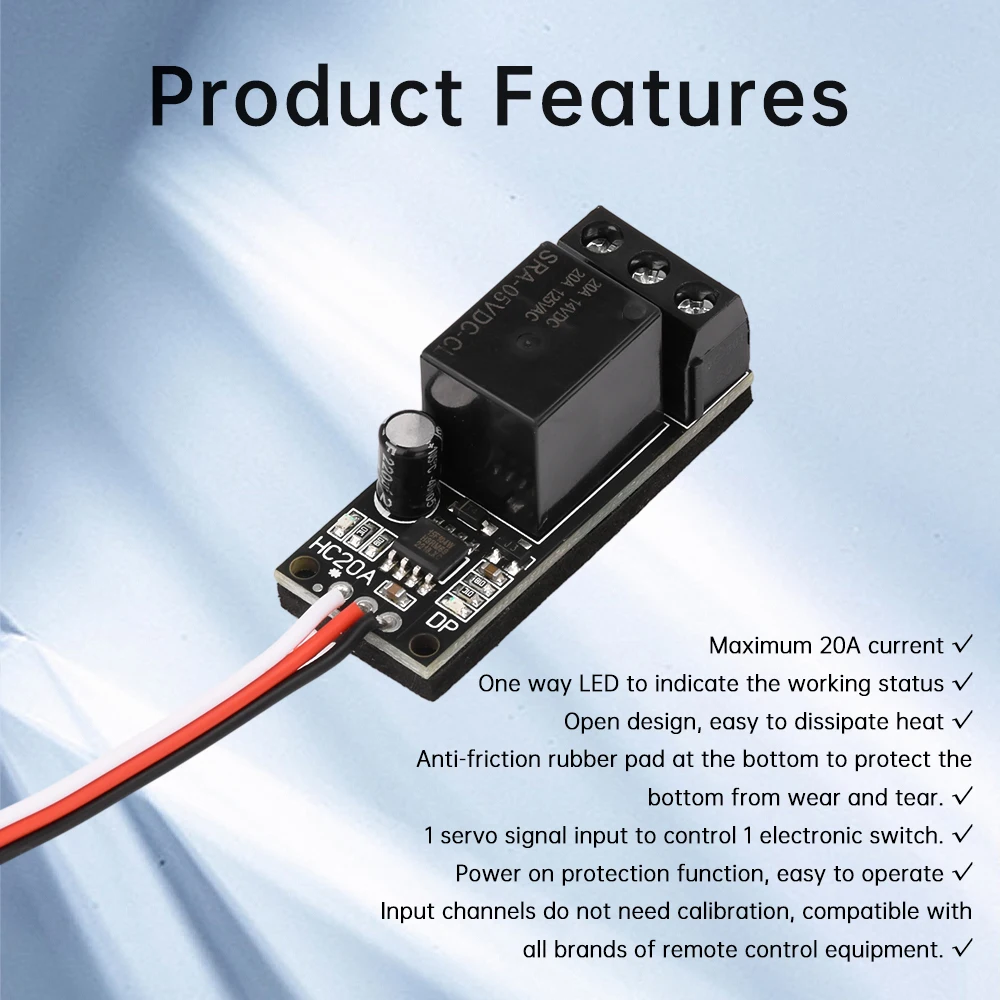

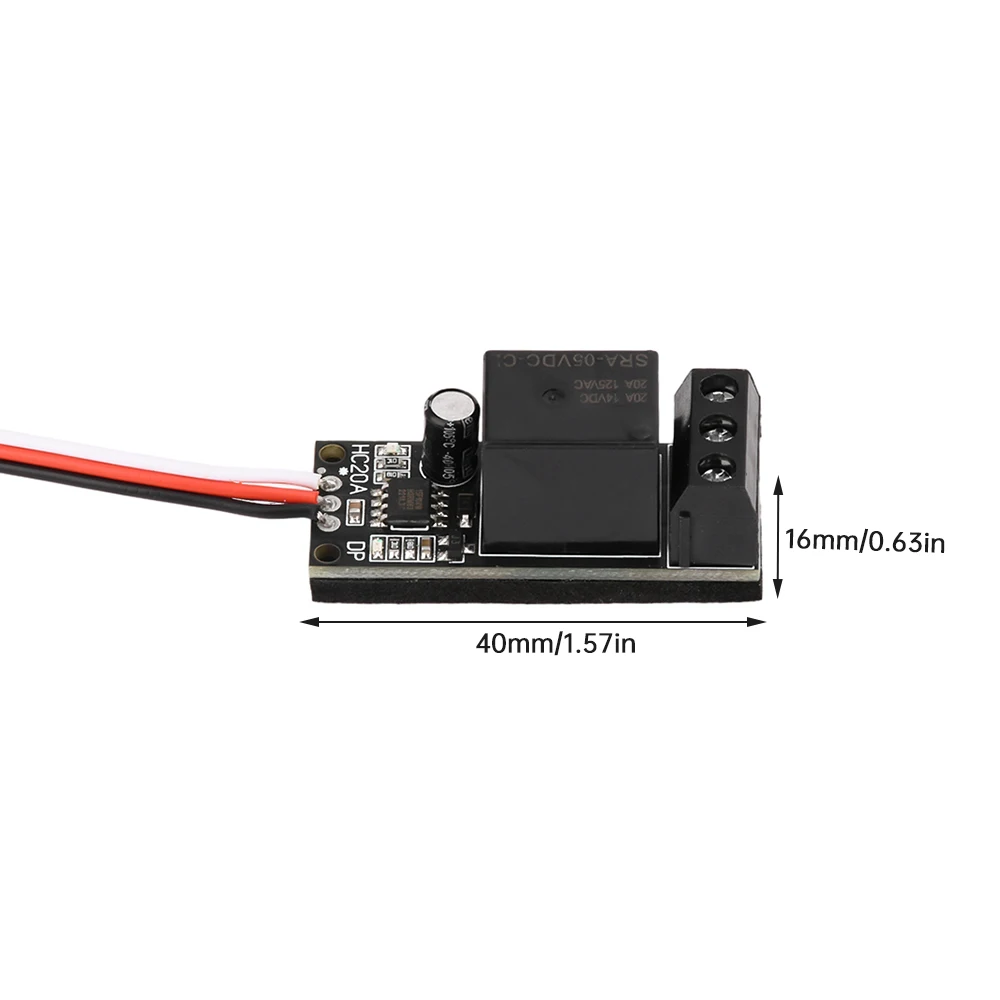

Features:

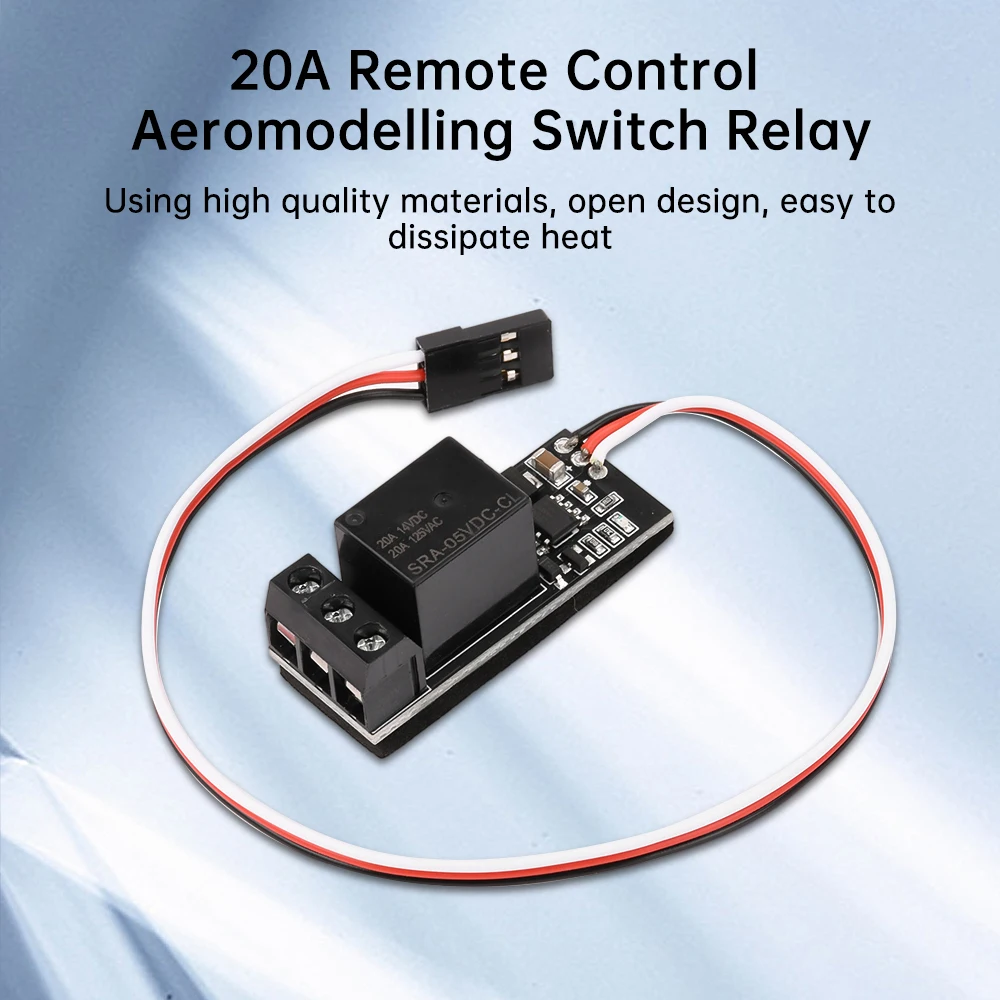

1.Use high quality material, open design, easy to dissipate heat

2.1 way servo signal input, control all the way electronic switch

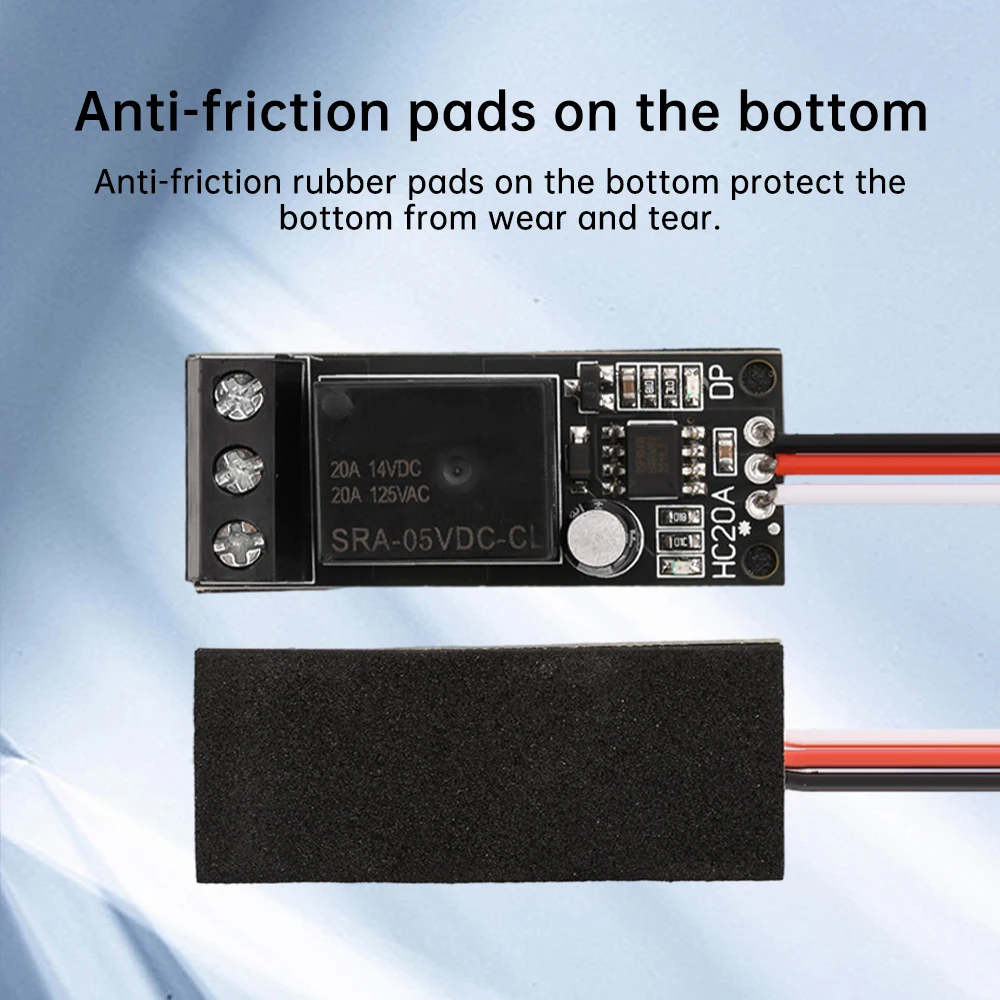

3. Anti-friction rubber pad at the bottom, effectively protect the bottom from wear and tear.

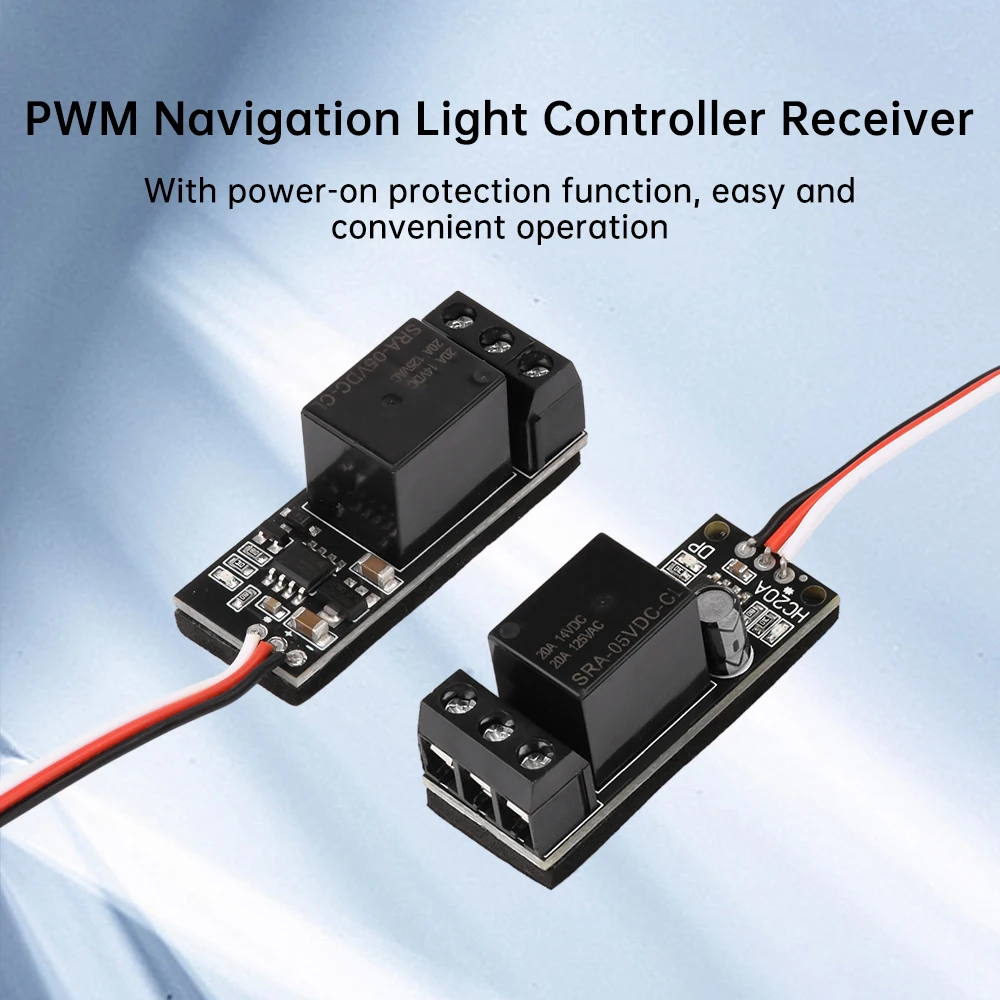

4. With power-on protection function, easy and convenient operation.

5. Wide range of applications, suitable for remote control model rocket launch, like the real aircraft weapons system control, model aircraft smoke control, all kinds of remote switch system control and so on.

Parameter:

Voltage: only support 5V voltage receiver, otherwise it may cause damage to the module, if the receiver and servo use high-voltage system, you should add a way to the module buck module

HC20ADP black line: negative; red line: input greater than 4V to less than 5.3V; white line: signal line

HC20ADP-H black line: negative; red line: input greater than 5V to less than 10V; white line: signal line

(HC20ADP-H recommended power supply 6V or more use, the maximum can be up to 12V, 3S battery)

Module standby current: about 10 mA

Labor consumption current: about 135 mA

Module using a large capacitor voltage regulator, work more stable, less interference

Receiver 5V voltage (two red lights, no green light)

Receiver＞5V-10V voltage (only one working red light)

Travel range 1000us~2000us, <1500 off, >1500 work

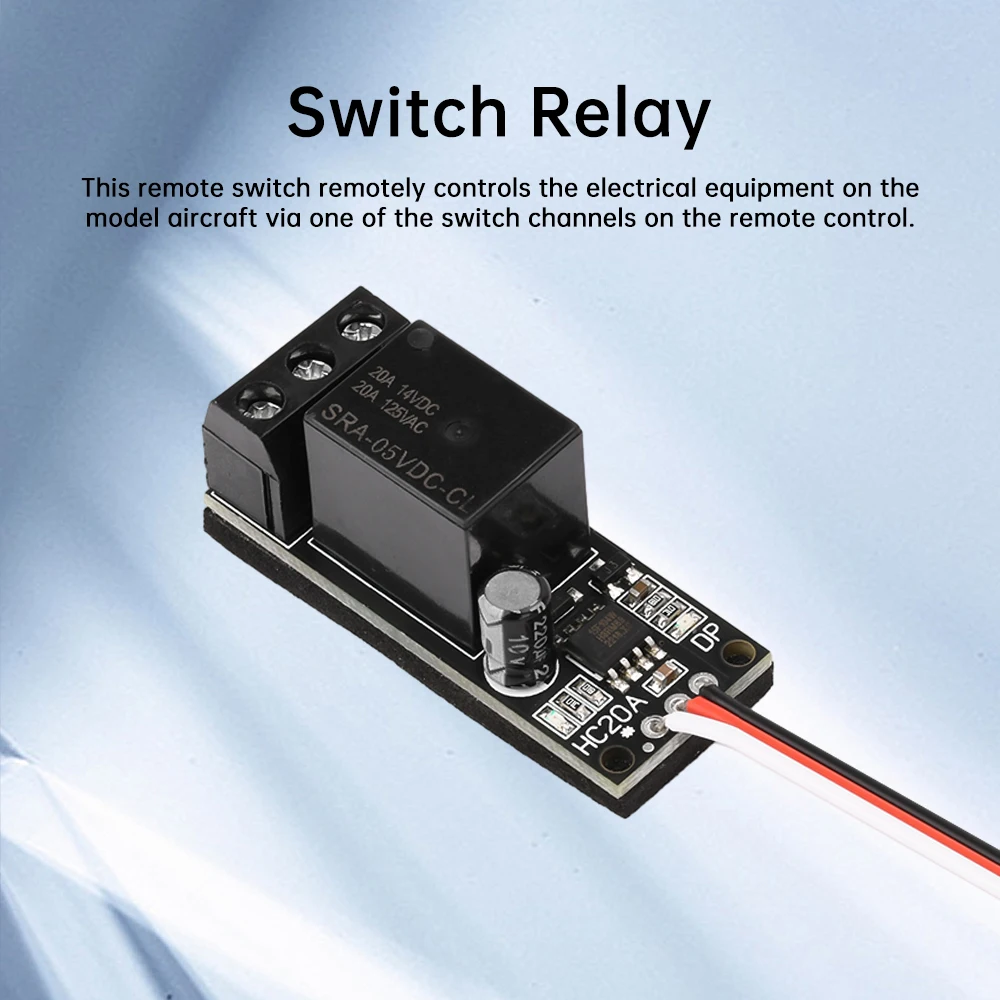

Function Description: This remote switch remotely controls the electrical equipment on the model airplane through one of the switch channels on the remote control, and the 1-channel LED dynamically demonstrates the current switching status in real time, so it can be quickly started without the need for an operation manual.

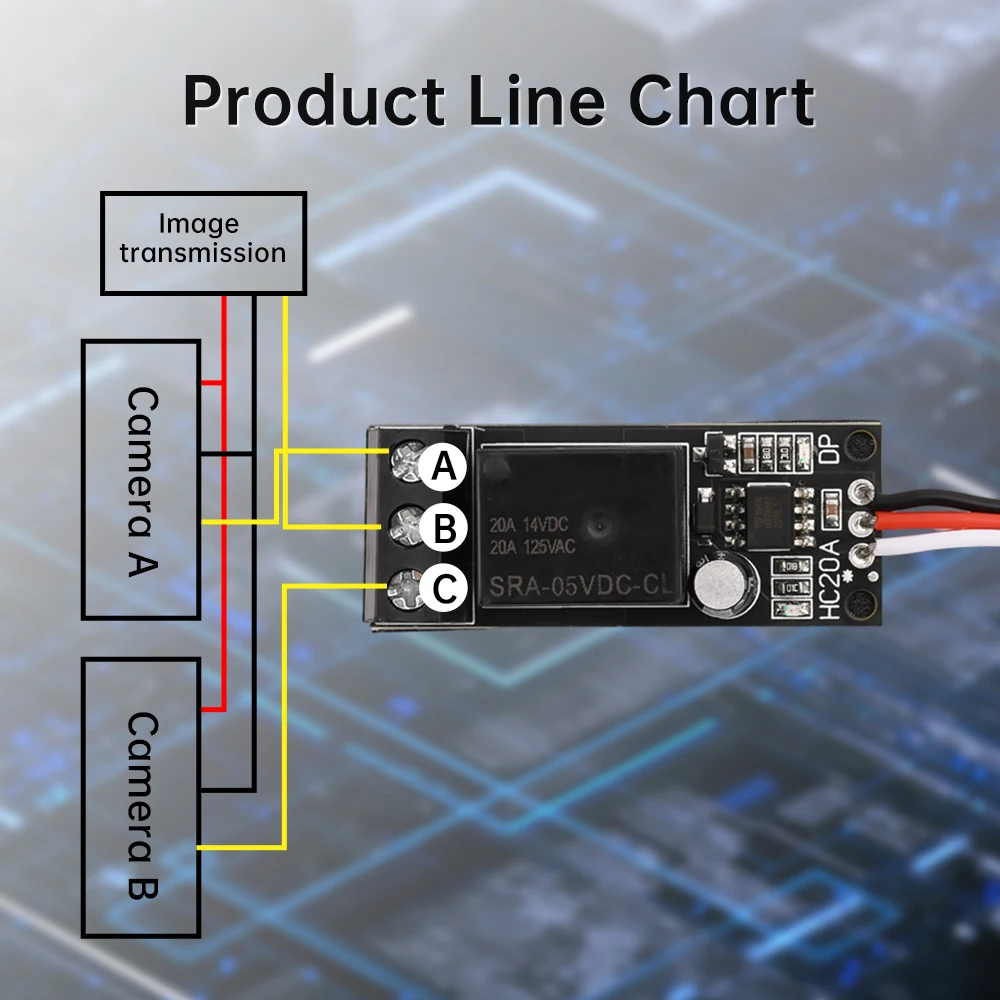

Typical applications:

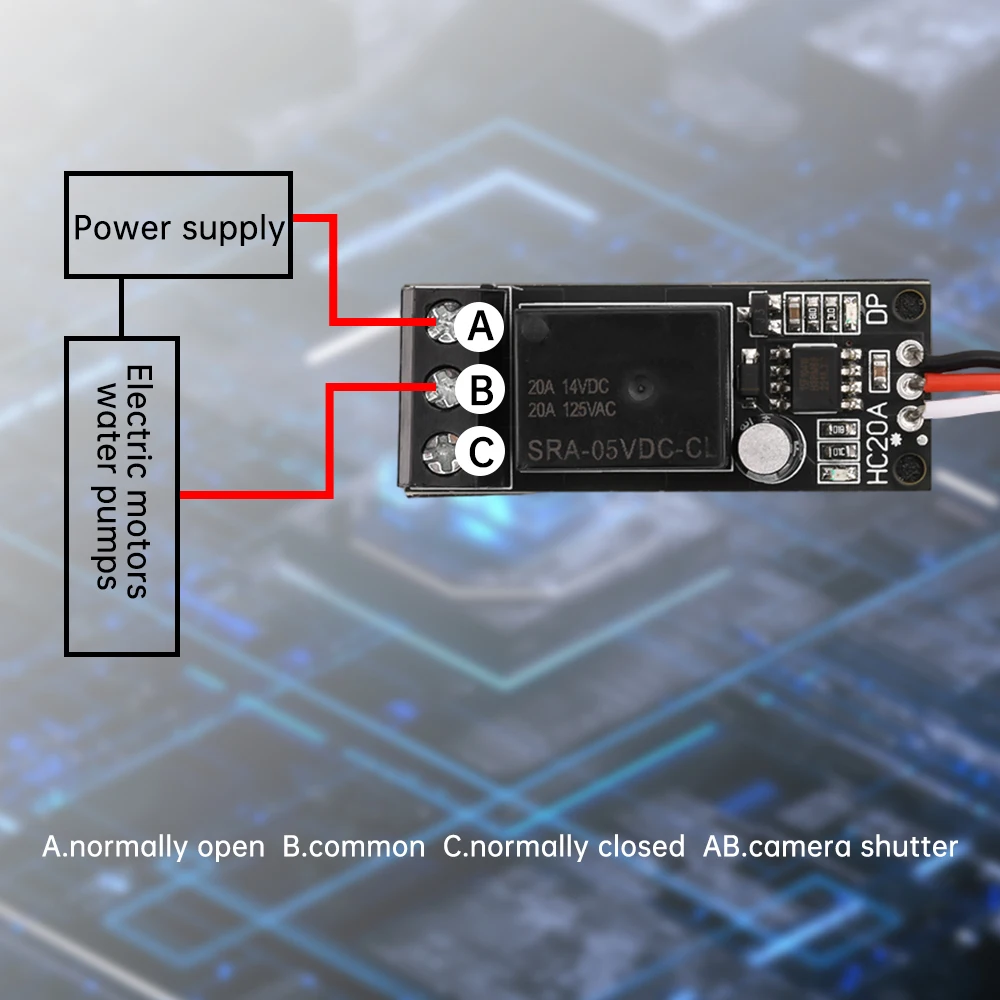

1.Connection Plug the signal input cable into a free receiver channel that corresponds to one of the switches on the remote control. When connected to the receiver, the power indicator is lit. The working indicator lights up when the switch channel is open and the opposite is closed.

2. Working Mode The red LED indicates the power indicator. The green LED indicates the relay working status.

3.Trigger the switch (OFF->ON) on the remote control, the green LED lights up and the relay starts to work.

Package include:

Model airplane switch*1
