펌웨어 버전 VESC가 포함 된 FSESC6.7 Benjamin VESC TOOL과 호환되며 모델, 다축 항공기, 전기 자동차, 전기 스케이트 보드, 골프 카트, 스마트 카, 로봇, 간단한 산업 위치 제어.

Spec

- Hardware: V 6.6

- Firmware: Latest firmware version

- Voltage: 8V - 60V (Safe for 3S to 12S LiPo)

- Voltage spikes may not exceed 60V

- Current: Continuous 60A, Instantaneous current 150A. Values depend on the temperature and air circulation around the   device

- 5V 1.5A output for external electronics

- 3.3V 1A output for external electronics

- Modes: DC, BLDC, FOC (sinusoidal)

- Supported sensors: ABI, HALL, AS5047

- include Anti-spark switch(Reminds : the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.)

- include Heatsink

-Eprm:150000

- Motor wire:12AWG

The shipping package contains:

1*FSECS6.6 + Heatsink

1* Micro USB

1* FSESC Sensor Wire

1* PPM cable

1*Manual

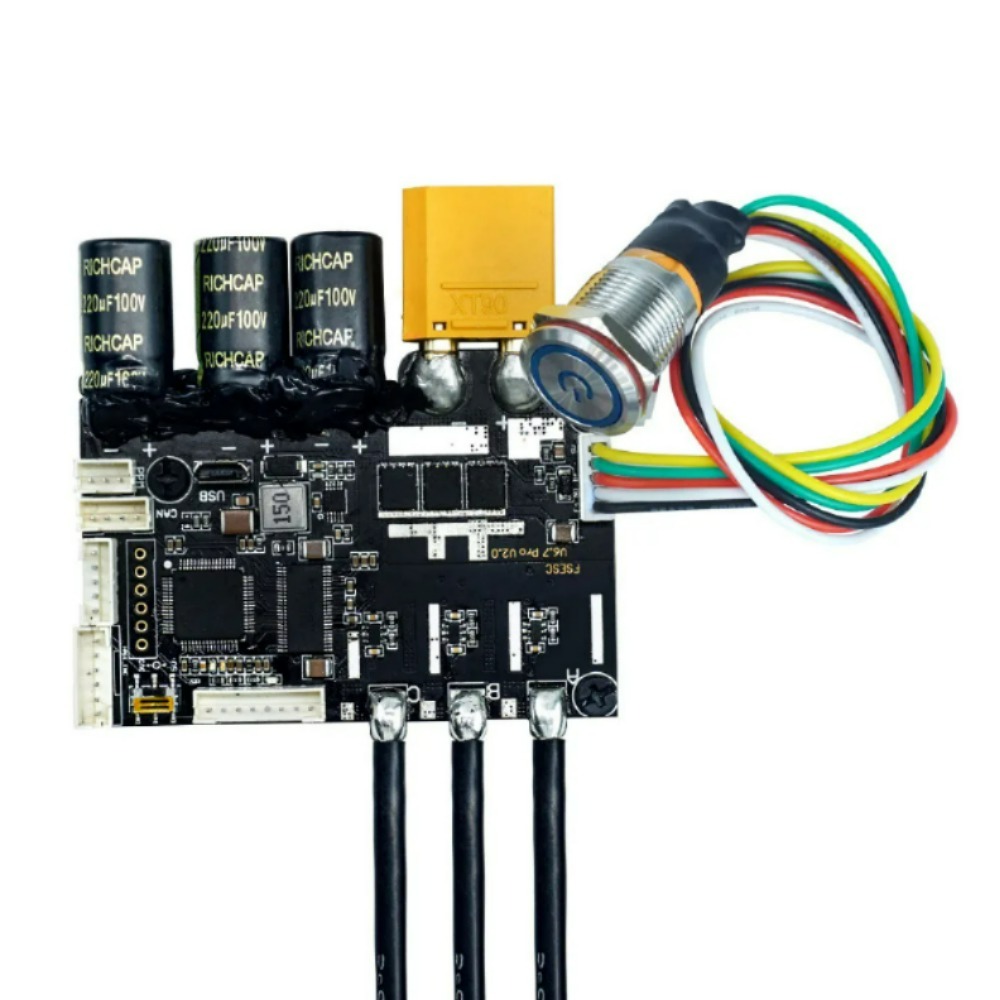

FSESC6.6 with firmware version VESC_default_no_hw_limits, compatible with Benjamin VESC TOOL, can be used for models, multi-axis aircraft, electric vehicles, electric skateboards, golf carts, smart cars, robots, and simple industrial position control.

Spec

- Hardware: V 6.6

- Firmware: Latest firmware version

- Voltage: 8V - 60V (Safe for 3S to 12S LiPo)

- Voltage spikes may not exceed 60V

- Current: Continuous 60A, Instantaneous current 150A. Values depend on the temperature and air circulation around the device

- 5V 1.5A output for external electronics

- 3.3V 1A output for external electronics

- Modes: DC, BLDC, FOC (sinusoidal)

- Supported sensors: ABI, HALL, AS5047

- include Anti-spark switch

- include Heatsink

-Erpm:150000

- Motor wire:12AWG

The shipping package contains:

1*FSECS6.6 + Heatsink

1* Micro USB

1* VESC Sensor Wire

1* PPM cable

1*Manual
