1. 제품명

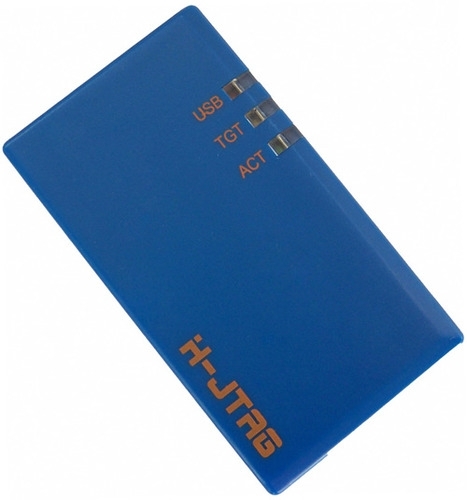

H-JTAG USB Pro



2. 제품소개
H-JTAG USB 제품은 ARM Core(S3C2440, S3C6410, XScale, Cortex-M3)등을 위한 디버깅 및 플래시
프로그램이 가능한 USB JTAG 에뮬레이터 제품 입니다. H-JTAG 의 사용법 및 성능은
MULTI-ICE 제품과 유사하며 SDT2.51, ADS1.2, KEIL RVDS, MDK and IAR(EWARM 5.11 이상) 등과 같은
대부분의 인기 있는 개발 환경에서 ARM7/ARM9/ARM11/Cortex-M3 코어의 디버깅 및 플래시
프로그램을 할 수 있습니다



3. 제품특징
(1) Support RDI 1.5.0 and 1.5.1
(2) Support ARM7, ARM9, ARM11, XSCALE and CORTEX-M3
(3) Support both THUMB and ARM instructions
(4) Support both Little-Endian, Big-Endian
(5) Support SEMIHOSTING
(6) Support 2000/XP/VISTA/Windows 7
(7) USB2.0 고속 인터페이스 및 USB전원 공급
(8) JTAG Clock : 10K ~ 15MHz
(9) JTAG 읽기 및 쓰기속도
    ARM7 : Read - 750KB/sec, Write - 550KB/sec
    ARM9 : Read - 750KB/sec, Write - 520KB/sec
    CORTEX-M3 : Read - 420KB/sec, Write - 340KB/sec

H-JTAG Edition		Light	Standard	Professional
Speed	Download	LPT x 5	750 KB/S	750 KB/S
	Upload		550 KB/S	550 KB/S
ARM Core	ARM-7	YES	YES	YES
	ARM-9	YES	YES	YES
	CORTEX-M3	YES	YES	YES
	XSCALE	NO	YES	YES
	ARM11	NO	NO	YES
	PXA3XX	NO	NO	YES
Support IDE		ADS1.2, RVDS, KEIL/MDK, IAR
Support OS		WIN2000 / XP / VISTA / WINDOWS 7

4. 지원디바이스

Samsung (ARM7/ARM9/Cortex-M3 Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B, S3C6400, S3C641X

XScale (ARM7/ARM9/ARM11 Family)
PXA210, PXA255, PXA270, PXA3XX

STMicroelectronics (ARM7/ARM9/Cortex-M3 Family)
STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2,
STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1,
STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1,
STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0,
STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FM32, STR910FW32, STR911FM42,
STR911FM44, STR912FW42, STR912FW44, STR10XX, STM32F10xx

Analog Devices (ARM7/ARM9/Cortex-M3 Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022,
ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7032, ADuC7033, ADuC7128, ADuC7129

Atmel (ARM7/ARM9/Cortex-M3 Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162,
AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300,
AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1,
AT91SAM7A2, AT91SAM7A3, AT91SAM7S128, AT91SAM7S256, AT91SAM7S32, AT91SAM7S64,
AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7XC128,
AT91SAM7XC256, AT91SAM9260, AT91SAM9261

Freescale Semiconductor (ARM7/ARM9/Cortex-M3 Family)
MAC7101, MAC7104, MAC7105, MAC7106,
MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126,
MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144

Luminary Micro (ARM7/ARM9/Cortex-M3 Family)
LM3S101, LM3S102, LM3S301, LM3S310, LM3S315,
LM3S316, LM3S328, LM3S601, LM3S610, LM3S611, LM3S612, LM3S613, LM3S615, LM3S628, LM3S801,
LM3S811, LM3S812, LM3S815, LM3S828

NXP (founded by Philips) (ARM7/ARM9/Cortex-M3 Family)
LPC2101, LPC2102, LPC2103, LPC2104,
LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131, LPC2132, LPC2134, LPC2136,
LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210, LPC2212, LPC2214,
LPC2220, LPC2290, LPC2292, LPC2294, LPC2364, LPC2366, LPC2368, LPC2378, LPC2458, LPC2468,
LPC2880, LPC2888, LPC3180

OKI (ARM7/ARM9/Cortex-M3 Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002,ML675003, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML696201, ML69Q6203

Sharp (ARM7/ARM9/Cortex-M3 Family)
LH75400, LH75401, LH75410, LH75411

TI (ARM7/ARM9/Cortex-M3 Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384,
TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768

5. 지원하는 디버그 소프트웨어
(1) IAR( Cortex-M3 코어는 5.11 이상에서 지원)
(2) ADS1.2, KEIL MDK, RVDS 2.0, RVDS 2.2, RVDS 3.0 이상
(3) 그밖의 RDI 인터페이스를 지원하는 모든 디버그 환경

6. 제품 구성





(1) H-JTAG USB 1Ea
(2) USB Cable 1Ea
(3) JTAG 20Pin Cable, JTAG 20Pin 변환 케이블
(4) USB Driver/Software, CD
구성품은 출시 버전에 따라 변동될수 있습니다

7. 디바이스 별 사용화면

NXP LPC2210 + SST39VF1601



AT91SAM9260+SST39VF1601： AT91SAM9260 + SST39VF1601 :
