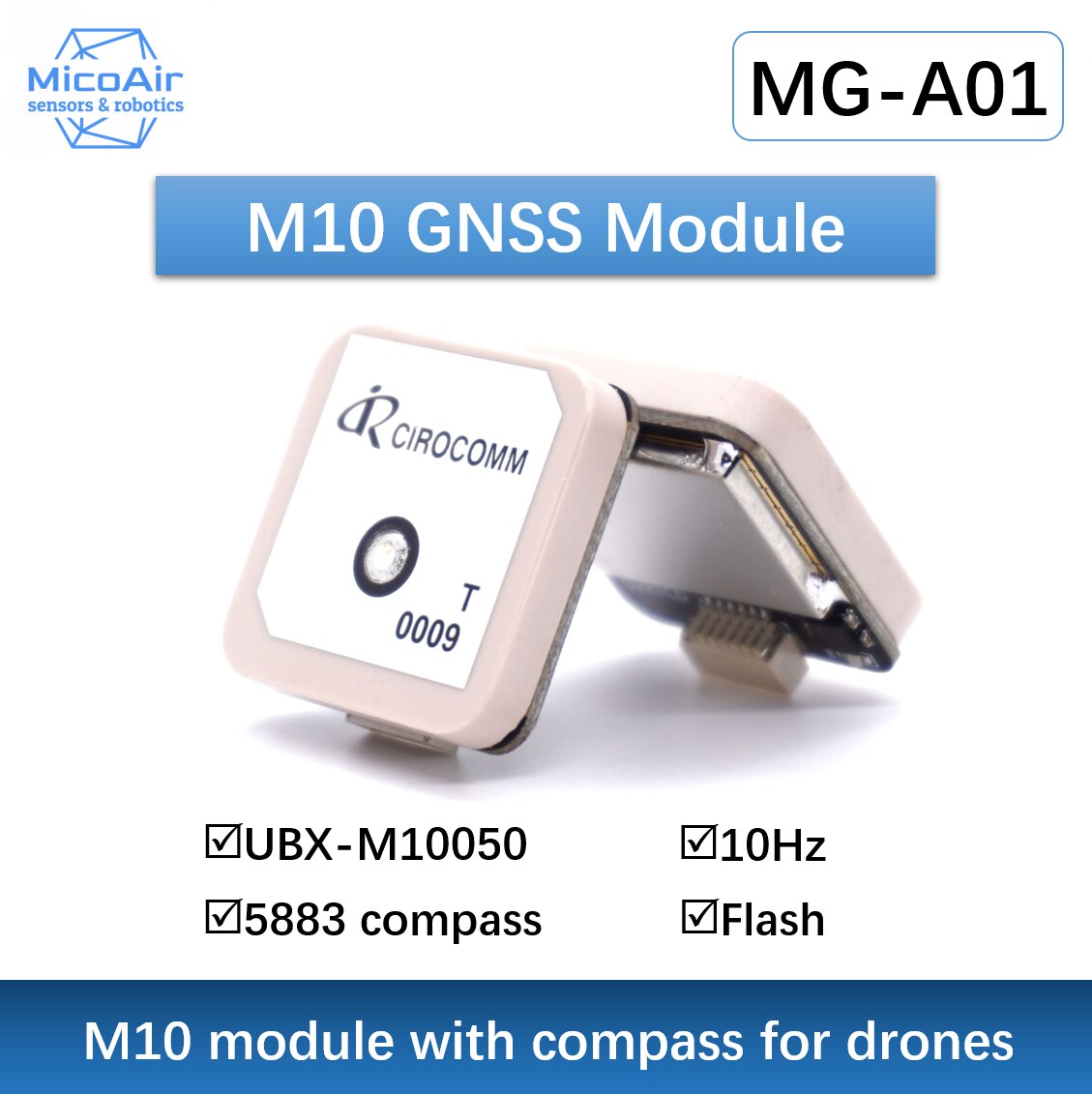

MG-A01 모듈은 u-blox M10050 으로 구동되는 다중 별자리 GNSS 칩을 사용합니다.

MG-A01 supports concurrent reception of GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.

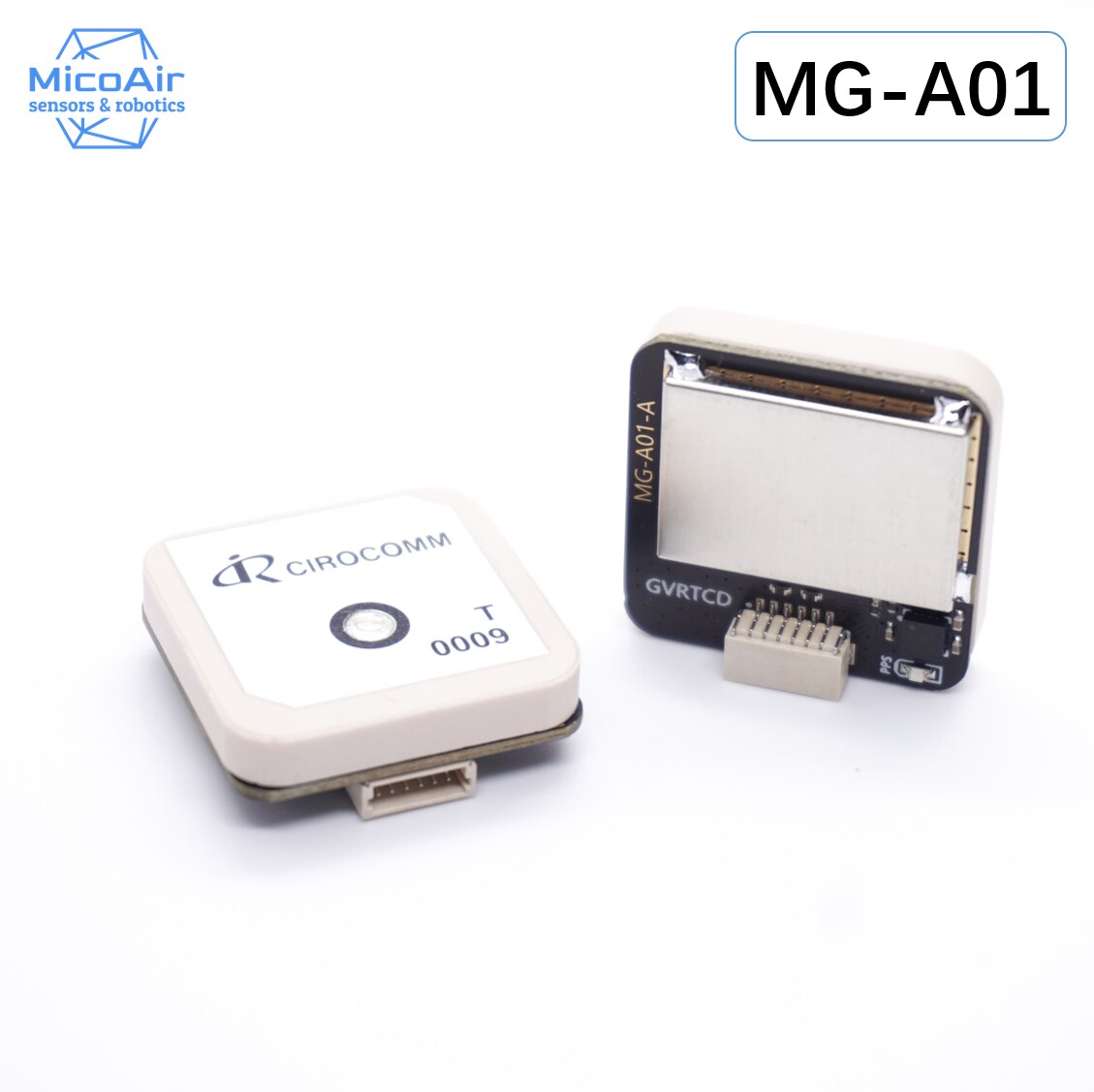

The high-gain 25 x 25 x 4 mm antenna from CIROCOMM provides the best performance for GNSS receiver. The omnidirectional antenna radiation pattern increases flexibility for device installation.

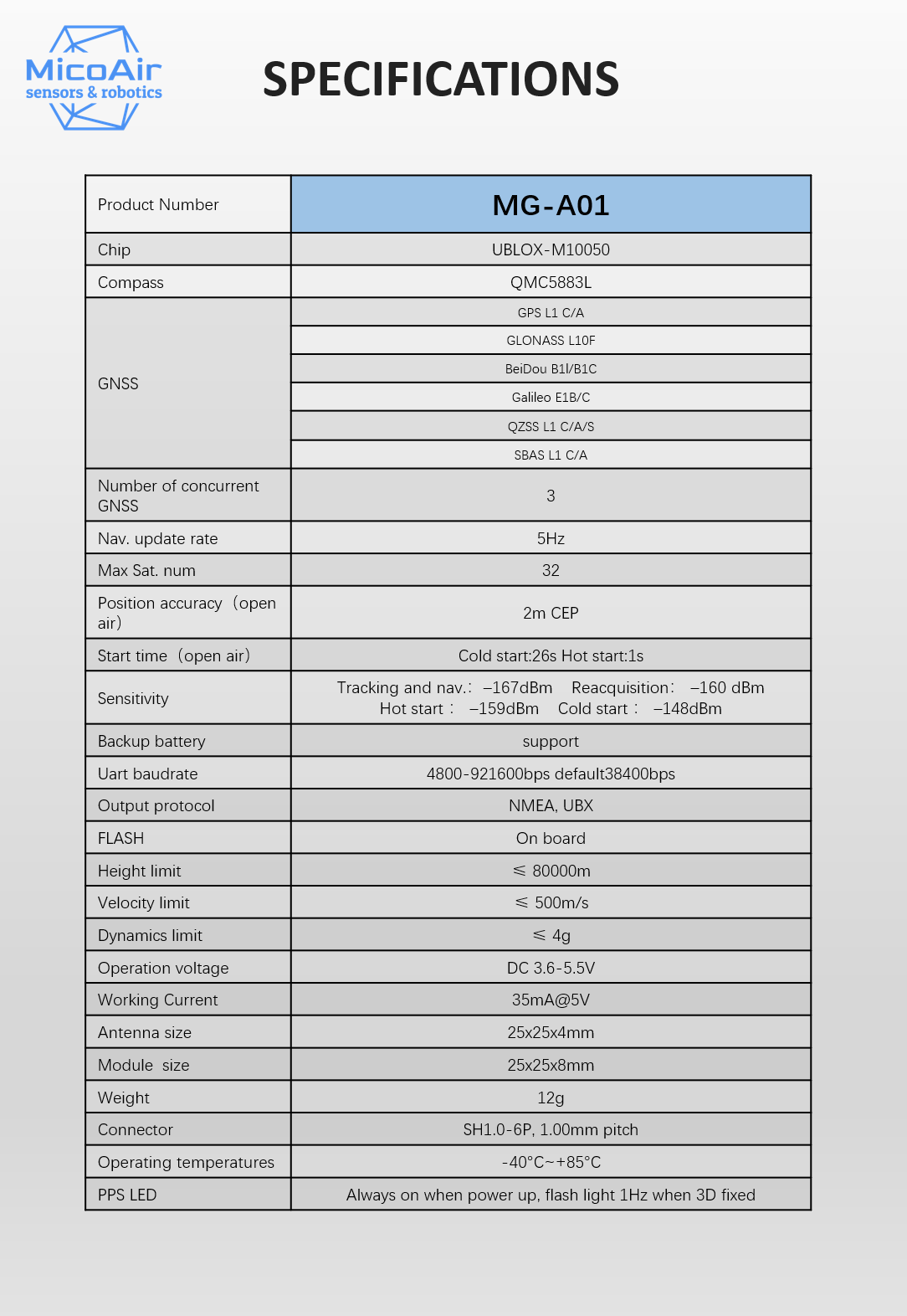

GNSS u-blox M10050 (GPS, GLONASS, Galileo and BeiDou)

Magnetic Compass QMC5883L

Patch antenna 25*25*4mm

Input voltage range: 4~6V (5V pad/pin)

Power consumption: 30mA

UART baudrate: 115200 default

Operating Temperatures: -20~80 °C

UART(TX, RX) interface for M10050

I2C(DA, CL) interface for Compass QMC5883L

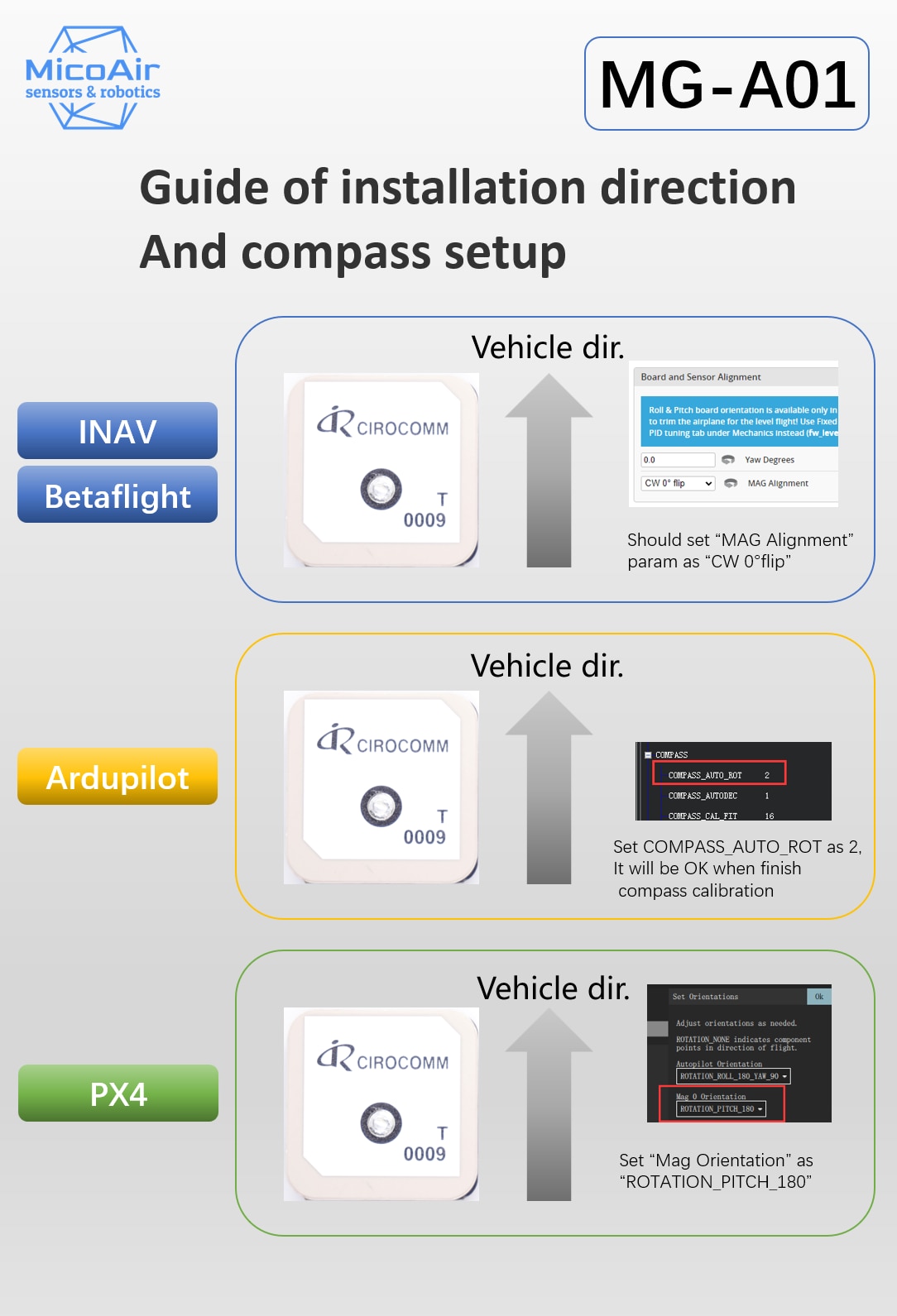

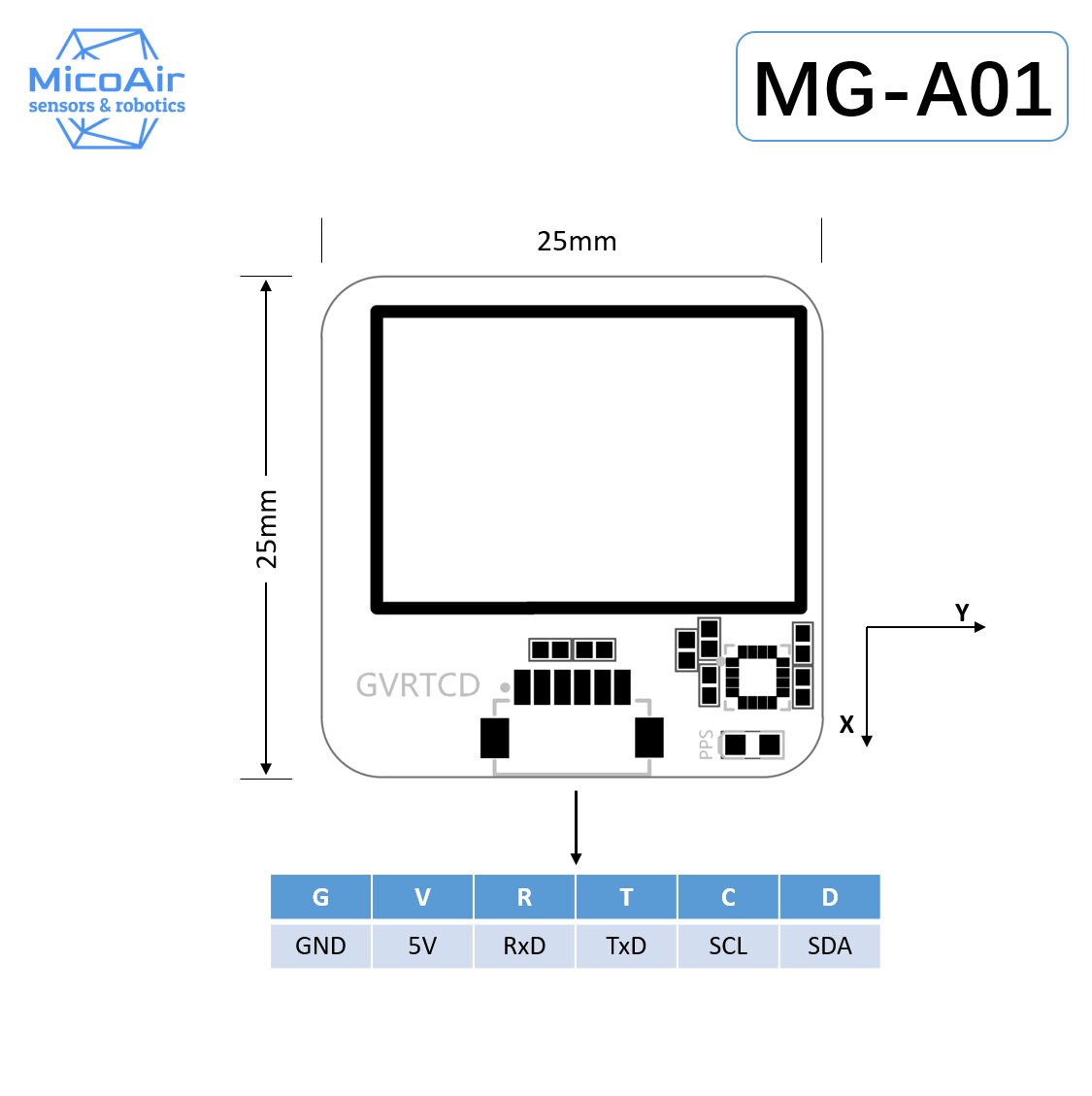

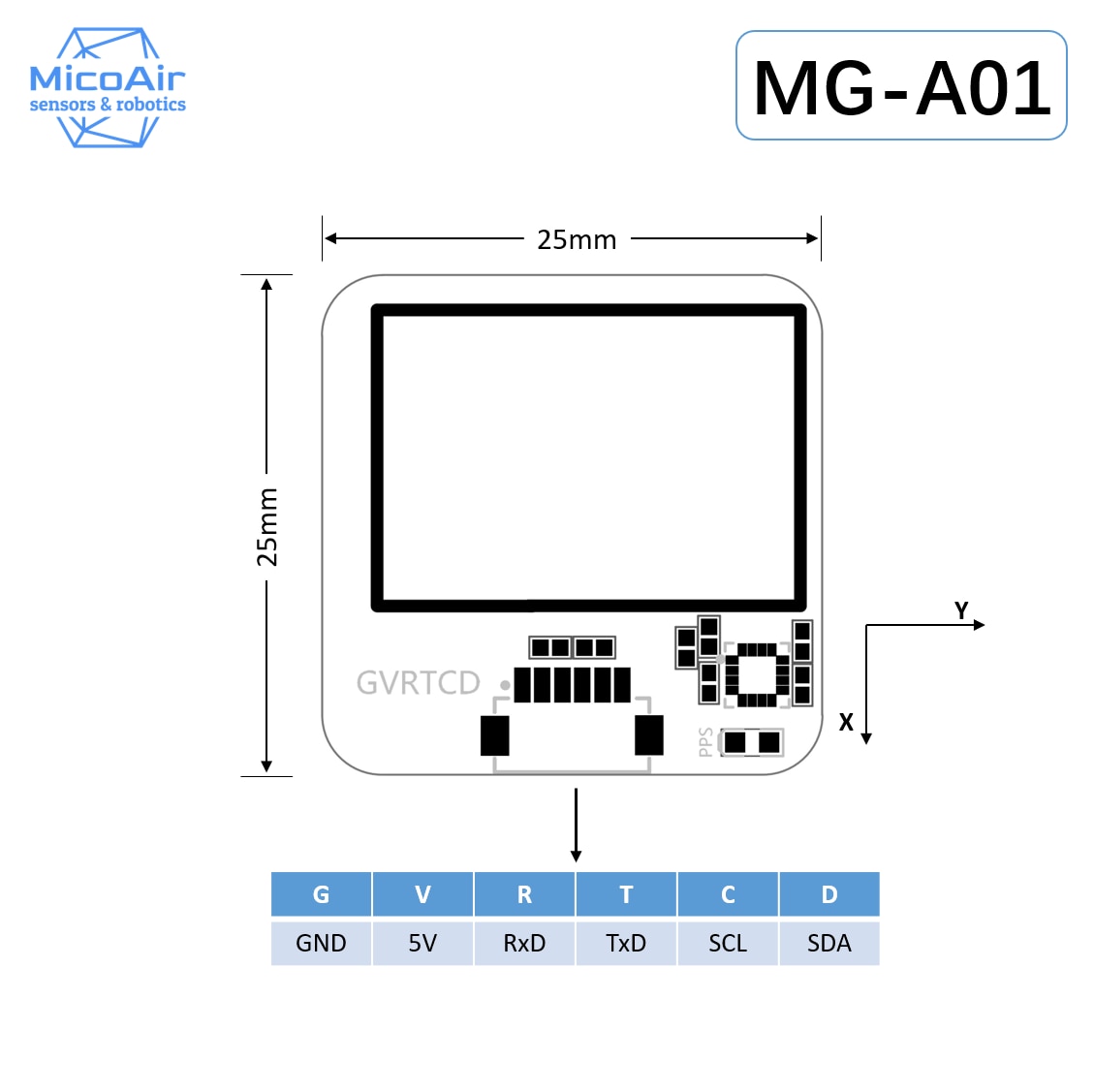

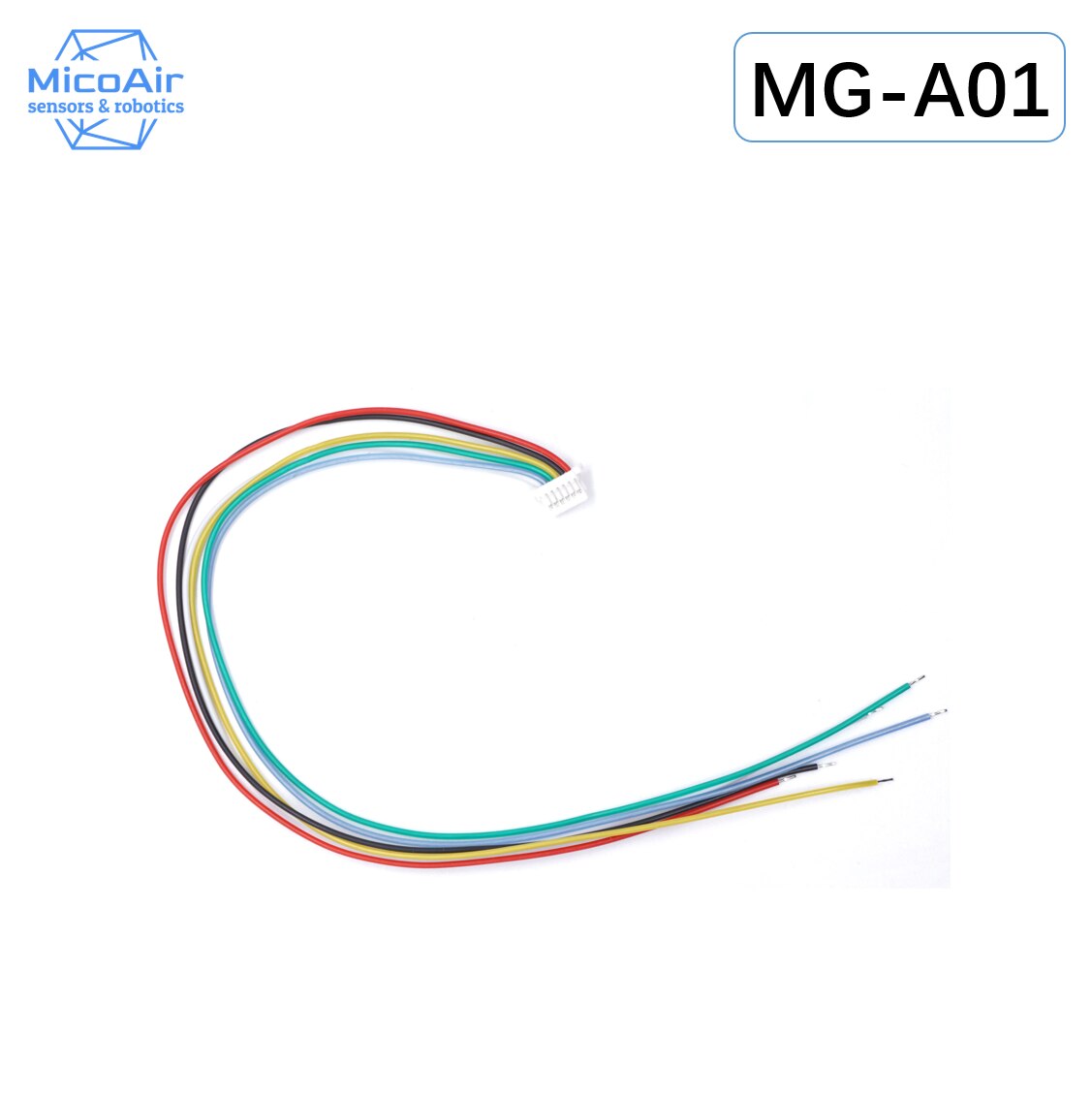

SH-1.0 6P connector ,1.00mm pitch

GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)

Protocol: UBX(u-blox) 10Hz@GPS+GAL+BDS or NMEA 1Hz

25mm*25mm*8mm 12g
