Motor Shield

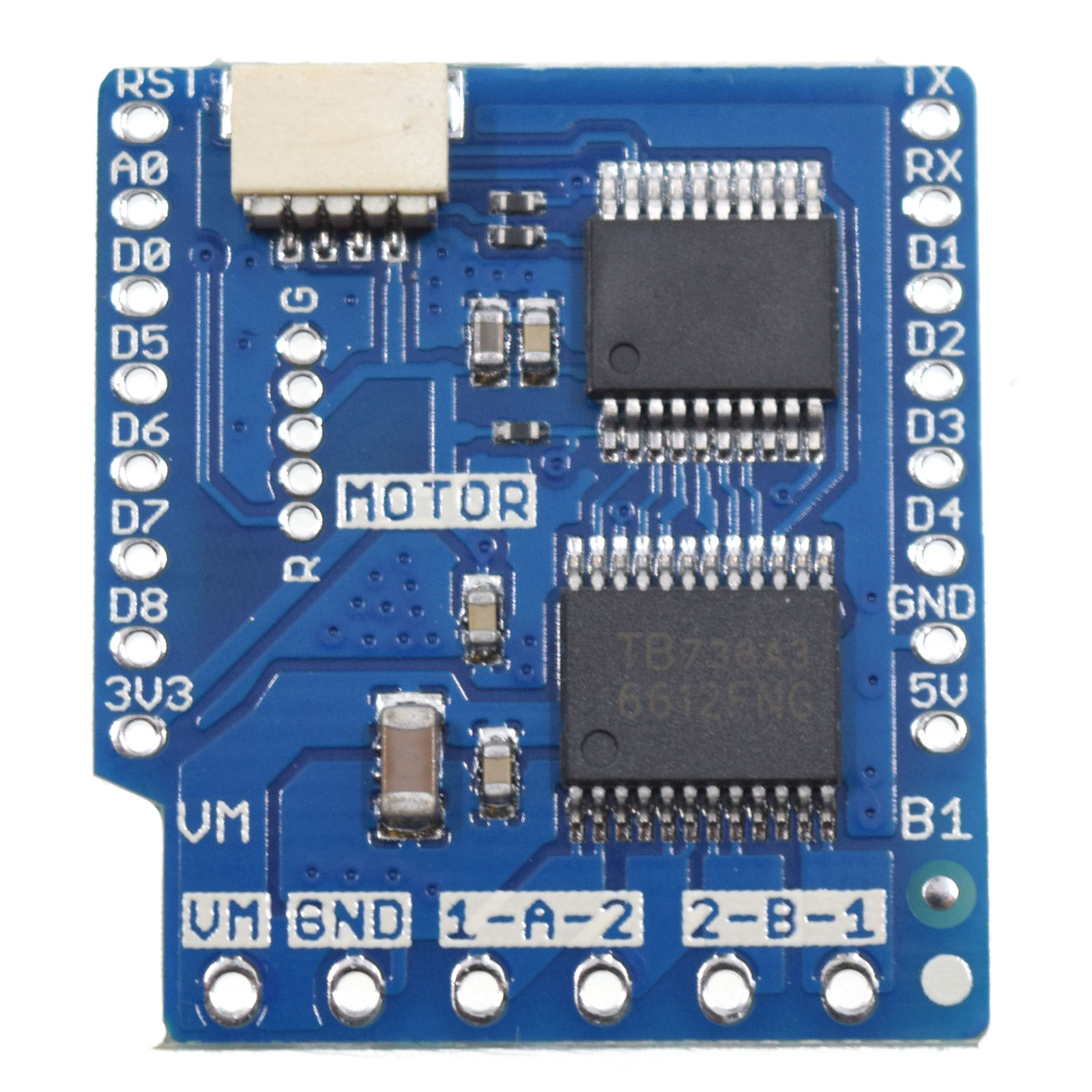

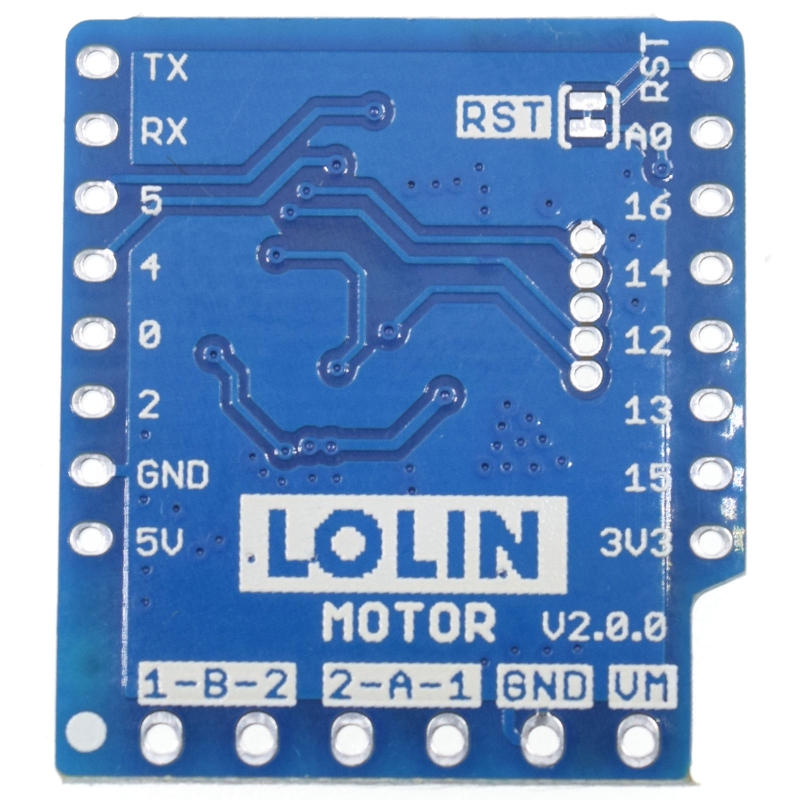

TOP_IMG BOTTOM_IMG

I2C dual motor driver shield.

Features

  • I2C interface
  • Power supply voltage: VM=15V max
  • Output current: Iout=1.2A(average) / 3.2A (peak)
  • Standby control to save power
  • CW/CCW/short brake/stop motor control modes

Pins

D1 mini GPIO Shield
D1 5 SCL
D2 4 SDA
RST RST RST
  • VM: Motor power supply + (Max 15Vdc)
  • GND: Motor power supply -
  • 1-A-2: Motor A
  • 2-B-1: Motor B
