OLED 0.96 Shield

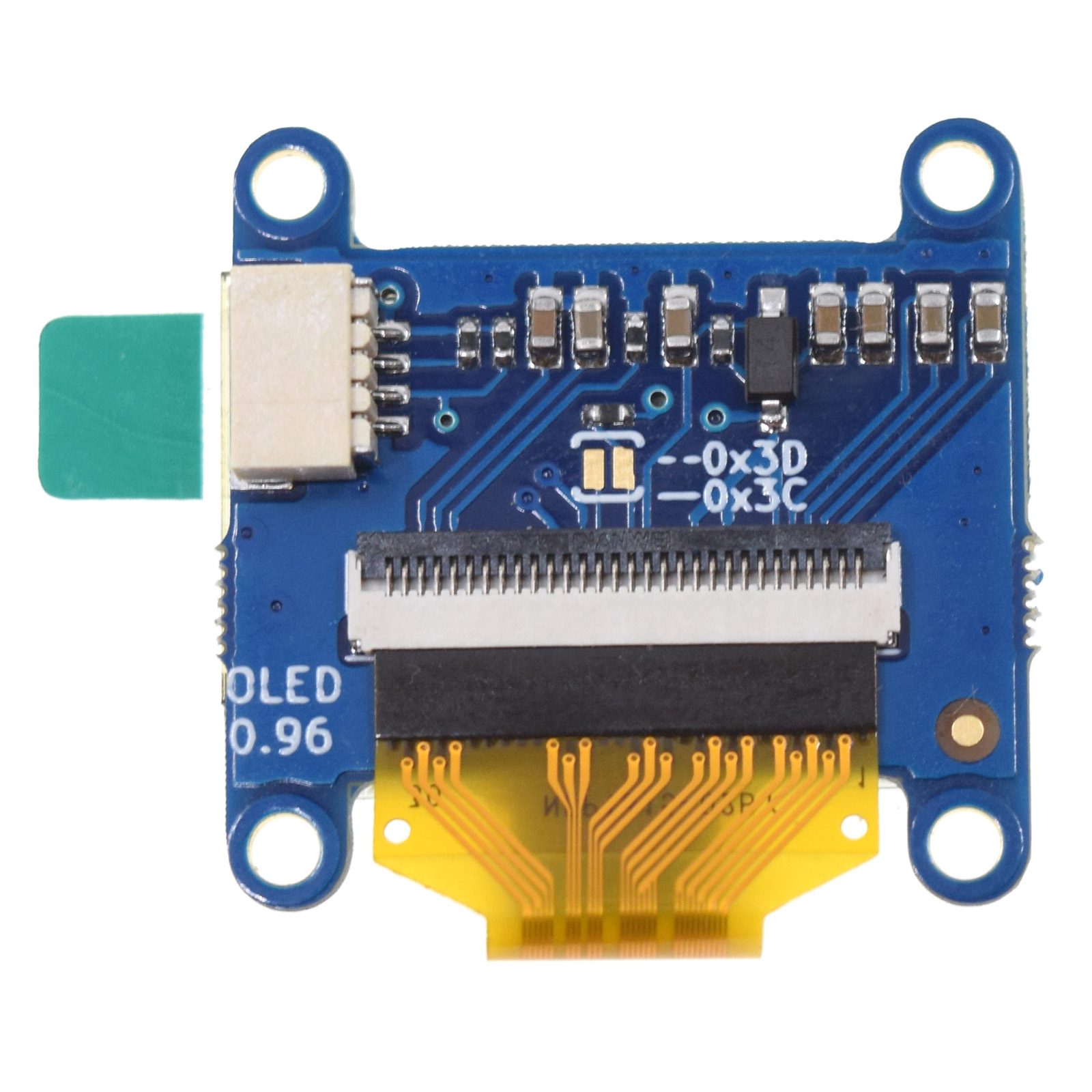

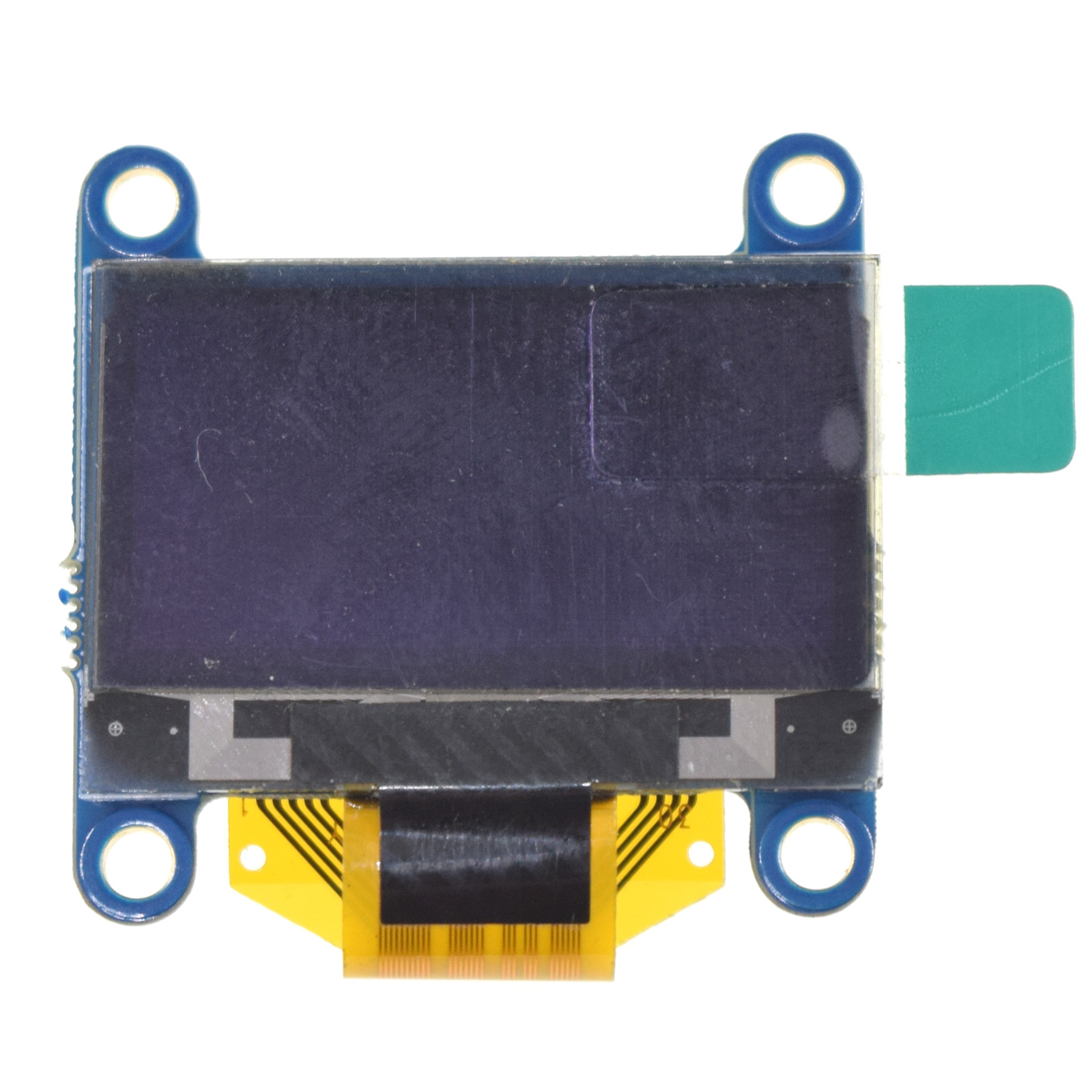

TOP_IMG BOTTOM_IMG

128x64 pixels (0.96” Across) OLED Shield

Features

  • Screen Size: 128x64 pixels (0.96” Across)
  • Operating Voltage: 3.3V
  • Driver IC: SSD1306 (I2C Address: 0x3D or 0x3C)

Pins

LOLIN I2C Port

Arduino
