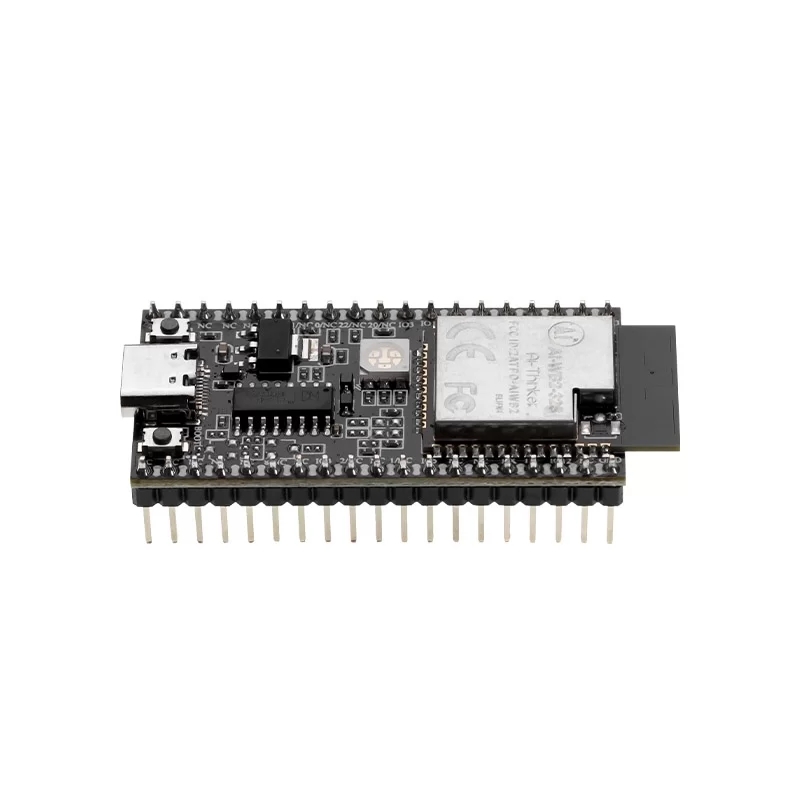

Description

Ai-WB2-32S-Kit is a development board designed for the Ai-WB2-32S module. The module is equipped with a BL602 chip as the core processor and support Wi-Fi 802.11b/g/n protocol and BLE5.0 protocol. The BL602 chip has a built-in low-power 32-bit RISC CPU, 276KB RAM, and rich peripheral interfaces, including SDIO, SPI, UART, I2C, IR remote, PWM, ADC, DAC, PIR, GPIO, etc. Support three power supply methods: Type-C (recommended), 5V+GND, 3V3+GND, and supply current ≥ 500mA. It can be widely used in the Internet of Things, mobile devices, wearable electronic devices, smart homes, and other fields.

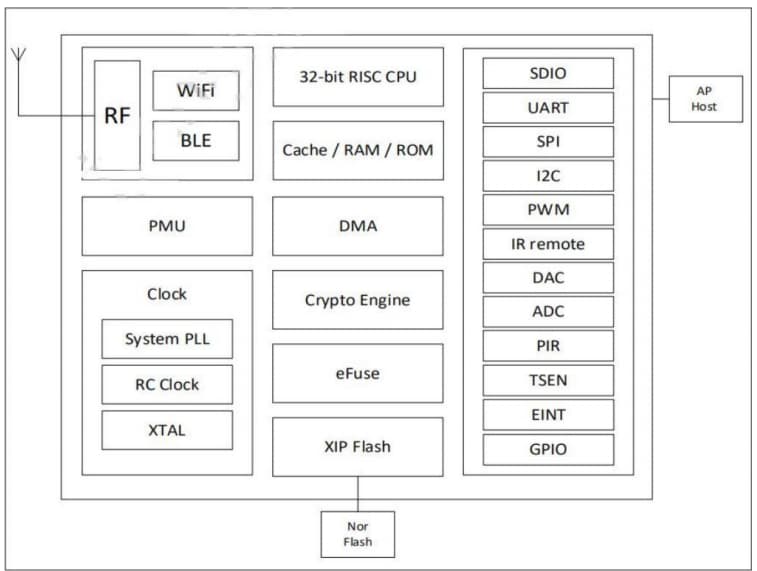

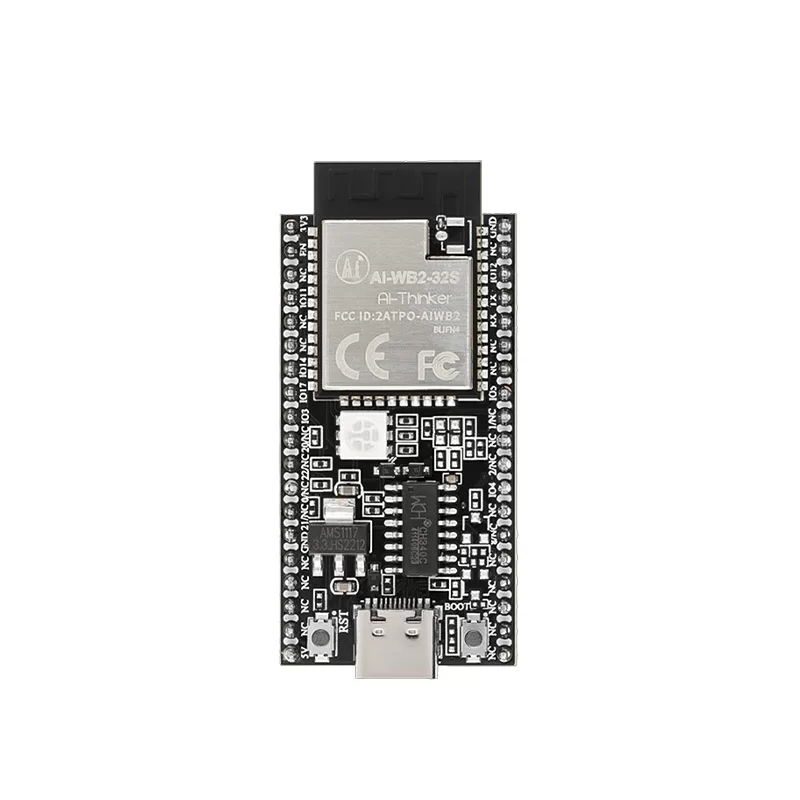

Hardware Overview

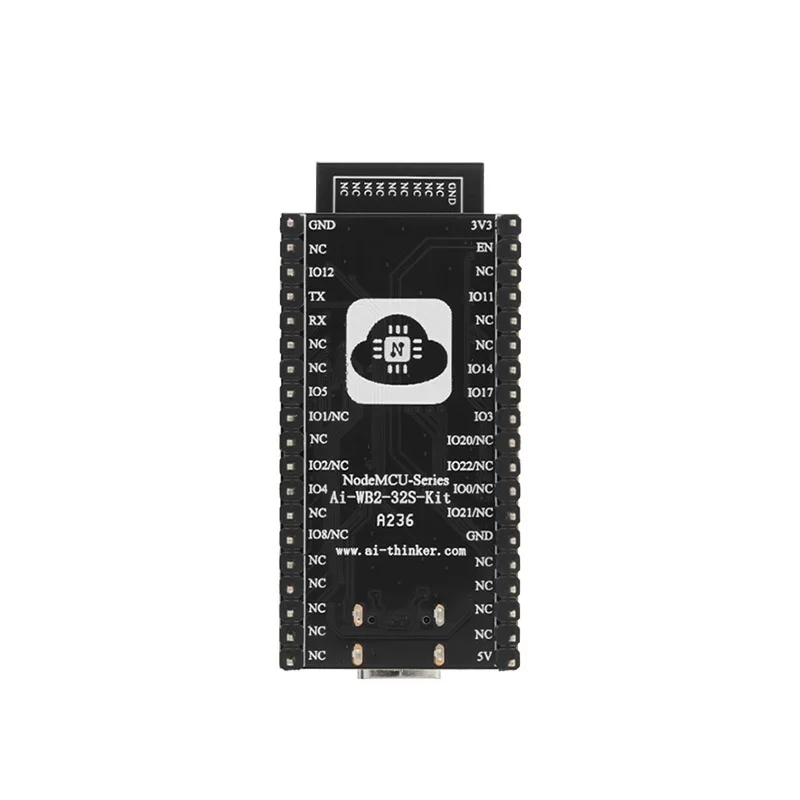

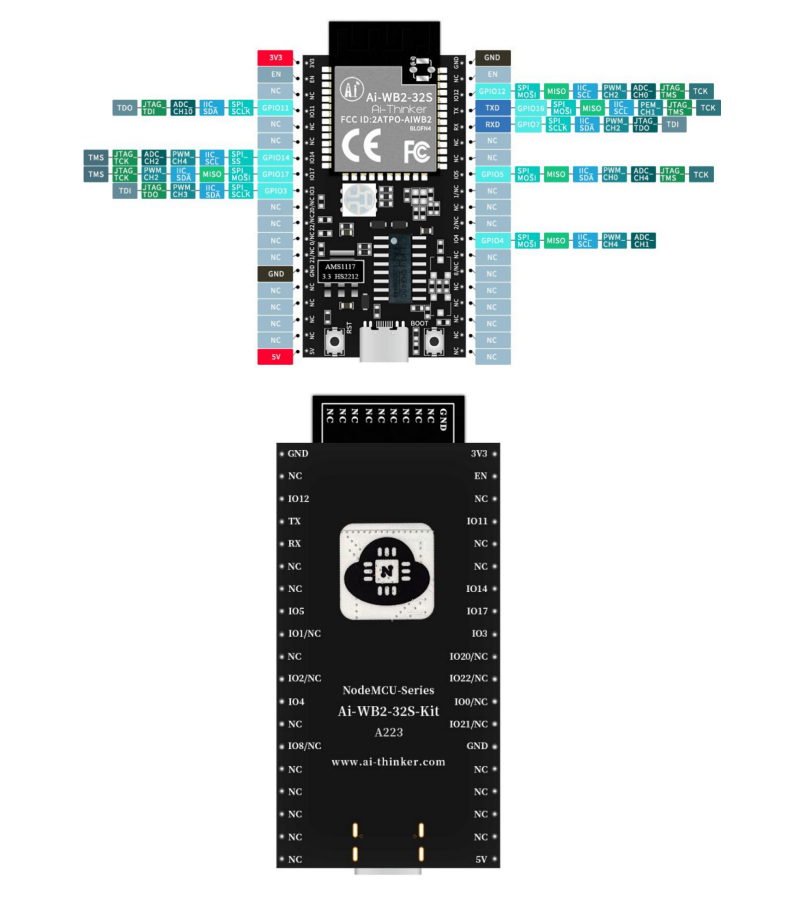

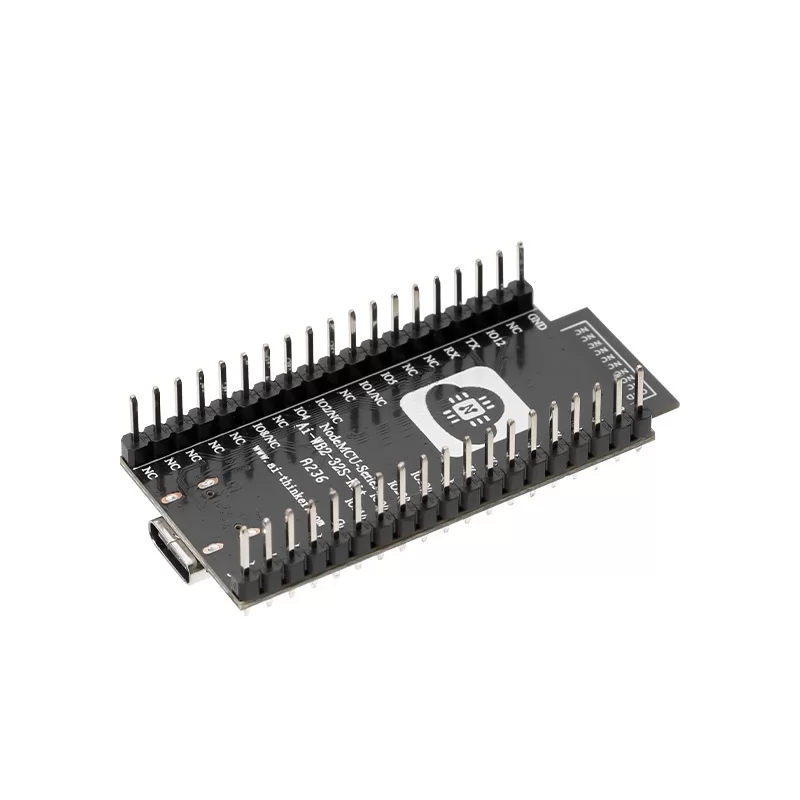

Pin Description

Feature

• Support IEEE 802.11 b/g/n protocol
• Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3n
• Support 20MHz bandwidth and the Max rate is 72.2 Mbps
• Bluetooth BLE 5.0, Bluetooth Mesh
• Support Station + BLE、Station + SoftAP + BLE
• Support 32-bit RISC CPU，276KB RAM
• Secure startup supports mirroring with ECC-256 signature
• Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR
• Support AES 128/192/256-bit encryption engine
• Support SHA-1/224/256 Support true Random number generator (TRNG)
• Public key Accelerator (PKA), supports a large number of basic operations, the software provides signature, verification and other application program interface
• Support SDIO, SPI, UART, I2C, IR remote, PWM, ADC, DAC, PIR, GPIOetcn Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
• Support a variety of sleep modes, deep sleep current 12μA
• Universal AT instruction for a quick start
• Support secondary development, integrated Windows, and Linux development environment

Specification

• Model: Ai-WB2-32S-Kit

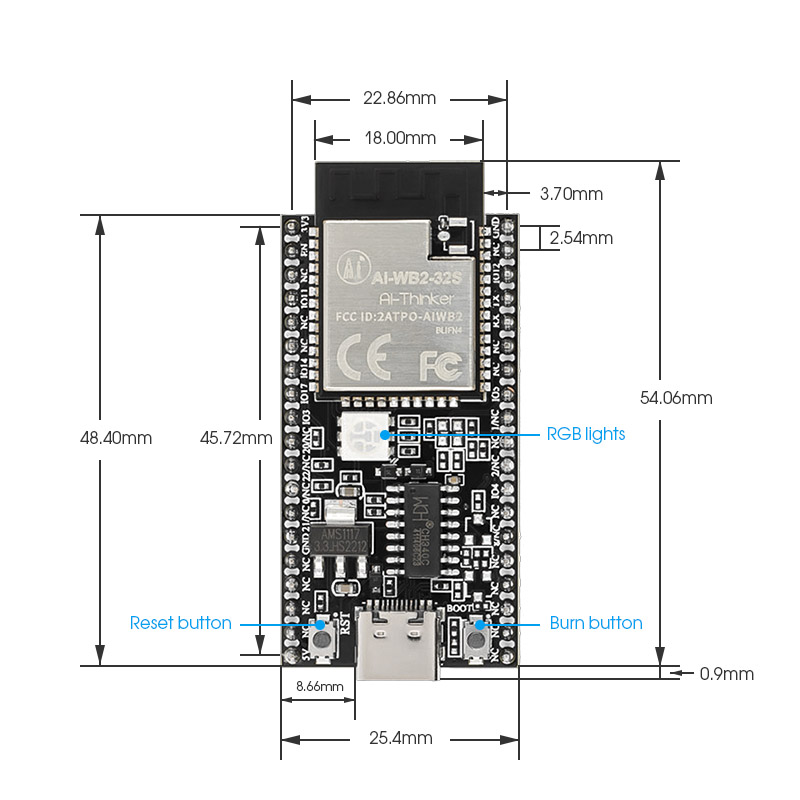

• Dimensions: 55*25.4mm
• Antenna form: Onboard PCB Antenna
• Spectrum range: 2400~2483.5Mhz
• Operating temperature：-40℃~85℃
• Power supply range：Supply voltage 3.3v/5v, supply current ≥ 500mA
• Support interface: UART/GPIO/ADC/PWM/I2C/SPI
• Number of IO ports：15
• Serial speed: default 115200bps
• Safety: WPS/WEP/WPA2 Personal/WPA2 Enterprise/WPA3
• SPI Flash: Default configuration is 4MByte

Package List

• 1xAI-WB2-32S-Kit Module (with soldered pins)
