Description

Formerly known as the Zmod DAC 1411: SYZYGY-compatible Dual-channel 14-bit Digital-to-Analog Converter Module.

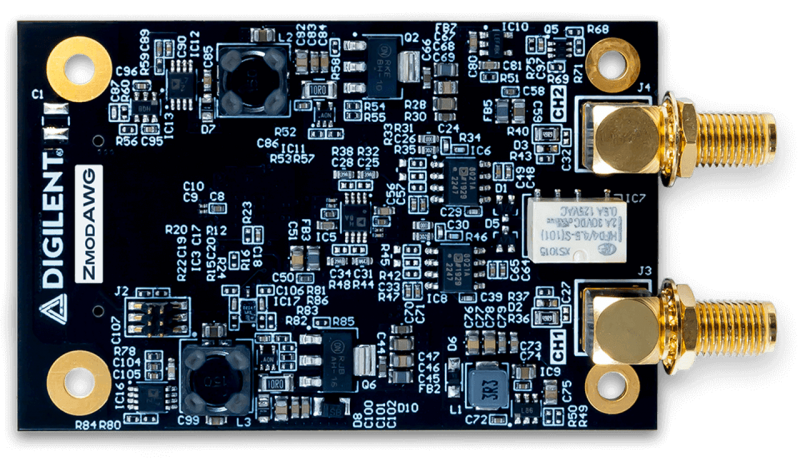

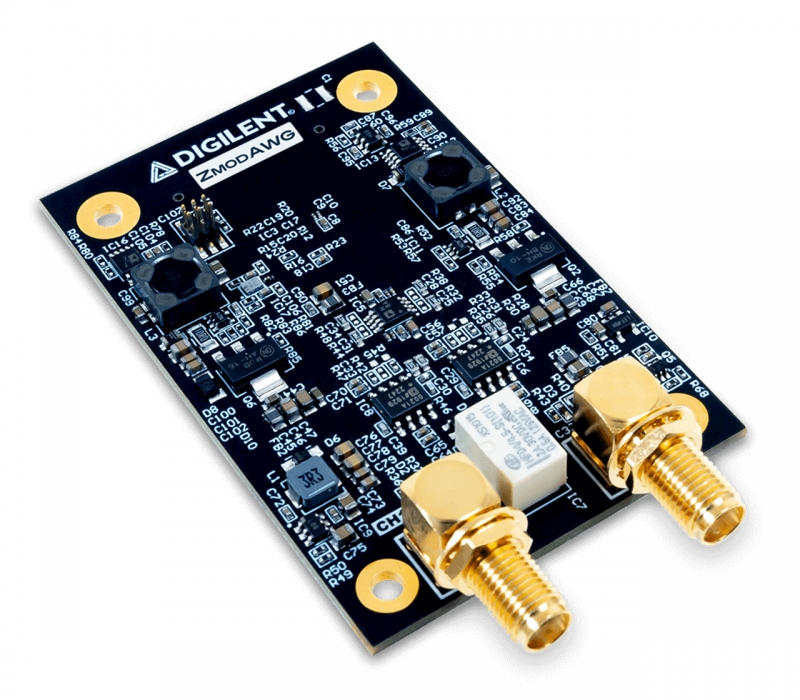

The Zmod AWG is one of Digilent's first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application.

Driven by the SYZYGY carrier, the Zmod AWG can simultaneously generate two ±5V signals with 14 bits of resolution at a sample rate up to 100MS/s. Analog outputs can be connected to a circuit using SMA cables.

When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR . By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices.

Guides and demos are available to help you get started quickly with the Zmod AWG. These can be found through the Support Materials tab.

Features

• Channels: 2
• Channel type: single-ended
• Resolution: 14-bit
• Absolute Resolution (amplitude ≤1.25V): 167μV
• Absolute Resolution (amplitude >1.25V): 665μV
• Sample rate (real time): 100MS/s
• Output impedance: 50Ω
• Analog bandwidth: 40 MHz+ @ 3dB, 20 MHz @ 0.5dB, 14 MHZ @ 0.1dB
• Slew rate (2V step): 180V/μs

• Product Compliance:
• HTC: 8473301180
• ECCN: EAR99
