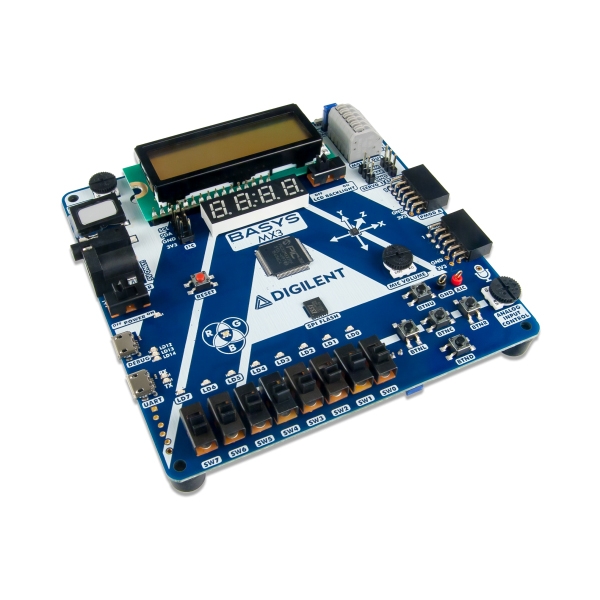

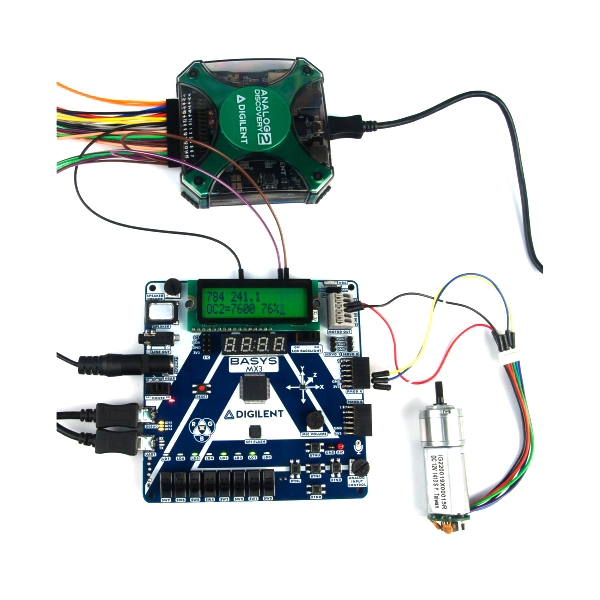

The Basys MX3 is a development platform for the Microchip PIC microcontroller (PIC32MX370). With an exhaustive set of Peripherals plus Pmod expansion headers, users can create a wide range of embedded systems applications. The board also provides an easy and cost-effective introduction to the PIC32 microcontroller and MPLABﾮ X Integrated Development Environment (IDE). A complete set of software libraries are included, allowing users to make simple function calls to all onboard peripherals, greatly simplifying the development process. With the on-board debug headers and USB programmer/debugger, users can debug their designs directly from MPLABﾮ X Integrated Development Environment, or scope digital and analog signals through Analog Discovery 2 or Digital Discovery.

Accompanied by free and open-source coursework, including 7 in-depth teaching units and 15 complete labs, the Basys MX3 is also a versatile MCU trainer board ideal for teaching introductory embedded systems courses. It covers topics from toggling LED's to motor control to digital signal processing. The coursework is designed for sophomore/junior level embedded systems courses.

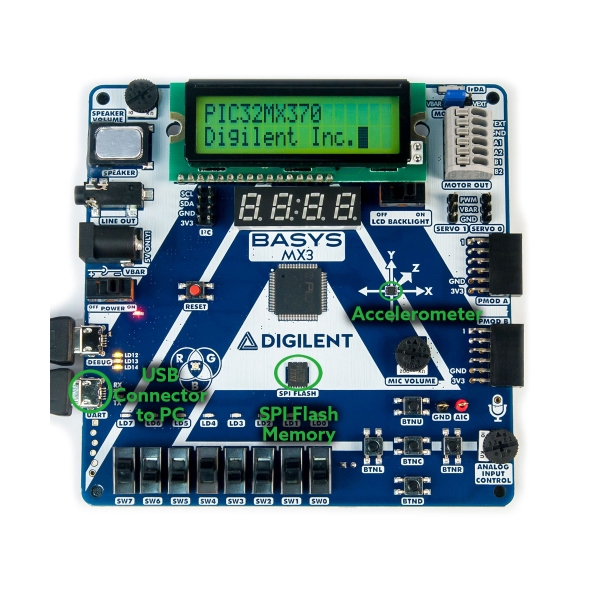

• Microchip PIC32MX370F512L Microcontroller
• 4 MB SPI Flash
• Onboard FIR-compatible IrDA Module
• Onboard Audio Input and Output
• MEMS Microphone with Adjustable Gain
• PWM driven mono audio output with onboard speaker
• Onboard Displays
• 2x16 LCD Character Display with LED backlight
• Onboard Dual H-Bridge Motor Driver
• 12-pin Pmod connector with SPI interface
• 2 Servo Connectors
• Analog Input Control (AIC)
• Two 2ￗ6 Pmod connectors
• One IﾲC connector
• On-board 30-pin debug headers for Analog Discovery / Digital Discovery
• On-board USB programmer/debugger
• Powered from USB or 5 V external power source
• Complete set of software libraries to get access to each peripherals
• 7 free and open-source teaching units complete with 15 labs
