Description

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-3100 Series features up to 16 analog outputs, 8 digital I/O, and one 32-bit counter input. Each channel is software-selectable for either a bipolar voltage output range of ±10 V or a unipolar range of 0 V to 10 V. Channel outputs can be updated individually or simultaneously. USB-3102 also features 0 mA to 20 mA of current output. Each DAC controls a voltage/current channel pair simultaneously. Each channel pair can be updated individually or simultaneously.

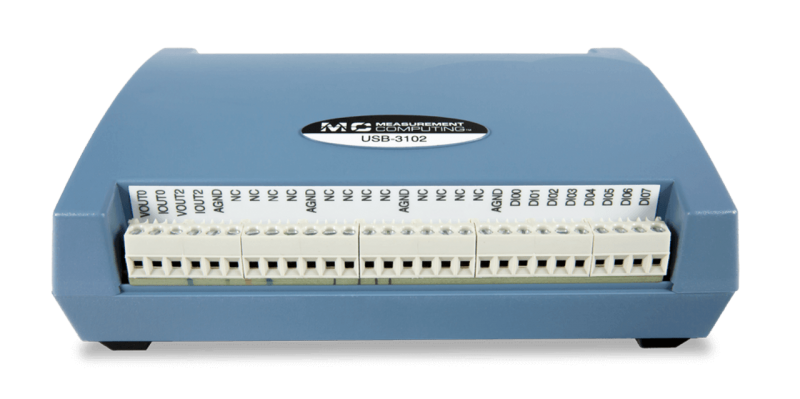

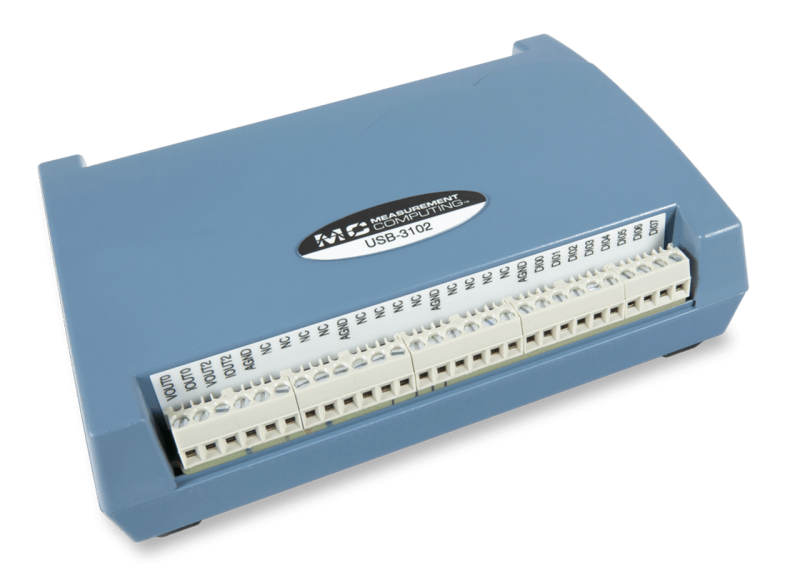

USB-3102 features four voltage/current output channels, eight digital I/O, and one counter input.

USB-3104 features eight voltage/current output channels, eight digital I/O, and one counter input.

USB-3114 features 16 high-drive voltage output channels, eight digital I/O, and one counter input.

Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

OEM/Embedded Customers- please contact our sales department for volume pricing and assistance with your application.

Features

• 4, 8, or 16 analog outputs
• 16-bit resolution
• 100 S/s update rate
• USB-3102 & USB-3104: Voltage output ±10 V, 0 V to 10 V. Current output 0 mA to 20 mA typ.
• USB-3114: Voltage output ±10 V, 0 V to 10 V.
• Eight digital I/O
• One counter input
