Description

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

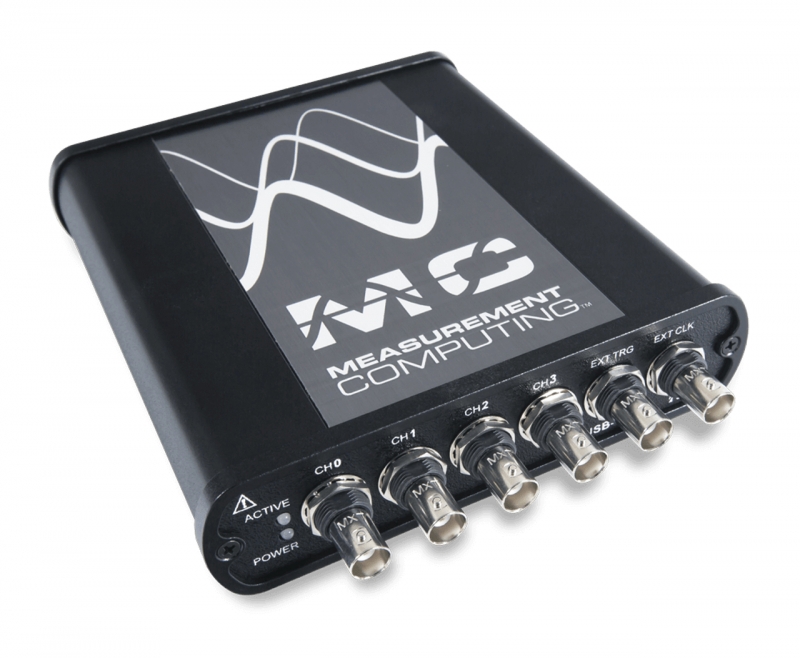

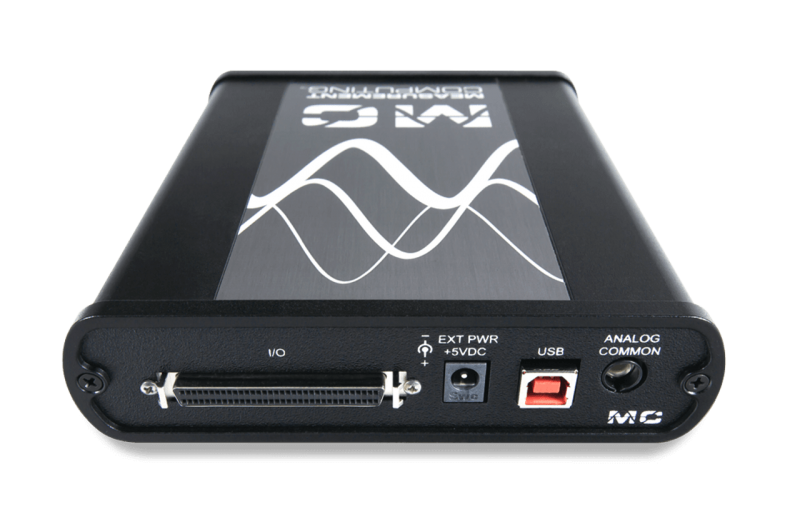

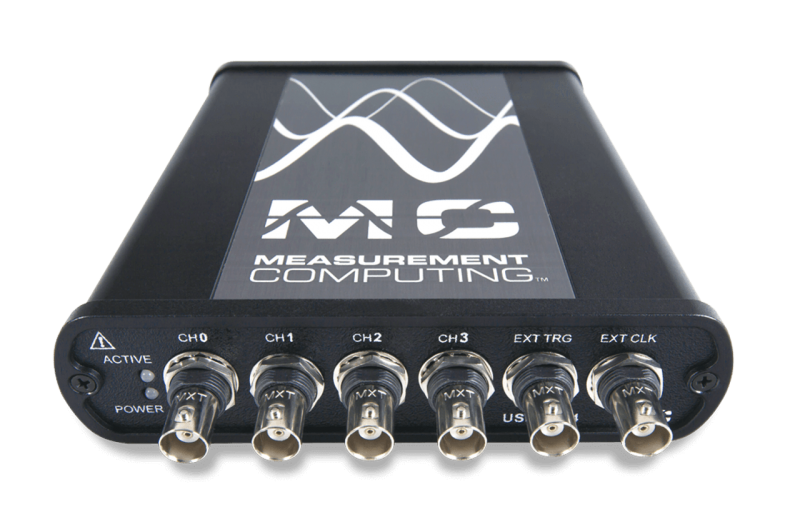

The USB-1604HS-2AO features four simultaneous analog inputs, 16-bit resolution, 1.33 MS/s sample rate per channel, two 16-bit analog outputs, four counter inputs, three quadrature encoder inputs, and two timers outputs.

Software support includes drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, and Python™.

OEM/Embedded Customers- please contact our sales department for volume pricing and assistance with your application.



Features

  • Four SE simultaneous analog inputs
  • 16-bit resolution
  • 1.33 MS/s/ch sample rate
  • ±10 V, ±2.5 V, ±500 mV input ranges
  • 32 digital I/O
  • Two analog outputs
  • Four counter inputs
  • Three quadrature encoder inputs
  • Two timer outputs

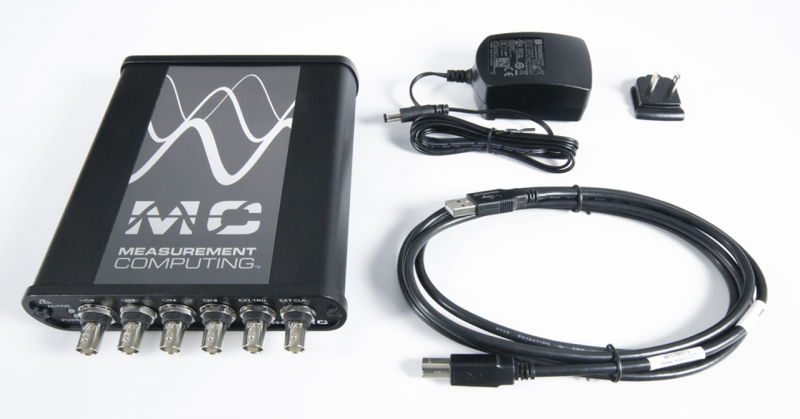

What's Included
  • USB-1604HS-2AO
  • USB cable
  • Printed insert: Software Quick Start
  • Power Supply, 5 VDC Output, USA style plug
  • MCC packaging assembly/foam, etc.
Software

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.

For a full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming. DASYLab can be purchased directly from MCC.

For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, and Python™.

Custom Applications without Programming: DASYLab® - Optional

Icon-Based Data Acquisition, Graphics, Control, and Analysis Software

DASYLab is an optional software package that offers real-time analysis, control, and the ability to create custom applications without programming. DASYLab is ideal for users that need more functionality than DAQami provides.

Supported Operating Systems: Windows® 11/10/8/7.

DASYLab can purchased directly from MCC starting at $499.

Learn More or Purchase DASYLabDASYLab Data Sheet

Programming and Driver Support - Included

MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, and Python™.

Learn More About MCC Programming and Driver SupportDownload Programming and Driver Support

To learn more about the complete software ecosystem, visit the MCC software page.
