Description

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The MCC USB-200 series are low-cost, 12-bit, multifunction DAQ devices designed for general purpose data acquisition applications. Each device features eight SE analog voltage inputs, two analog outputs, eight digital I/O, and one counter input.

USB-201 features a 100 kS/s sample rate, 8 digital I/O, and 1 counter input.

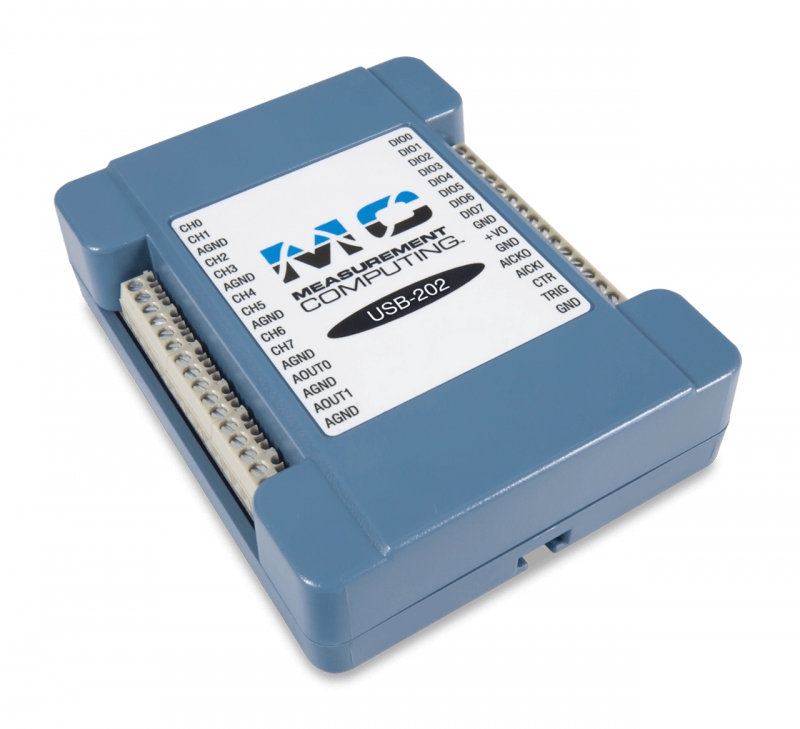

USB-202 features a 100 kS/s sample rate, 2 analog outputs, 8 digital I/O, and 1 counter input.

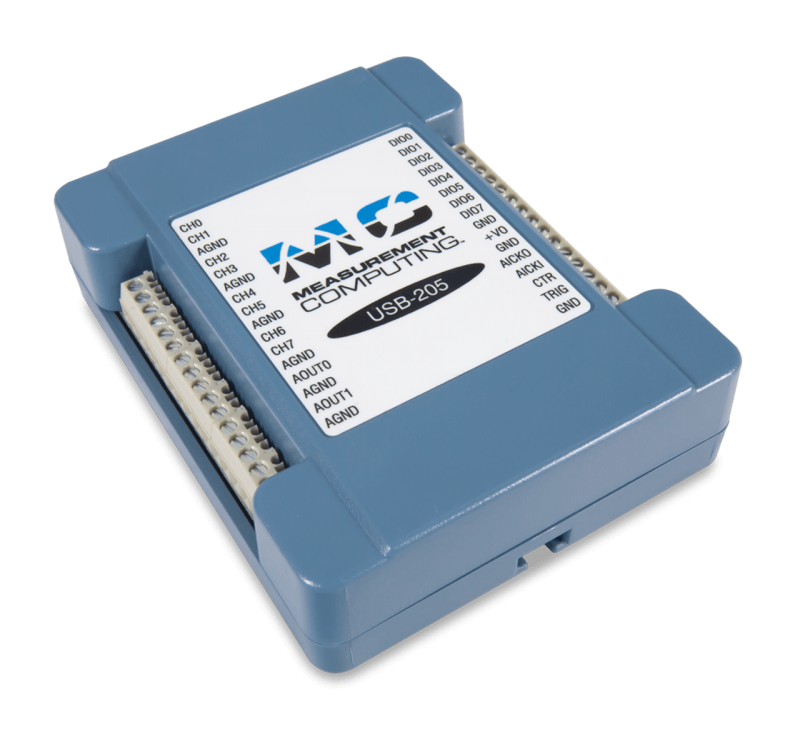

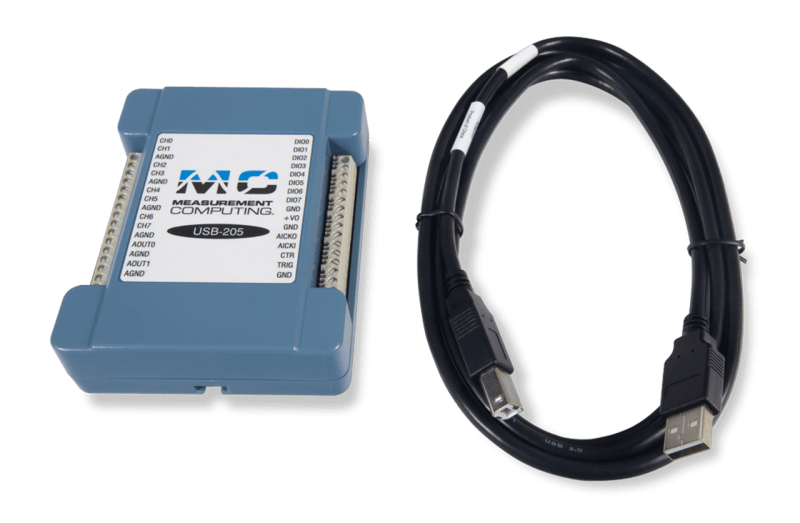

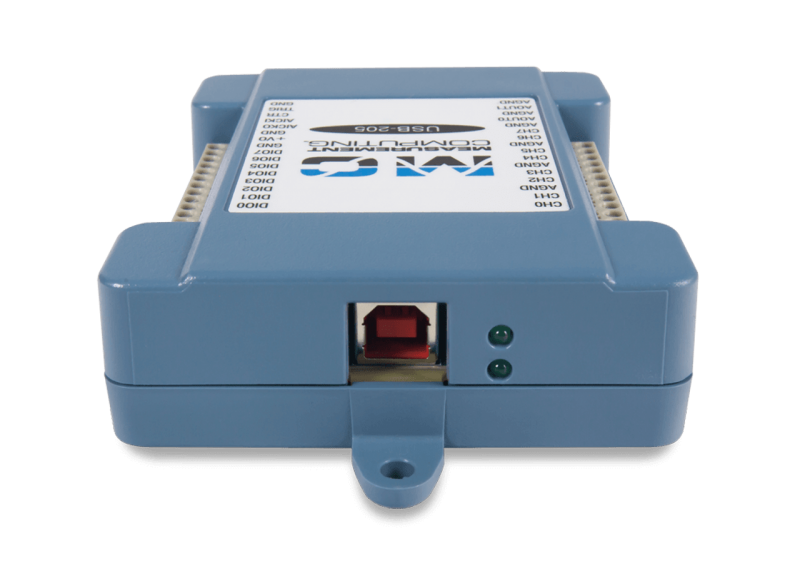

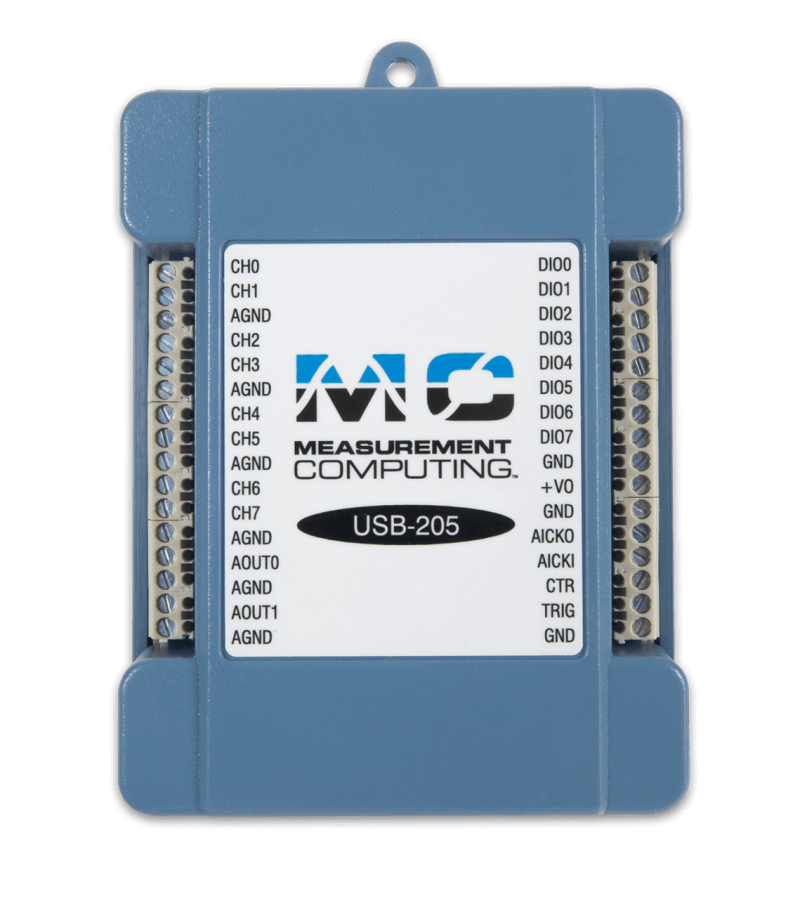

USB-205 features a 500 kS/s sample rate, 2 analog outputs, 8 digital I/O, and 1 counter input.

Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

OEM/Embedded Customers- please contact our sales department for volume pricing, OEM/board-only versions of these devices, and assistance with your application.

Features

• USB-201 & USB-202: 100 kS/s sample rate
• USB-205: 500 kS/s sample rate
• USB-202 & USB-205: Two analog outputs
• Eight SE analog inputs
• 12-bit resolution
• +/-10 V input range
• Eight digital I/O
• One 32-bit event counter input
• External pacer I/O
• No external power required
