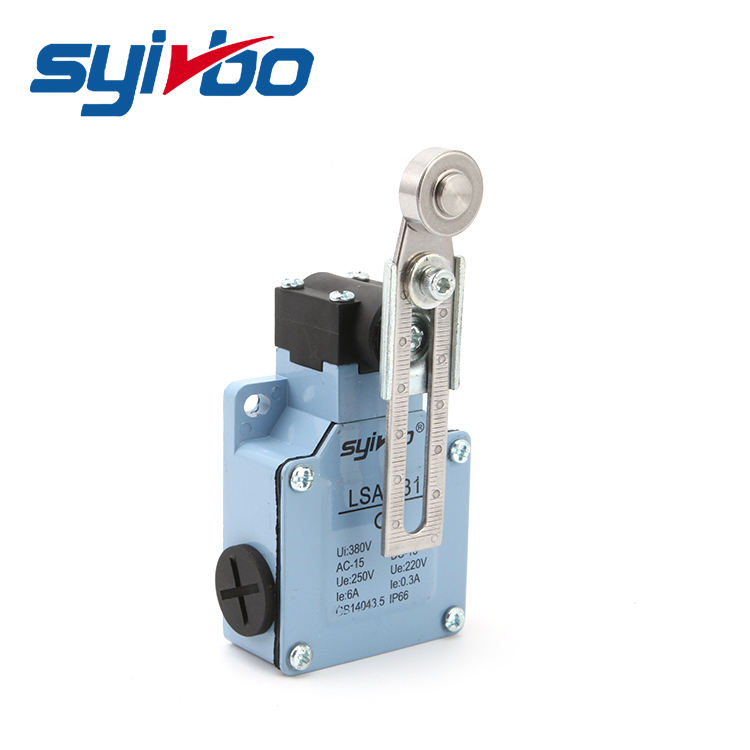

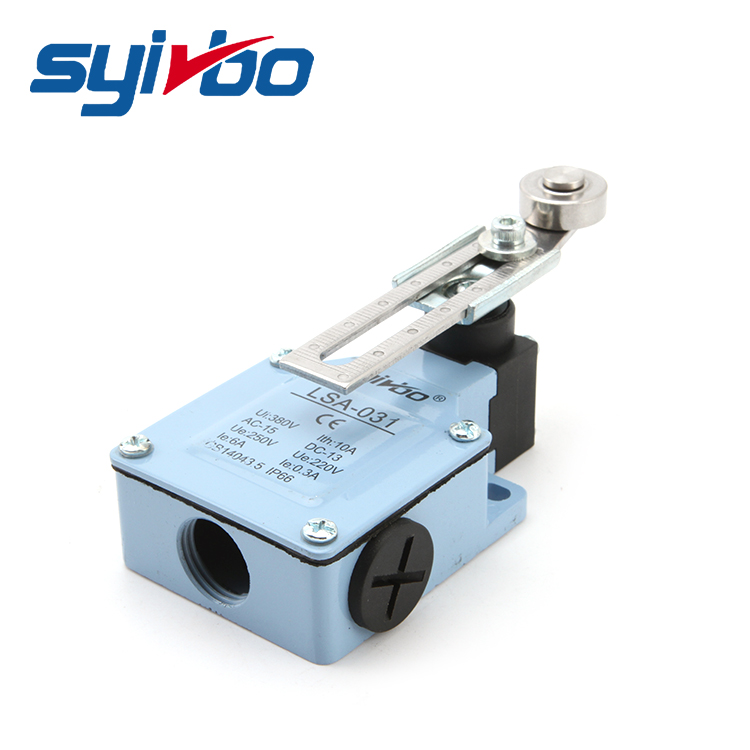

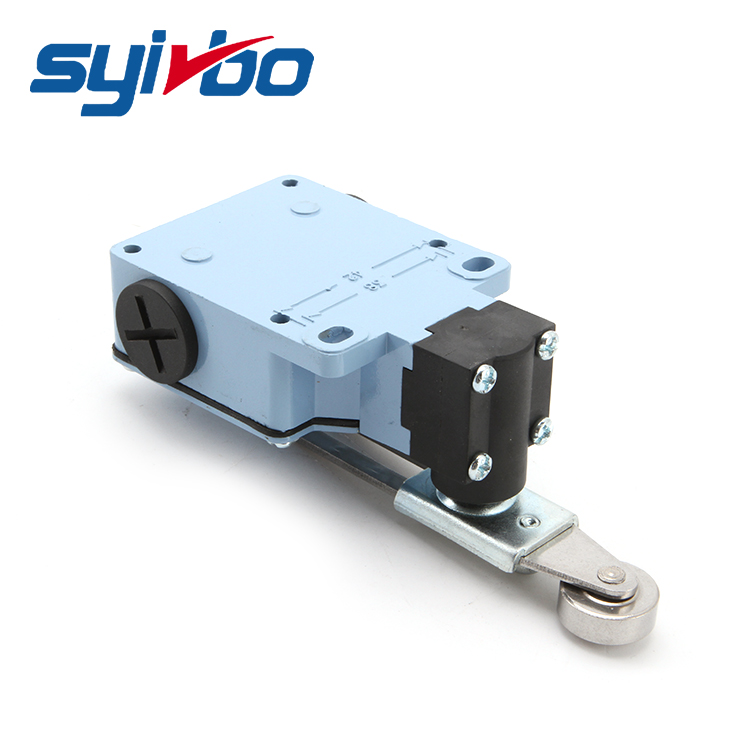

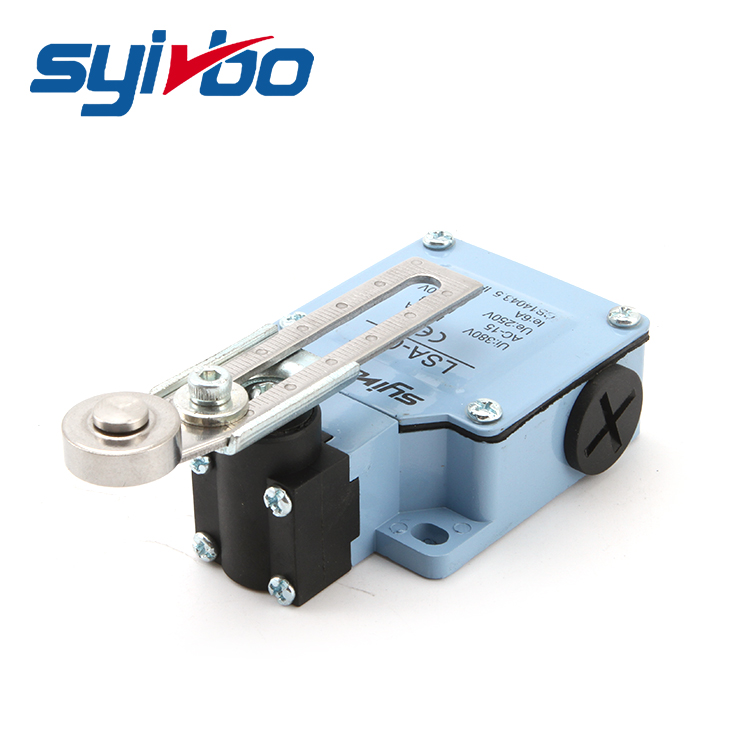

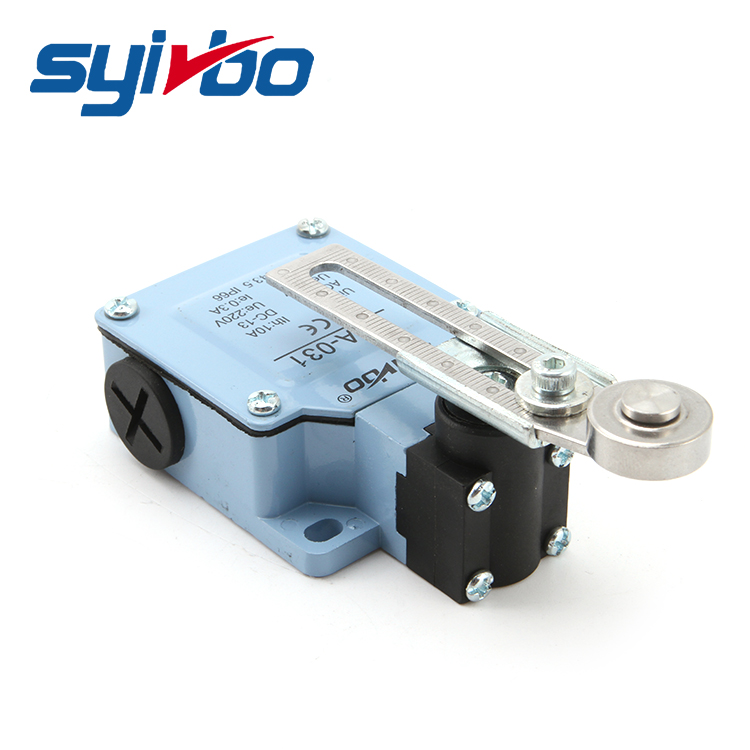

Product Description

Features

Strong metal outer shell, swing arm max.95 degree

20 million operations mechanical life

Stainless steel idler wheel, punch and spring

Selective PG11 cable gland

Specifications

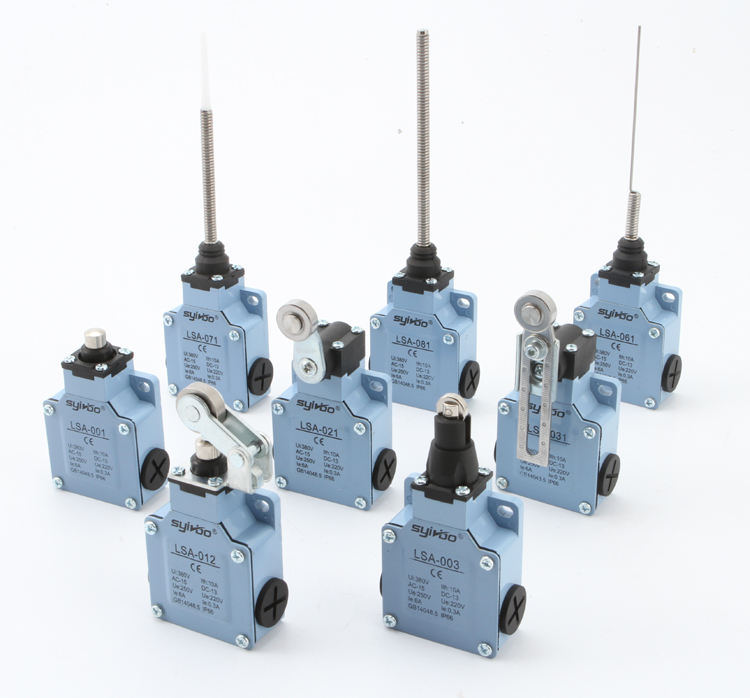

Model

LSA

LSA-001

LSA-003

LSA-012

LSA-021

Operationg force

OF(Max.)

800g

800g

800g

400g-cm

Release force

RF(Min.)

400g

400g

400g

100g-cm

Pre-travel

PT(Max.)

1.8mm

1.8mm

1.8mm

20degree

Tripping position

TP±10%

2.0mm

2.0mm

2.0mm

22.5°

Movement differential

MD(Max.)

1.2mm

1.2mm

1.2mm

10°

Over travel

OT(Min.)

4.0mm

4.0mm

4.0mm

75°

Total travel

TT(Min.)

5.8mm

5.8mm

5.8mm

95°

Rotary indexing

22.5°

Model

LSA

LSA-031

LSA-061

LSA-071

LSA-081

Operationg force

OF(Max.)

400g-cm

150g

150g

150g

Release force

RF(Min.)

100g-cm

50g

50g

50g

Pre-travel

PT(Max.)

20°

20°

30mm

30mm

Tripping position

TP±10%

22.5°

22.5°

22.5°

22.5°

Movement differential

MD(Max.)

10°

14°

14°

14°

Over travel

OT(Min.)

75°

20mm

20mm

20mm

Total travel

TT(Min.)

95°

50mm

50mm

50mm

Rotary indexing

22.5°

Characteristics

Double break

INO+INC Force Break snap action

Rated voltage/current

10(4)A, 125, 250VAC/6(2), 380VAC For inductance Load, Cos∅=0.4

Contact resistance

25mΩ max. (initial value)

Insulation resistance

100mΩ min.(at 500VDC)

Dielectric strength

1000VAC, 50/60Hz for 1 minute between terminals of the same polarity

1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts

1500VAC, 50/60Hz for 1 minute between each terminal and ground

Electrical endurance

500,000 at 10A 250VAC Resistive

Mechanical life

10,000,000 operations min.(under rated conditions)

Operation speed

5mm/s to 0.5m/s

Waterproof and dust-proof

IP66

Rising temperature

Max 30 ℃ over ambient temperature at rated voltage/current

Standard

EN50041, EN50047, IEC337-1,VDE0660

Operation temperature

-5 ℃ - 65 ℃ (with no icing)

Storage temperature

-5 ℃– 65 ℃(with no icing)

Humidity

95% RH Max.

Shock

Mechanical durable: 1000m/square s min.

Malfunction:300m/ S2 min.

Vibration frequency

Malfunction: 10 to 55Hz 1.5mm double amplitude

Torque of terminal screw

6-8 kgf-cm

Torque of other screw

Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm

Bare cooper wire spec.

∅2 Max.

Cable Spec.

∅12 Max. (IP65 if use ∅8-9)

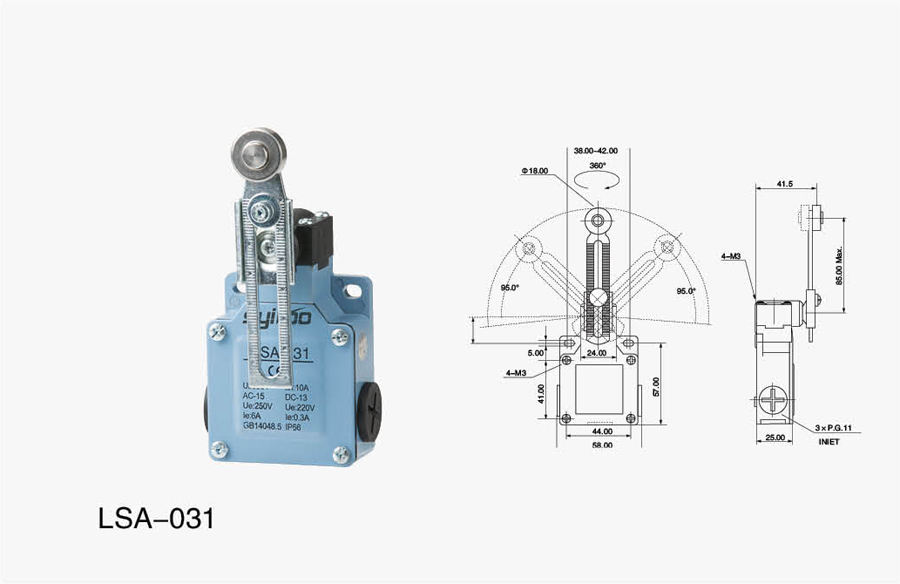

Dimension
