Enameled Copper Magnet Wire – 11 meters / 0.1mm diameter
  • Enameled Copper Magnet Wire – 11 meters / 0.1mm diameter
  • Enameled Copper Magnet Wire – 11 meters / 0.1mm diameter
  • Enameled Copper Magnet Wire – 11 meters / 0.1mm diameter

Enameled Copper Magnet Wire – 11 meters / 0.1mm diameter

4.0 0리뷰
1,600 원
구매혜택:         적립 마일리지 : +1원 (상품 : 1원)
자체상품코드:  ADF-3522
브랜드:      ADAFRUIT
수량:
총 상품금액(VAT 포함):   1,600원
배송비:    3,000원 조건별배송 지역별추가배송비
택배
 /
방문 수령지 : 인천광역시 미추홀구 주염로73번길 54 제이원플렉스 631호
구매 불가
추천 상품
  • 4,000원
  • 3,100원
  • 564,300원
  • 900원
  • 1,400원
  • 13,200원
  • 103,500원
  • 483,600원
  • 21,500원
관련 상품
인기 판매
  • 상품정보
  • 상품리뷰 (0)
  • 상품문의 (0)
  • 배송/반품/교환안내

Description

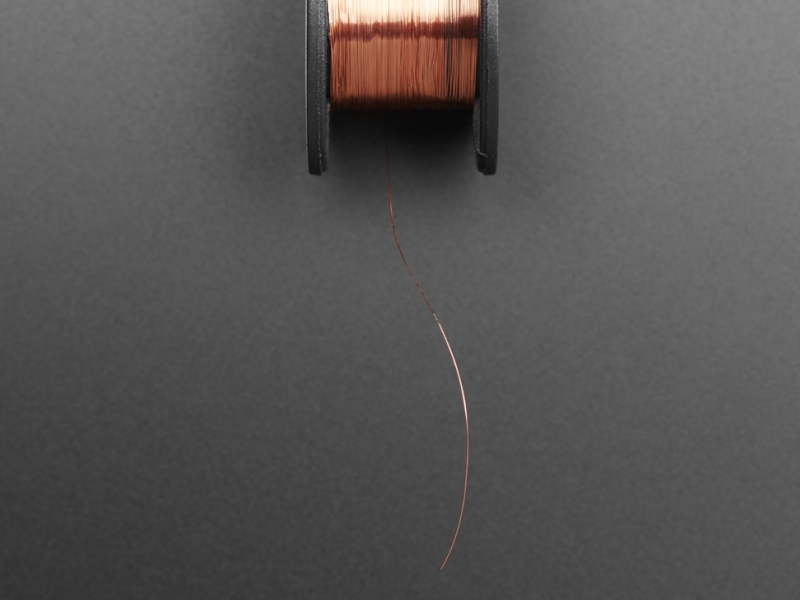

For winding custom coils, or very fine-pitch rework, we always reach for magnet wire. Magnet wire is very very thin (0.1mm diameter!) copper wire with a very thin layer of insulation. It's used for a range of electronics, hacking and making applications. Commonly these are used for winding transformers, inductors, motor or solenoid coils, speakers, hard disk head actuators, electromagnets, pickups, among other things. However, this wire is also really good for when you have to do PCB repair, jumper wires, or solder directly to SMT pads.

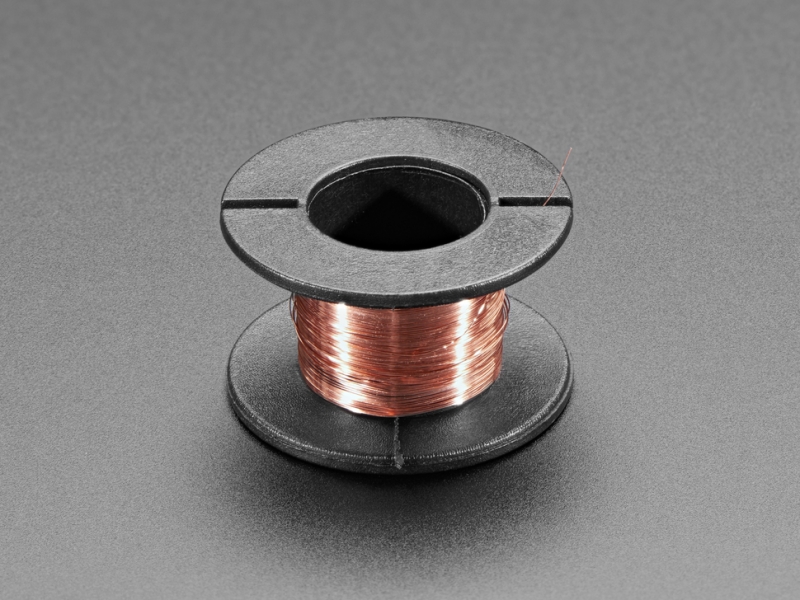

This spool is ~11.5 meters of ~38 AWG thick magnet wire, just enough to do a few projects. We recommend a spool for every engineer's workbench. Like all magnet wire there is a thin enameled insulation. Some people like to remove it with a small flame (from a lighter, say) but we've found that an easy way to remove it is to melt a blob of solder onto your iron and then dip the end into the blob for a few seconds. Remove the wire and it'll be both cleaned off and tinned!





Technical Details

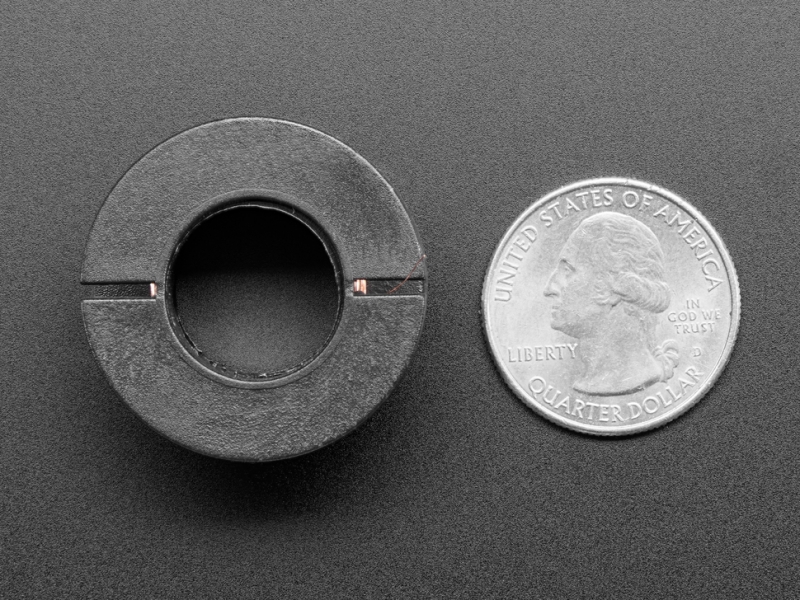

  • Diameter: 0.1mm
  • Spool weight: 4.2g
  • Wire length: ~11.5m / 450"

    Learn

    LED Eyes
    Add LEDs on your Face!
    AdaBox 007
    Explore and use the contents of your AdaBox 007

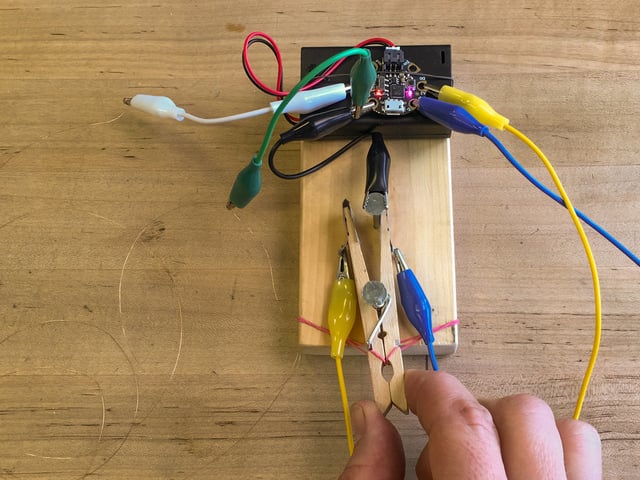

    AM Radio Morse Code Paddle
