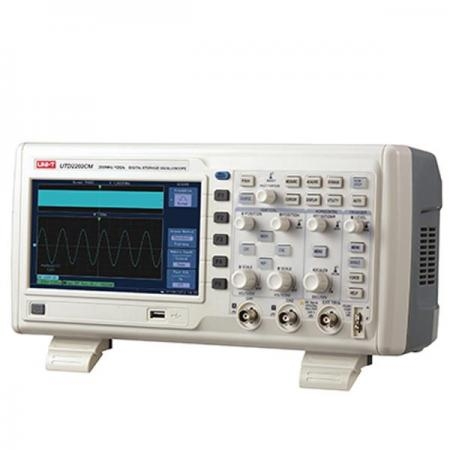

1. 2 channels,1GS/s sample rate 2. 200MHz bandwidth, 16Mpts maximum memory depth 3. Waveform acquisition rate is up to 150,000wfms/s 4. Vertical sensitivity: 2mV/div~5V/div 5. Time-based range: 2ns/div~50s/div 6. Trigger modes: edge, pulse, runt, video, slope, alternate 7. Customized AUTO, fast captures the signals 9. Supports Y-T andX-Y mode at the same time, can observe Lissajous waveform 10. 34 kinds of auto measurements 11. Optional LA module 12. Standard interfaces: USB Host, USB Device, Pass/Fail 13. 7-inch TFT LCD, WVGA (800*480)
Specifications |
UTD2062CM |
UTD2102CM |
UTD2202CM |
Channels |
2 |
2 |
2 |
Bandwidth |
60MHz |
100MHz |
200MHz |
Sample Rate |
1GS/s |
Rise Time |
≤5.8ns |
≤3.5ns |
≤1.8ns |
Memory Depth |
32Mpts |
32Mpts |
16Mpts |
Waveform Acquisition Rate |
≥150,000wfms/s |
Vertical Sensitivity |
2mV/div~10V/div |
2mV/div~5V/div |
Timebase Range |
2ns/div~50s/div |
Storage |
Setup, Wave, Bitmap, CSV |
Trigger Modes |
Edge, Pulse, Runt, Video, Slope, Alternate |
Edge, Pulse, Video, Slope, Alternate |
Interface |
USB Device, USB Host, Pass/Fail |
General Characteristics |
Power |
100~240VAC, 50/60Hz |
Display |
7 inches TFT LCD, WVGA (800×480) |
Product Color |
White and grey |
Product Net Weight |
2.9kg |
Product Size (W×H×D) |
332mm × 147mm × 170mm |
Standard Accessories |
Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD |
Standard Individual Packing |
Gift Box |
Standard Quantity Per Carton |
2pcs |
Standard Carton Measurement (L×W×H) |
450mm × 420mm × 280mm |
Standard Carton Gross Weight |
9.3kg |
Optional Accessories |
LAN Port |
|
