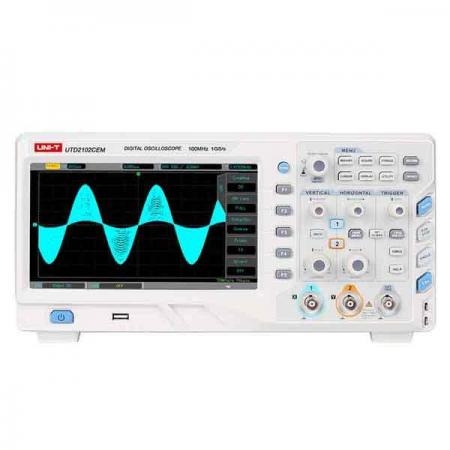

디지털 스토리지 오실로스코프 UTD2102CEM
  • 디지털 스토리지 오실로스코프 UTD2102CEM

디지털 스토리지 오실로스코프 UTD2102CEM

4.0 0리뷰
693,000 원
구매혜택:         적립 마일리지 : +693원 (상품 : 693원)
자체상품코드:  UNIT-UTD2102CEM
브랜드:      UNI-TREND
수량:
총 상품금액(VAT 포함):   693,000원
배송비:    3,000원 조건별배송 지역별추가배송비
택배
 /
주문시결제(선결제)
    방문 수령지 : 인천광역시 미추홀구 주염로73번길 54 제이원플렉스 631호
    구매 불가
    추천 상품
    • 4,000원
    • 3,100원
    • 564,300원
    관련 상품
    인기 판매
    • 상품정보
    • 상품리뷰 (0)
    • 상품문의 (0)
    • 배송/반품/교환안내

    디지털 스토리지 오실로스코프 UTD2102CEM

    Features

    1. 100MHz bandwidth, 1GSa/s real-time sampling rate
    2. 2 channels
    3. 28Mpts memory depth
    4. 20,000wfms/s waveform acquisition rate
    5. 2ns/div~50s/div time-base
    6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video
    7. Calibration signal output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz
    8. Input calibration signal only by pressing a button
    9. 10Mpts waveform recording
    10. 8-inch TFT LCD, WVGA (800×480)
    11. USB OTG and Pass/Fail interface



    Specifications UTD2072CEM  UTD2102CEM
    Channels 2 2
    Bandwidth 70MHz 100MHz
    Sampling rate 1GS/s (single channel), 500MS/s (dual channel) 1GS/s (single channel), 500MS/s (dual channel)
    Rise time ≤5ns ≤3.5ns
    Memory depth 32Mpts 32Mpts
    Waveform acquisition rate ≥20,000wfms/s ≥20,000wfms/s
    Vertical sensitivity (V/div) 1mV/div~20V/div (1MΩ) 1mV/div~20V/div (1MΩ)
    Time-based range (s/div) 2ns/div~50s/div 2ns/div~50s/div
    Storage Setup, Wave, Bitmap Setup, Wave, Bitmap
    Trigger
    Trigger frequency 6 bits 6 bits
    Trigger mode Edge, Pulse Width, Runt, Over amplitude, Slope, Video Edge, Pulse Width, Runt, Over amplitude, Slope, Video
    Trigger Level range Internal ±15div from the center of the screen ±15div from the center of the screen
    EXT ±6V (adjustable) ±6V (adjustable)
    EXT/5 -- --
    Suppression range 100ns~10s 100ns~10s
    Edge Trigger
    Edge mode Rise, Fall, Rise and Fall Rise, Fall, Rise and Fall
    Pluse Width Trigger
    Trigger mode +Width (greater than, less than or in    designated section); -Width (greater than, less than or in designated section) +Width (greater than, less than or in designated section); -Width (greater than, less than or  in designated section)
    Pluse width range 20ns~10s 20ns~10s
    Video Trigger
    Signal mode and Line/Field Supports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL) Supports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL)
    Slope Trigger
    Trigger mode +Slope (greater than, less than or  in designated section); -Slope (greater  than, less than or  in designated    section) +Slope (greater than, less than or in designated section); -Slope (greater than, less than or in designated  section)
    Time setting 20ns~10s 20ns~10s
    Measurements
    Cursor Manual    mode Voltage Difference between cursors (ΔV), Time Difference between cursors (ΔT), reciprocal of ΔT(Hz) (1/ΔT) Voltage Difference between cursors (ΔV), Time Difference between cursors (ΔT), reciprocal of ΔT(Hz) (1/ΔT)
    Tracking mode Voltage and time value of wave point Voltage and time value of wave point
    Auto measurement Allowed to display cursor in auto measurements Allowed to display cursor in auto measurements
    Auto measurement Max, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total Max, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total
    Storage waveform 20 internal settings/waforms, 200 settings/waveforms in  U disc , deep storage CSV in U disc 20 internal settings/waforms, 200 settings/waveforms in  U disc , deep storage CSV in U disc
    Others
    Interface USB-OTG, Pass/Fail USB-OTG, Pass/Fail
    General Characteristics
    Power 100~240V ACrms, 50Hz/60Hz 100~240V ACrms, 50Hz/60Hz
    LCD size 8 inch TFT LCD; Display resolution: 800×RGB×480 8 inch TFT LCD; Display resolution: 800×RGB×480
    Product color Ivory and grey Ivory and grey
    Product net weight 3.35kg 3.35kg
    Product size  (W×H×D) 336mm×164mm×108mm 336mm×164mm×108mm
    Standard accessories Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (manual and application software inside) Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (manual and application software inside)
    Optional accessories -- --
