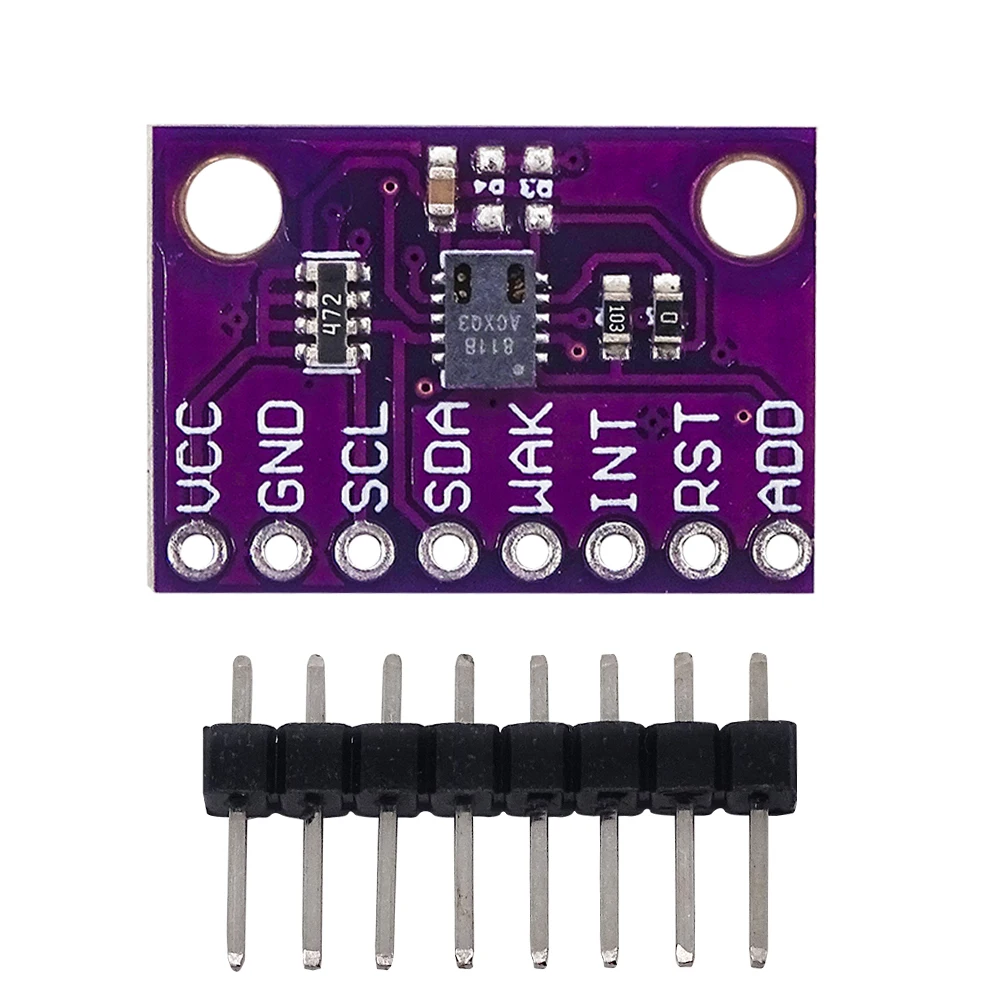

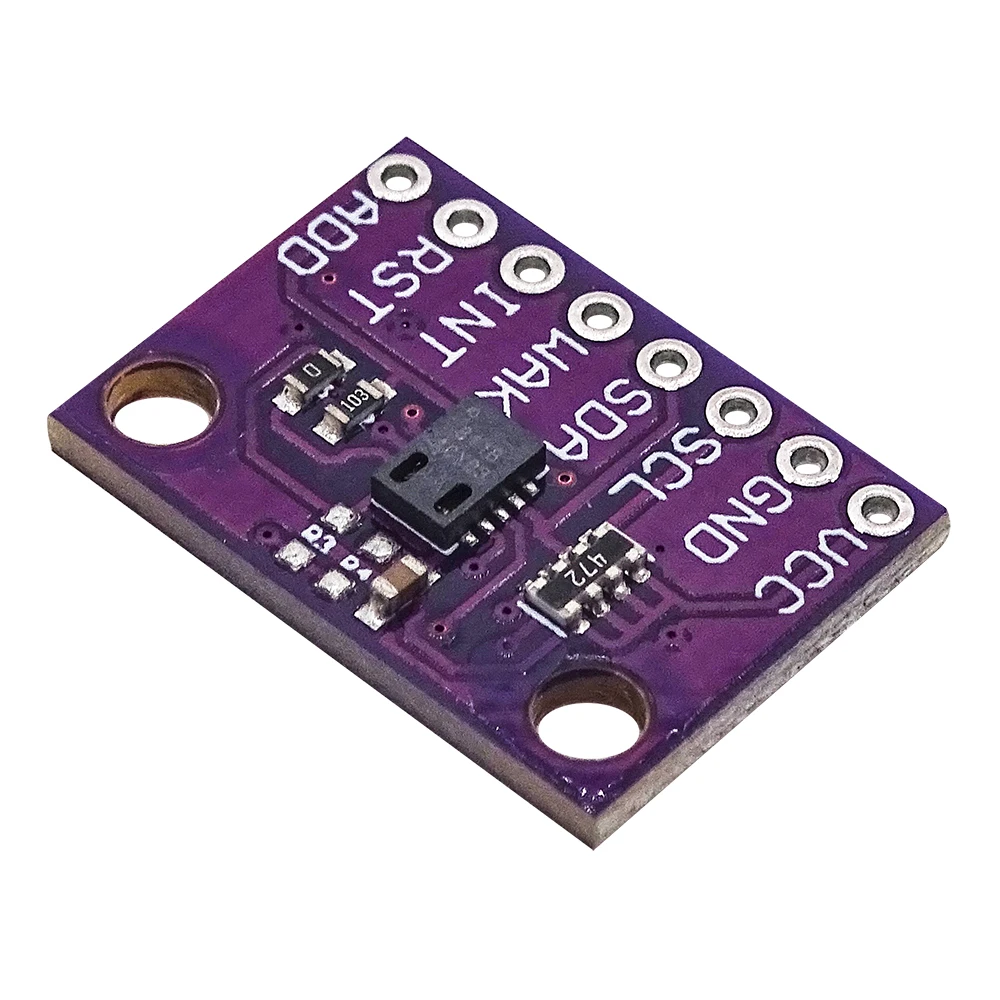

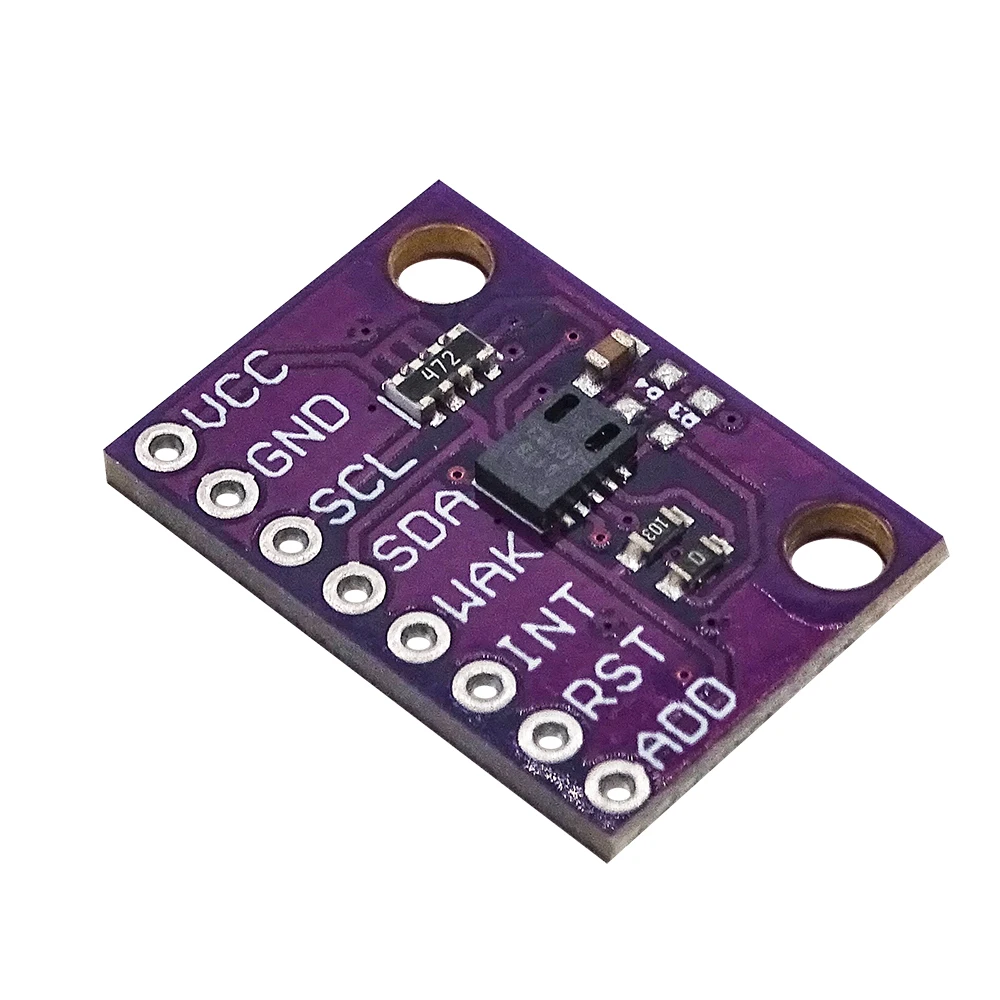

CJMCU-811 CCS811 Indoor air quality monitoring digital gas sensor

The CJMCU-811 is an ultra-low-power digital gas sensor that integrates a CCS801 sensor and an 8-bit MCU with an analog-to-digital converter (ADC) to detect indoor air quality, including carbon monoxide (CO) and a wide range of Volatile Organic Compounds (VOCs).

Air quality sensor CCS811 features:

Ultra-low power consumption can be used in battery-operated equipment

High sensitivity, fast heating

The intelligent algorithm calculates TVOC / eCO2 values

Output I2C signal, direct communication with the main system

The main features of the air quality sensor CJMCU-811:

Metal oxide (MOX) sensors for monitoring indoor air quality

An 8-bit MCU is integrated to run the first-level algorithm

Integrated 12-bit ADC for sensor readings and digitized conversions

I2C slave interface can be directly connected to the host system

Reset / interrupt control

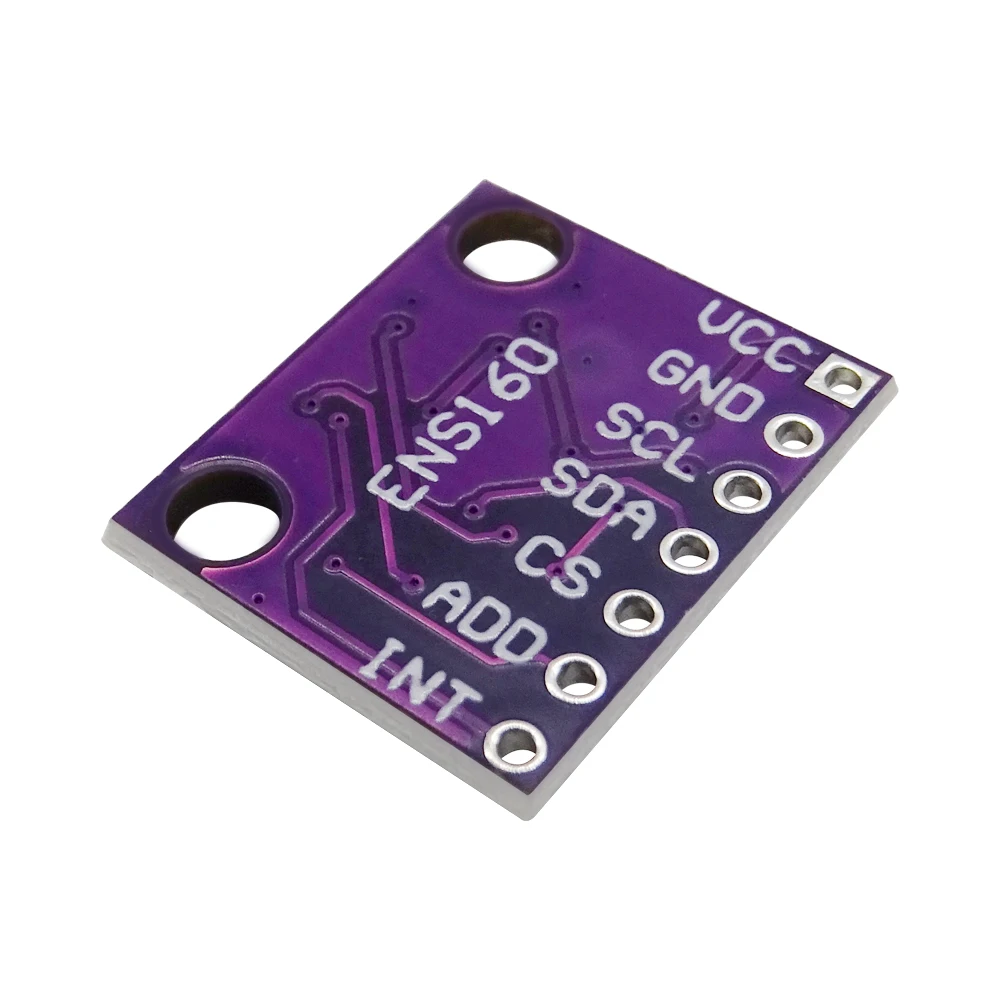

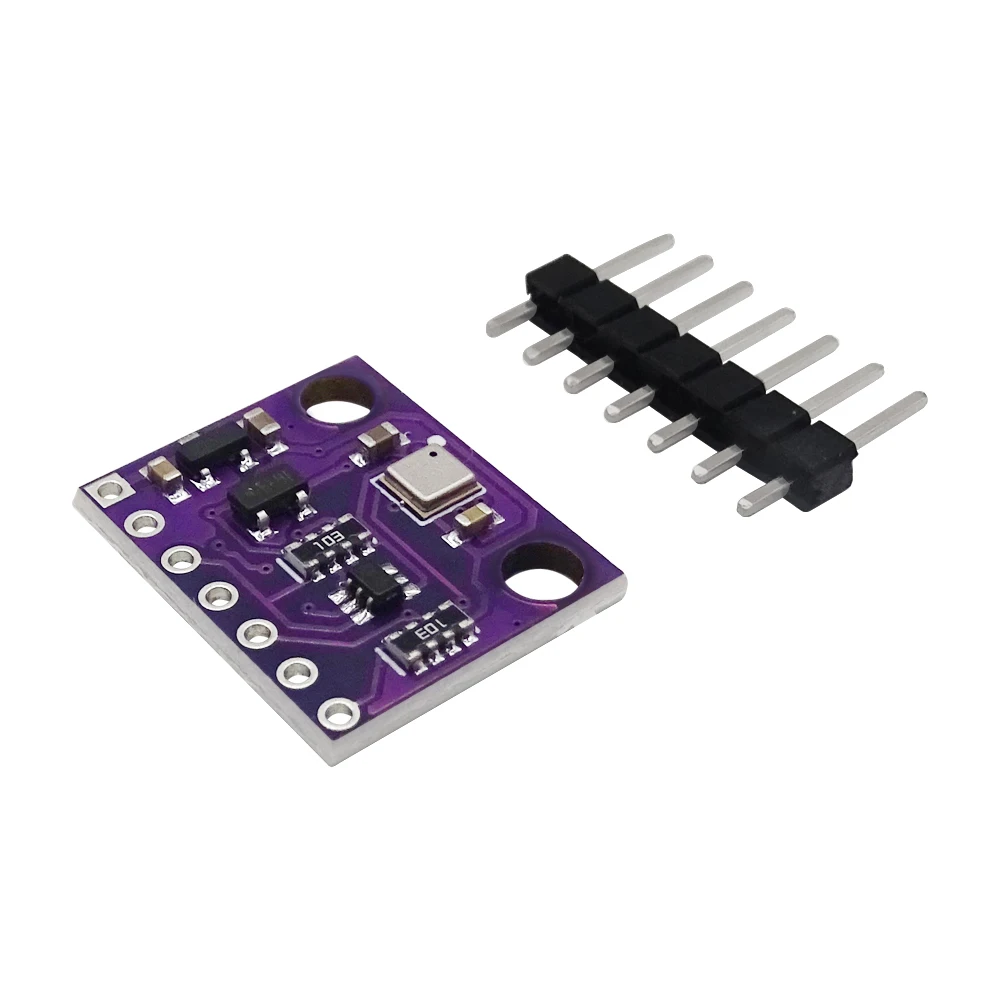

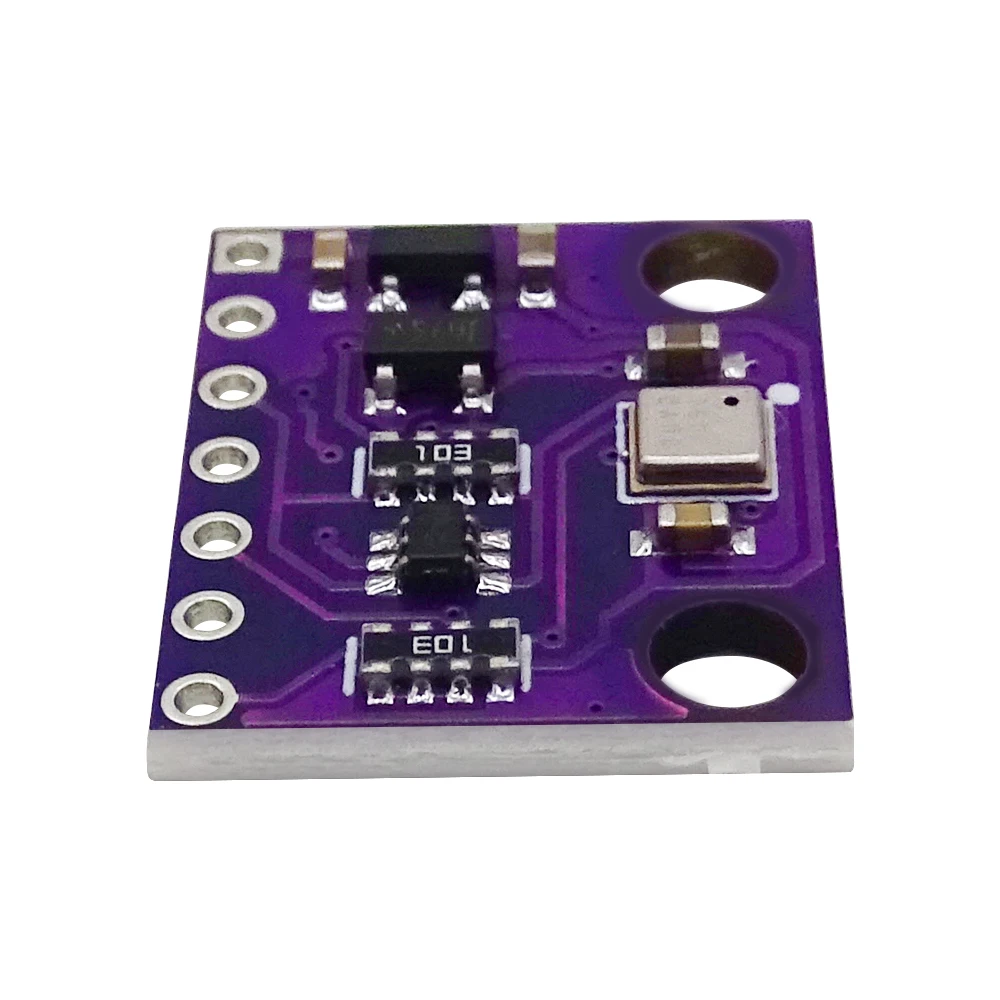

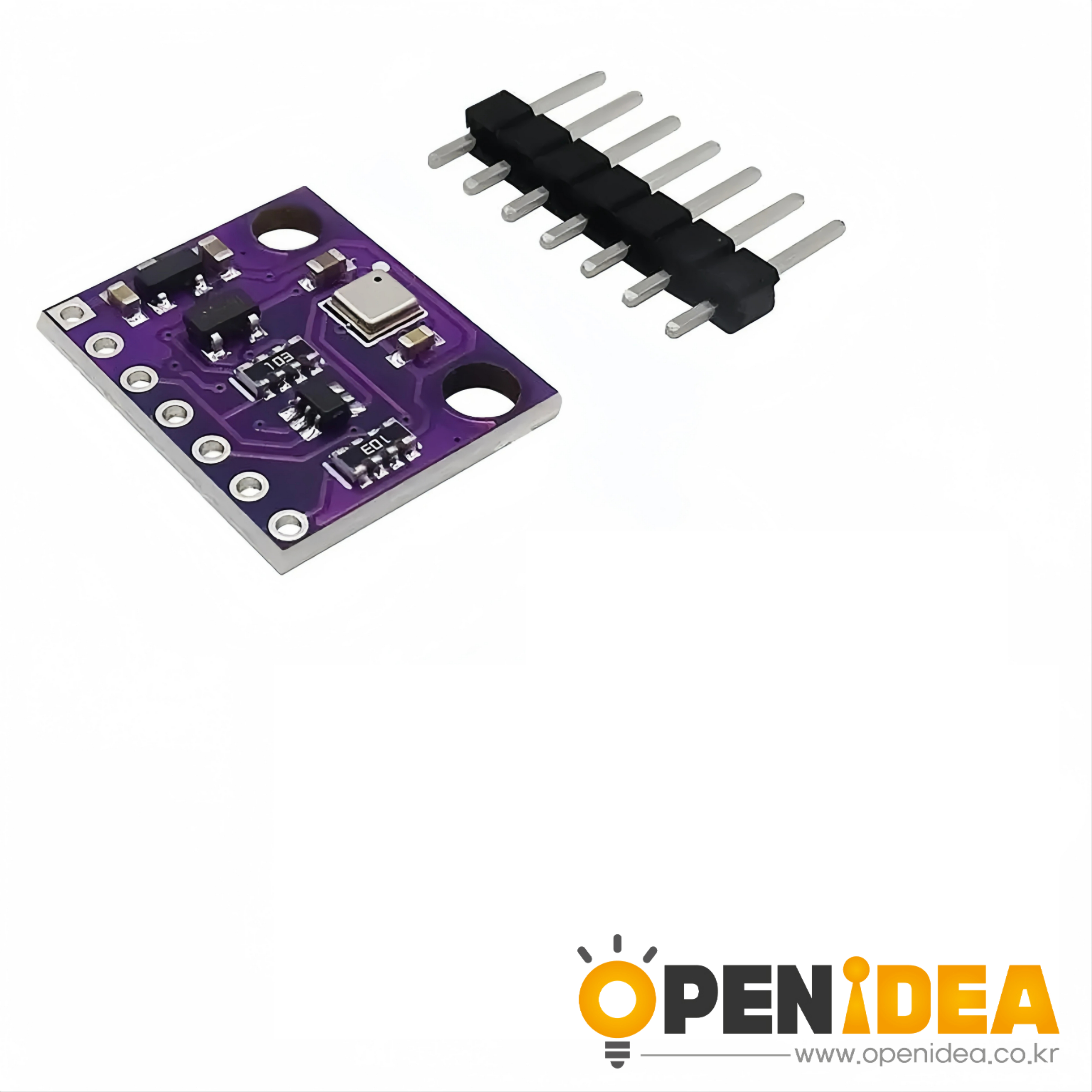

As ccs811 production is reduced and delivery is delayed, the terminal equipment originally designed with ccs811 is facing severe delivery difficulties. For this reason, sciosense (formerly AMS) released the latest VOC sensor: ens160. This sensor is a digital metal oxide multi gas sensor solution based on metal oxide (MOX) technology and four MOX sensor elements. Each sensor element has an independent hot plate control to detect a variety of gases, such as volatile organic compounds (VOC) including ethanol, toluene, hydrogen and nitrogen dioxide, with excellent selectivity and accuracy. For indoor air quality applications, ens160 supports intelligent algorithms to digitally process raw sensor measurements on a chip. These algorithms calculate CO2 equivalent, TVOC and different air quality indicators (AQIS), and perform humidity and temperature compensation and baseline management. Many users who have been using ccs811 before have started to choose to replace it with ens160

Cjmcu-811 is a low-power digital gas sensor, which integrates ccs801 sensor and 8-bit MCU (with analog-to-digital converter (ADC)) to detect indoor air quality, including carbon monoxide (CO) and a wide range of volatile organic compound gases (VOCs).

Characteristics of air quality sensor ccs811:

Low power consumption for battery operated equipment

High sensitivity and fast heating

Intelligent algorithm to calculate tvoc/eco2 value

Output I2C signal and directly communicate with the main system

Main features of air quality sensor cjmcu-811:

Metal oxide (MOX) sensor for monitoring indoor air quality

8-bit MCU is integrated to run the first level algorithm

Integrated 12 bit ADC for sensor reading and digital conversion

I2C slave interface can be directly connected to the master control system

Reset / interrupt control
