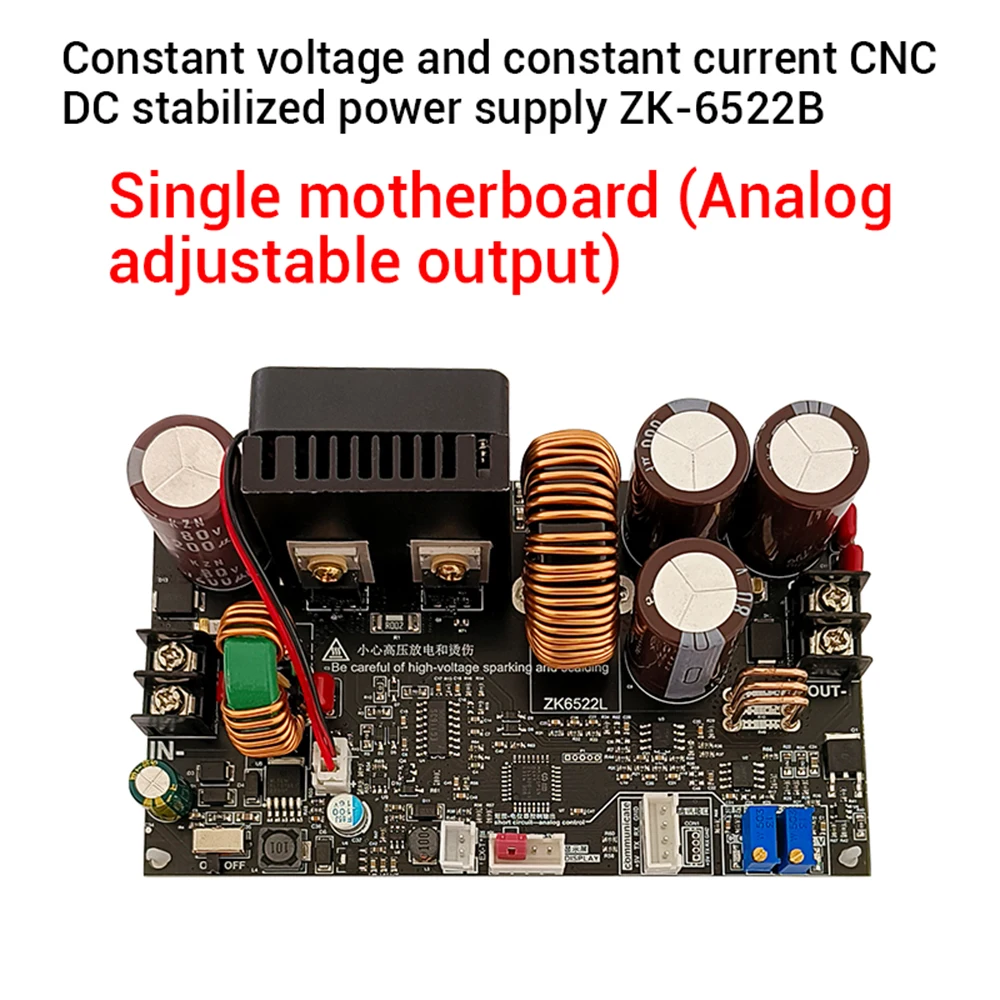

단일 마더보드 ZK-6522 CNC 스텝 다운 DC 조정 가능한 조정 전원 공급 장치 정전압 및 정전류 모듈 22A 1400W 벅 모듈 [ZTA180-093]
  • 단일 마더보드 ZK-6522 CNC 스텝 다운 DC 조정 가능한 조정 전원 공급 장치 정전압 및 정전류 모듈 22A 1400W 벅 모듈 [ZTA180-093]

단일 마더보드 ZK-6522 CNC 스텝 다운 DC 조정 가능한 조정 전원 공급 장치 정전압 및 정전류 모듈 22A 1400W 벅 모듈 [ZTA180-093]

4.0 0리뷰
21,510
구매혜택:         적립 마일리지 : +21원 (상품 : 21원)
자체상품코드 ZTA180-093
브랜드:      OPENIDEA

수량:
1~2일 (재고 소진시 약 1주일 소요될 수 있습니다.)
총 상품금액(VAT 포함):   21,510
배송비:    3,000원 조건별배송 지역별추가배송비
택배
 /
방문 수령지 : 인천광역시 미추홀구 주염로73번길 54 제이원플렉스 631호
추천 상품
  • 2,800원
  • 9,600원
  • 178,000원
  • 2,000원
  • 5,600원
  • 21,000원
  • 2,800원
  • 1,900원
  • 36,000원
인기 판매
  • 상품정보
  • 상품리뷰 (0)
  • 상품문의 (0)
  • 배송/반품/교환안내

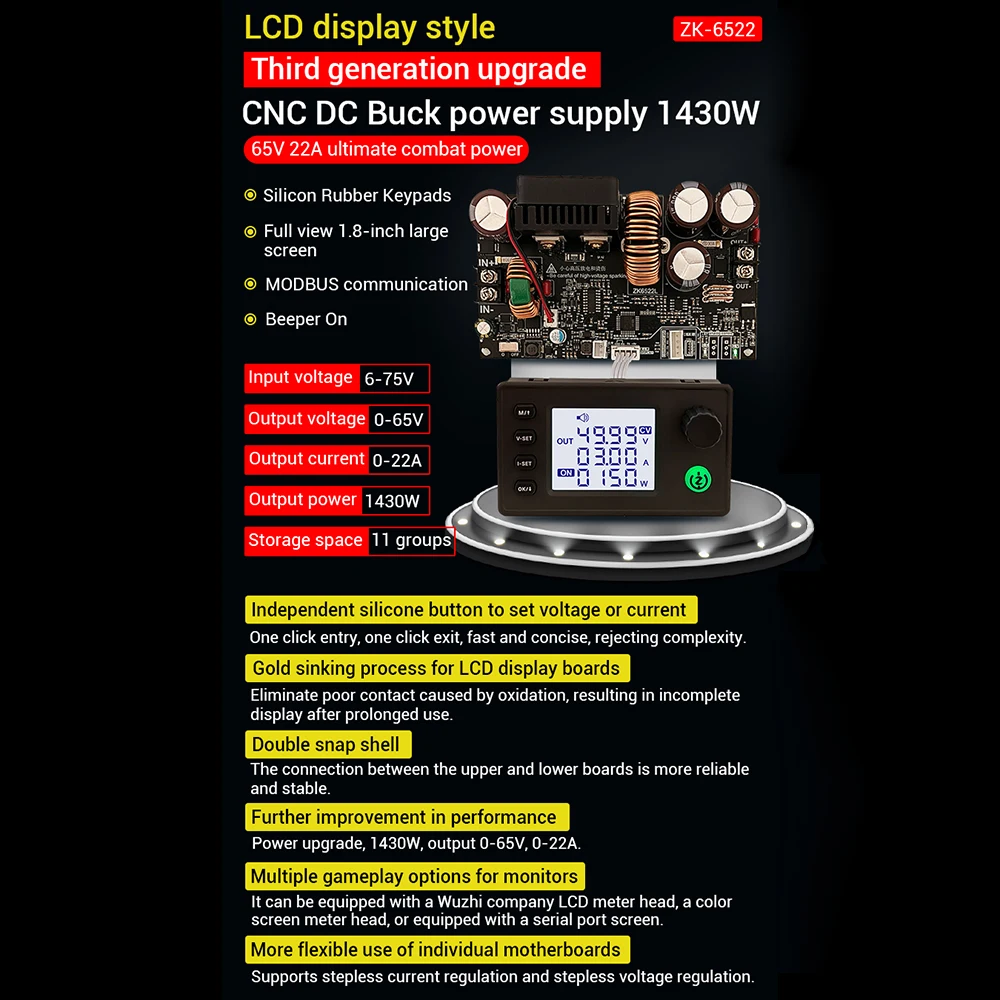

Product selling points:

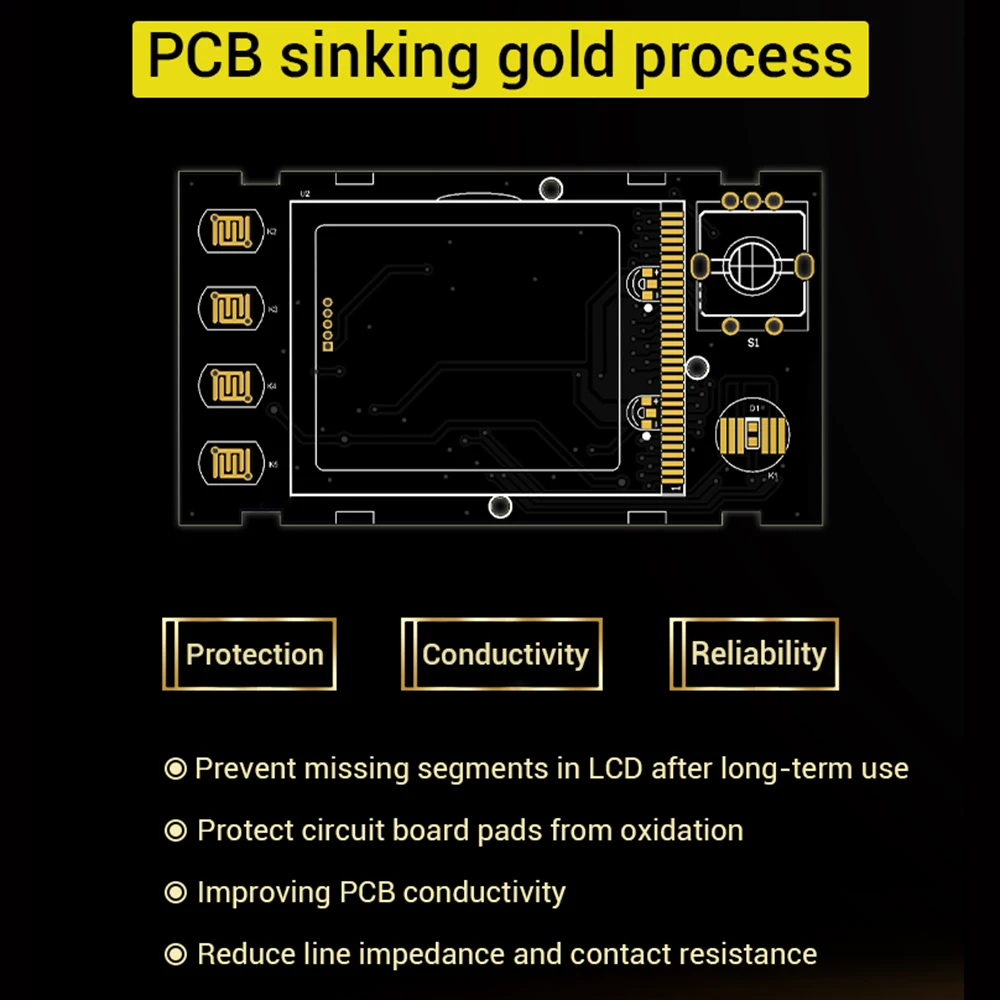

1. The LCD display panel is immersed in gold technology to prevent oxidation and poor contact, and prevent incomplete display after long-term use.

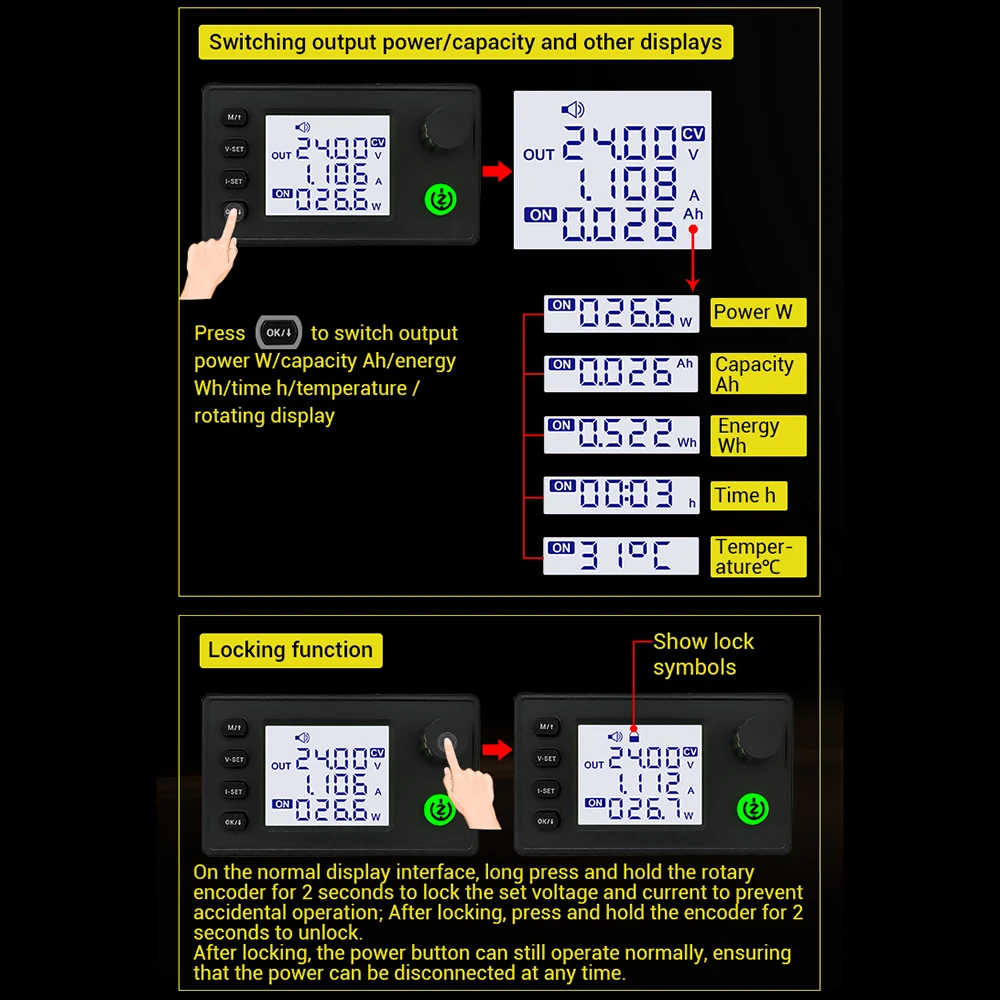

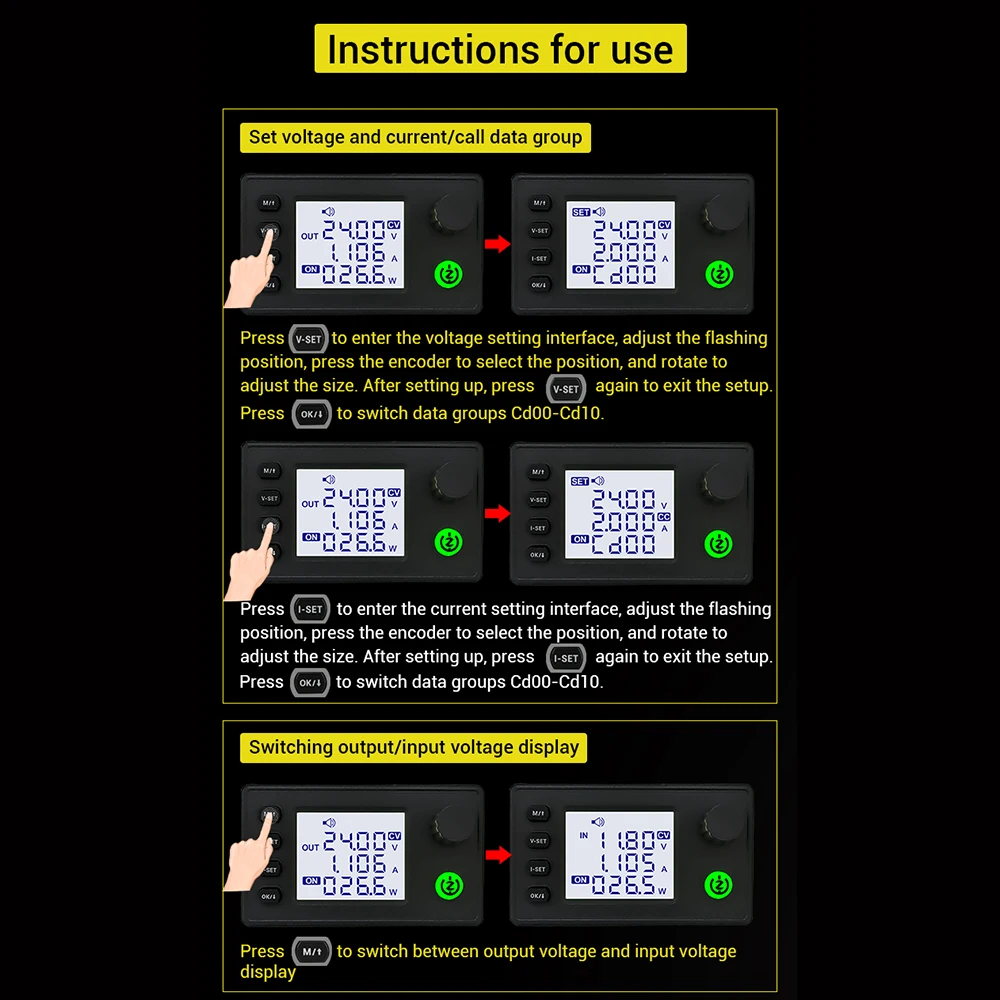

2. Independent silicone buttons to set the voltage or current, one key to enter, one key to exit, fast and concise, rejecting tediousness

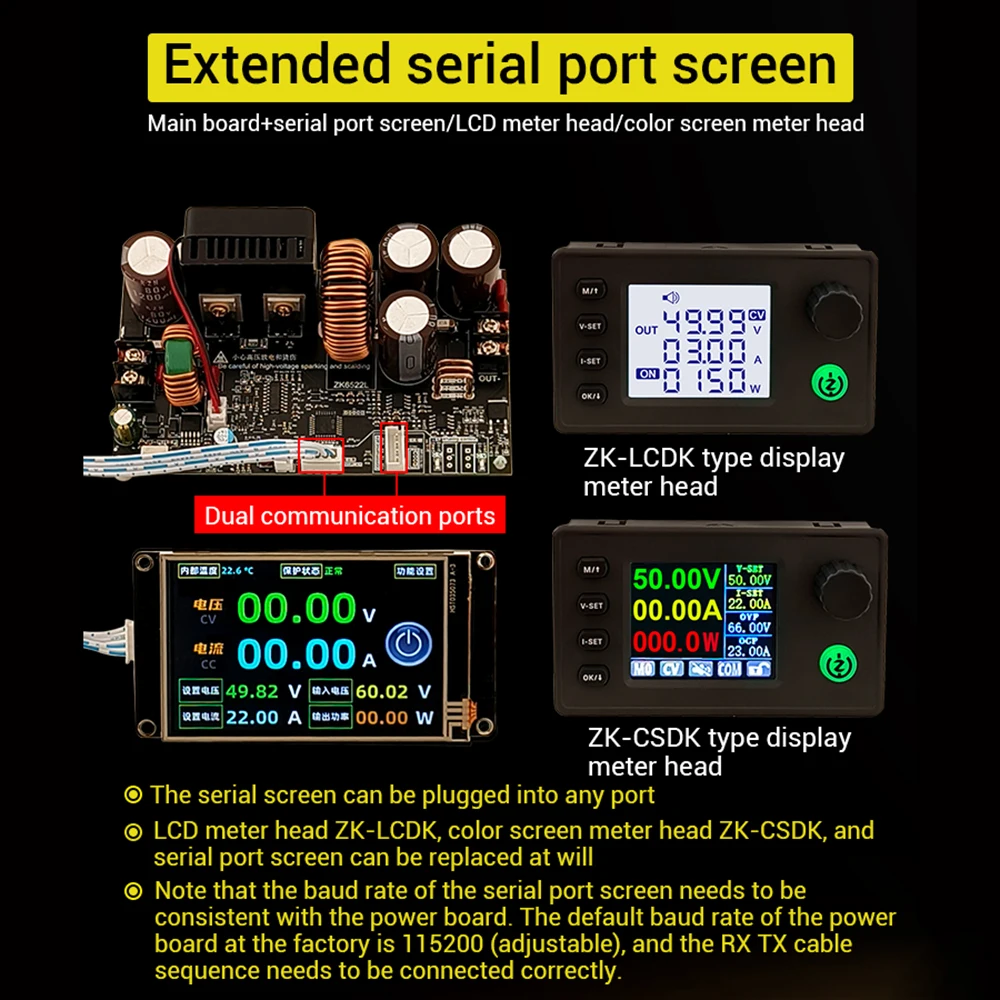

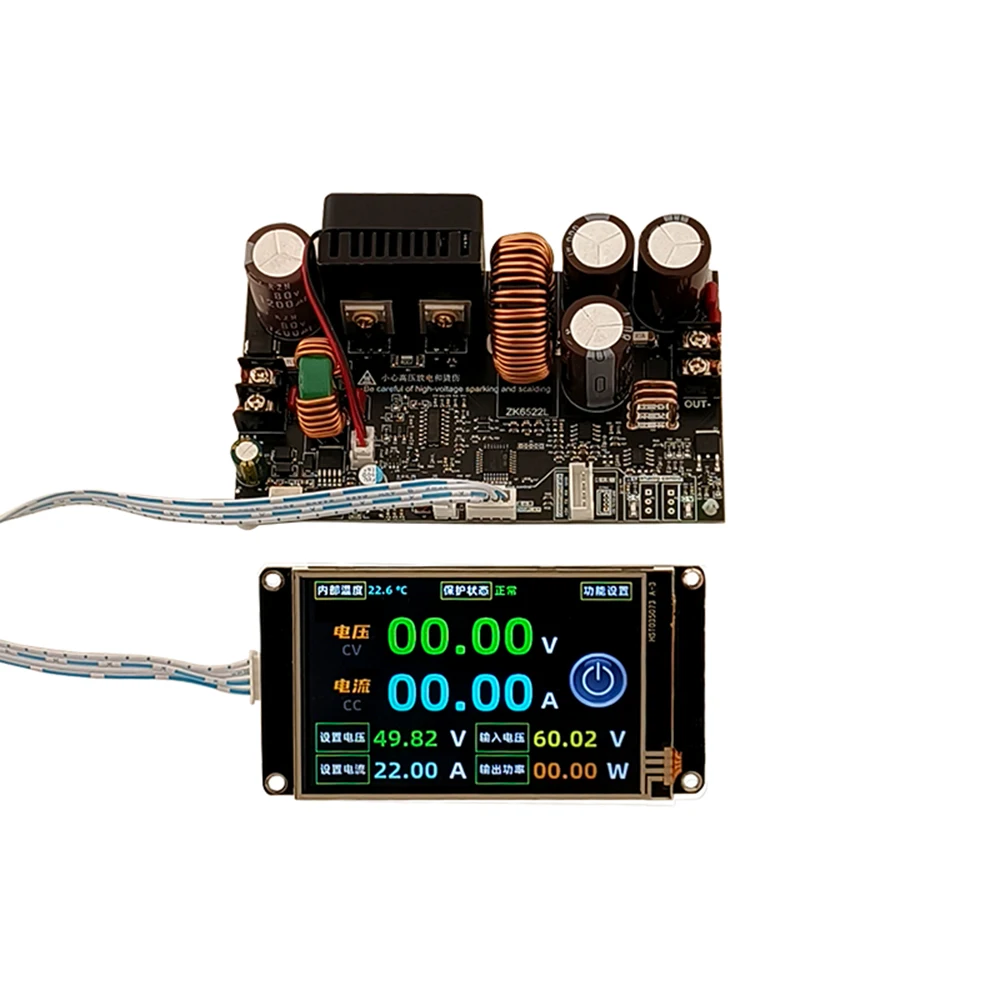

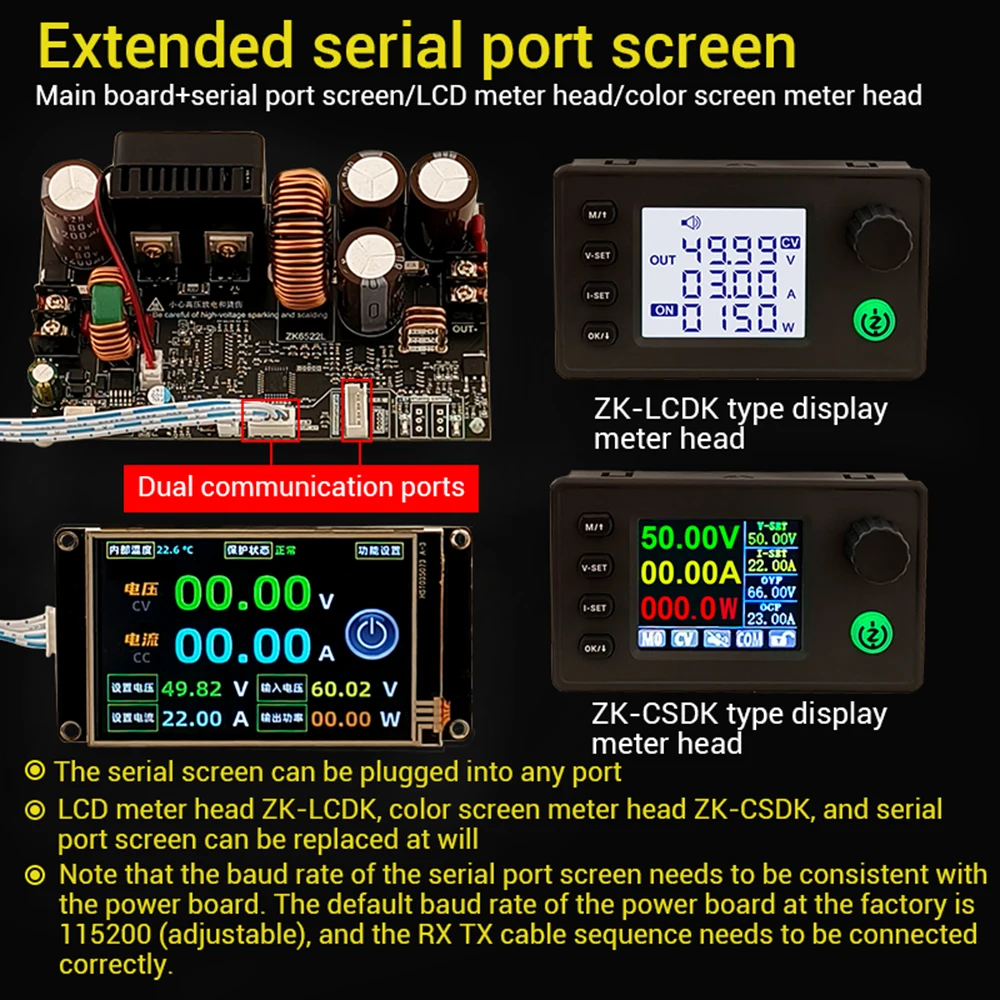

3. The display can be equipped with our LCD meter, color screen meter, or you can install a serial port screen by yourself in various ways.

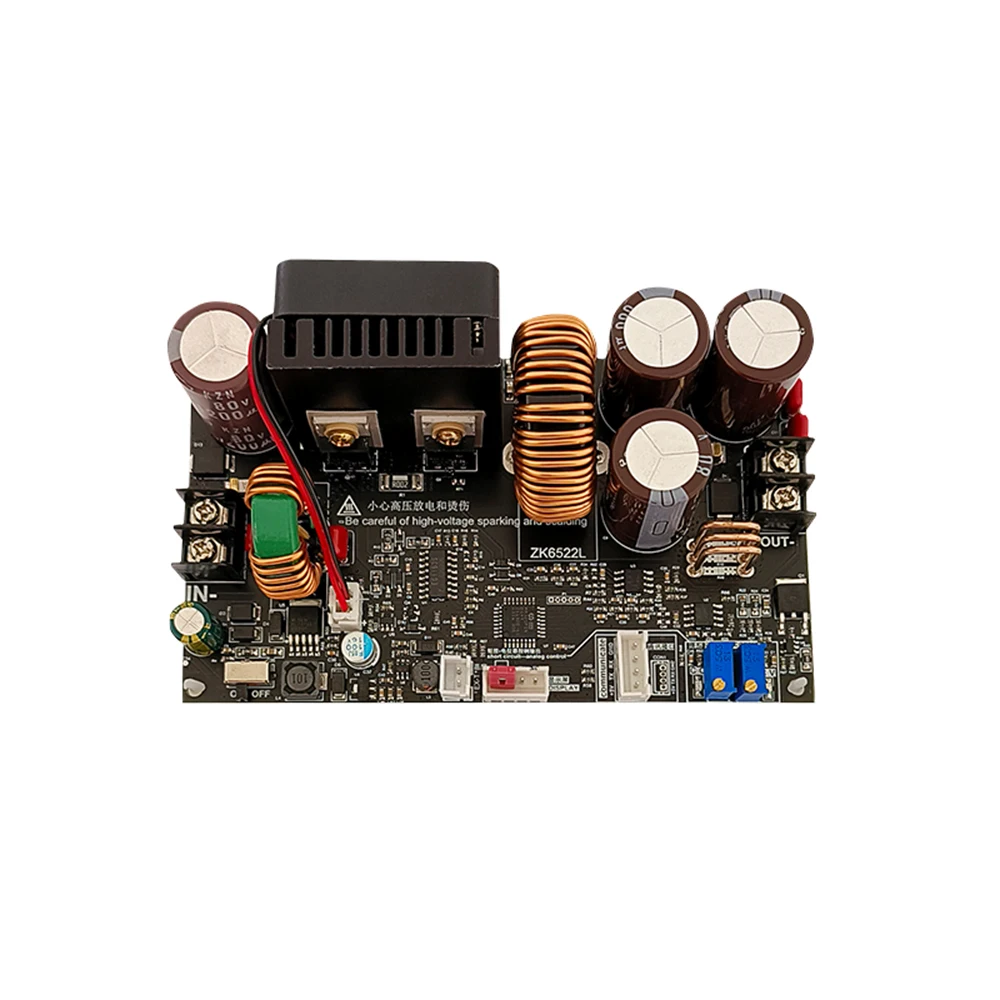

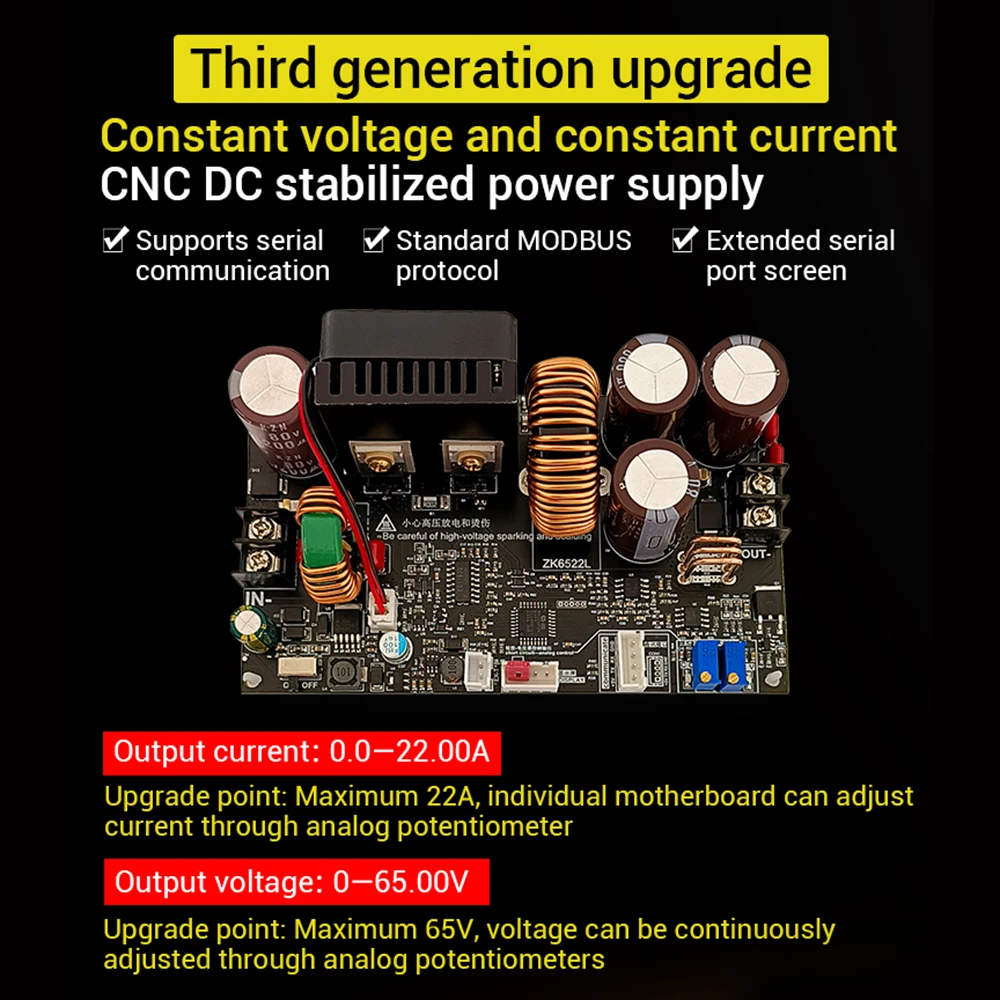

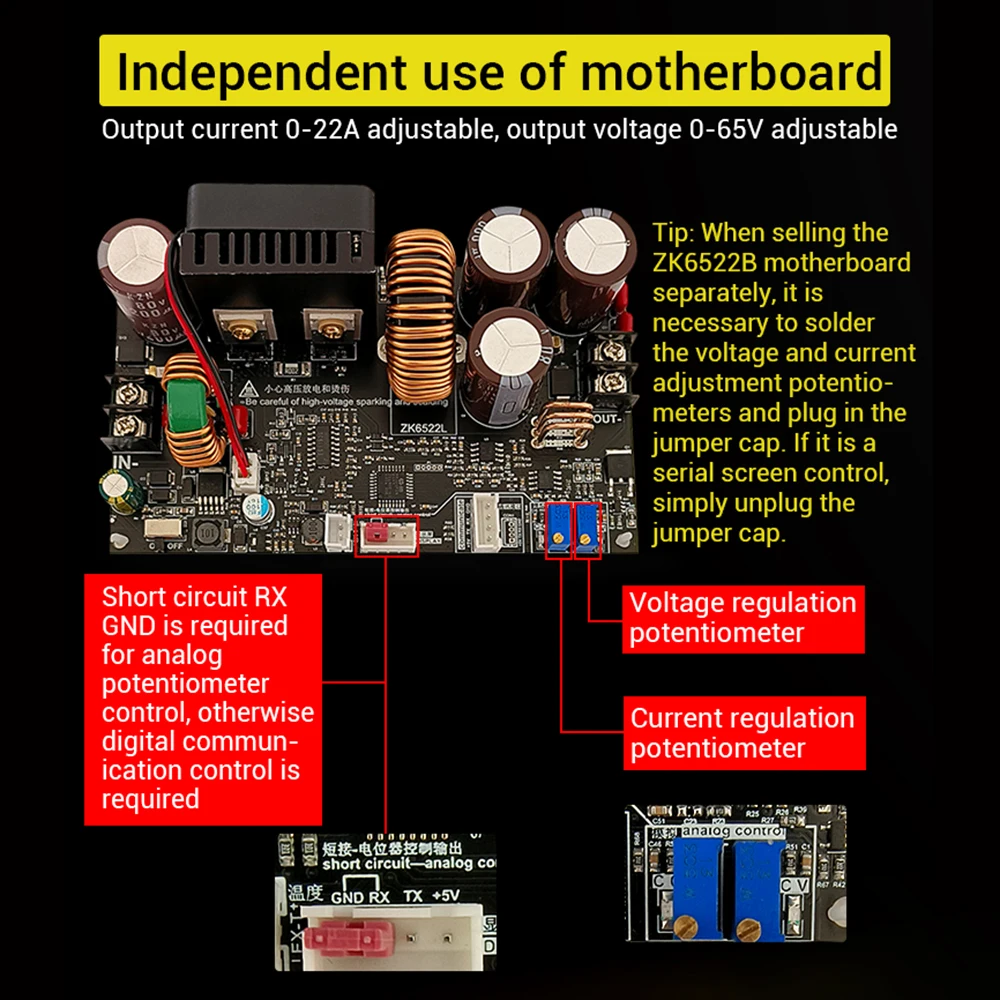

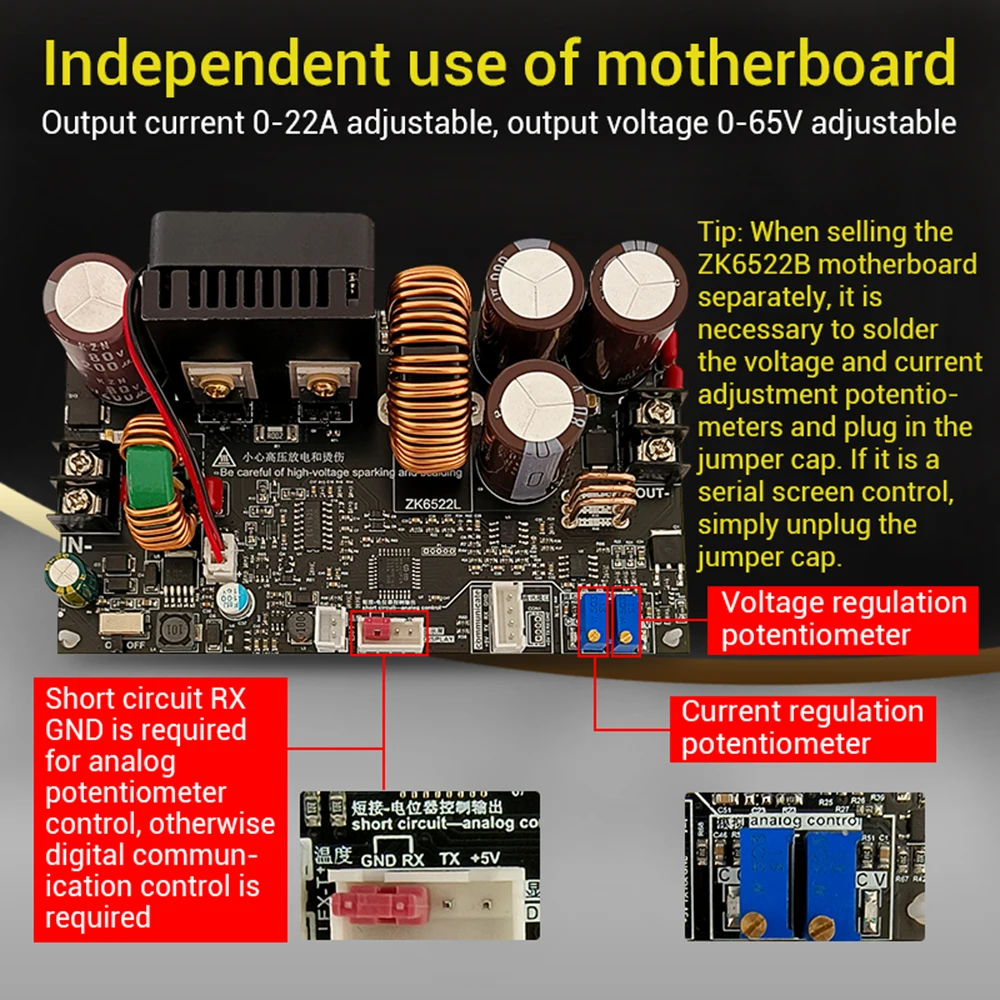

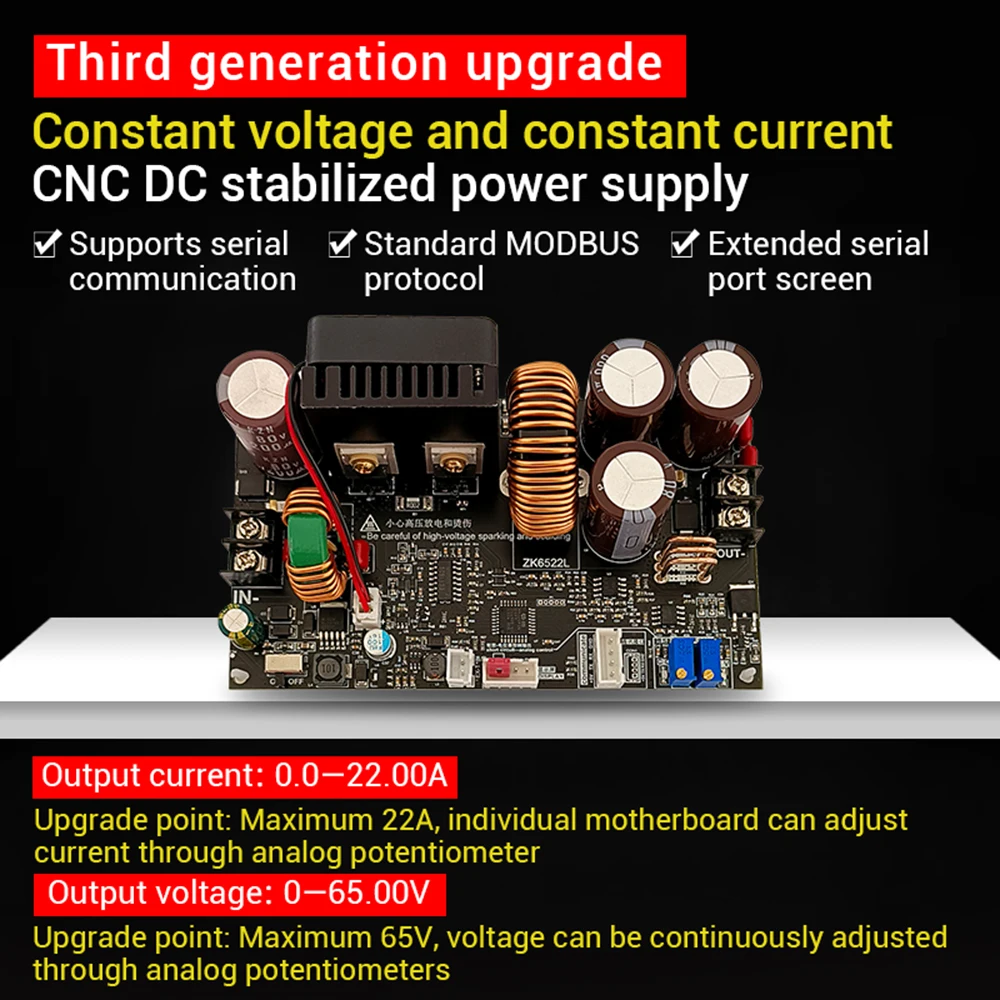

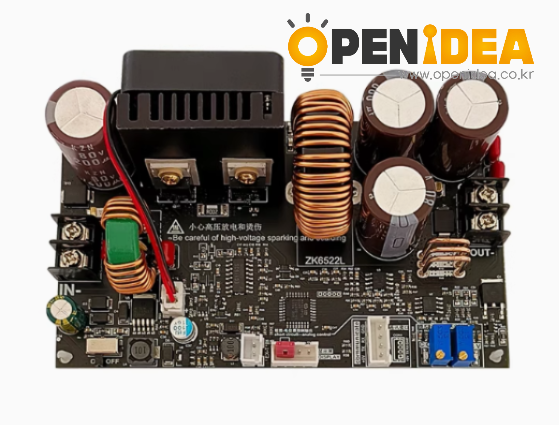

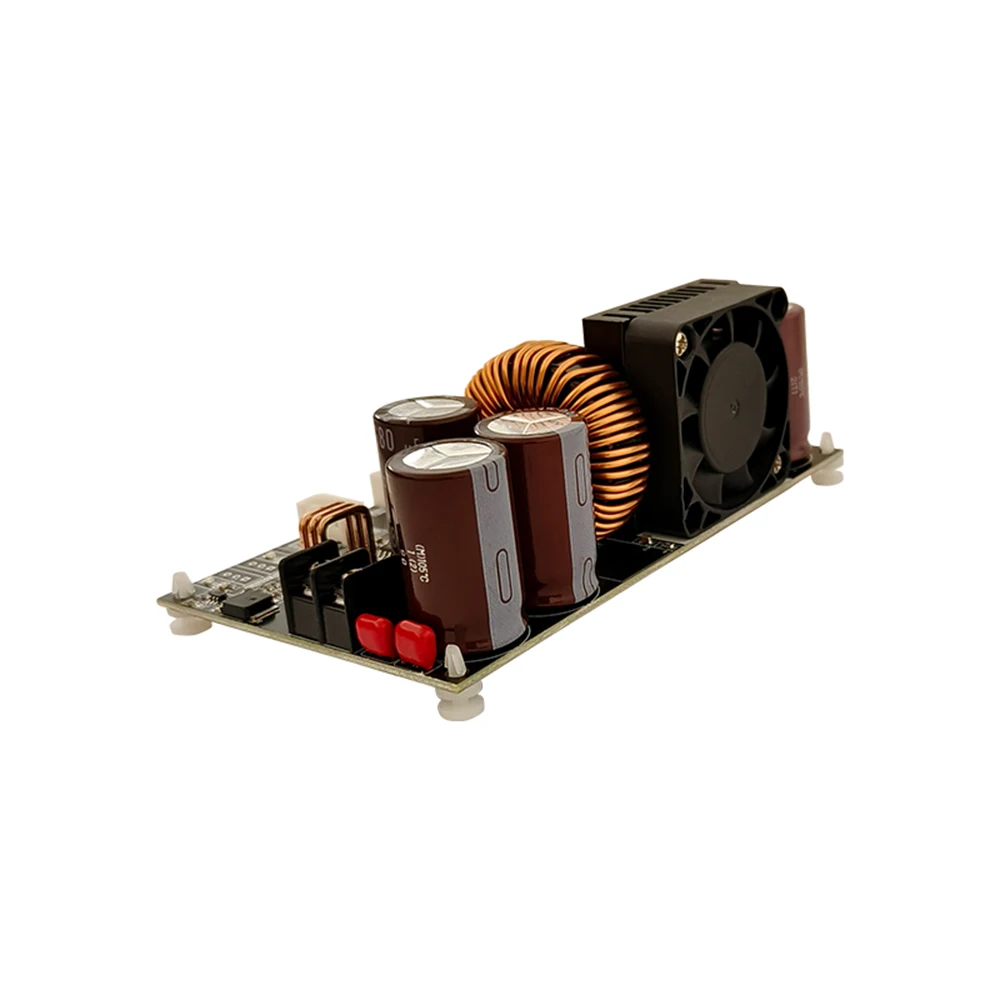

4. The independent motherboard is flexible to use and supports stepless adjustment of current and voltage.

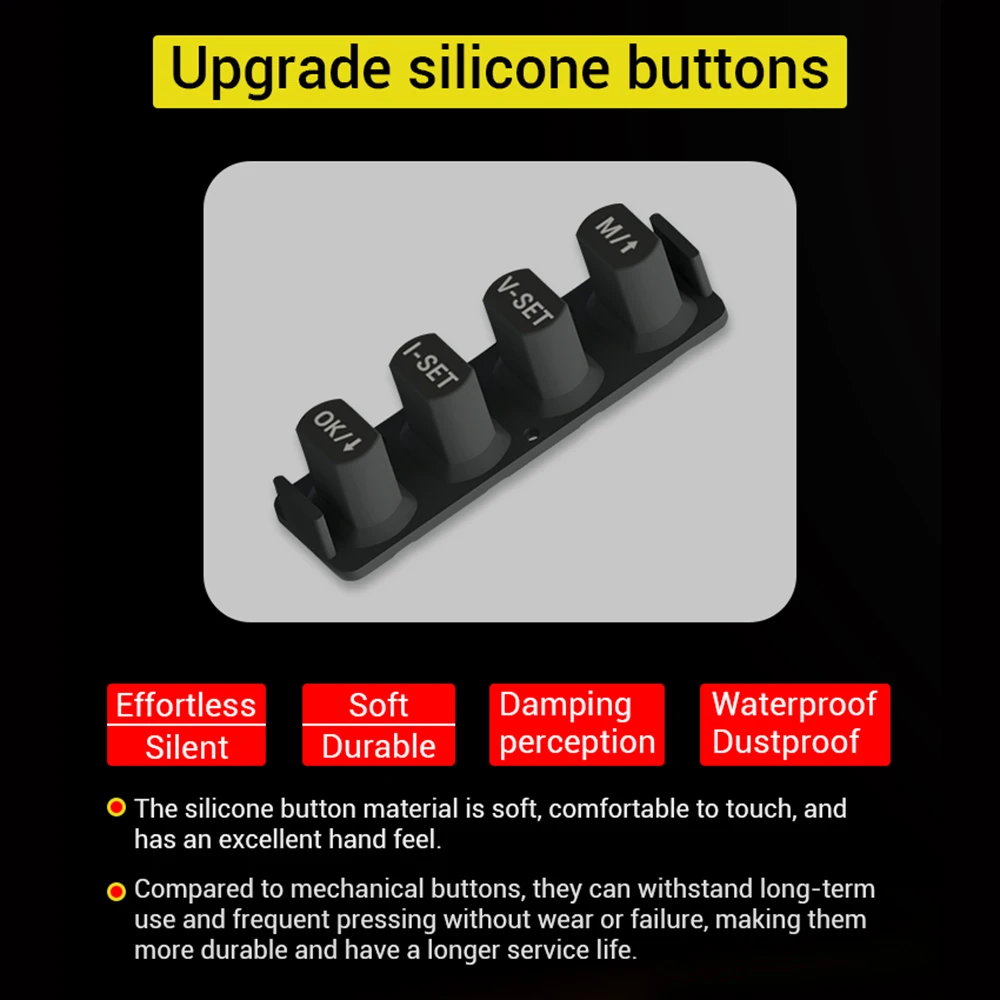

5. The silicone button material is soft, comfortable to the touch and has an excellent hand feel. Compared with mechanical keys, they can withstand long-term use and frequent pressing without wear or failure. They are more durable and have a longer service life.

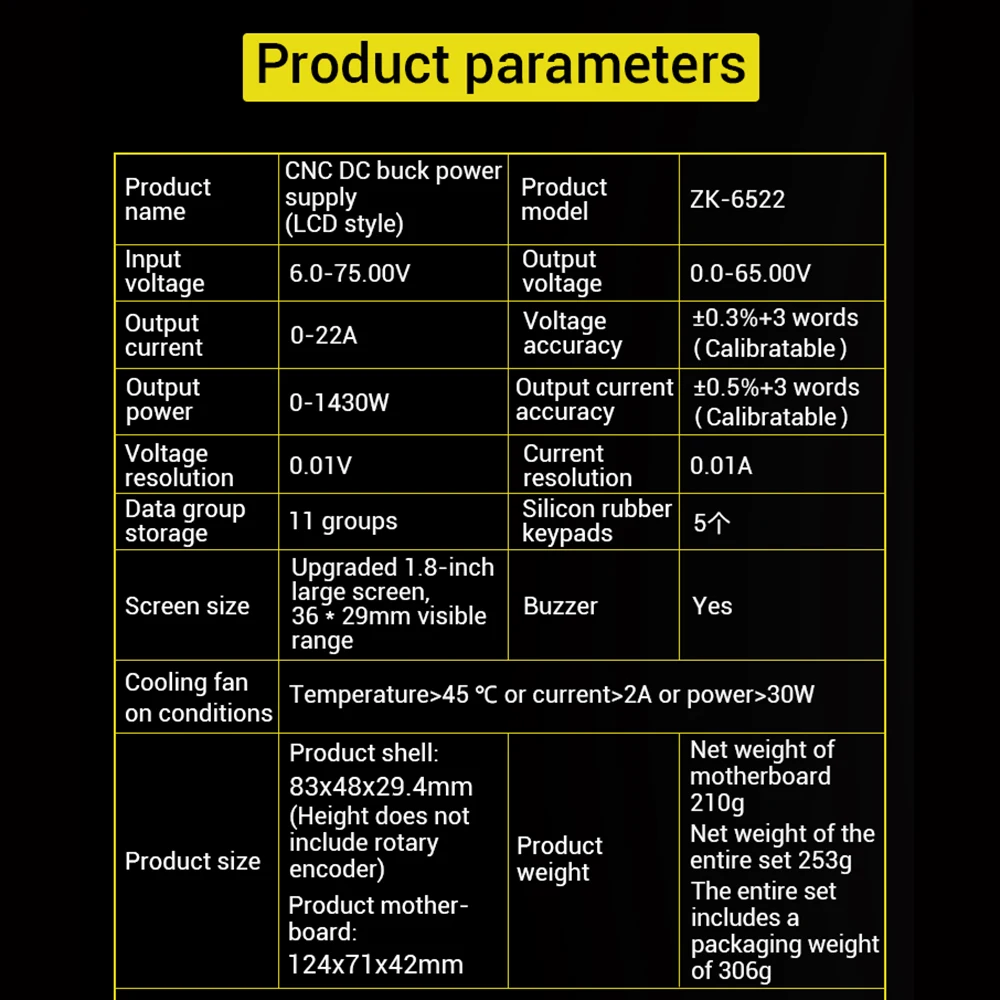

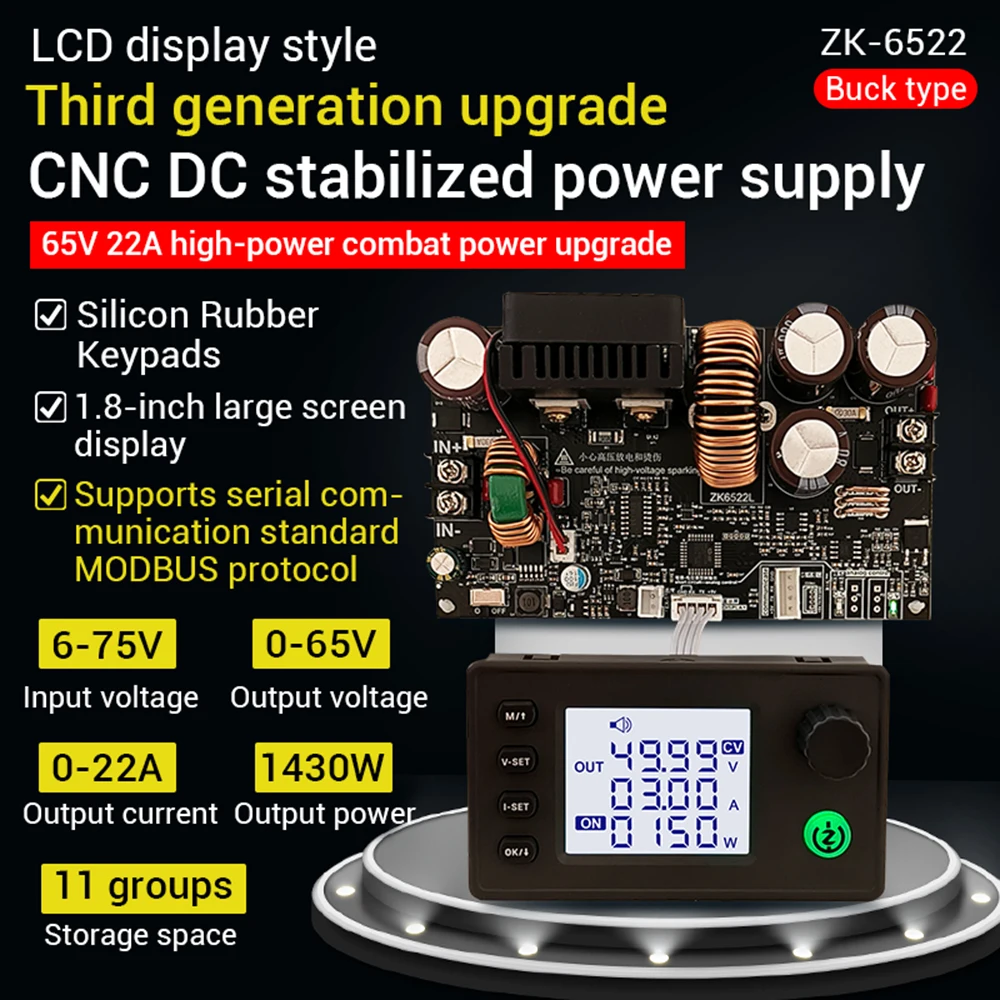

Product parameters:

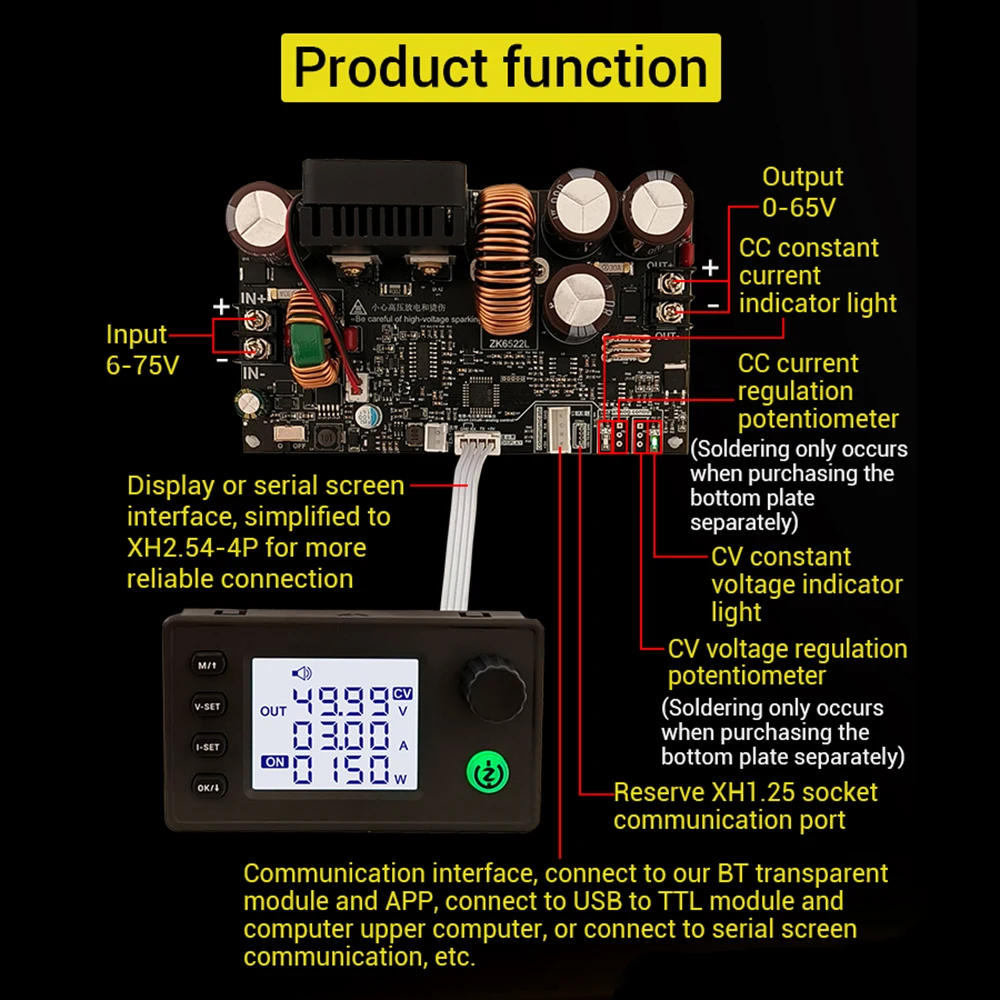

Input voltage: 6.0-75.00V

Output current: 0-22A

Output power: 0-1430W

Output voltage: 0.0-65.00V

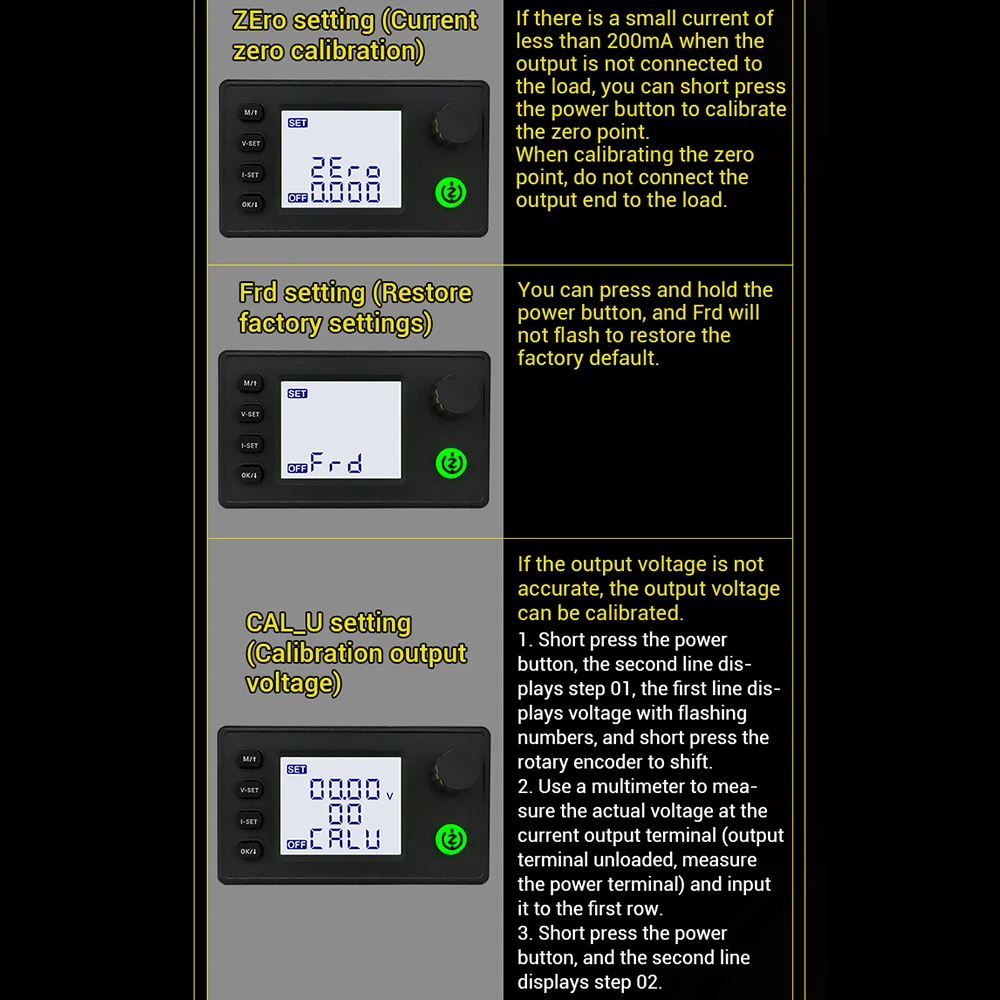

Output voltage accuracy: ±0.3%+3 words (can be calibrated)

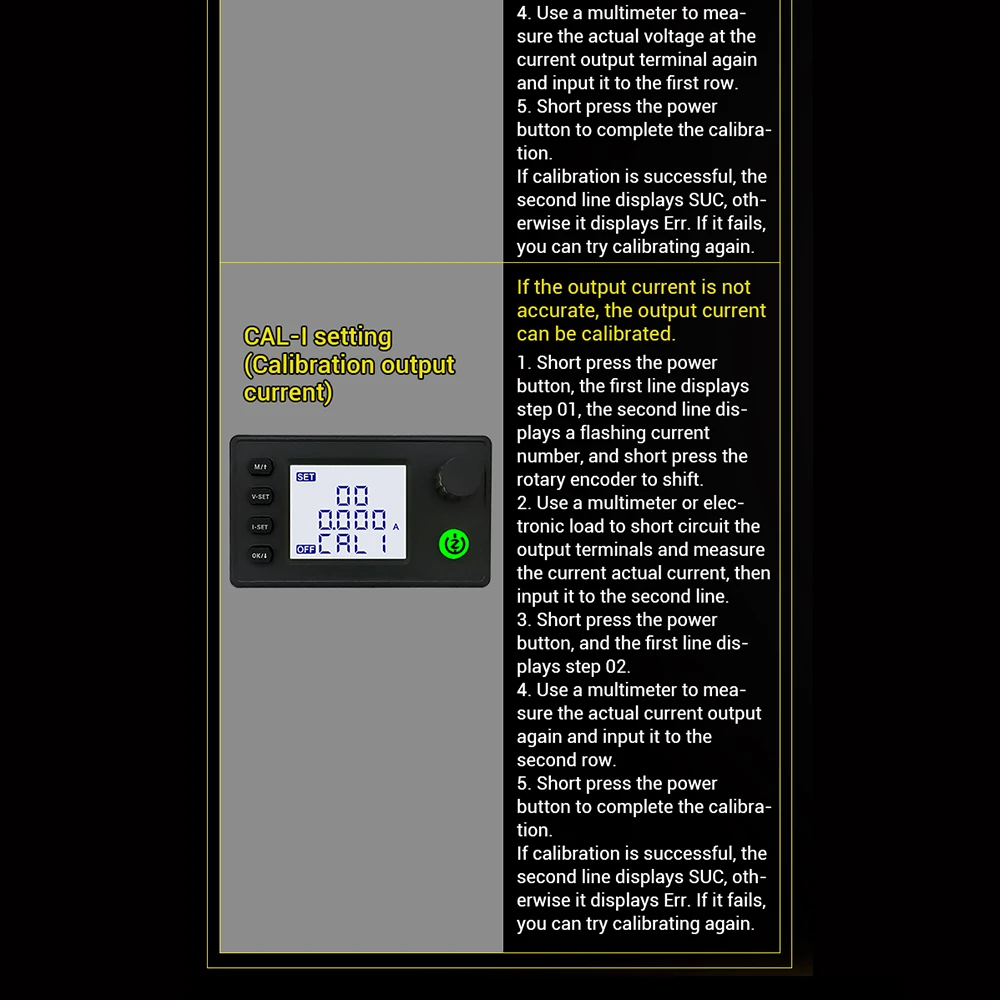

Output current accuracy: ±0.5%+3 words (can be calibrated)

Current resolution: 0.01A

Voltage resolution: 0.01V

Data group storage: 11 groups

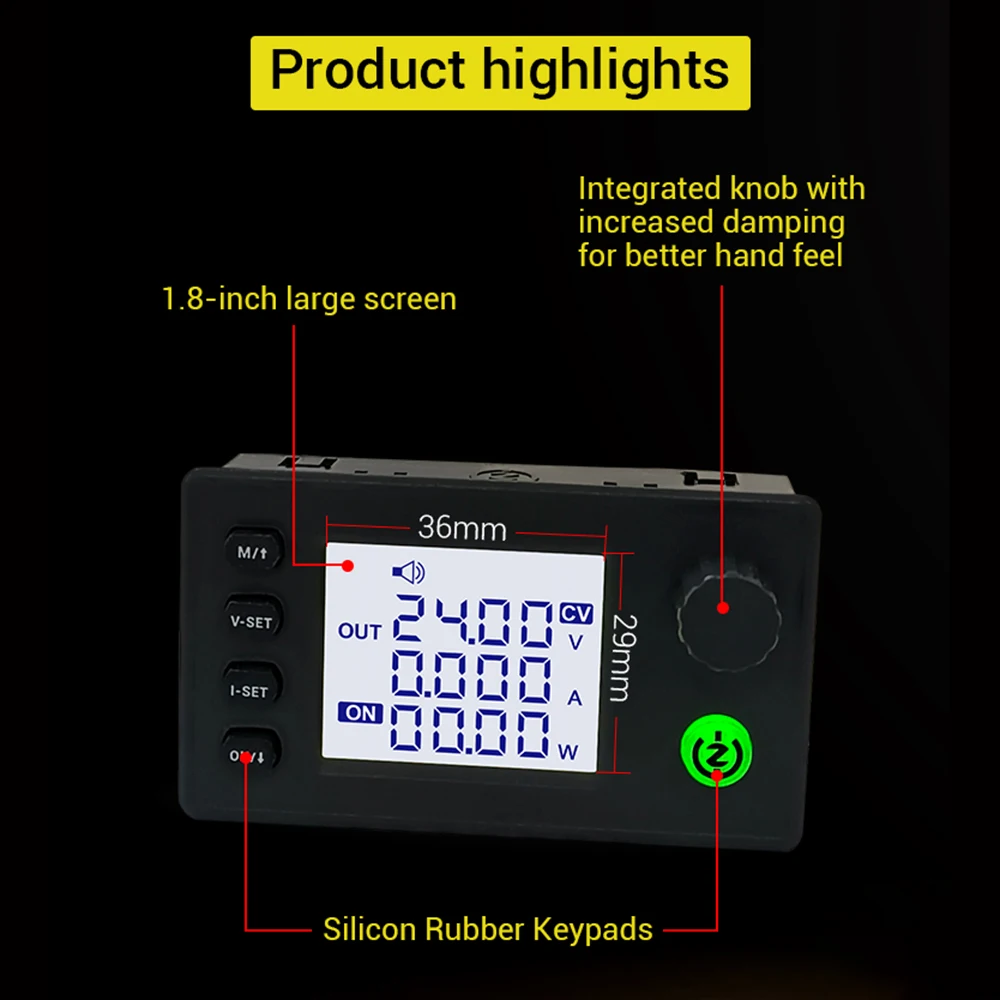

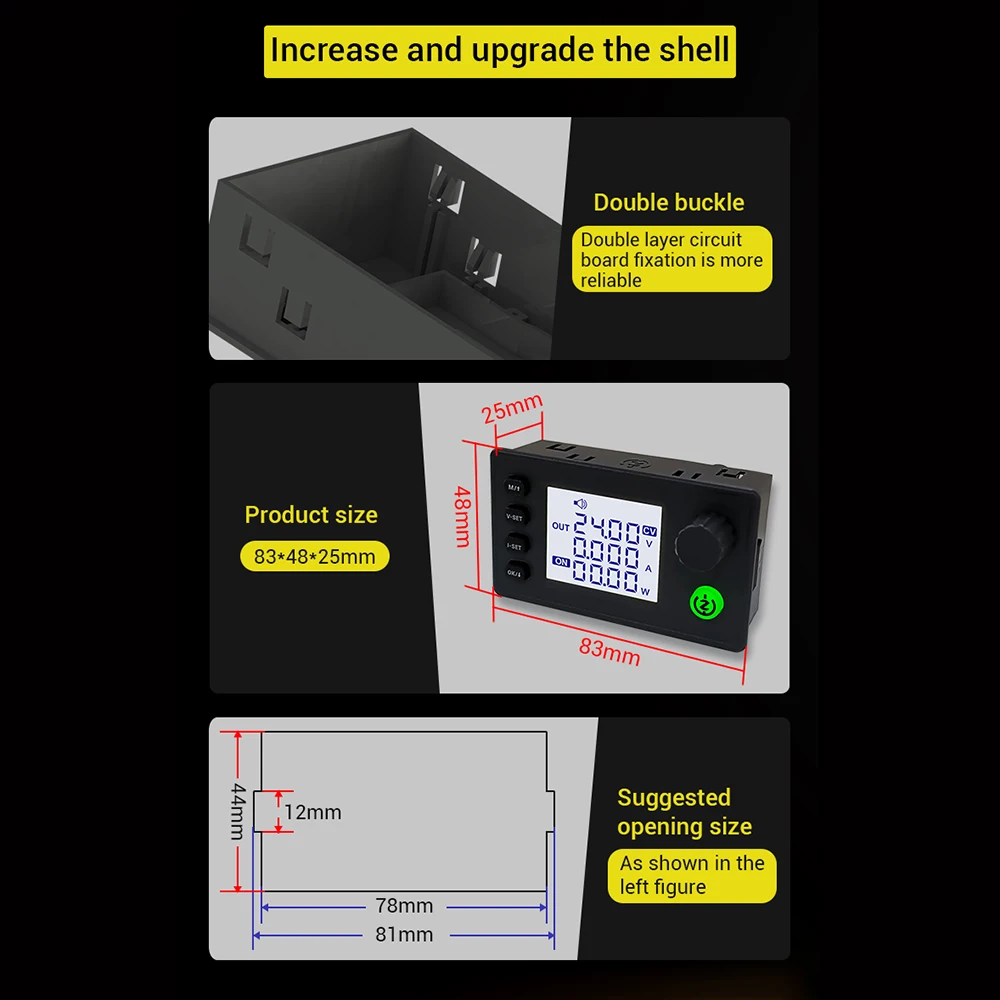

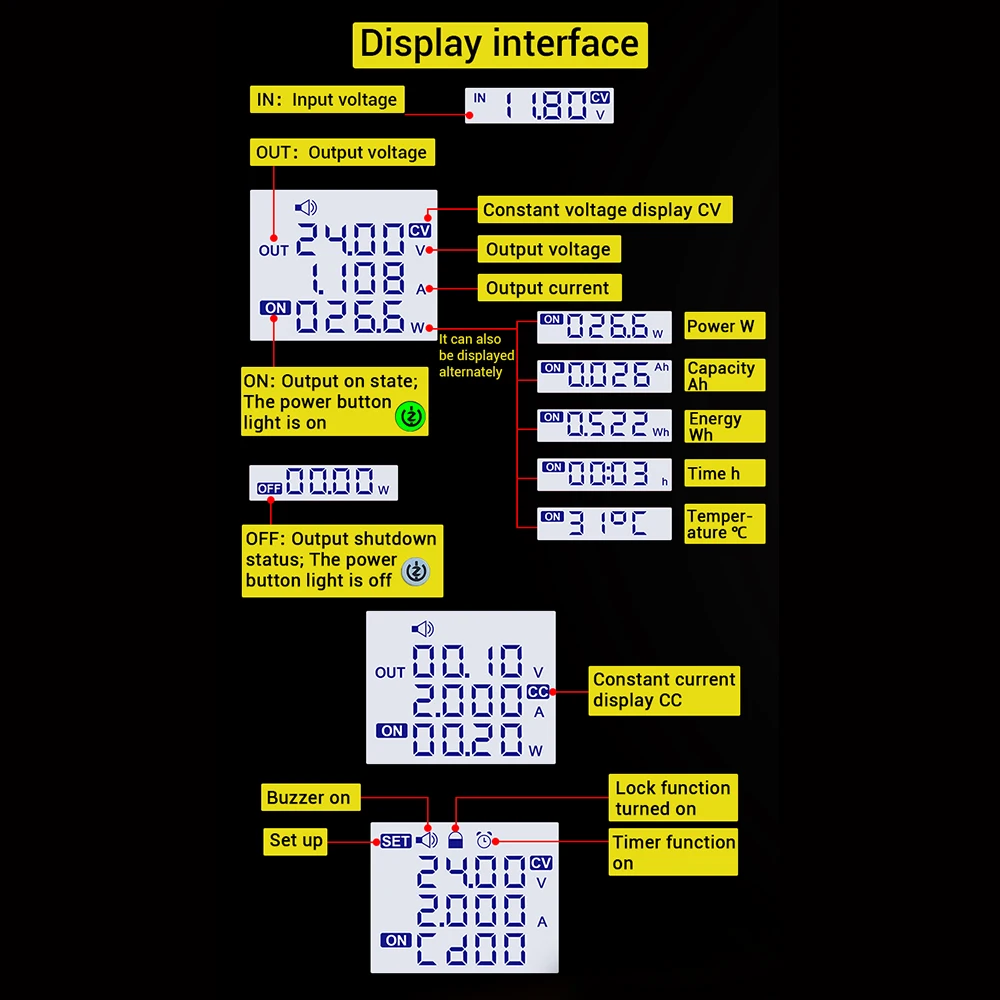

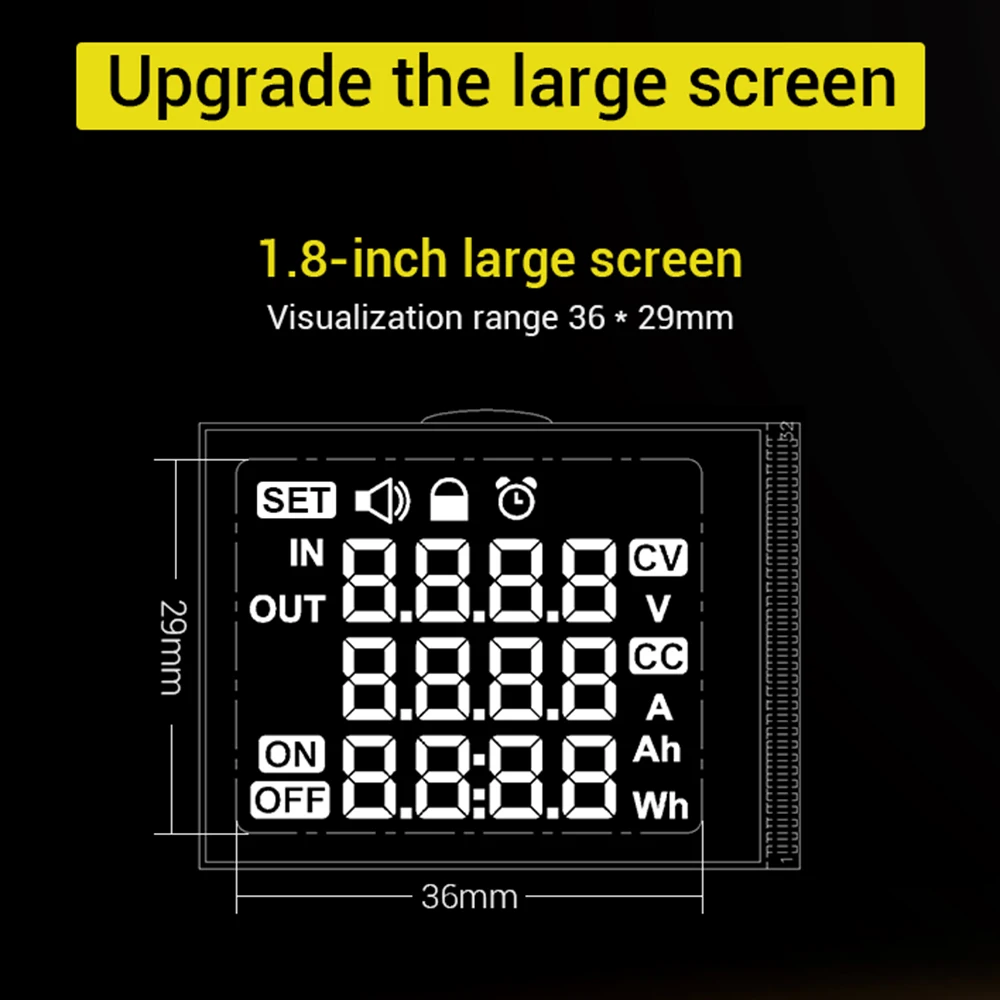

Screen size: 1.8-inch upgraded large screen with 36*29mm viewing range

Conditions for turning on the cooling fan: temperature >45°C or current >2A or power >30W

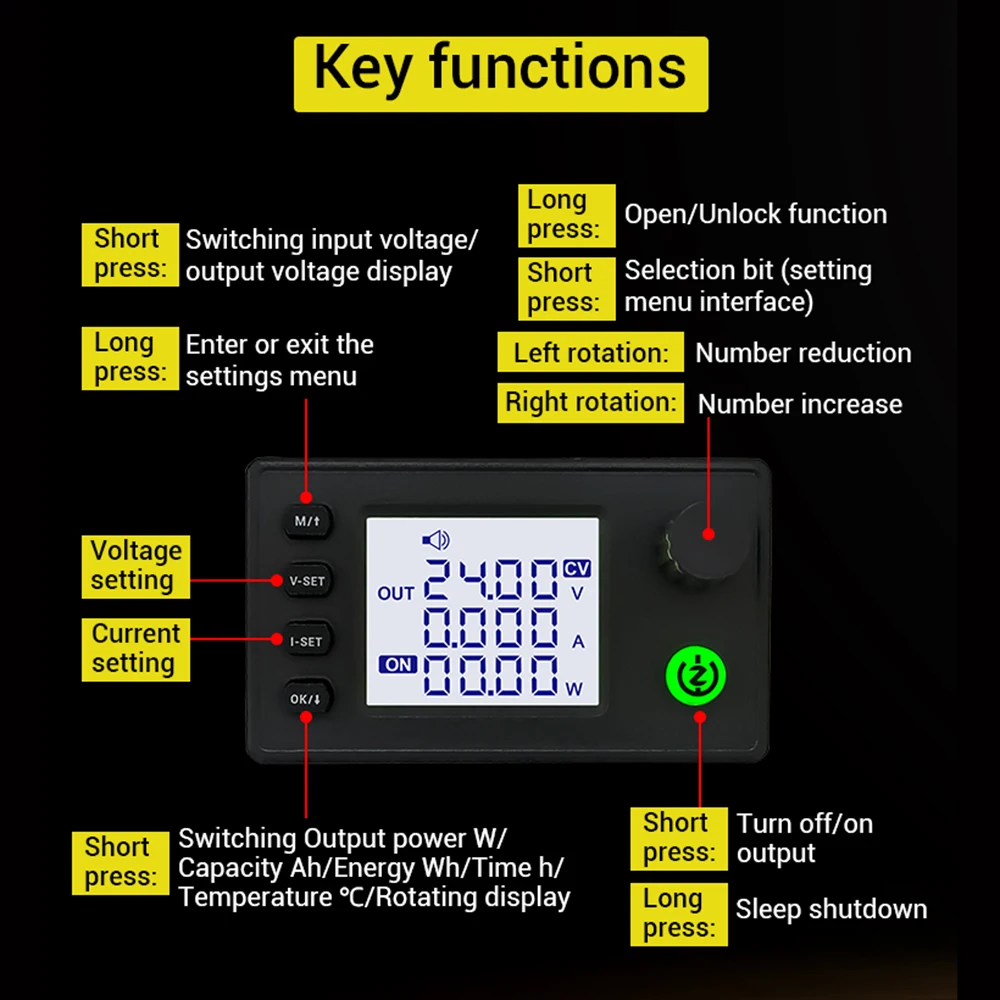

Silicone buttons: 5

Buzzer: Yes

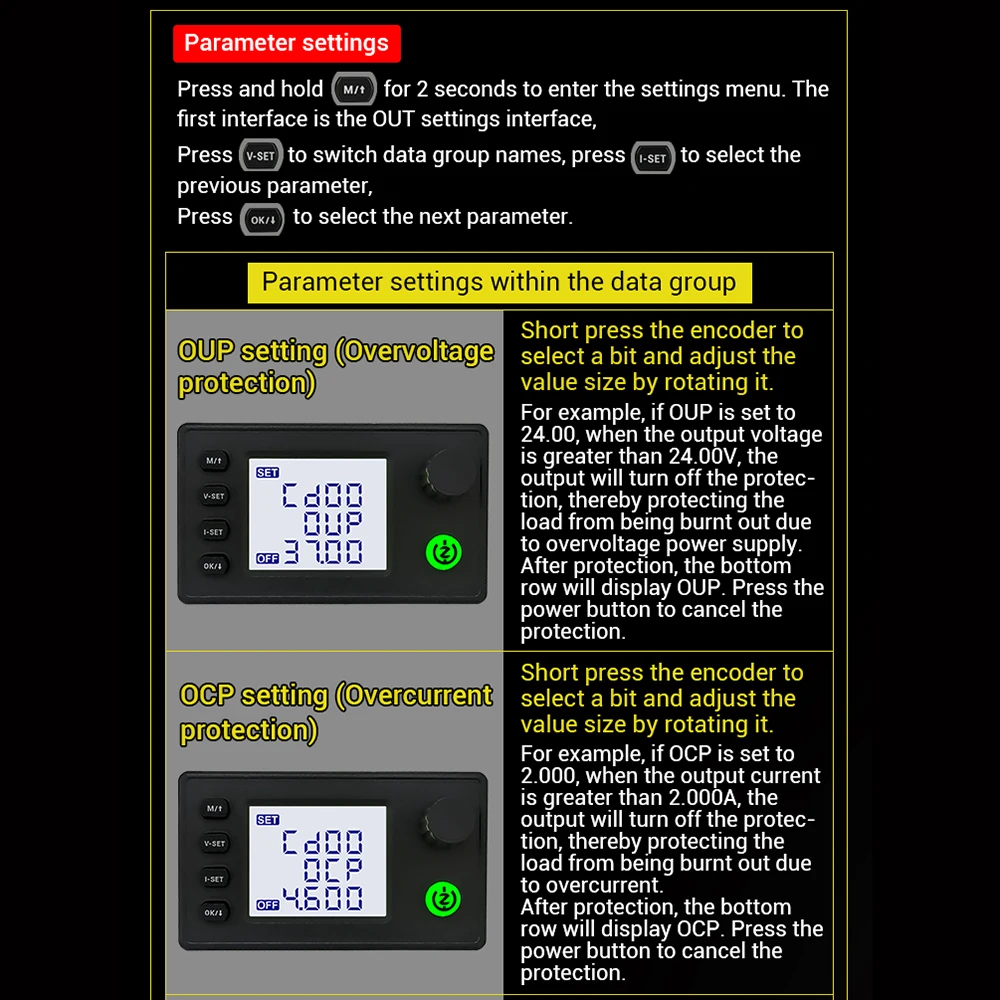

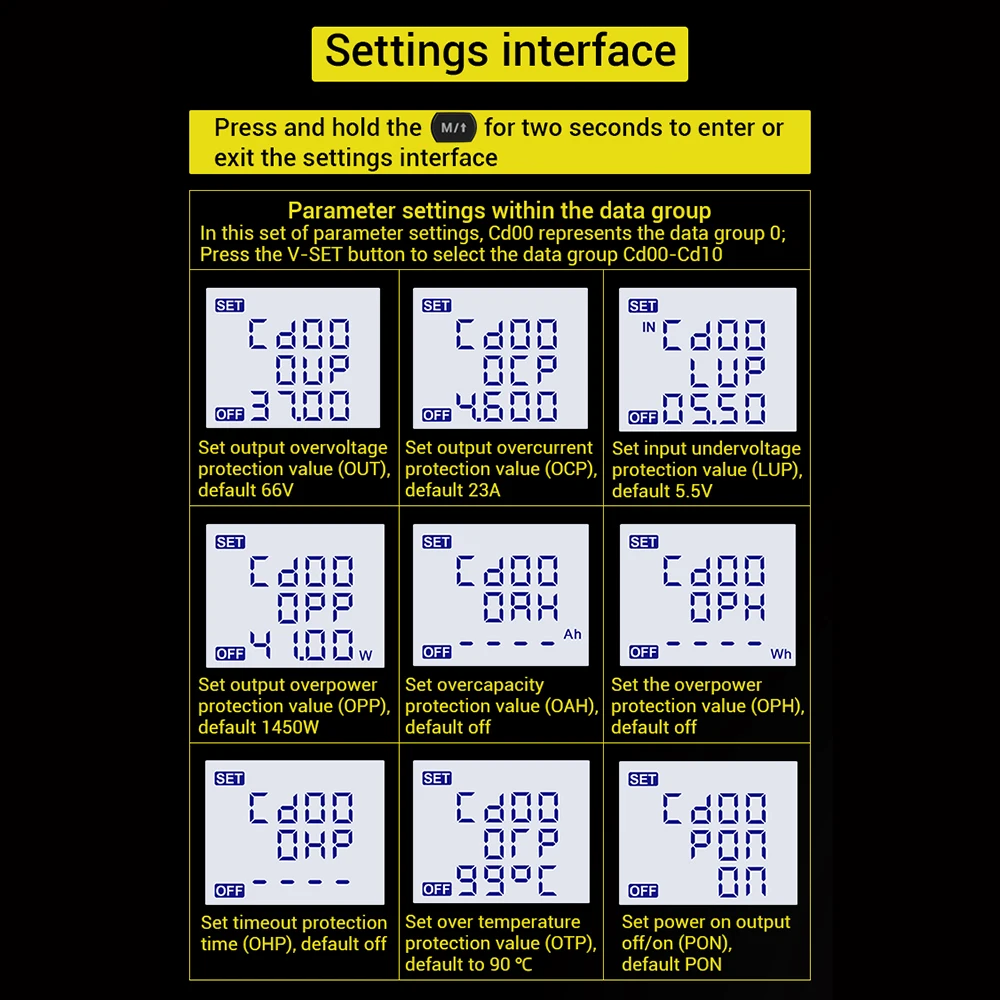

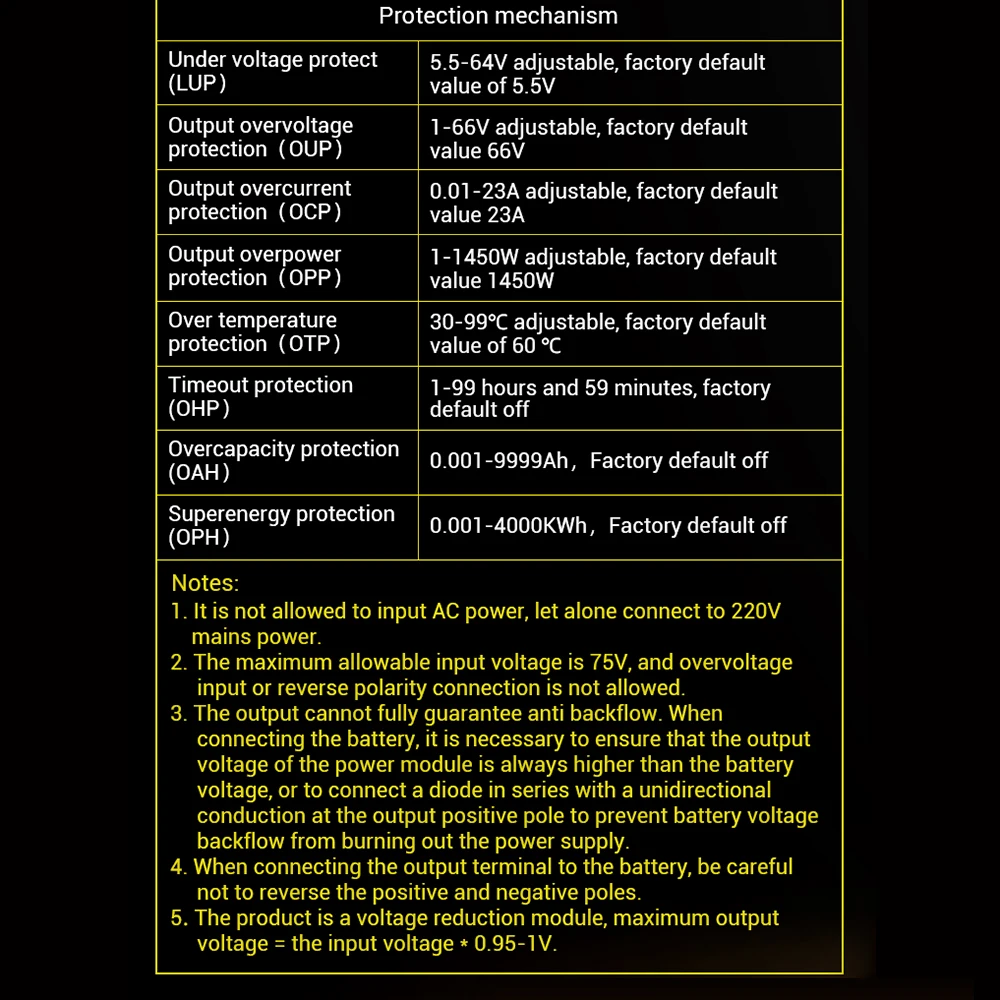

protection mechanism:

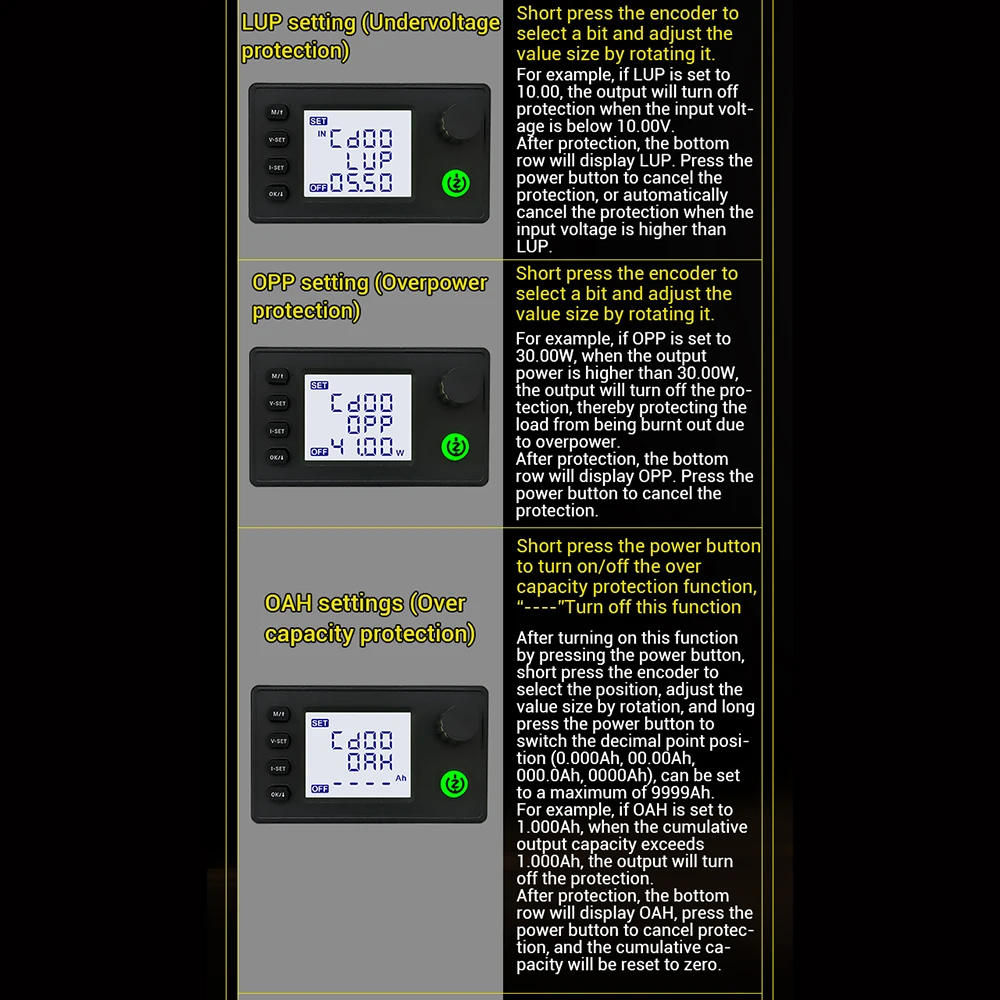

Input undervoltage protection (LUP): 5.5-64V adjustable, factory default value 5.5V

Output overvoltage protection (OUP): 1-66V adjustable, factory default value 66V

Output overcurrent protection (OCP): 0.01-23A adjustable, factory default value 23A

Output over-power protection (OPP): 1-1450W adjustable, factory default value 1450W

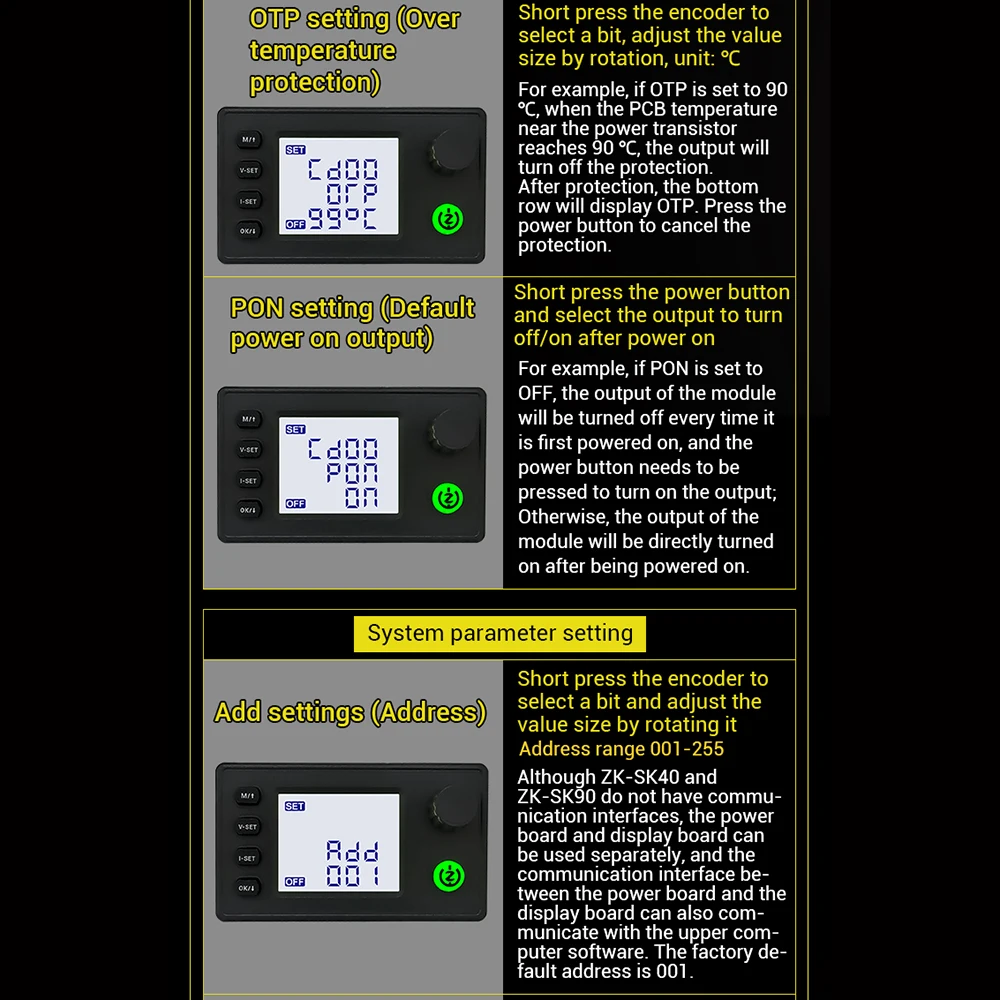

Over-temperature protection (OTP): 30-99℃ adjustable, factory default value 60℃

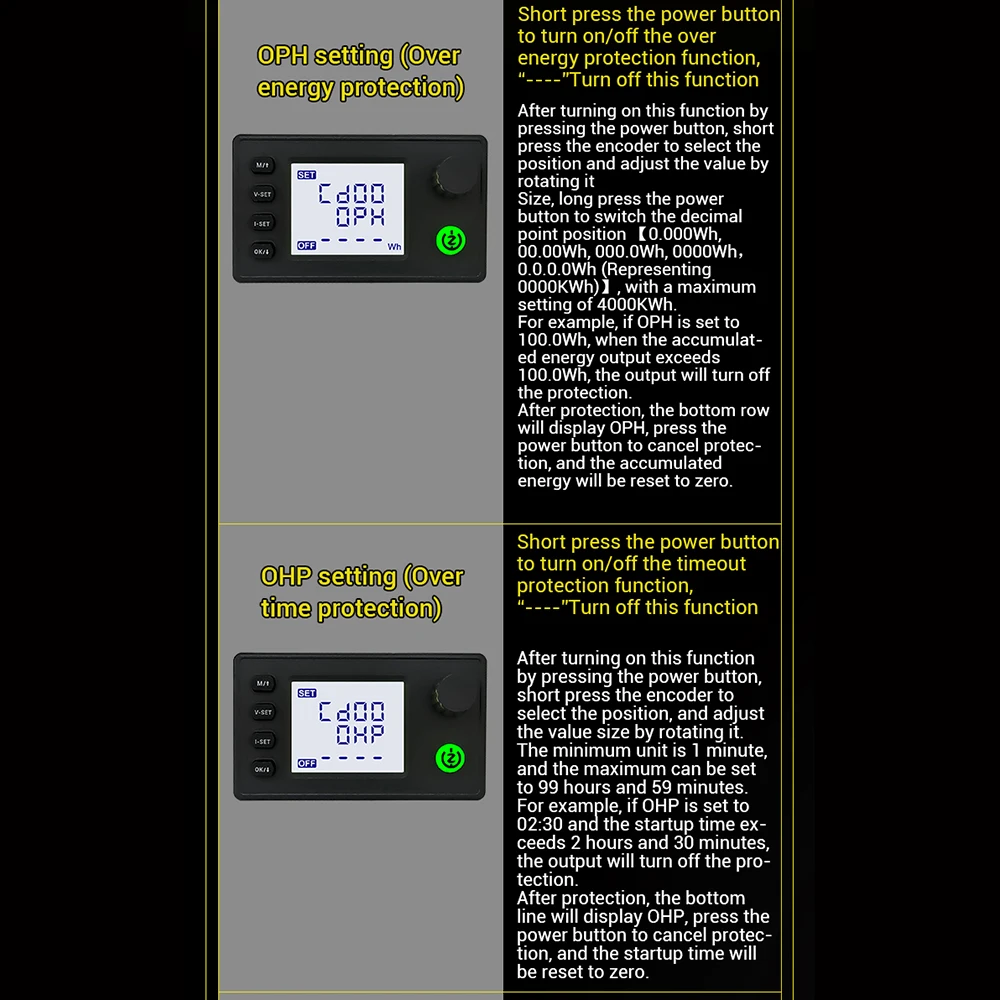

Overtime protection (OHP): 1 minute-99 hours and 59 minutes, factory default is off

Over capacity protection (OAH): 0.001-9999Ah, factory default is off

Over energy protection (OPH): 0.001-4000KWh, factory default is off


Precautions:

1. AC power cannot be input, let alone 220V mains power.

2. The maximum allowed input voltage is 75V. Overvoltage input or positive and negative poles cannot be connected reversely.

3. The output cannot be completely guaranteed to prevent backflow. When connecting the battery, ensure that the output voltage of the power module is always higher than the battery voltage, or connect a diode in series with the positive terminal of the output to conduct one-way conduction to prevent the battery voltage from backflow and burning the power supply.

4. When connecting the output terminal to the battery, be careful not to reverse the positive and negative poles.

5. The product is a step-down module, the maximum output voltage = input voltage * 0.95-1V

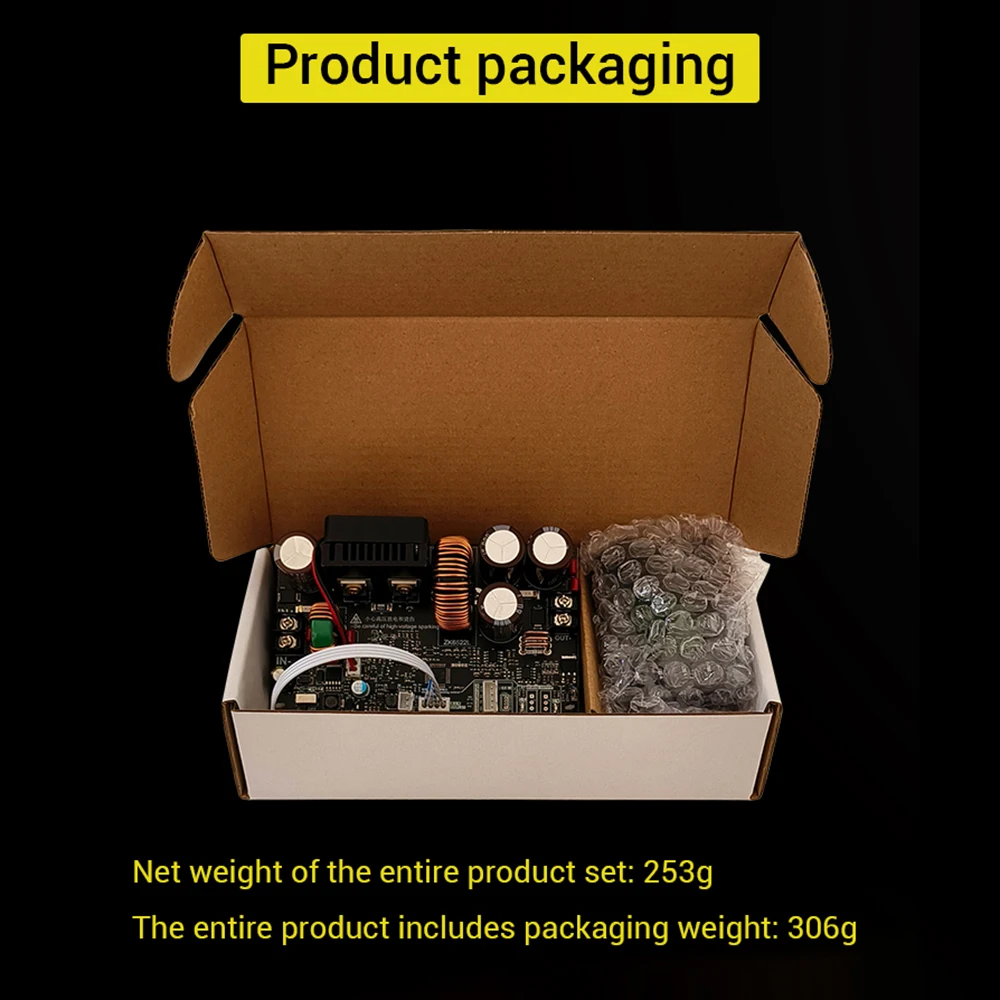

packing list:

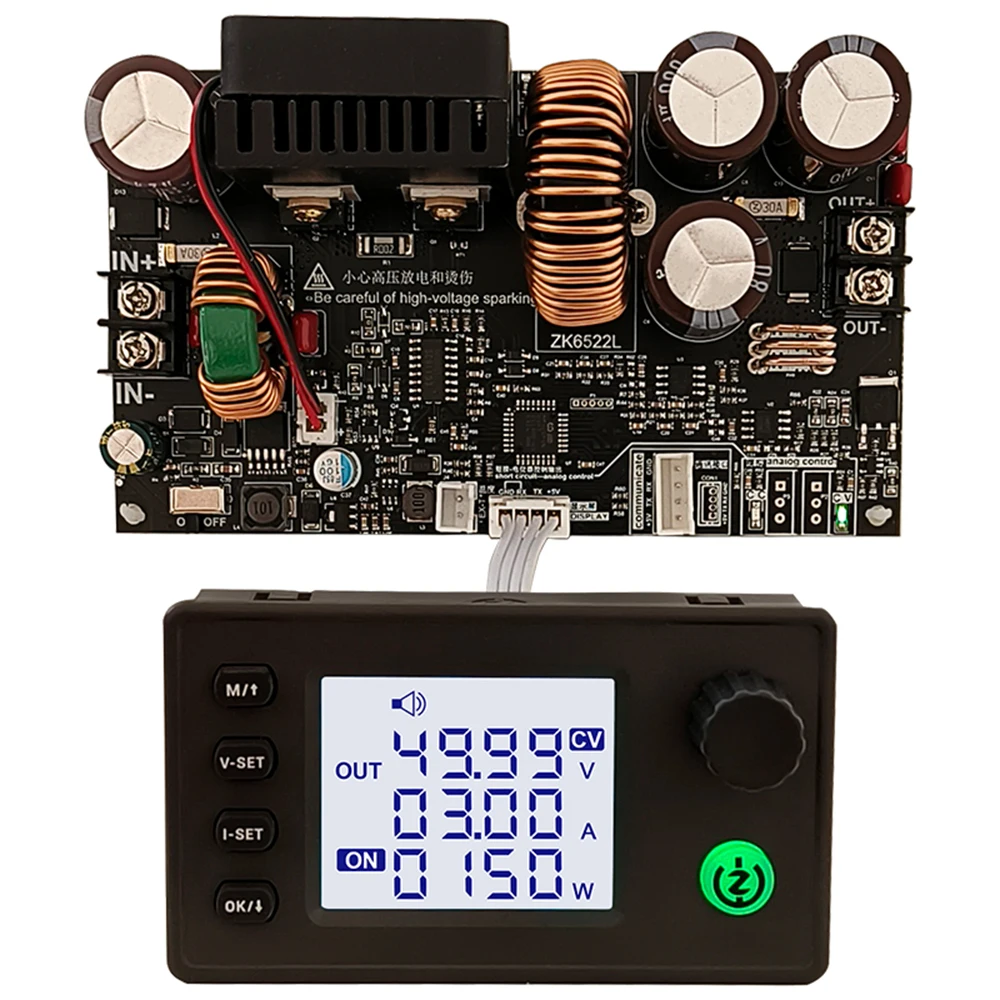

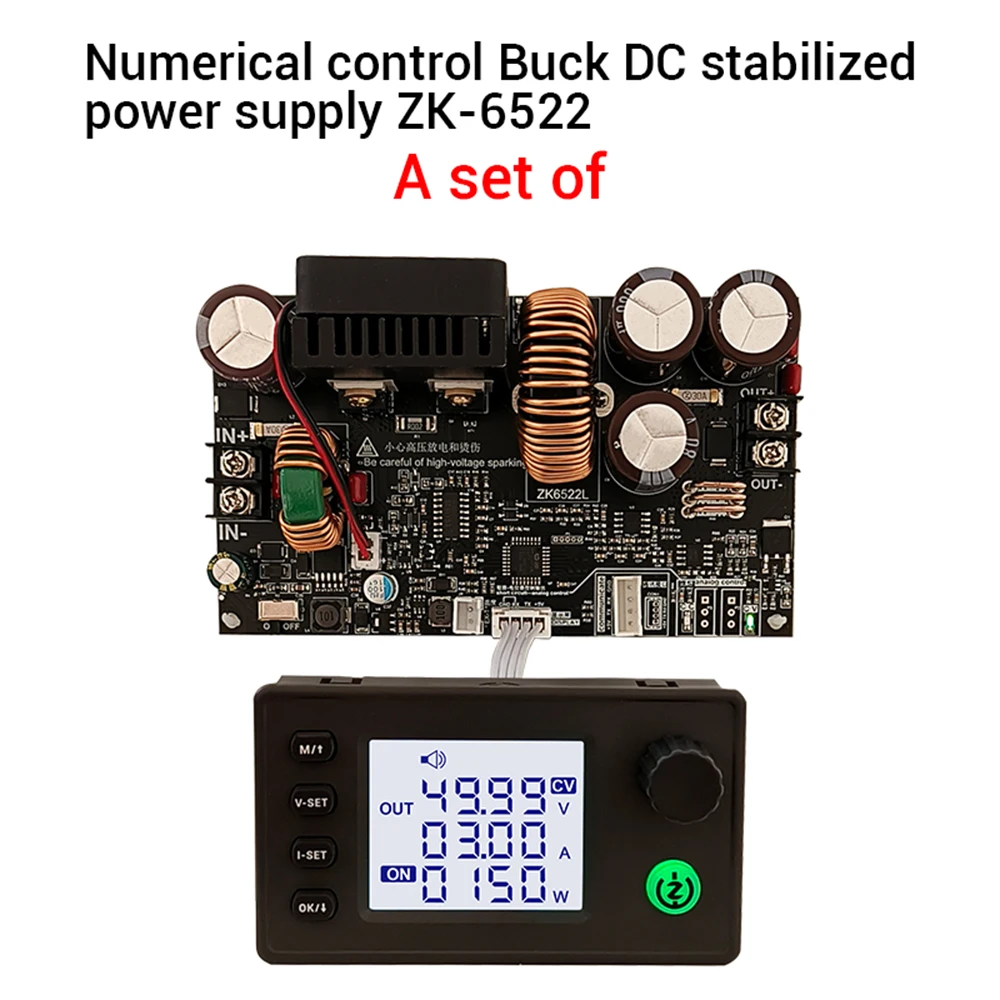

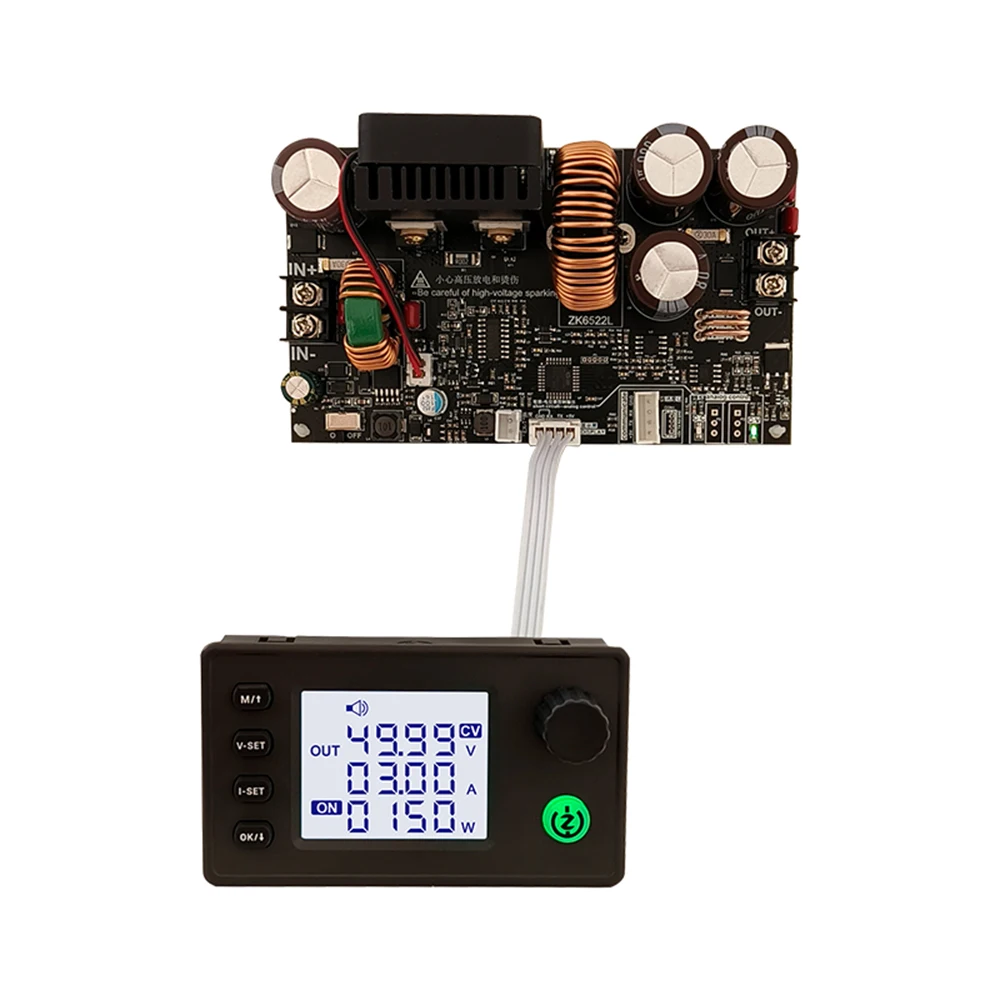

Package A: step-down module*1+LCD meter*1+connecting cable*1

Package B: step-down module*1

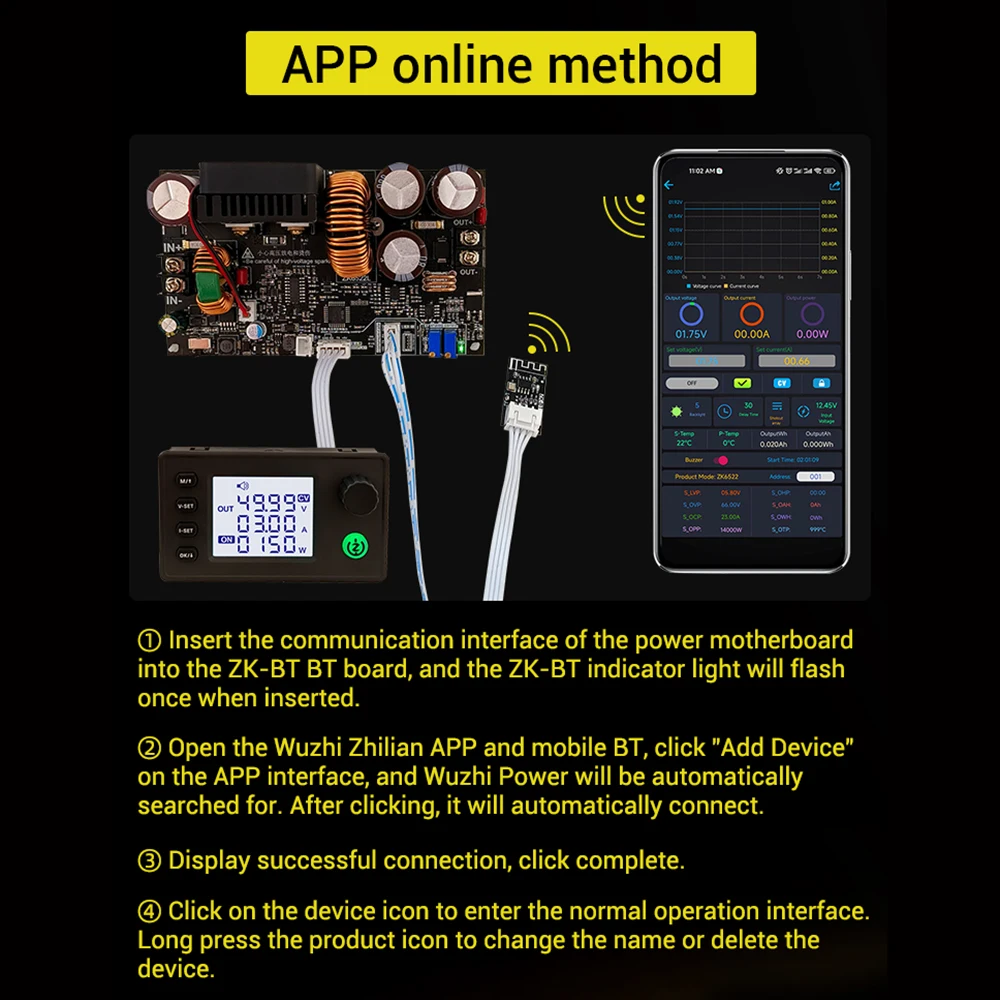

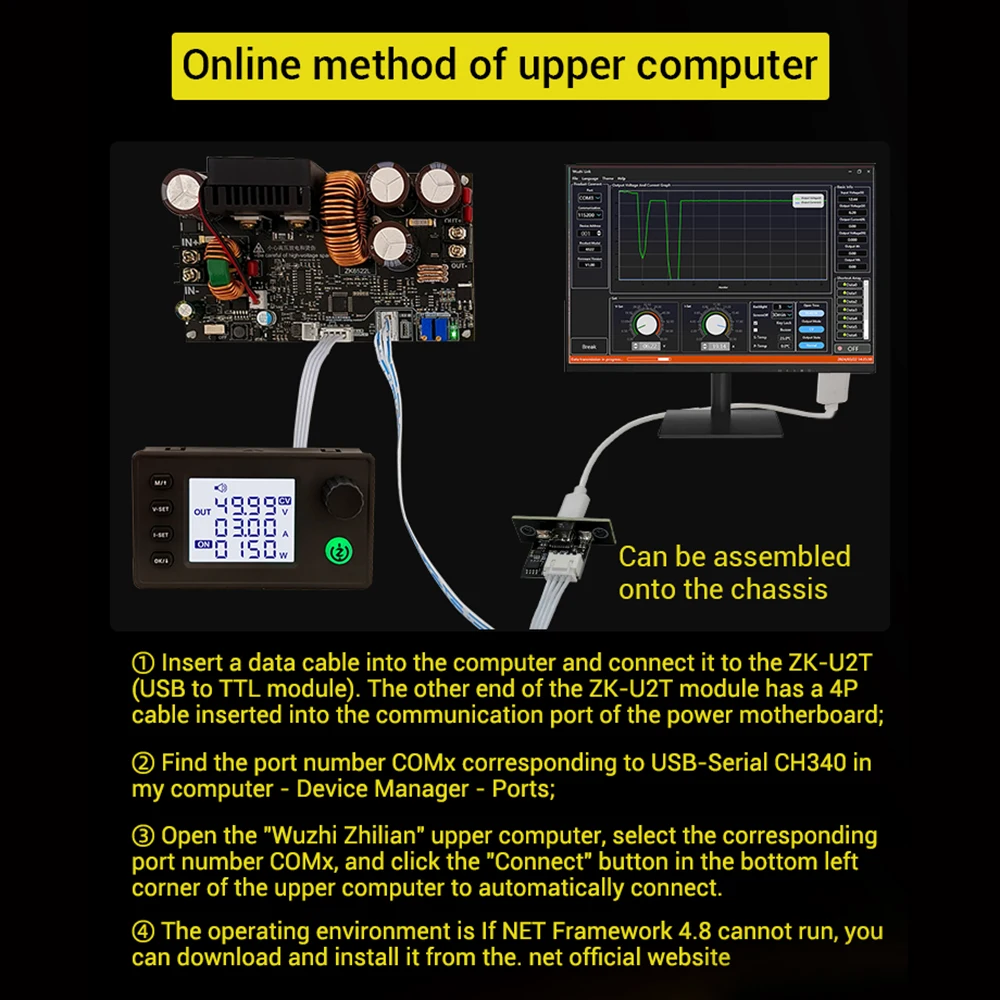

(The communication module is not included in the delivery)



제품 판매 포인트:

1. LCD 디스플레이 패널은 산화 및 접촉 불량을 방지하고 장기간 사용 후 불완전한 디스플레이를 방지하기 위해 금 기술에 잠겨 있습니다.

2. 전압 또는 전류를 설정하는 독립적 인 실리콘 버튼, 입력 할 키 하나, 종료 키 하나, 빠르고 간결하며 지루함을 거부합니다.

3. 디스플레이에는 LCD 미터, 컬러 스크린 미터가 장착되거나 다양한 방법으로 직접 직렬 포트 화면을 설치할 수 있습니다.

4. 독립 마더 보드는 사용하기 쉽고 전류 및 전압의 무단 조정을 지원합니다.

5. 실리콘 버튼 소재는 부드럽고 촉감이 좋으며 손맛이 뛰어납니다. 기계식 키와 비교할 때 마모 또는 고장없이 장기간 사용하고 자주 누를 수 있습니다. 그들은 더 내구성이 있고 더 긴 서비스 수명을 가지고 있습니다.


제품 매개변수

입력 전압: 6.0-75.00V

출력 전류: 0-22A

출력 전력: 0-1430W

출력 전압: 0.0-65.00V

출력 전압 정확도: ± 0.3% + 3 단어 (보정 가능)

출력 전류 정확도: ± 0.5% + 3 단어 (보정 가능)

현재 해상도: 0.01A

전압 해상도: 0.01V

데이터 그룹 저장: 11 그룹

화면 크기: 36*29mm 시야범위의 1.8 인치 업그레이드된 대형 화면

냉각 팬 켜기 조건: 온도> 45 °C 또는 전류> 2A 또는 전력> 30W

실리콘 버튼: 5

부저: 예


보호 메커니즘:

입력 저전압 보호 (LUP): 5.5-64V 조절 가능, 공장 기본값 5.5V

출력 과전압 보호 (OUP): 1-66V 조절 가능, 공장 기본값 66V

출력 과전류 보호 (OCP): 0.01-23A 조정 가능, 공장 기본값 23A

출력 전력 보호 (OPP): 1-1450W 조절 가능, 공장 기본값 1450W

고온 보호 (OTP): 30-99 ℃ 조절 가능, 공장 기본값 60 ℃

초과 근무 보호 (OHP): 1 분-99 시간 및 59 분, 공장 기본 설정 해제

용량 초과 보호 (OAH): 0.001-9999Ah, 공장 기본값이 꺼짐

초과 에너지 보호 (OPH): 0.001-4000KWh, 공장 기본 설정 해제


주의 사항:

1. AC 전원은 입력 할 수 없습니다, 220V 전원.

2. 최대 허용 입력 전압은 75V 입니다. 과전압 입력 또는 양극과 음극은 반대로 연결할 수 없습니다.

3. 역류를 방지하기 위해 출력을 완전히 보장 할 수는 없습니다. 배터리를 연결할 때 전원 모듈의 출력 전압이 항상 배터리 전압보다 높은지 확인하십시오. 또는 배터리의 전압이 역류하여 전원 공급 장치가 연소되는 것을 방지하기 위해 단방향 전도를 수행하기 위해 출력의 양극 단자와 직렬로 다이오드를 연결하십시오.

4. 출력 단자를 배터리에 연결할 때 양극과 음극을 뒤집지 않도록주의하십시오.

5. 제품은 스텝 다운 모듈이며 최대 출력 전압 = 입력 전압 * 0.95-1V


포장 목록

패키지 A: 강압 모듈 * 1 + LCD 미터 * 1 + 연결 케이블 * 1

패키지 B: 스텝 다운 모듈 * 1

(통신 모듈은 게재에 포함되지 않습니다.)
