Features:

1.100% brand new high-quality product, made of high-quality materials, compact in size, and easy to install.

2. Convenient application, four head spray, strong fog volume, continuous spray without switch power on.

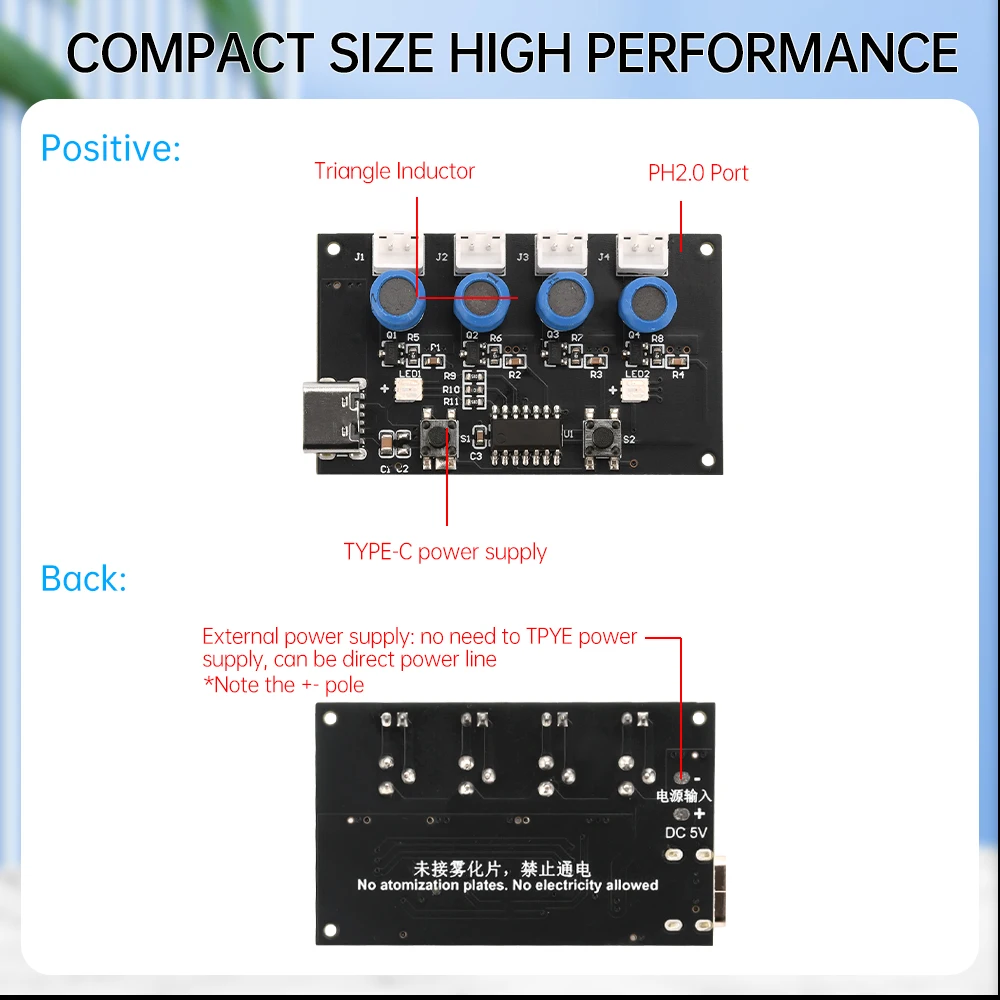

3. Upgrade TYPE-C interface, with strong universality, large fog output, stable performance, easy to use, and easy to operate.

4. High efficiency and stability, spray when electrified, long service life.

5. Wide range of applications: DIY self-made, plant moisturizing, product application, module set ready to use, each module is equipped with a bracket and cotton swab, easy to assemble.

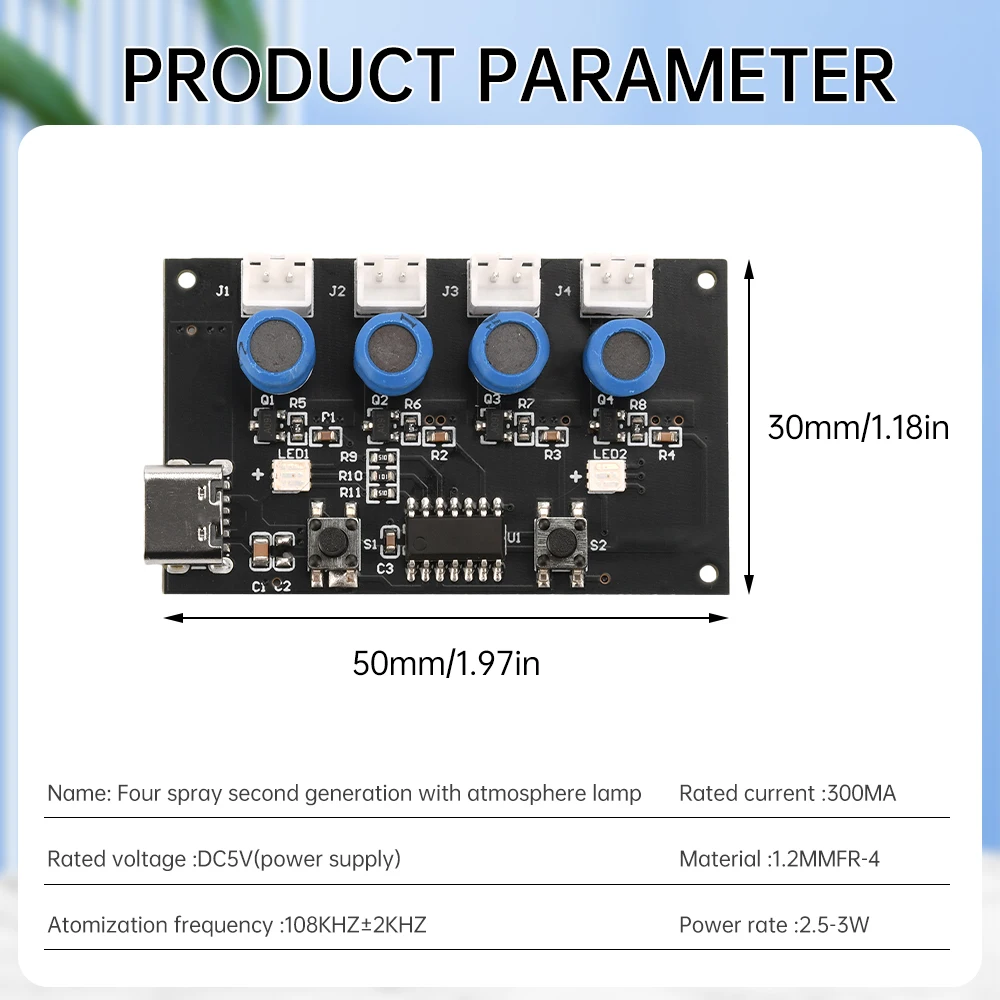

Parameter:

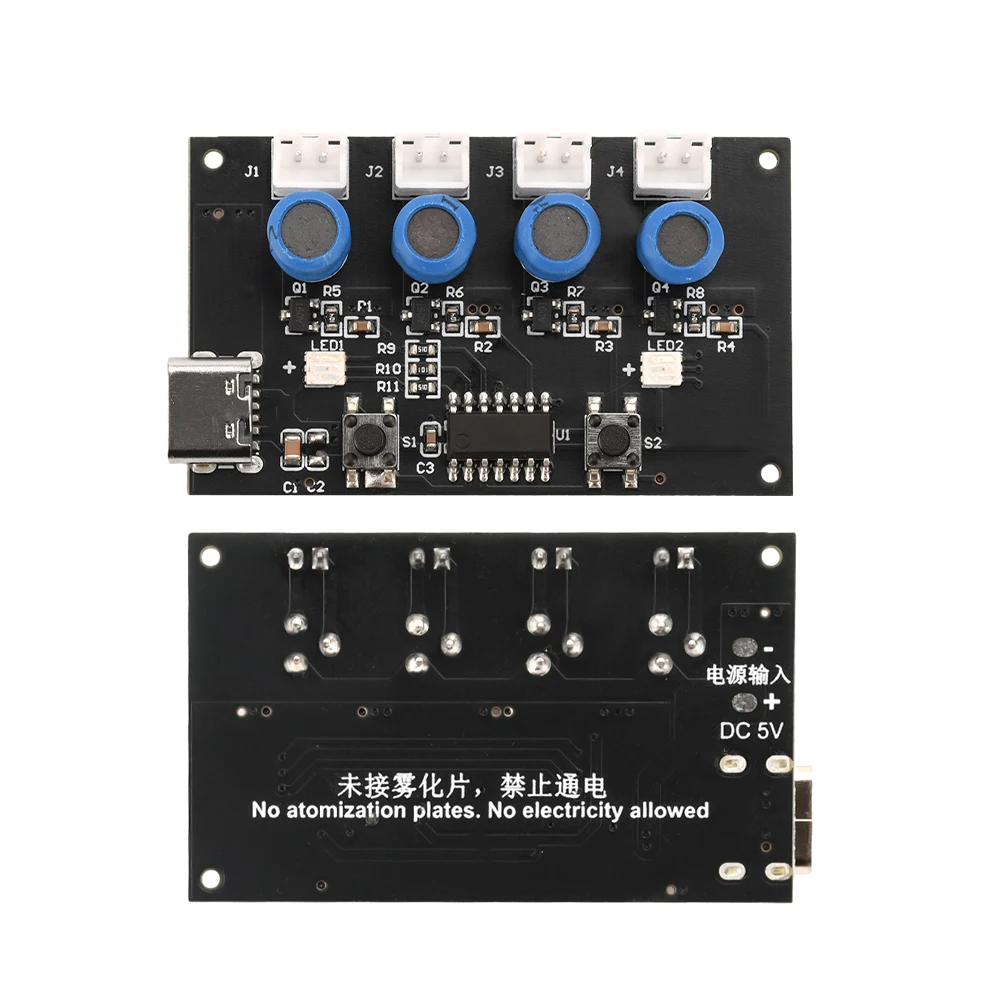

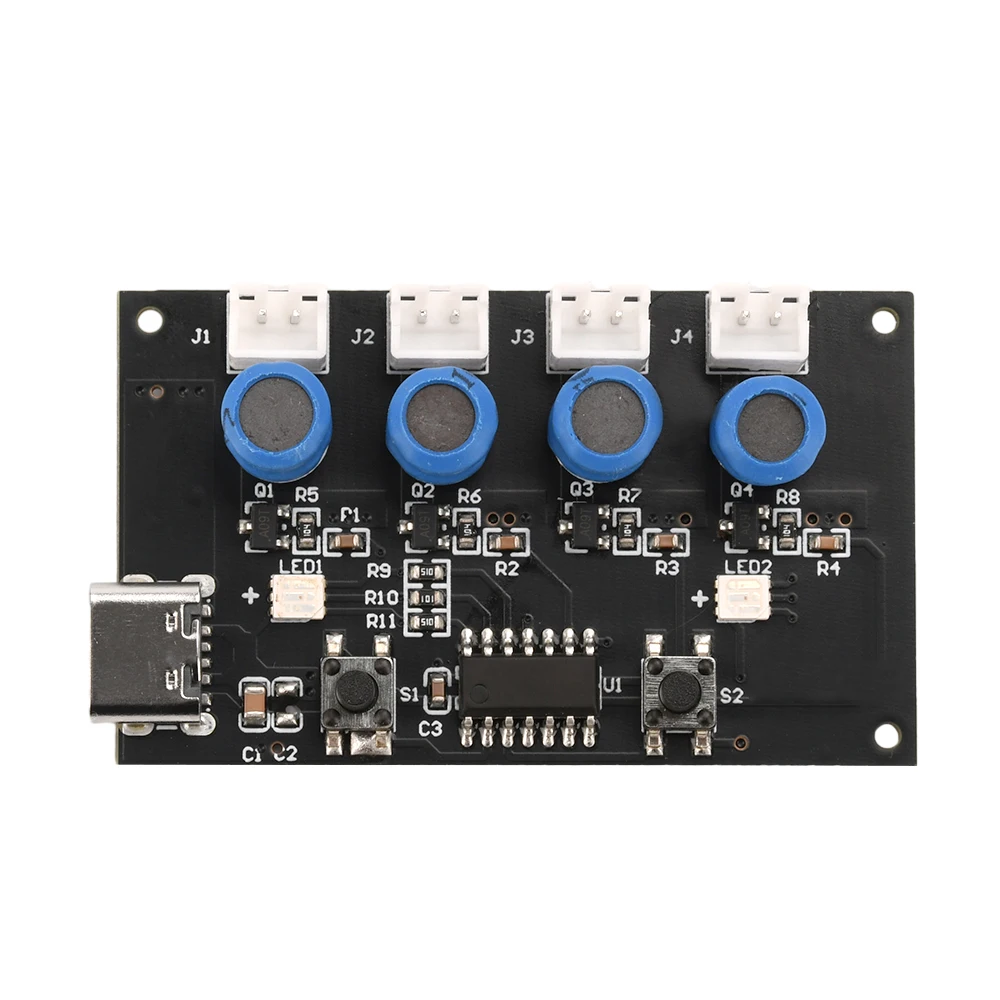

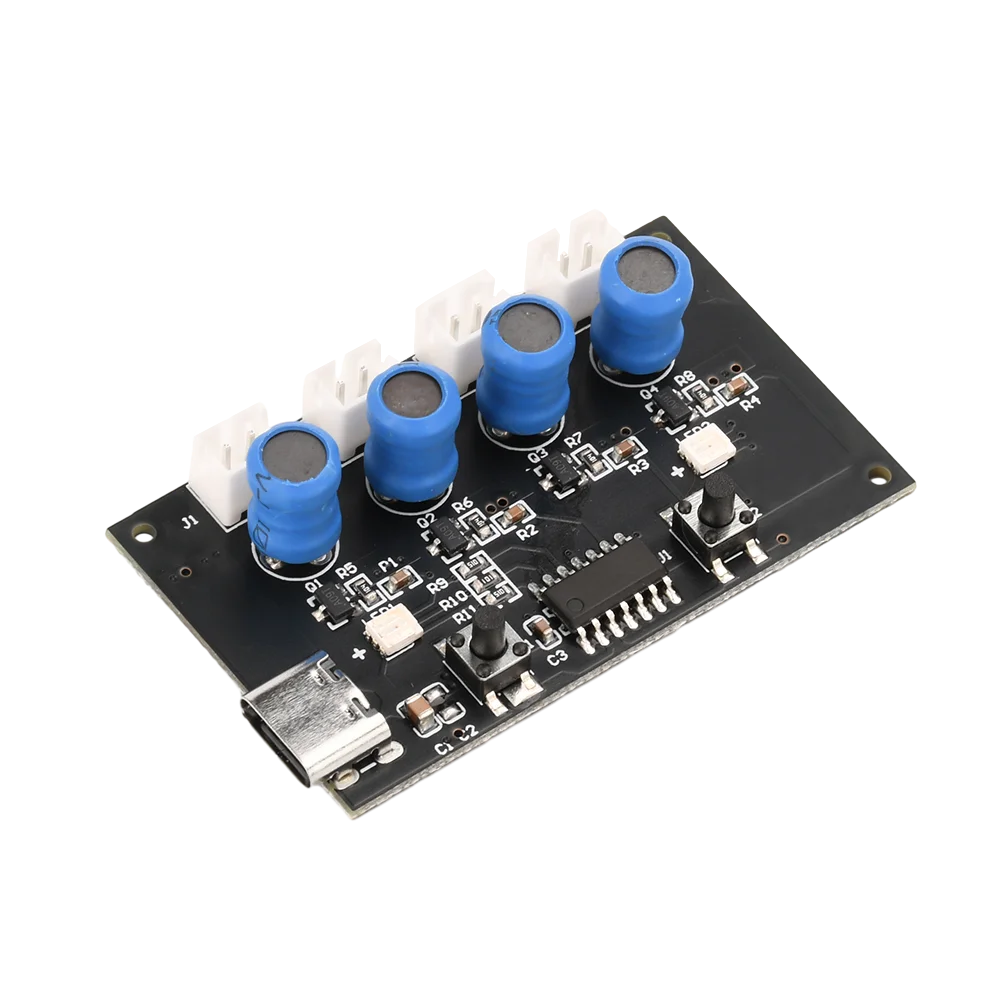

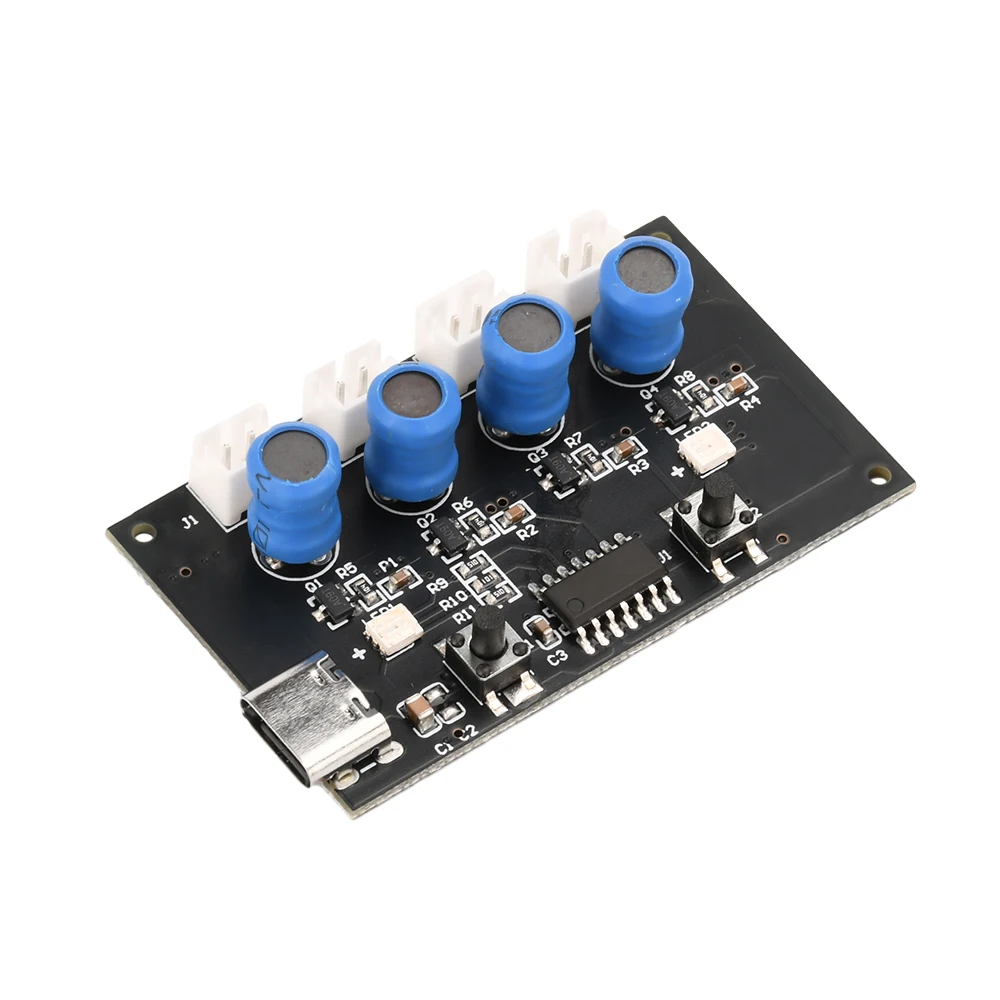

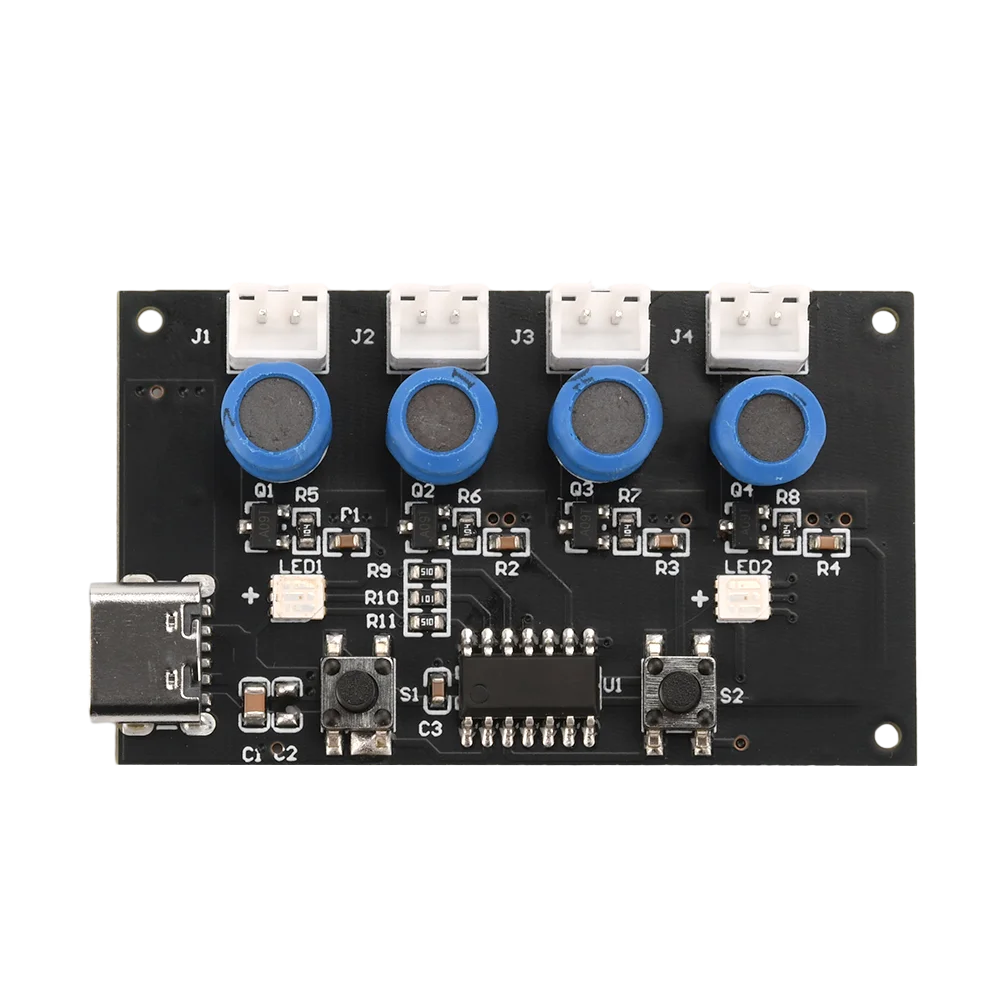

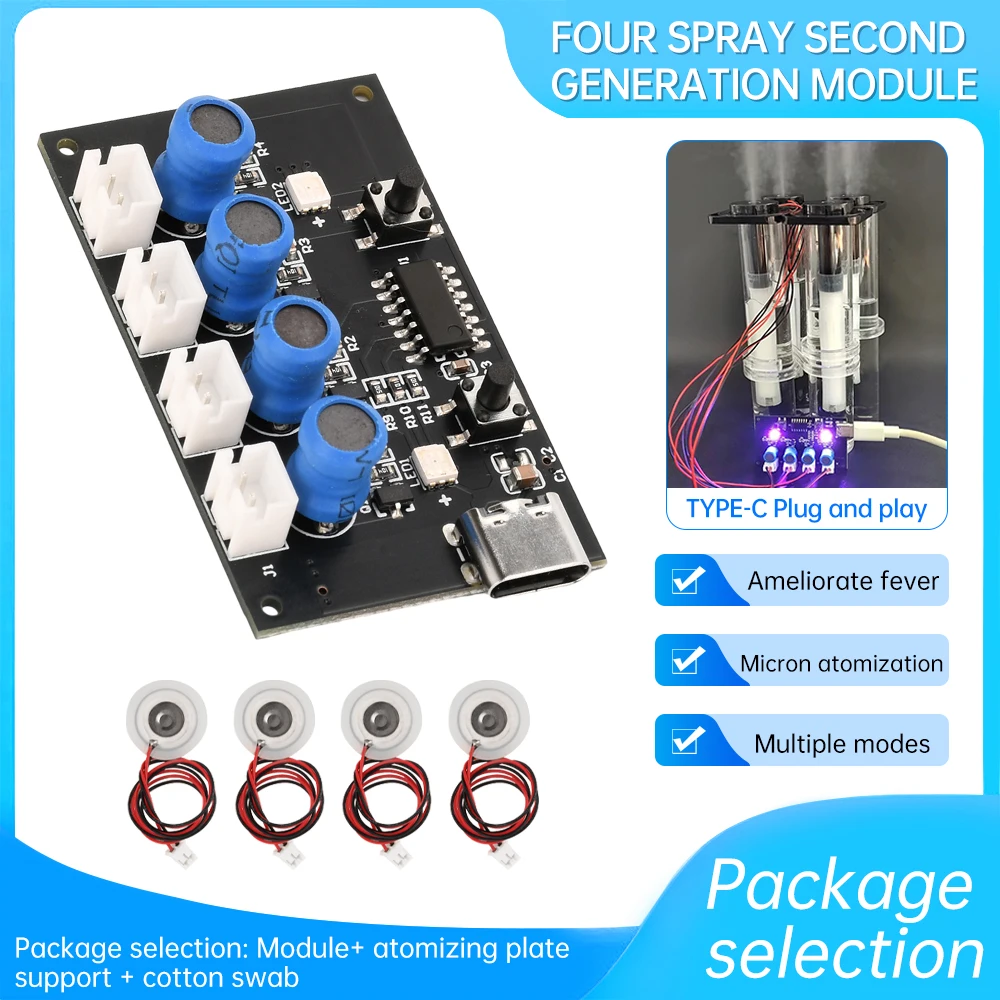

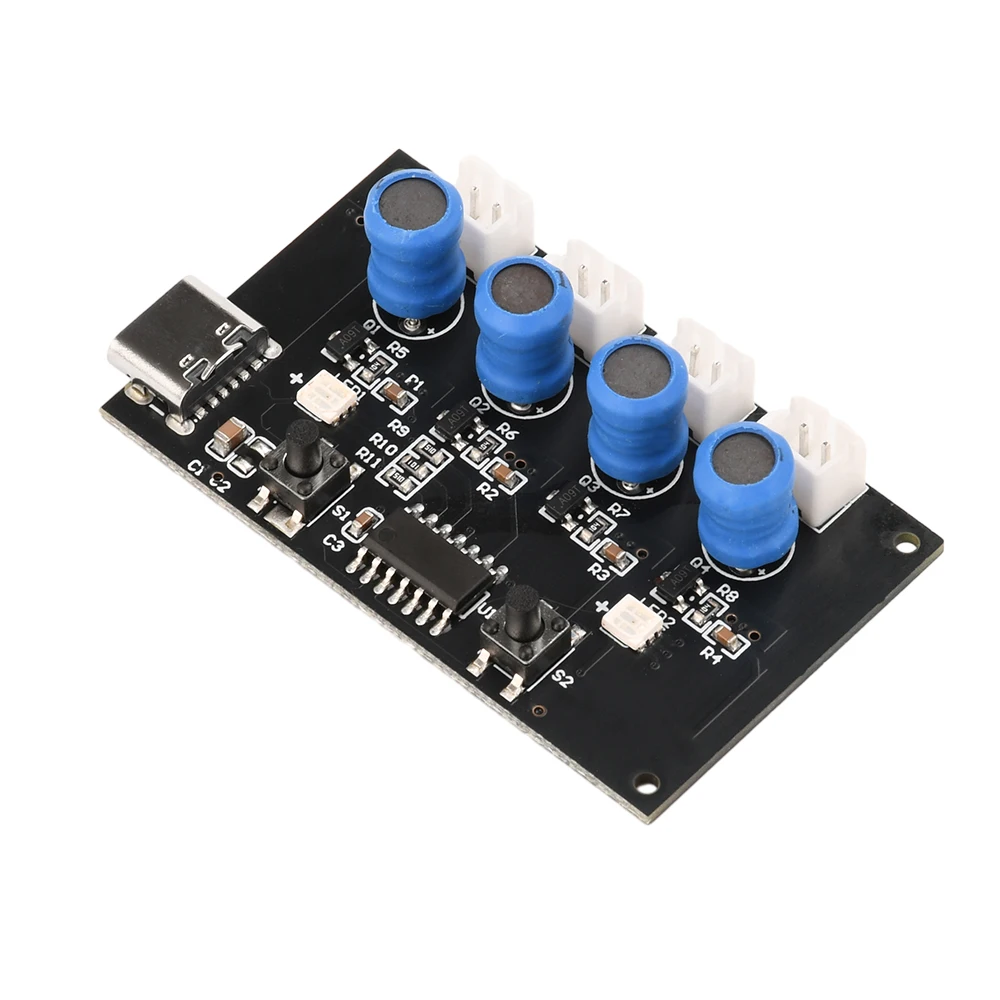

Name: Four Spray Second Generation with Colorful Atmosphere Lighting

Rated voltage: DC5V (power supply)

Atomization frequency: 108KHZ ± 2KHZ

Rated current: 300MA

Material: 1.2MMFR-4

Power: 2.5-3W

Module: 57 * 19MM

Bottle cap holder: 25 * 38MM

Bottle cap holder cotton swab: 8 * 100mm

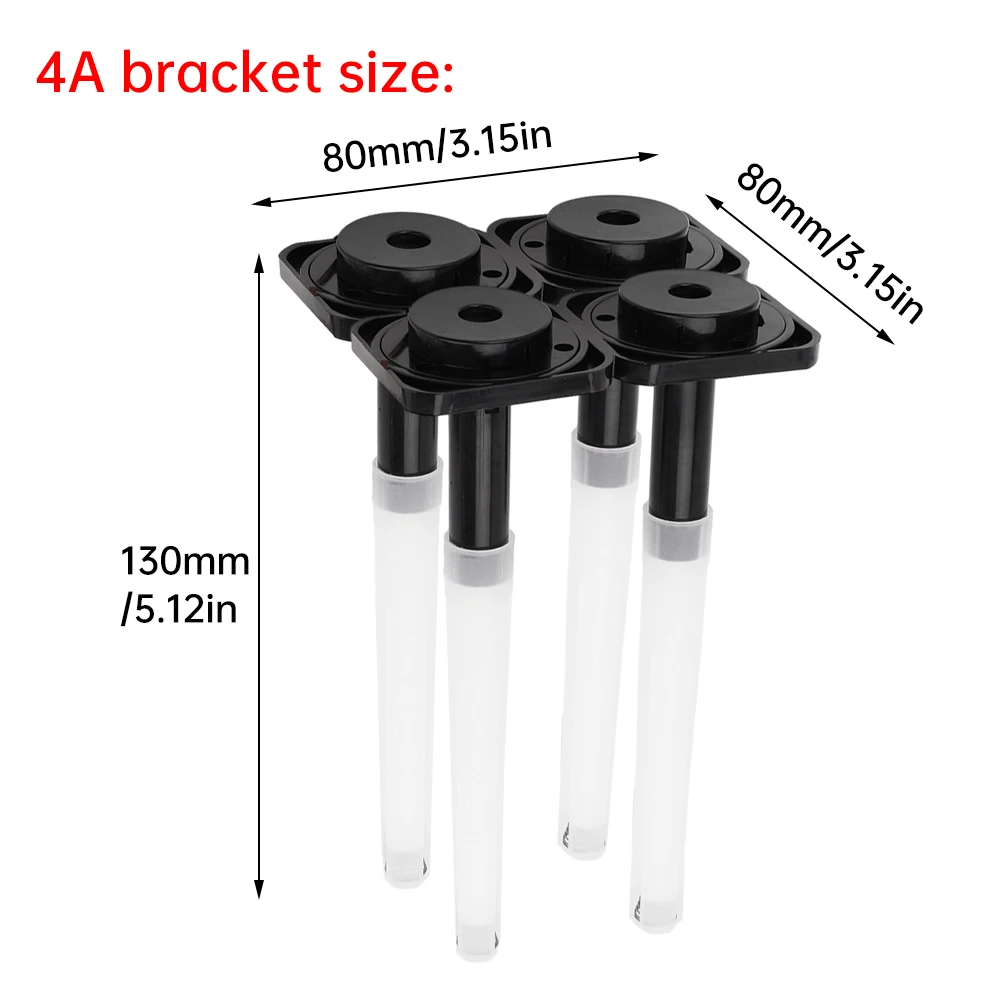

4A bracket: 80mm * 80mm * 130mm

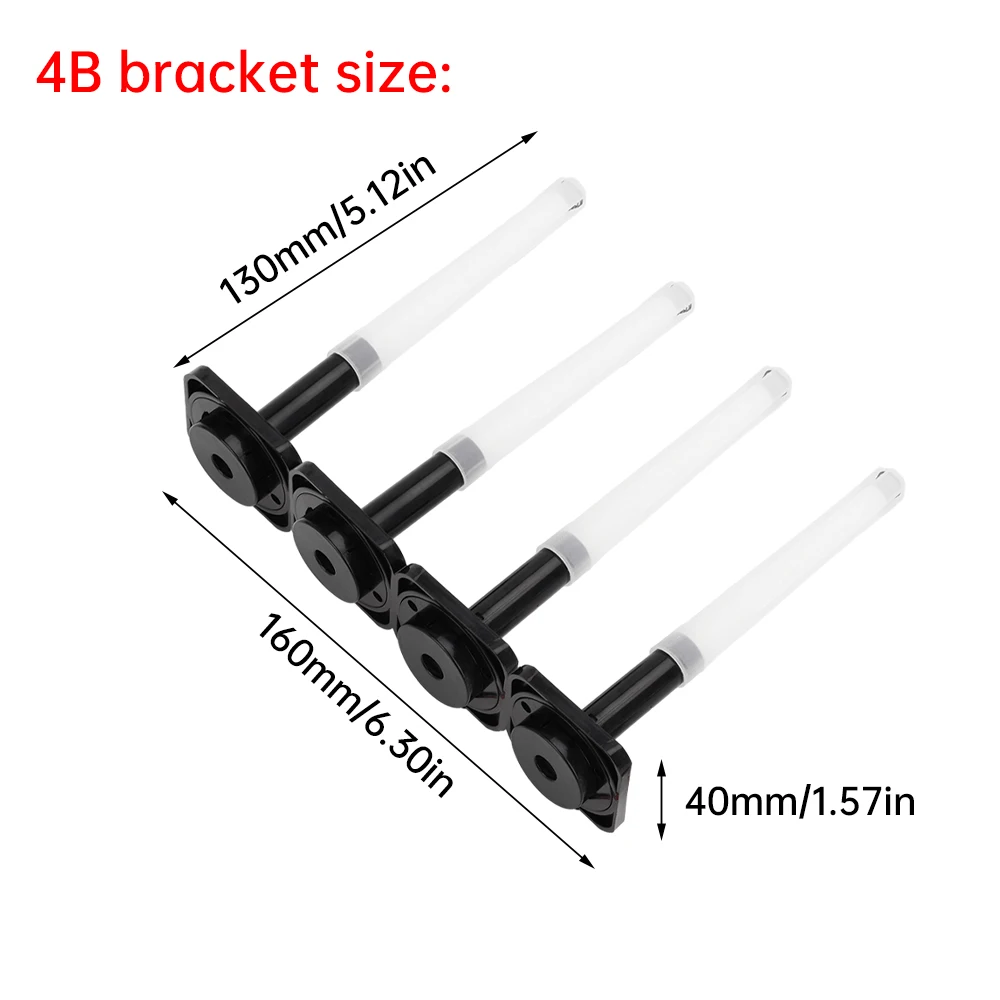

4B bracket: 160nn * 40mm * 130mm

4A/4B bracket cotton swab 1:7 * 121MM

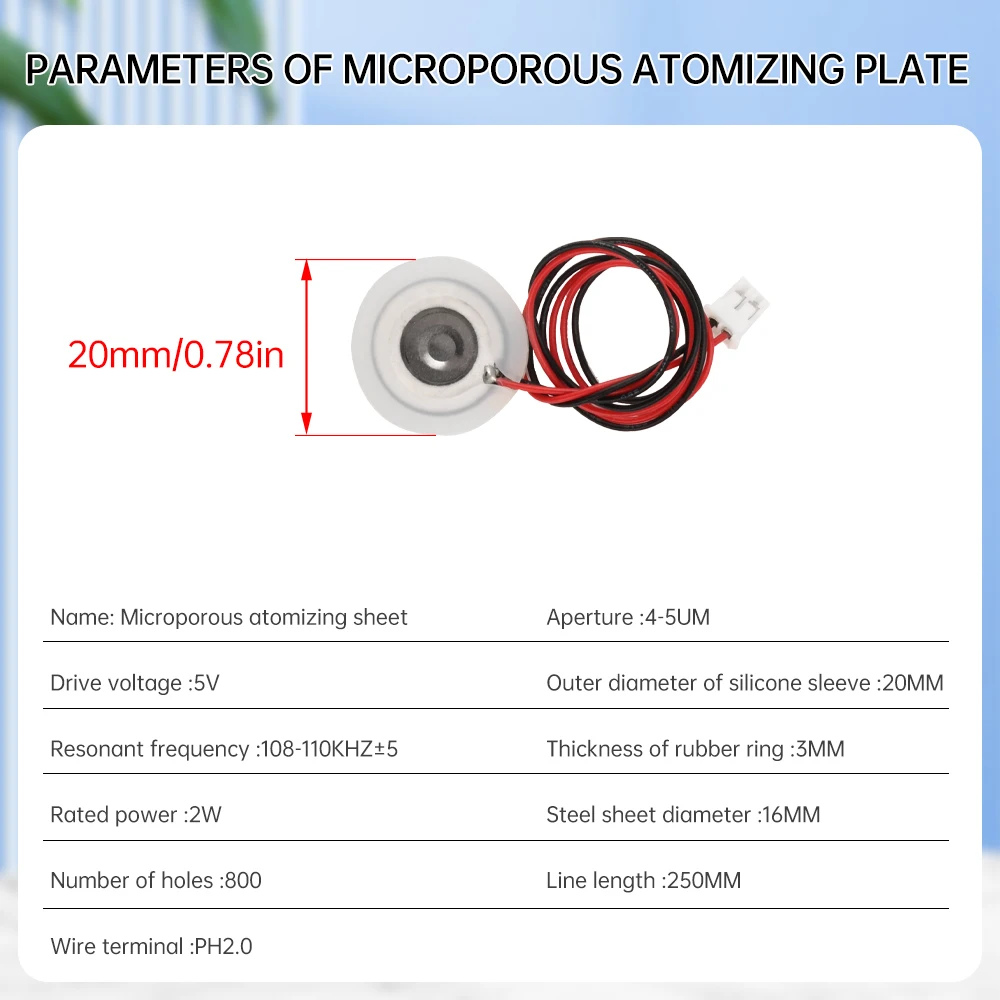

Atomization parameters:

Name: Microporous Atomization Sheet

Silicone sleeve outer diameter: 20MM

Drive voltage: 5V

Rubber ring thickness: 3MM

Resonant frequency: 108-110KHz ± 5

Steel plate diameter: 16mm

Rated power: 2W

Wire length: 250MM

Aperture: 4-5UM

Wire terminal: PH2.0

Number of perforations: 800

Working mode:

1、 Continuous four spray modes:

1. Press the S1 switch for the first time

2. Four nozzles are in continuous spray mode, and two LED lights are always on

3. Automatic shutdown protection after 4 hours of spray

2、 Continuous four spray modes:

Press the S1 switch for the second time

2. Shut down

3、 Dynamic spray mode (press S1 to start up first):

Press the S2 switch for the first time

2. Press the first time, dynamic spray,

3.2 spray for 3 seconds at the second second of the mouth,

4.3 spray for 3 seconds from the 3rd second at the mouth,

5.4 Start spray for 3 seconds at the 4th second of the mouth,

4、 Indirect spray mode:

Press switch S2 for the second time

No. 2.1 spray, the light should be on

3. Press switch S2 for the third time

4.1 No. 2 spray, the light should be on

5. Press switch S2 for the fourth time

6.1 # 2 # 3 # spray, the light should be on

7. Press switch S2 for the fifth time

8.1 No. 2, No. 3 and No. 4 spray, the light should be on

5： Shutdown: Press S1

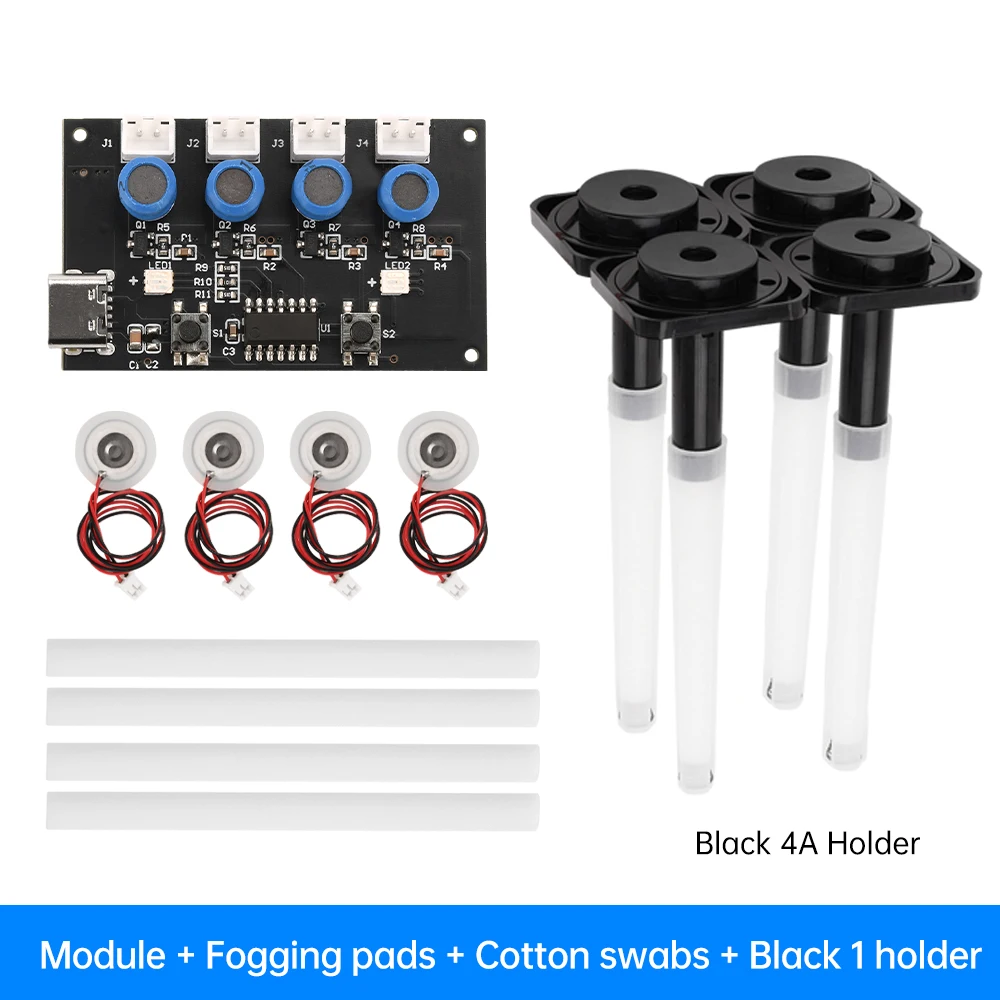

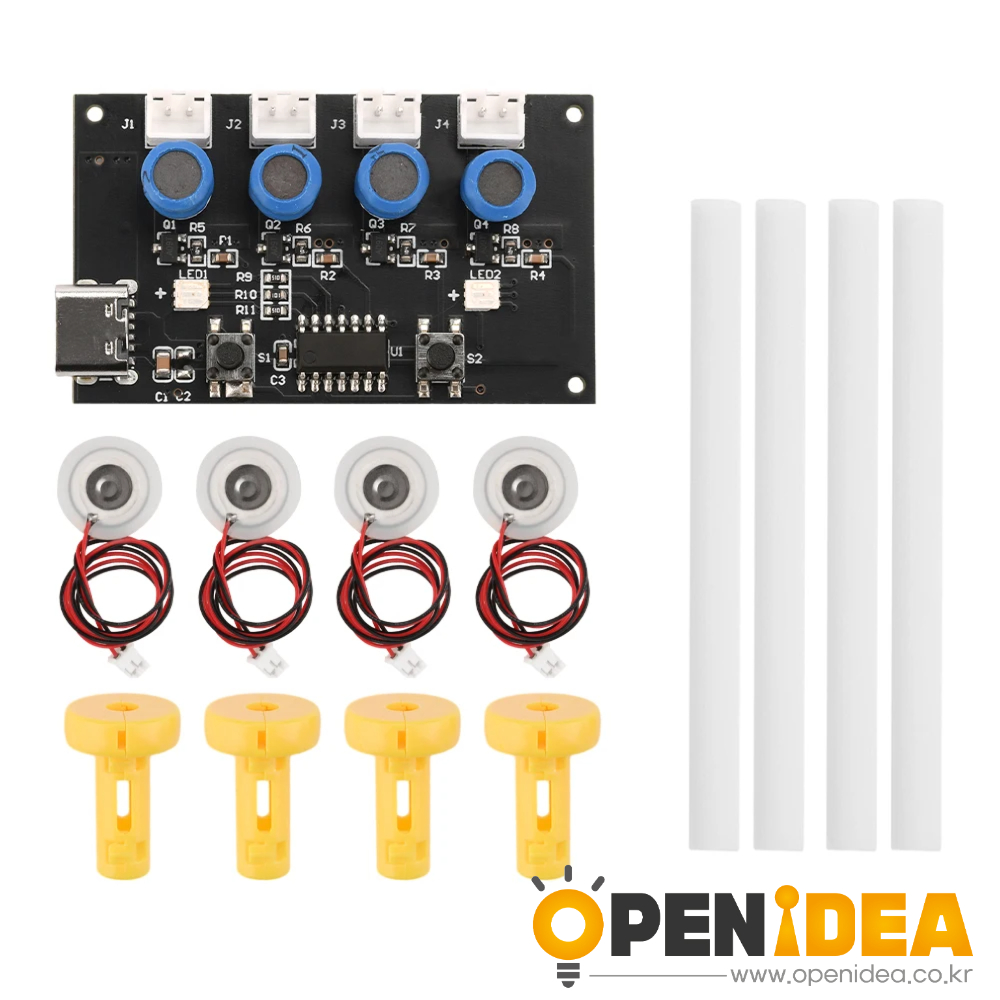

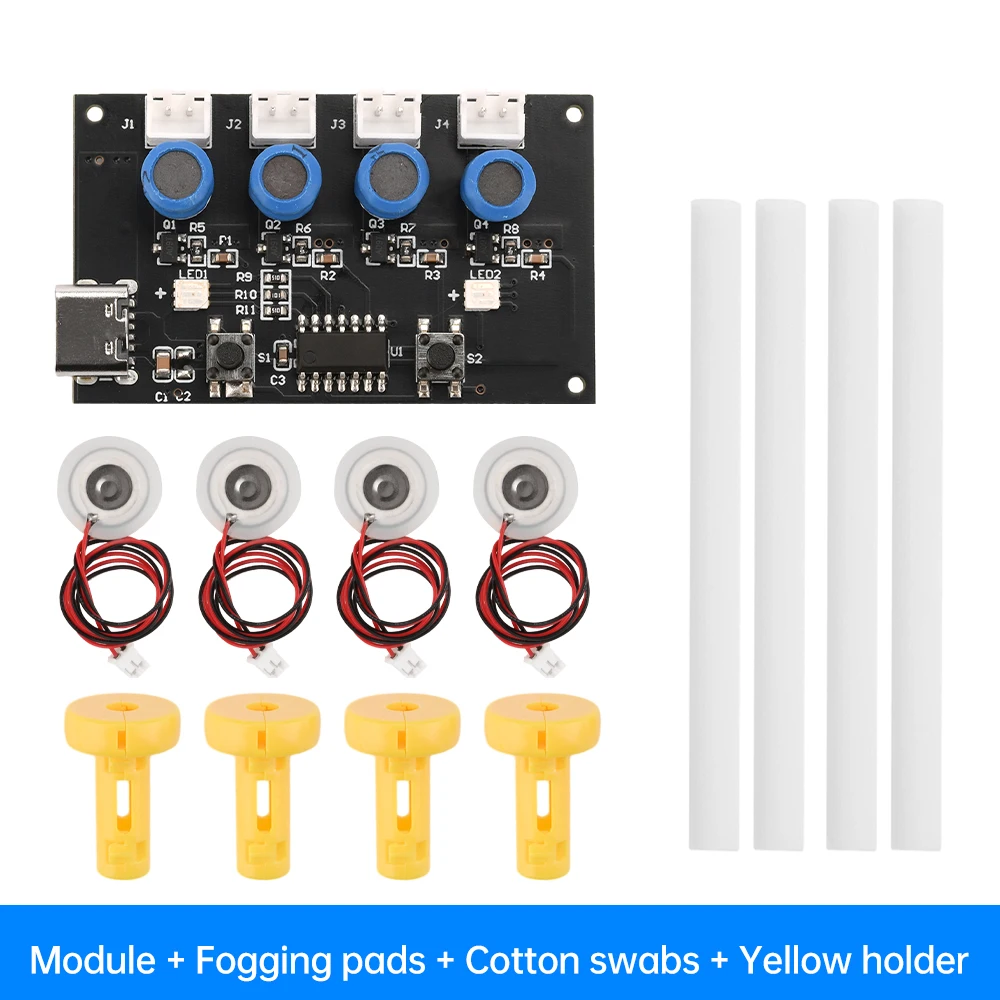

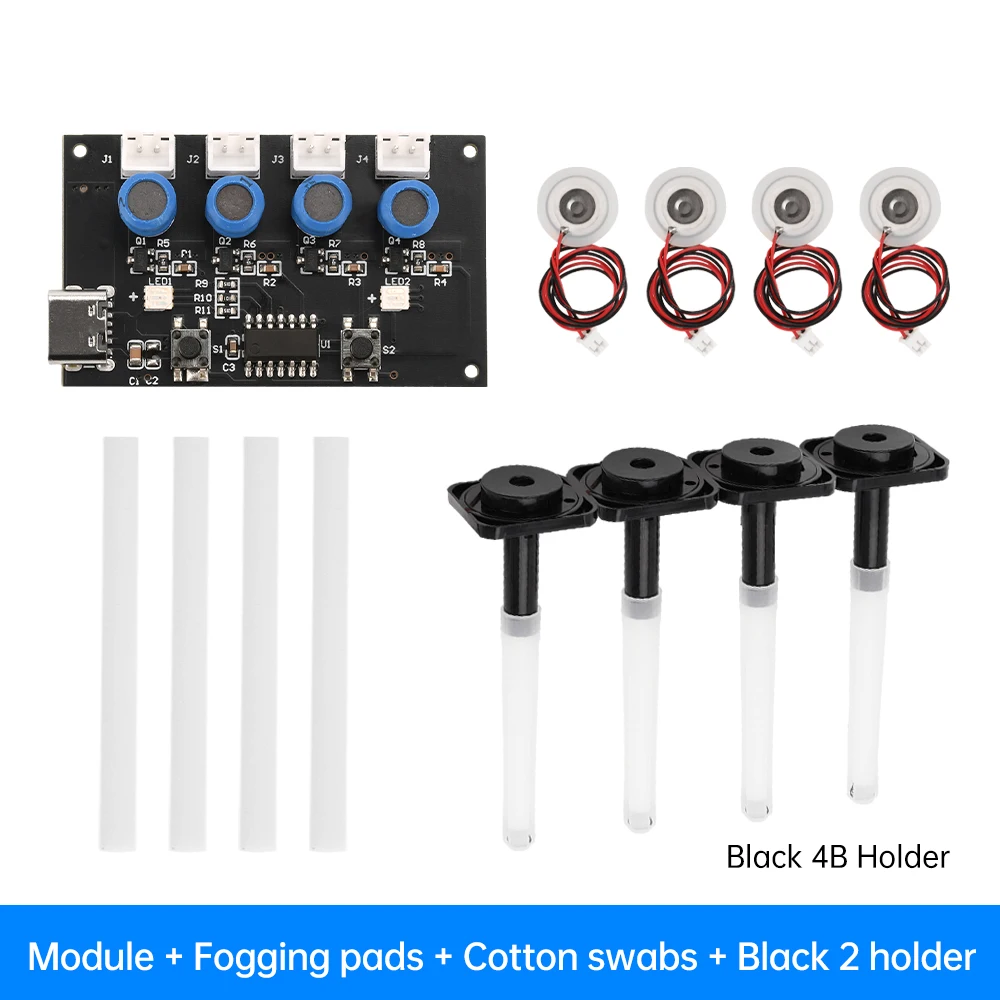

Package include:

1X module

4X atomizing sheet

4X cotton swab

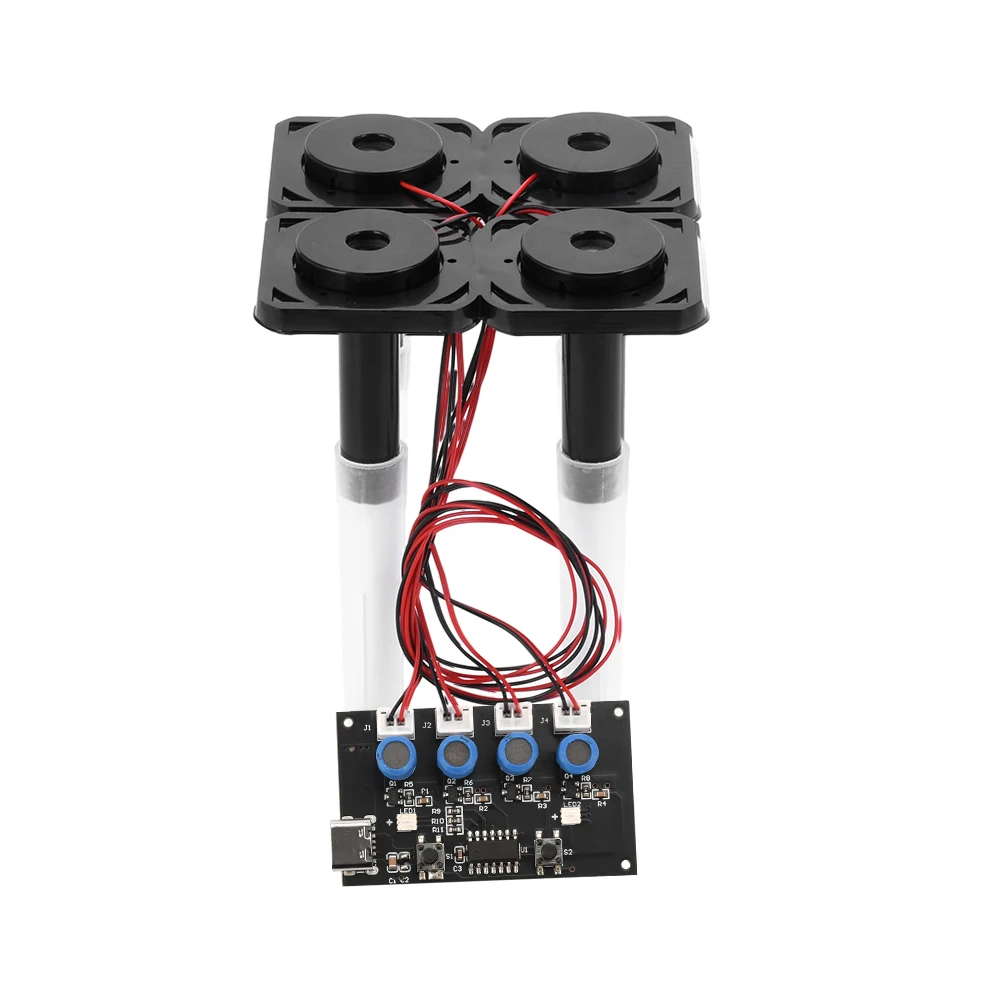

4X bracket (shipped as loose parts, requires self-assembly)
