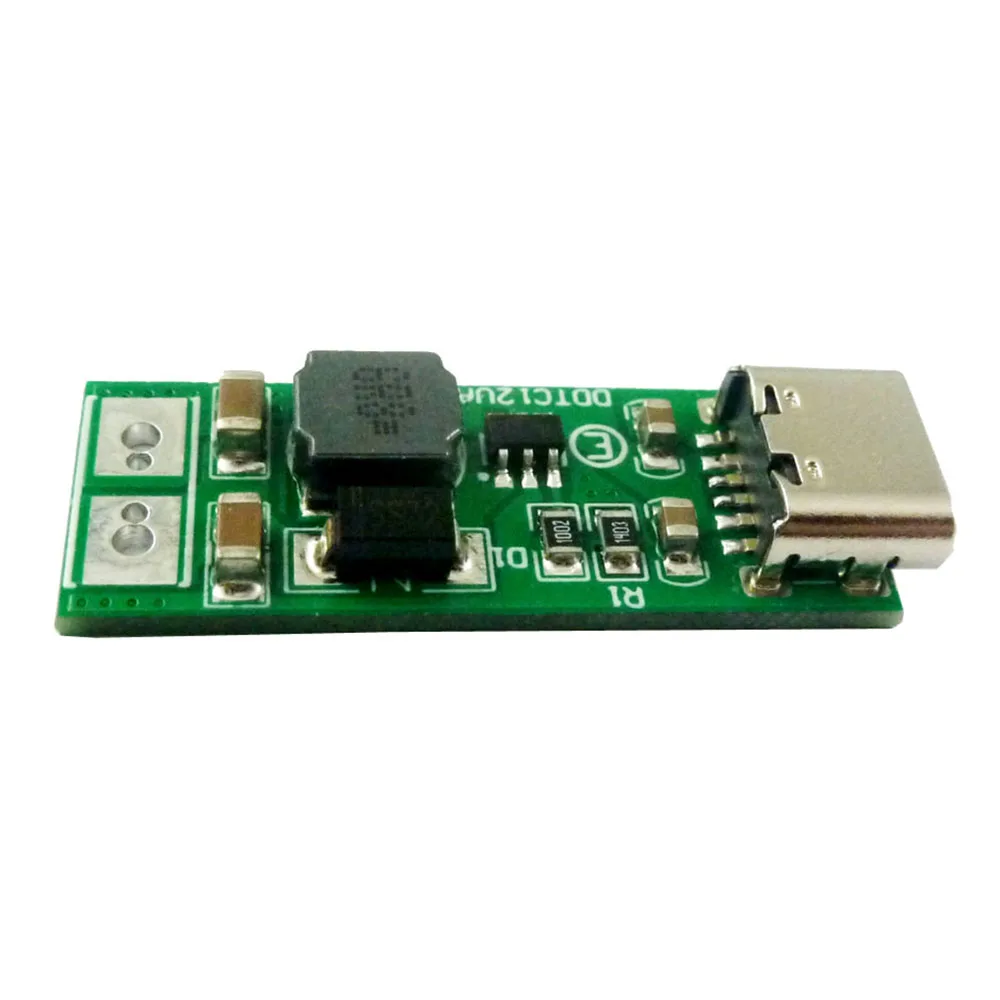

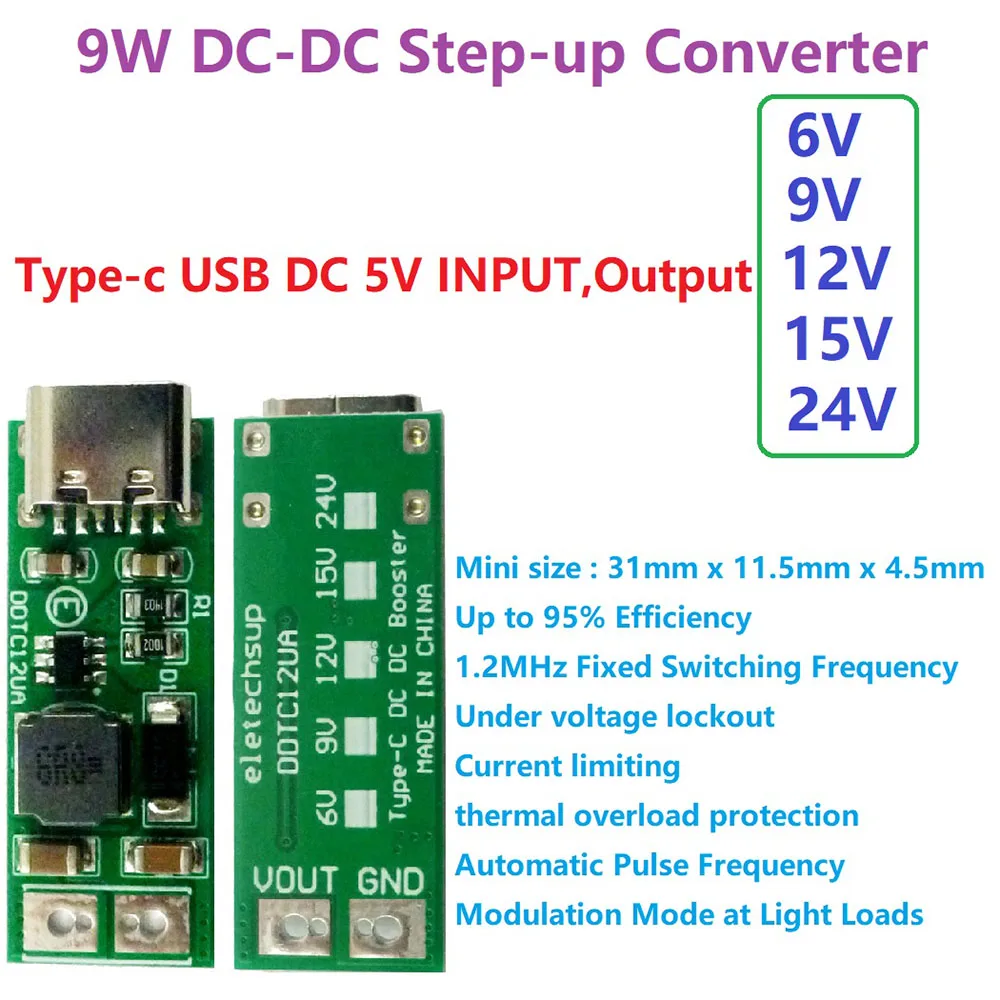

Specification:

DC DC boost converter module operating frequency 1.2MHZ.

Up to 95% efficiency (typically 84%-92%)

Quiescent current (PFM): 100uA.

Quiescent current (PWM): 1.6mA

Light load automatic pulse frequency modulation mode

Undervoltage Lockout, Current Limit, Thermal Overload Protection

Operating temperature range: -40~+85 degrees Celsius

Storage temperature range: -65~+150 degrees Celsius

Dimensions: 31mm x 11.5mm x 4.5mm

Weight: 2g

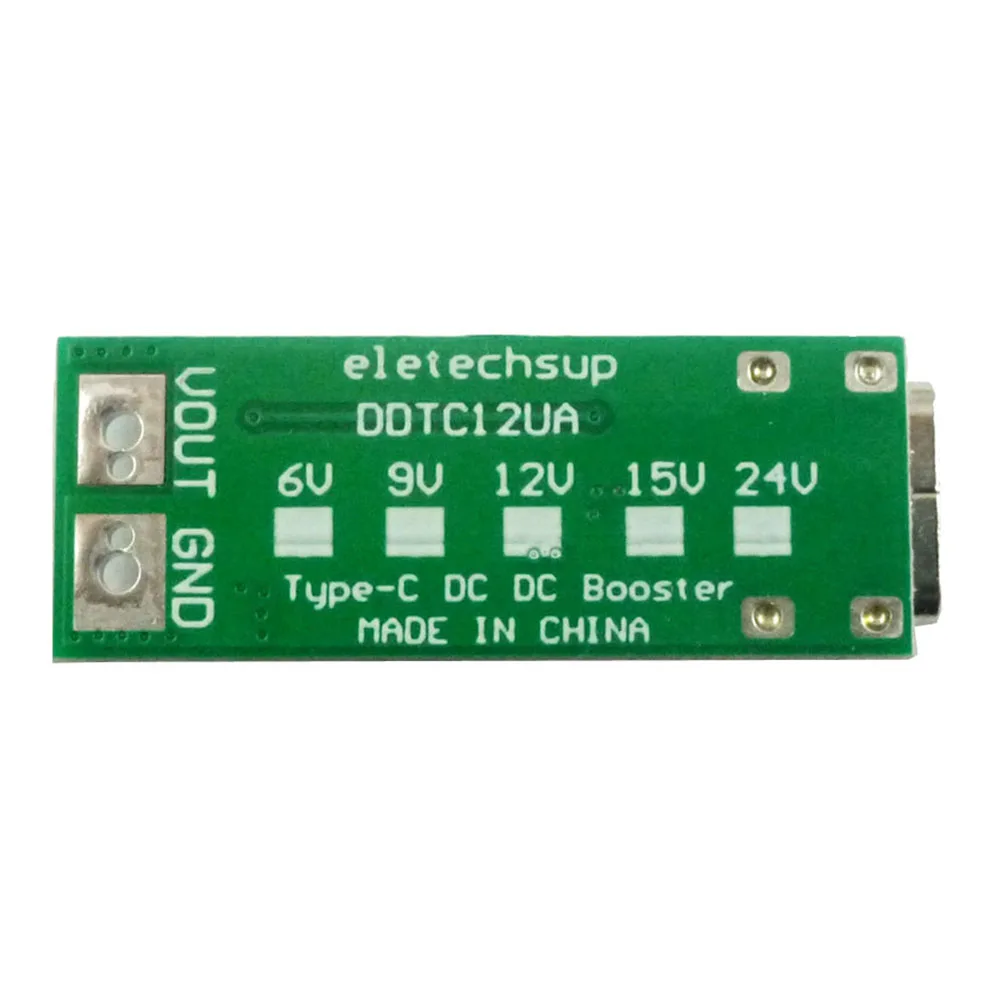

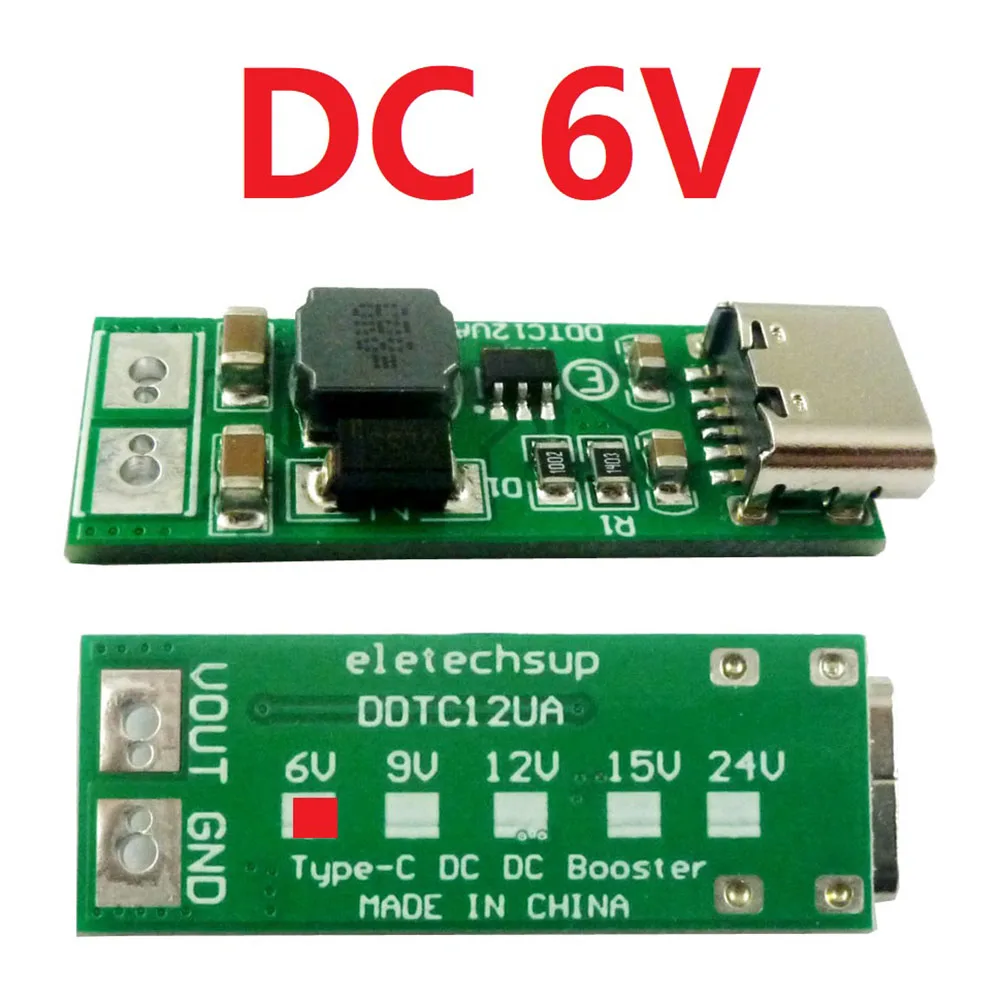

Output 6V:

Input voltage DC 4.5 ~ 5.5V, output DC 6Vﾱ3%

Maximum output: 6V/1500MA

Input DC 5V 1.32A, output 6V 1.00A;

Input DC 5V 1.63A, output 6V 1.20A;

Input DC 5V 2.00A, output 6V 1.50A;

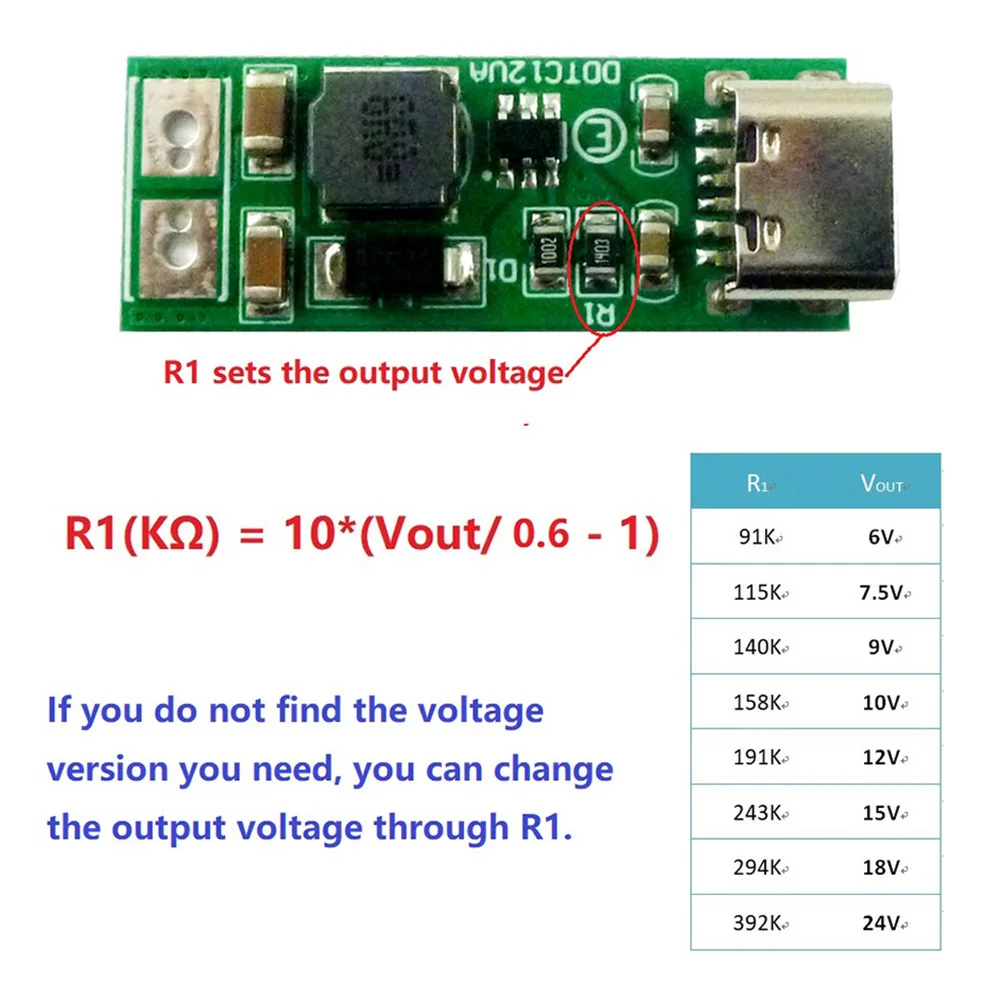

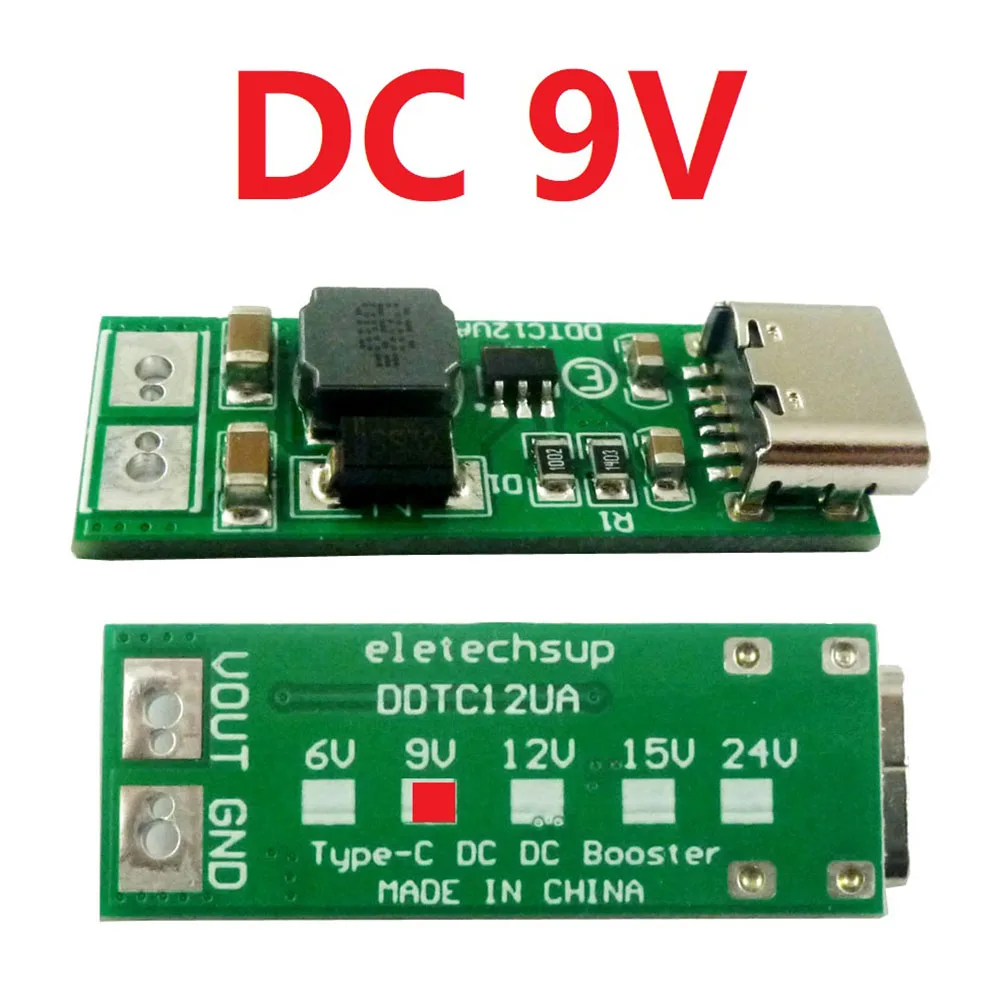

Output 9V:

Input voltage DC 4.5 ~ 5.5V, output DC 9Vﾱ3%

Maximum output: 9V/1000MA (see the table below for details)

Input DC 5V 1.00A, output 9V 0.52A;

Input DC 5V 1.50A, output 9V 0.76A;

Input DC 5V 2.00A, output 9V 1.00A;

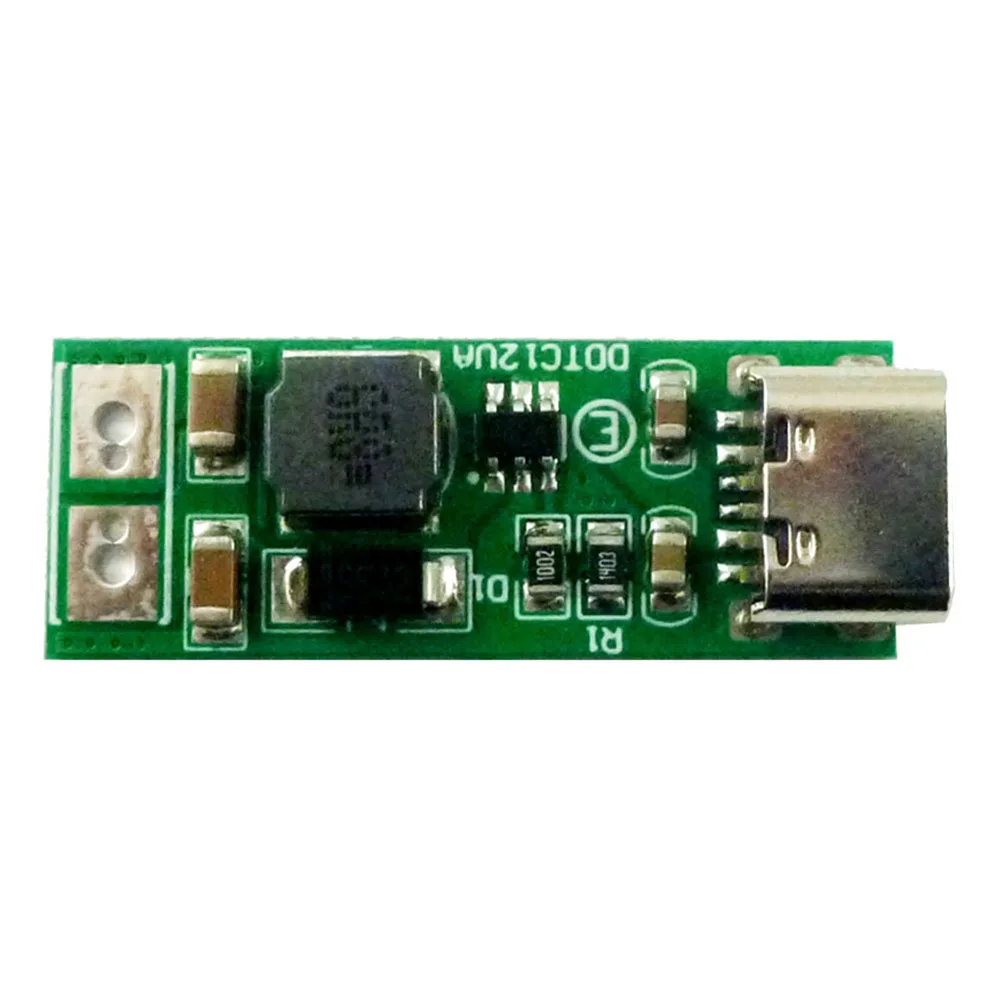

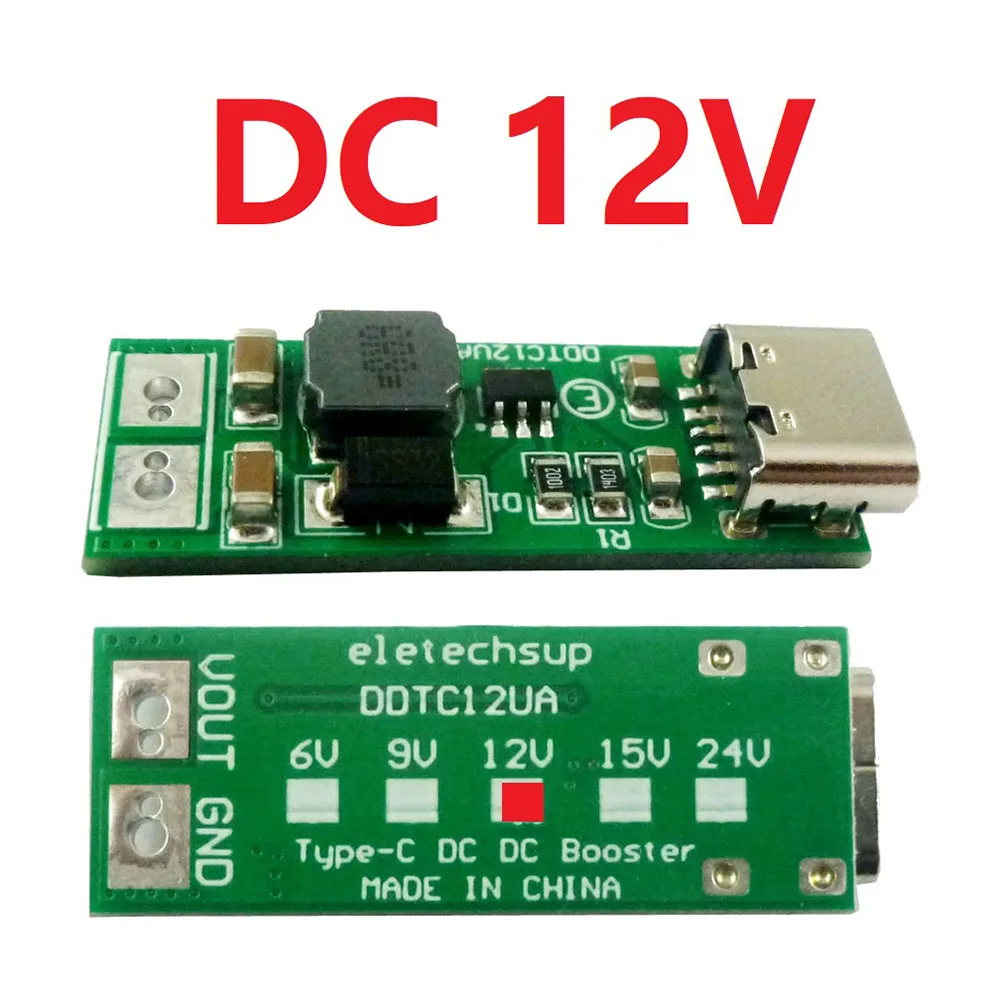

Output 12V:

Input voltage DC 4.5 ~ 5.5V, output DC 12Vﾱ3%

Maximum output: 12V/750MA (see the table below for details)

Input DC 5V 1.00A, output 12V 0.39A;

Input DC 5V 1.50A, output 12V 0.57A;

Input DC 5V 2.00A, output 12V 0.75A;

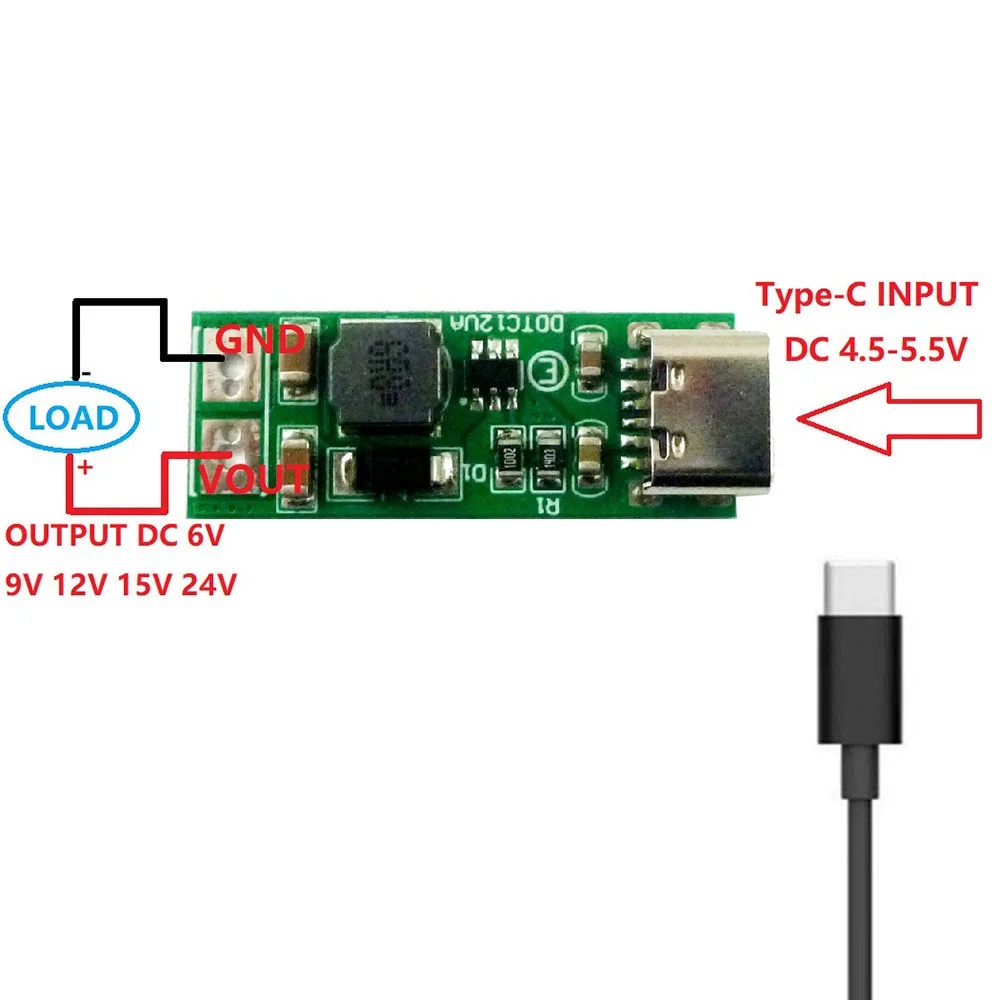

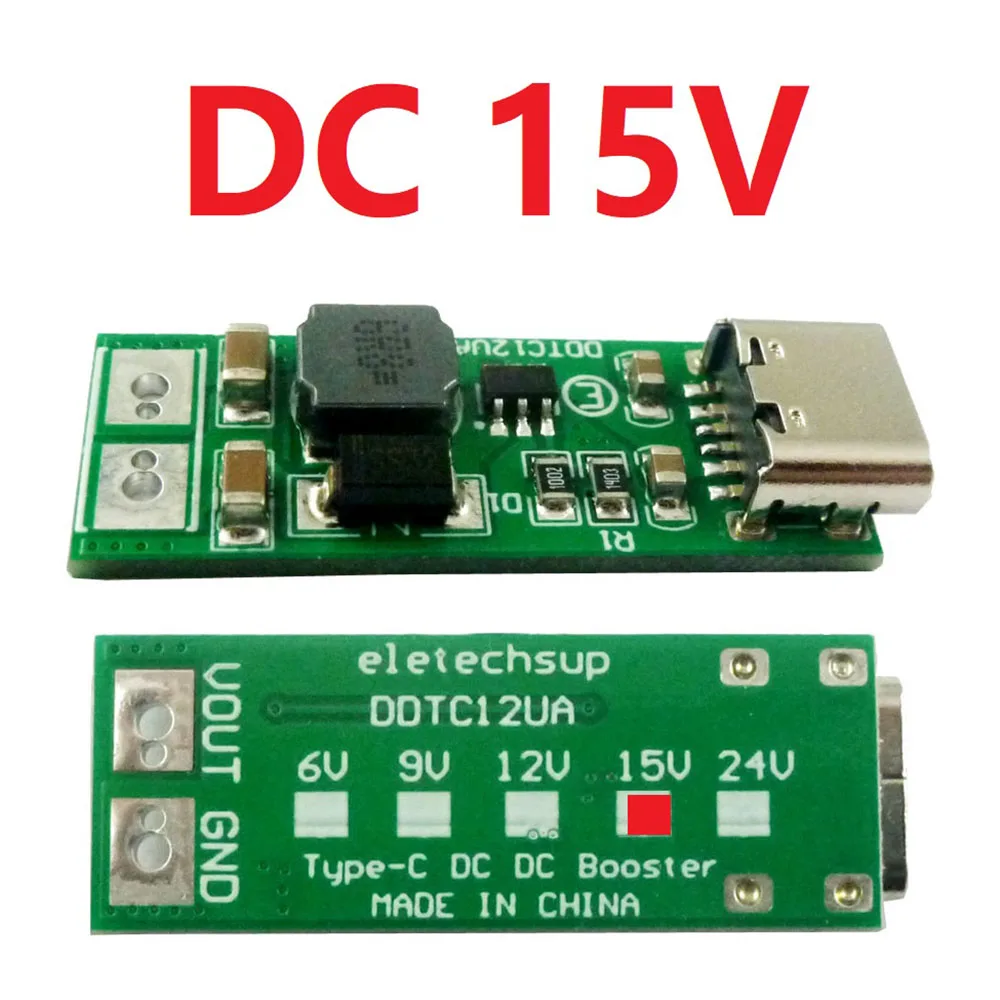

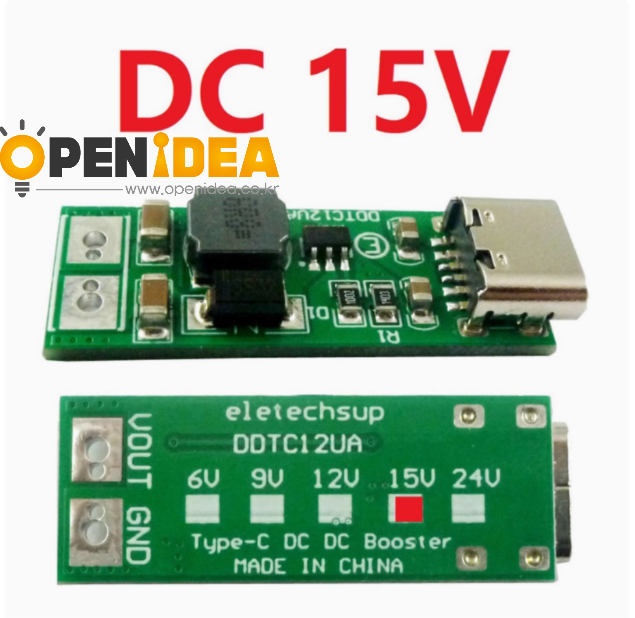

Output 15V:

Input voltage DC 4.5 ~ 5.5V, output DC 15Vﾱ3%

Maximum output: 15V/600MA (see the table below for details)

Input DC 5V 1.00A, output 15V 0.31A;

Input DC 5V 1.50A, output 15V 0.45A;

Input DC 5V 2.00A, output 15V 0.60A;

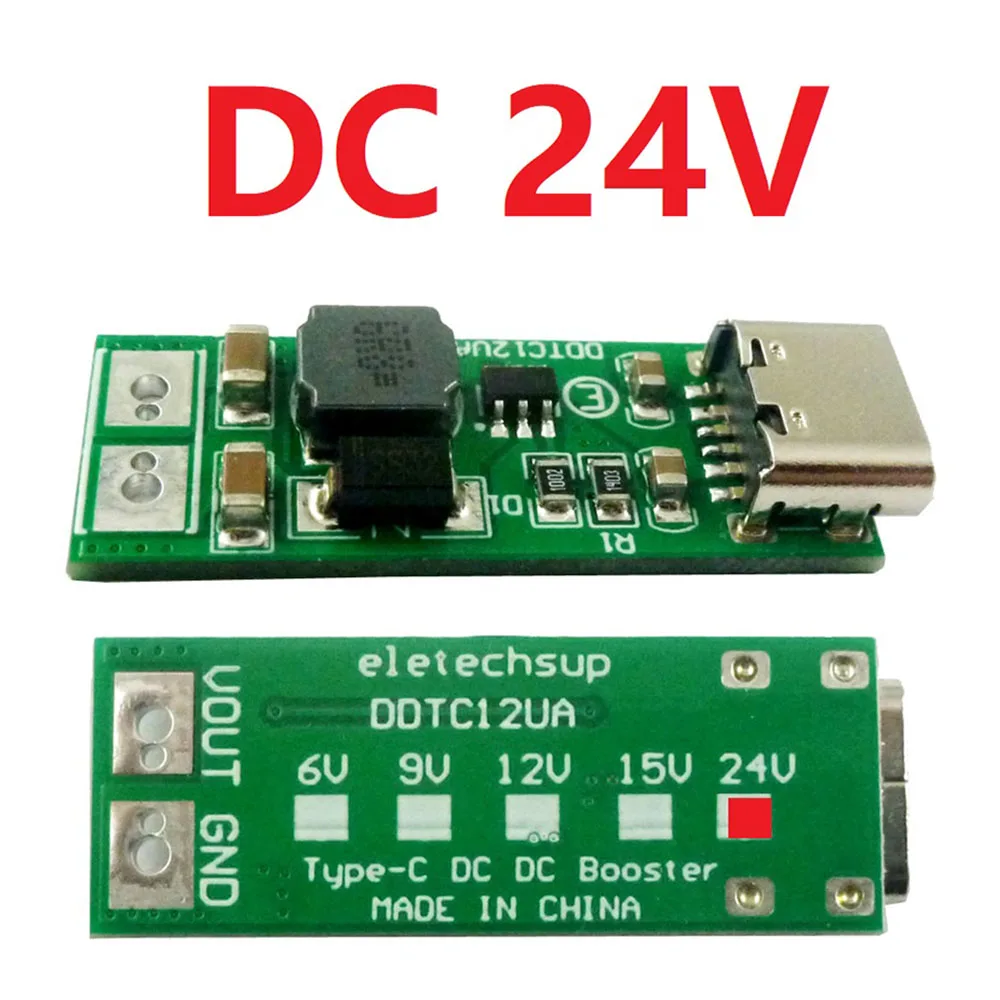

Output 24V:

Input voltage DC 4.5~5.5V, output DC 24Vﾱ3%

Maximum output: 24V/300MA (see the table below for details)

Input DC 5V 1.00A, output 24V 0.19A;

Input DC 5V 1.50A, output 24V 0.27A;

Input DC 5V 1.60A, output 24V 0.30A;

Application

battery powered equipment

Instrumentation, multimeter

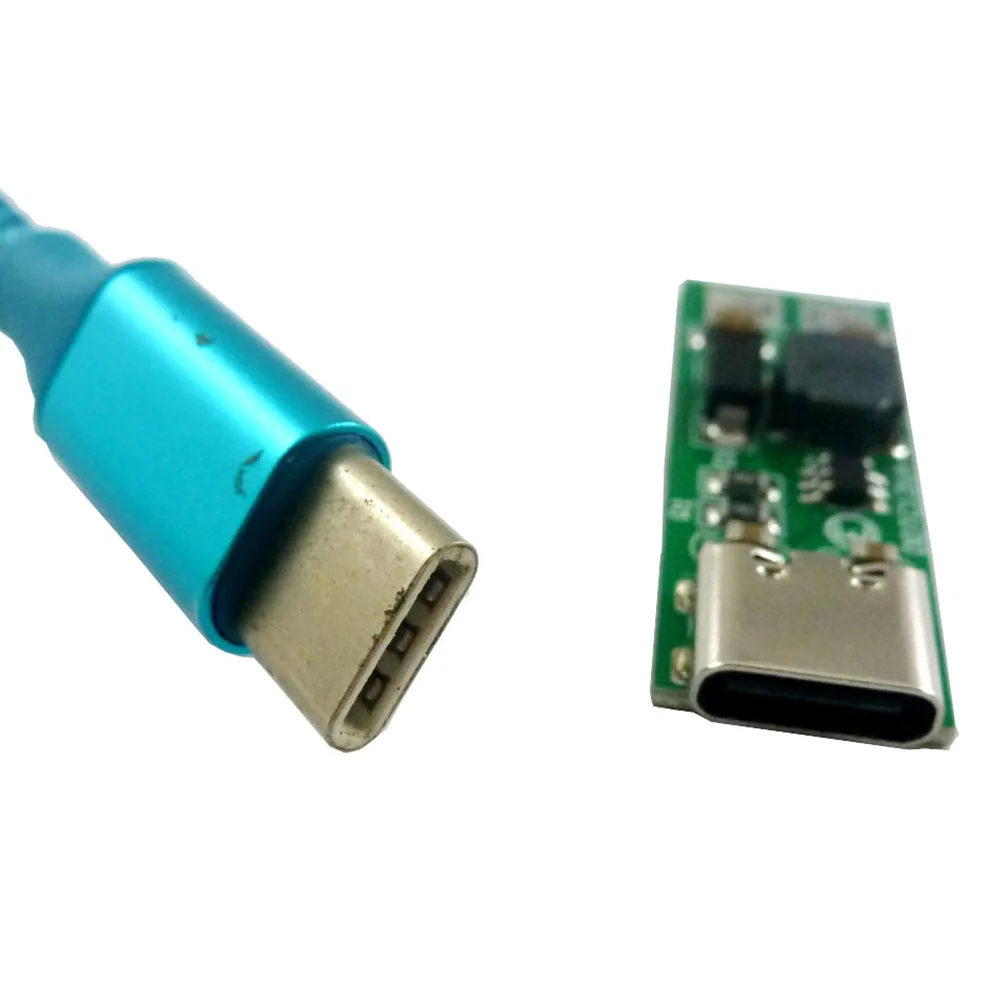

Type-c USB device

Small power motor

PTZ Camera Webcam

Web video camera

toy car and boat

model airplane

power Bank

LED motor

WIFI router

PLC RS485 device

Package includes:

1*Boost Converter
