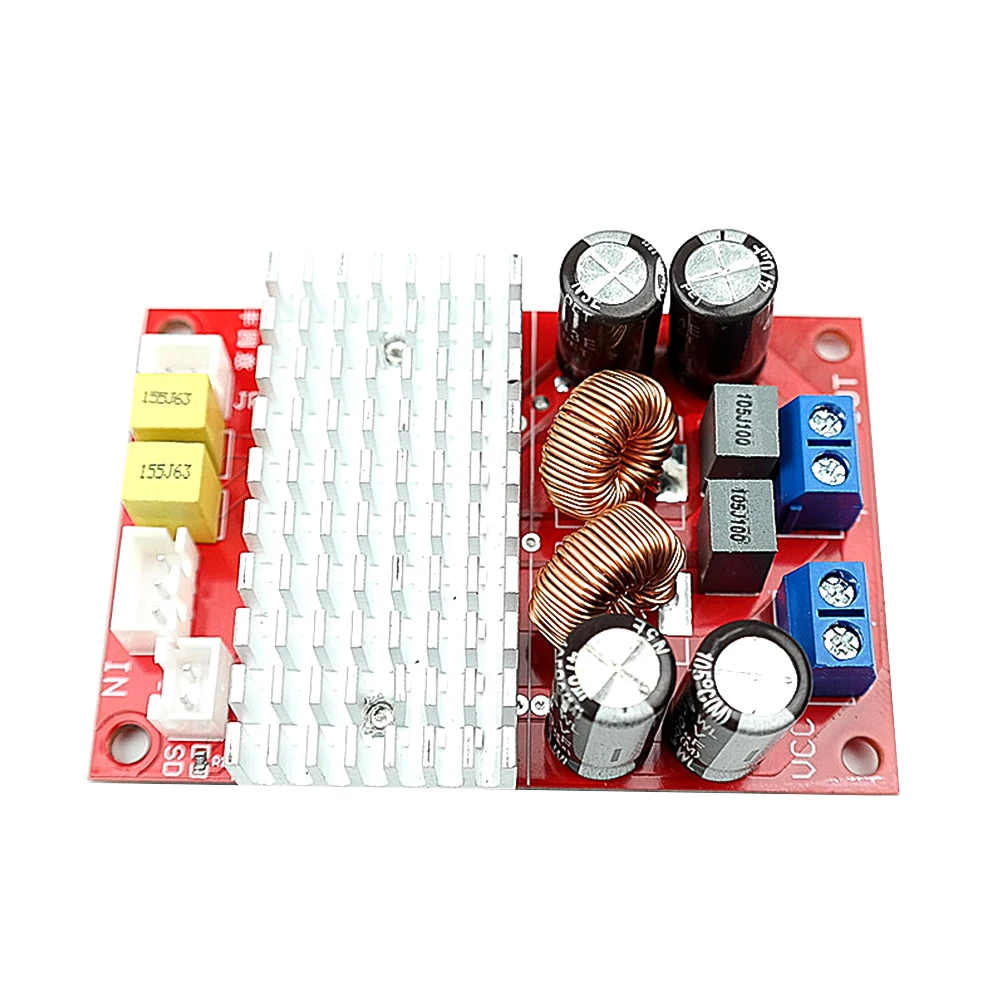

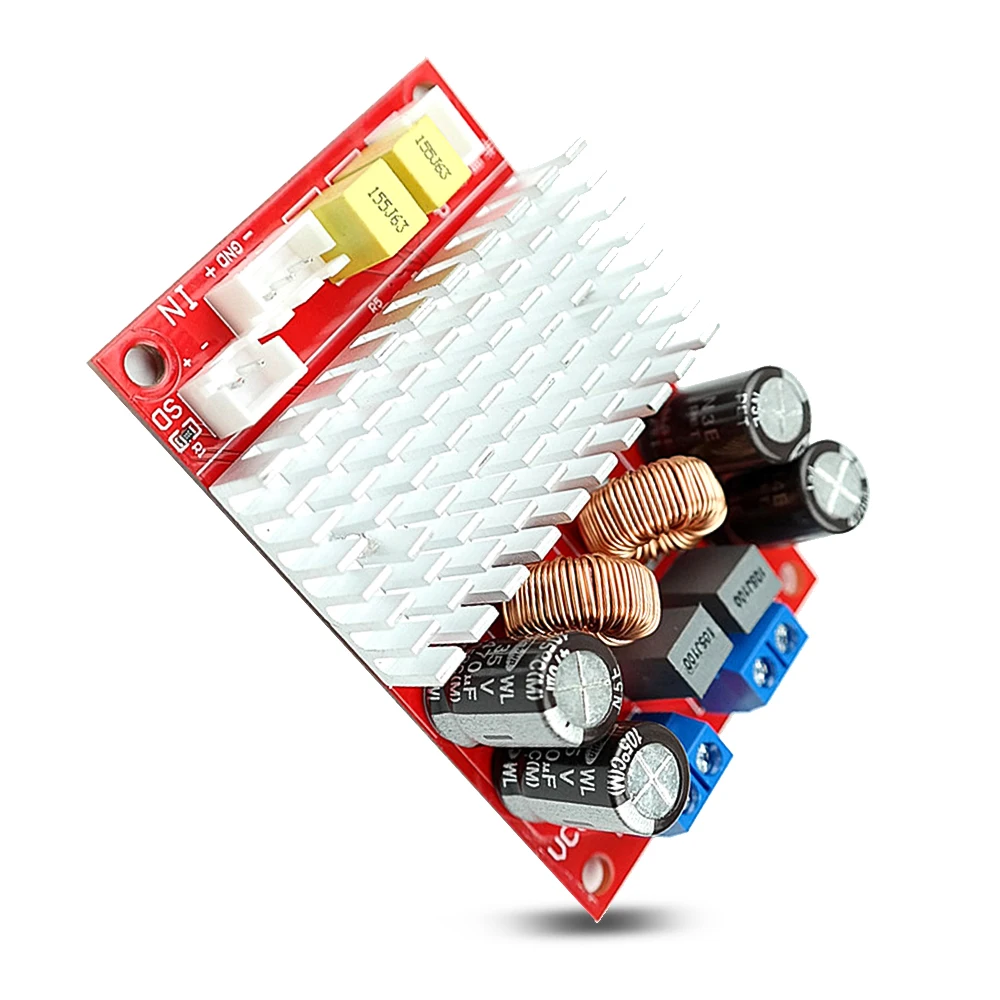

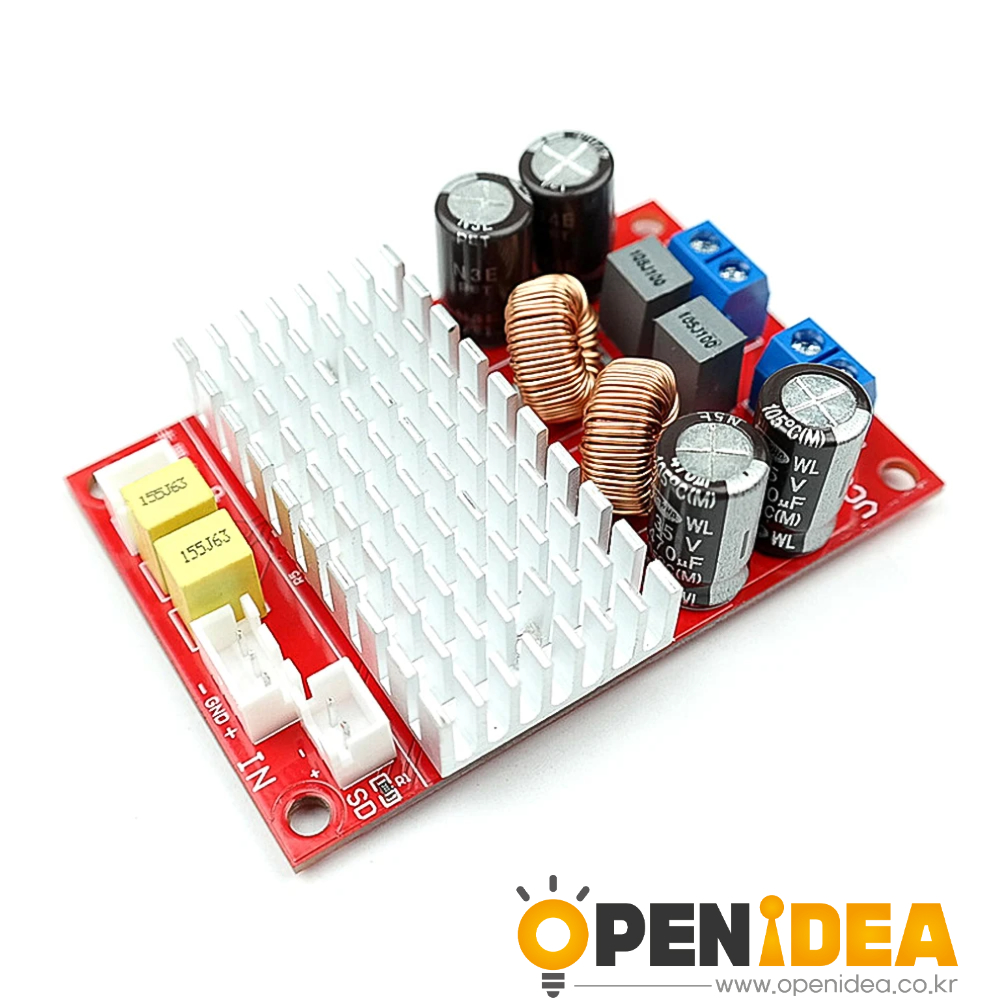

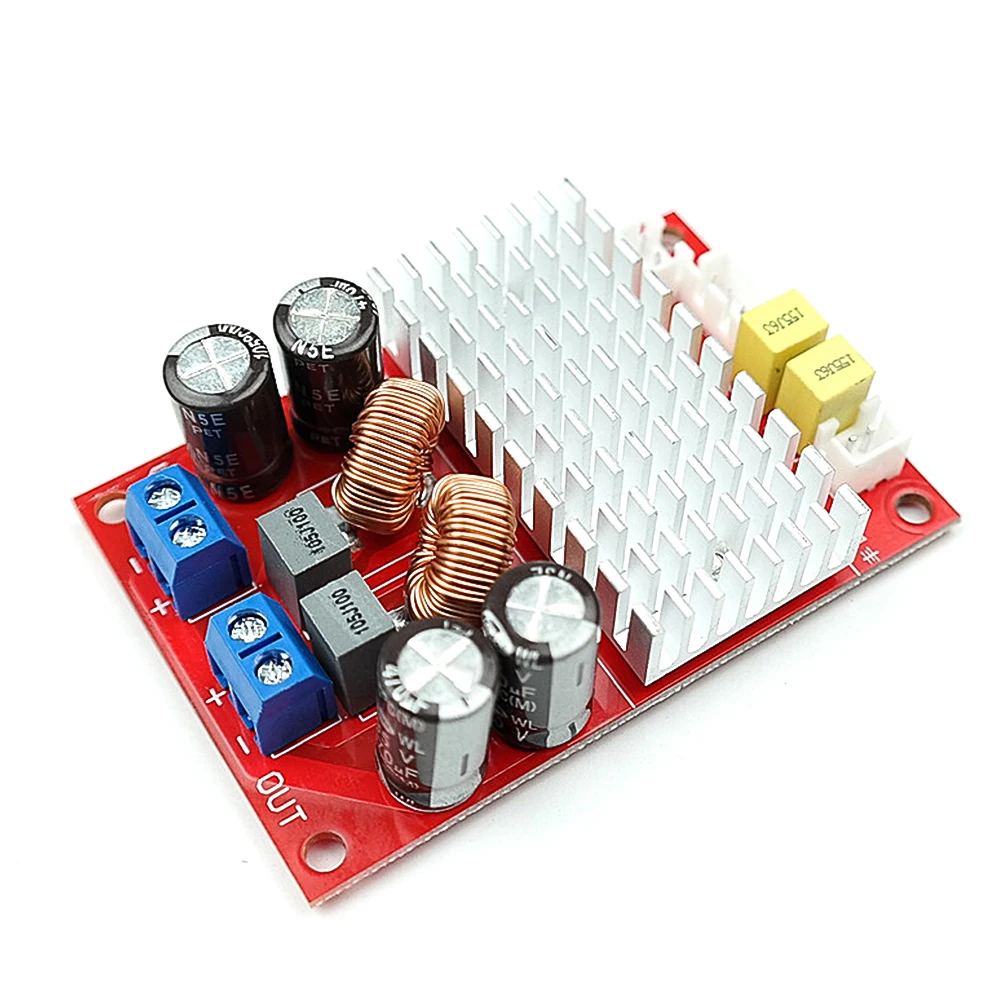

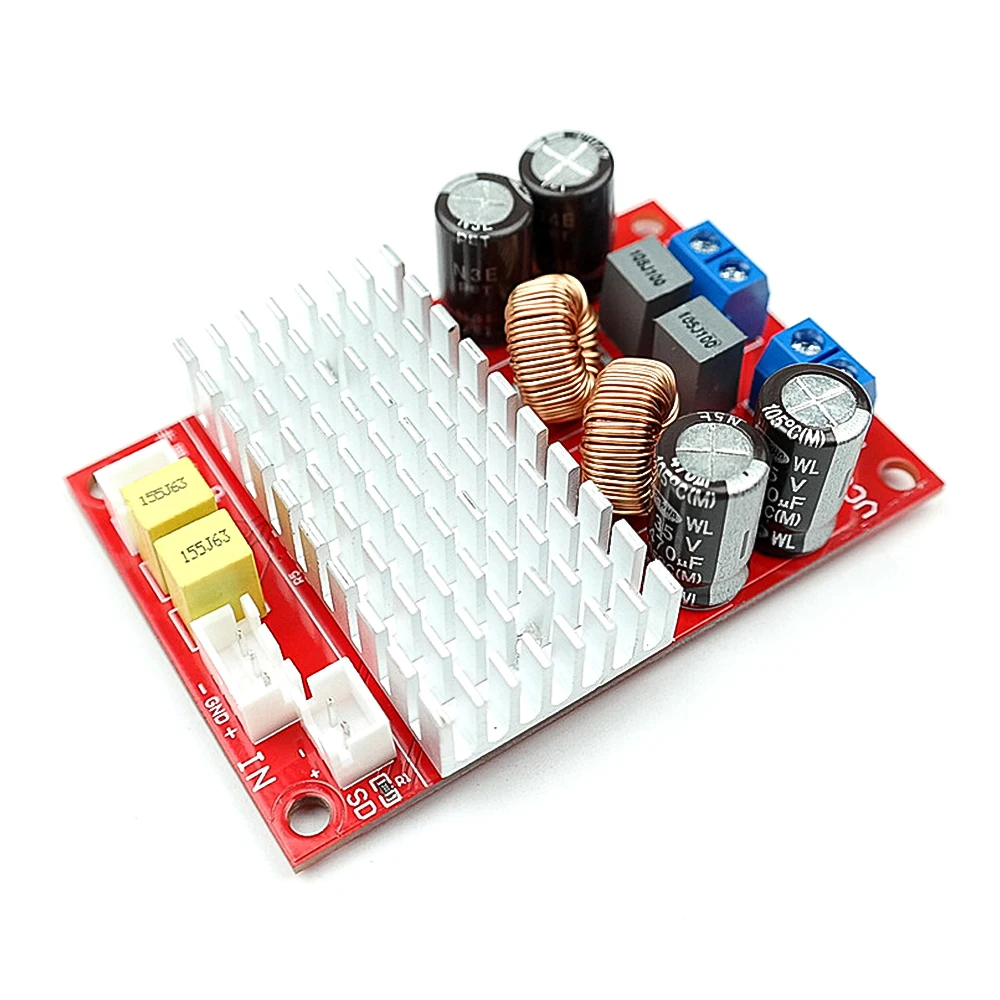

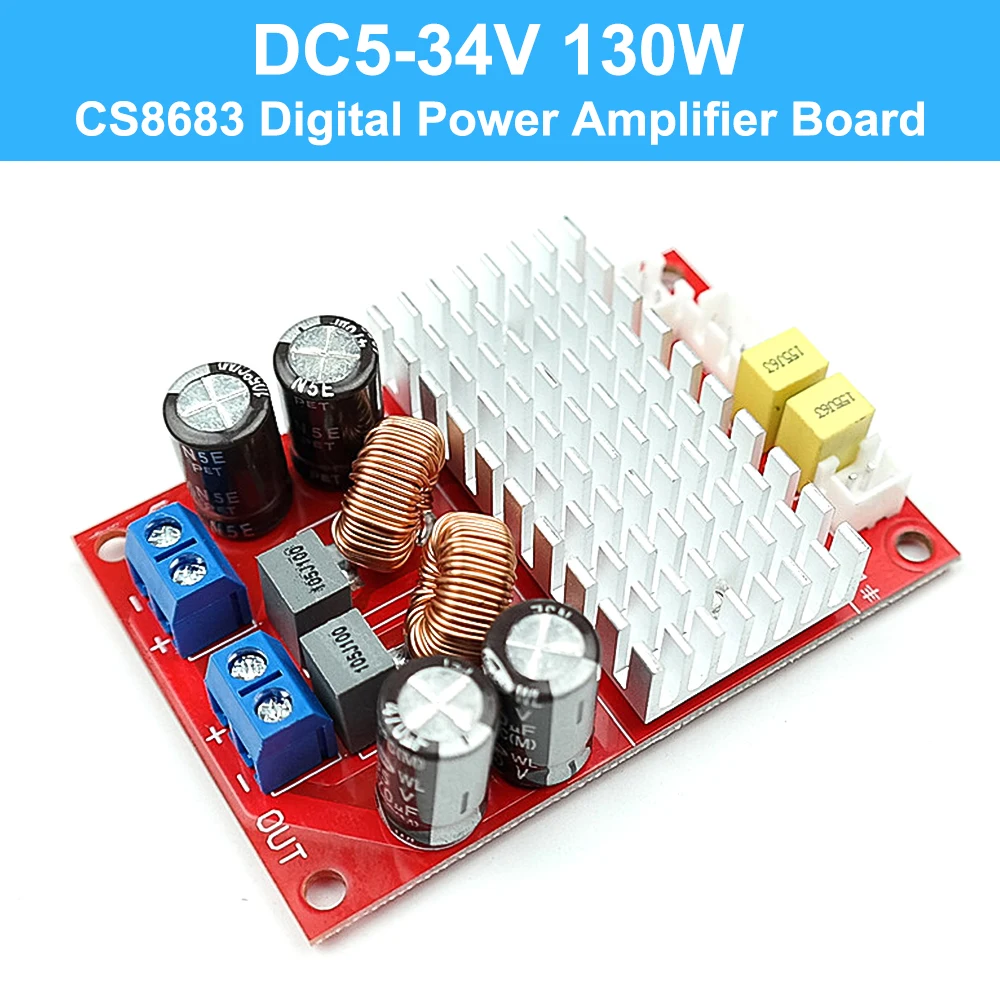

Features:

1. Using high-quality materials, the quality is guaranteed

2. Chip: CS8683 high-power digital power amplifier chip

3. High power 130W

4. With heat sink, stable work

5. Upgrade the special red ring inductor for digital power amplifier, and improve the sound quality

Product parameters:

Working voltage: DC 5v-34v

Maximum output power: 130w

Chip: CS8683 high-power digital power amplifier chip

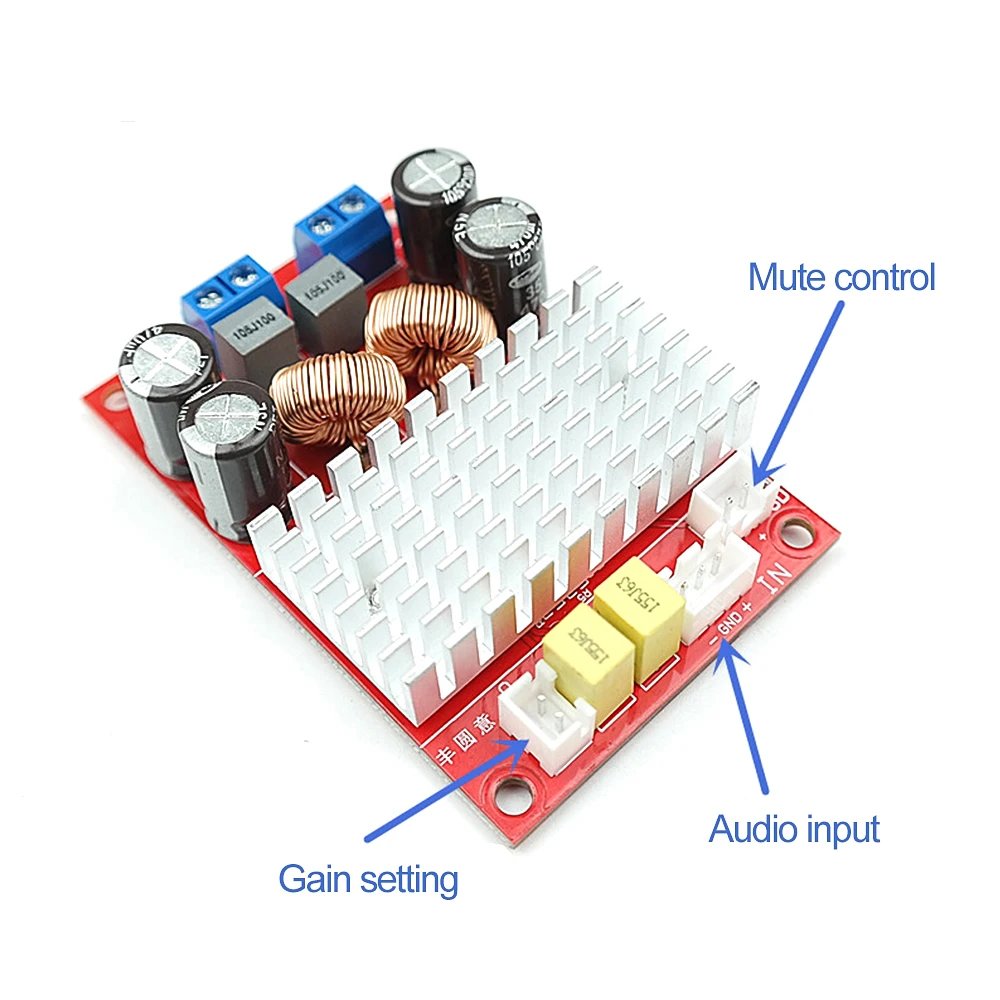

Standby control description:

SD is the standby control terminal, low-level mute, high-level work (the control voltage can be from 3v-35v), the default is the working state when delivered, when standby control is required, the R1 resistor on the board needs to be removed, and the external control will do .

Description of gain setting terminal:

The default floating state gain is 40 times. If a higher gain is required, just short-circuit the two pin interfaces on the gain setting end, and the short-circuit gain is 54 times.

The signal input mode can be selected from the following two according to your needs:

1: Signal Balance Input (Differential): Signal+, Signal-,

2: Unbalanced input (single-ended): the - terminal is short-circuited with GND (ground), and the signal is input from the + terminal.

Note:

When the input is unbalanced, be sure to short-circuit the "-" with GND, otherwise the sound will be abnormal, and the chip may be burnt out in serious cases.

Package includes:

Module X1
