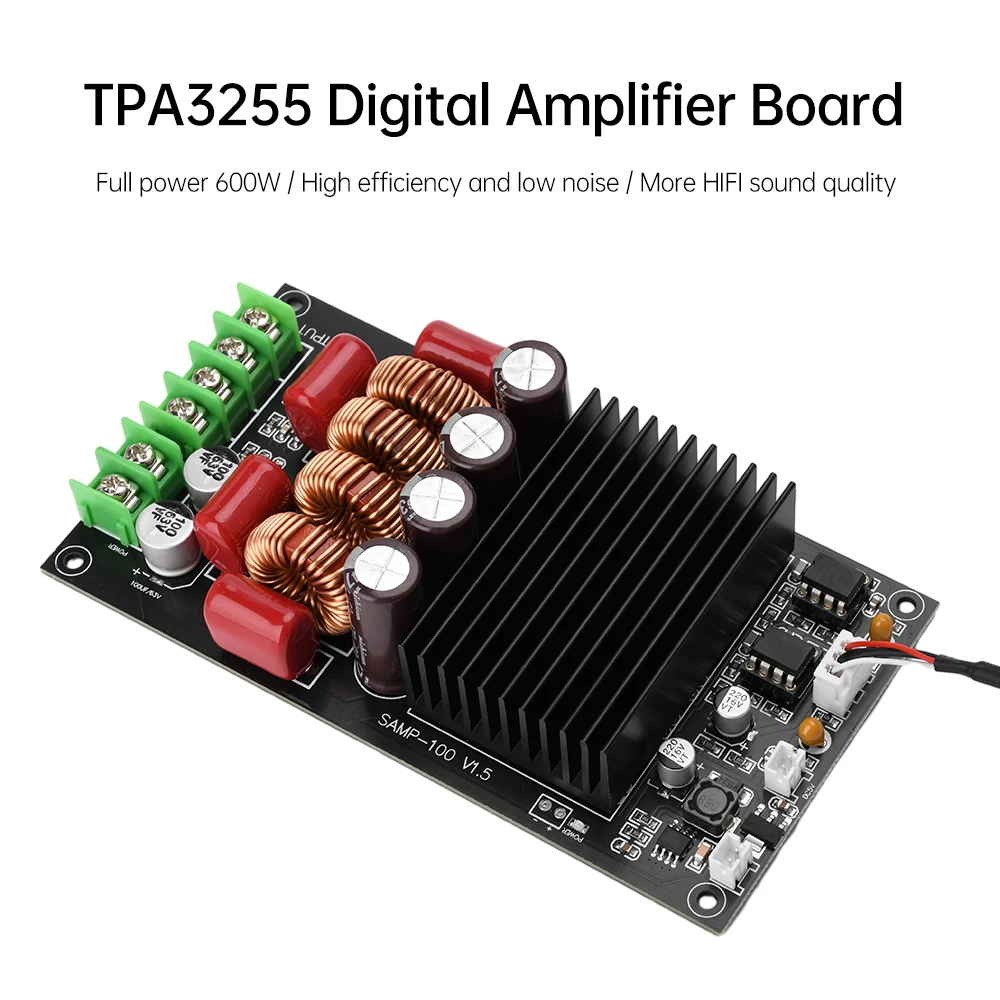

1.TPA3255 is a high-performance Class D power amplifier chip, which has Class D efficiency and can bring true high-end sound quality circuits.

2. This product can maintain ultra-low distortion throughout the entire audio frequency band while showcasing sound quality.

3. This product adopts excellent circuit design and high-quality components, ensuring its performance and stable operation at DC 52V.

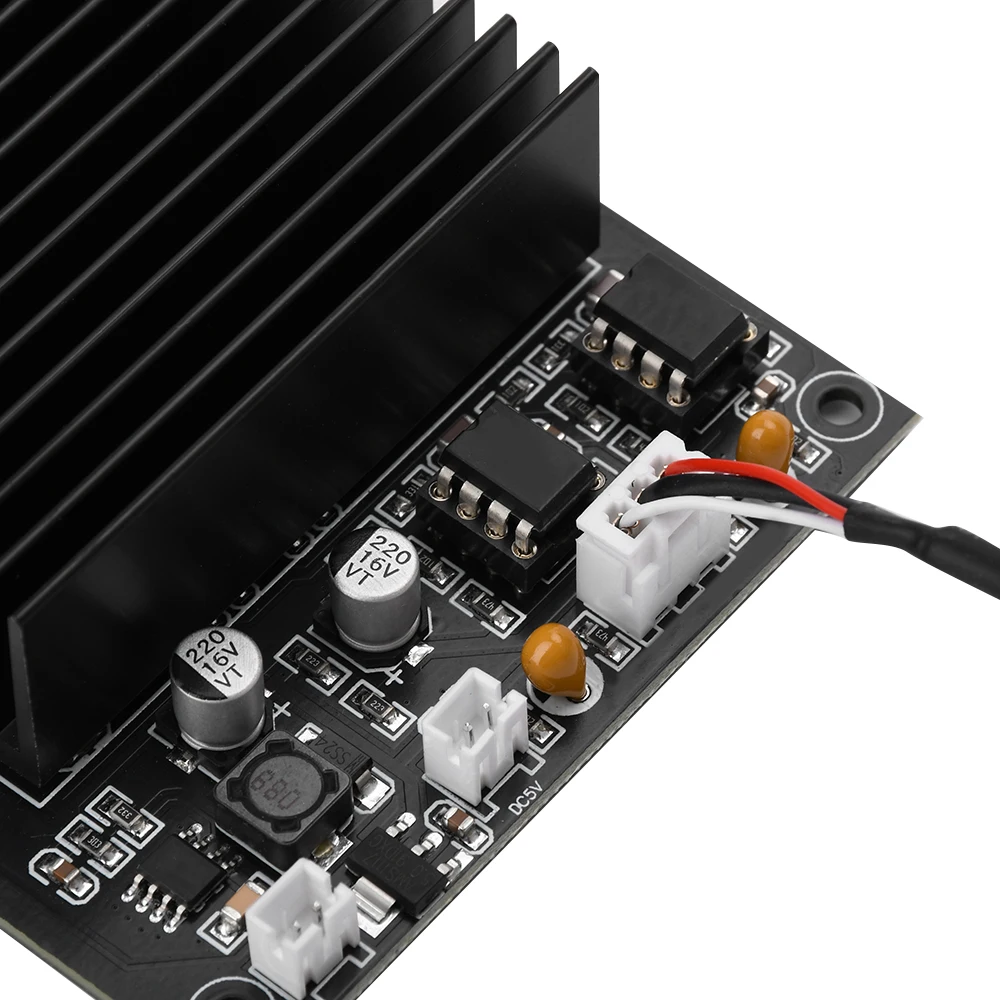

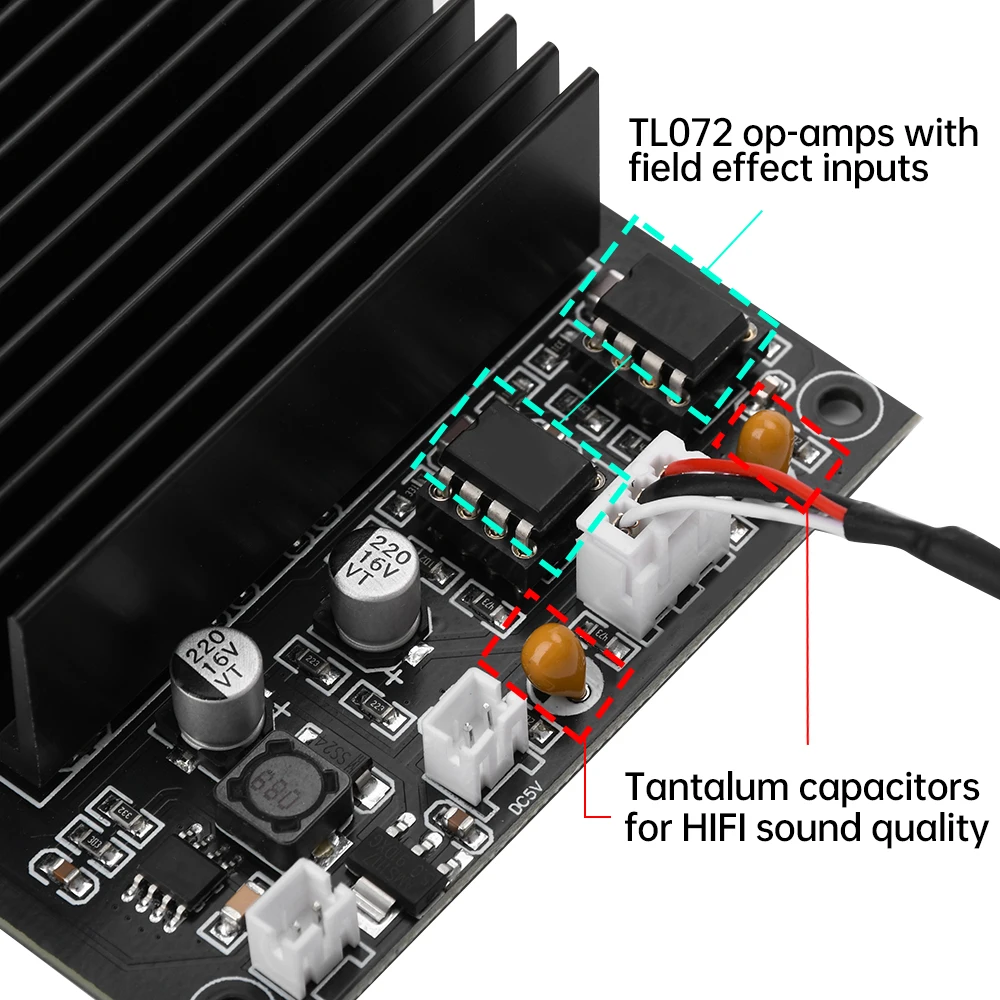

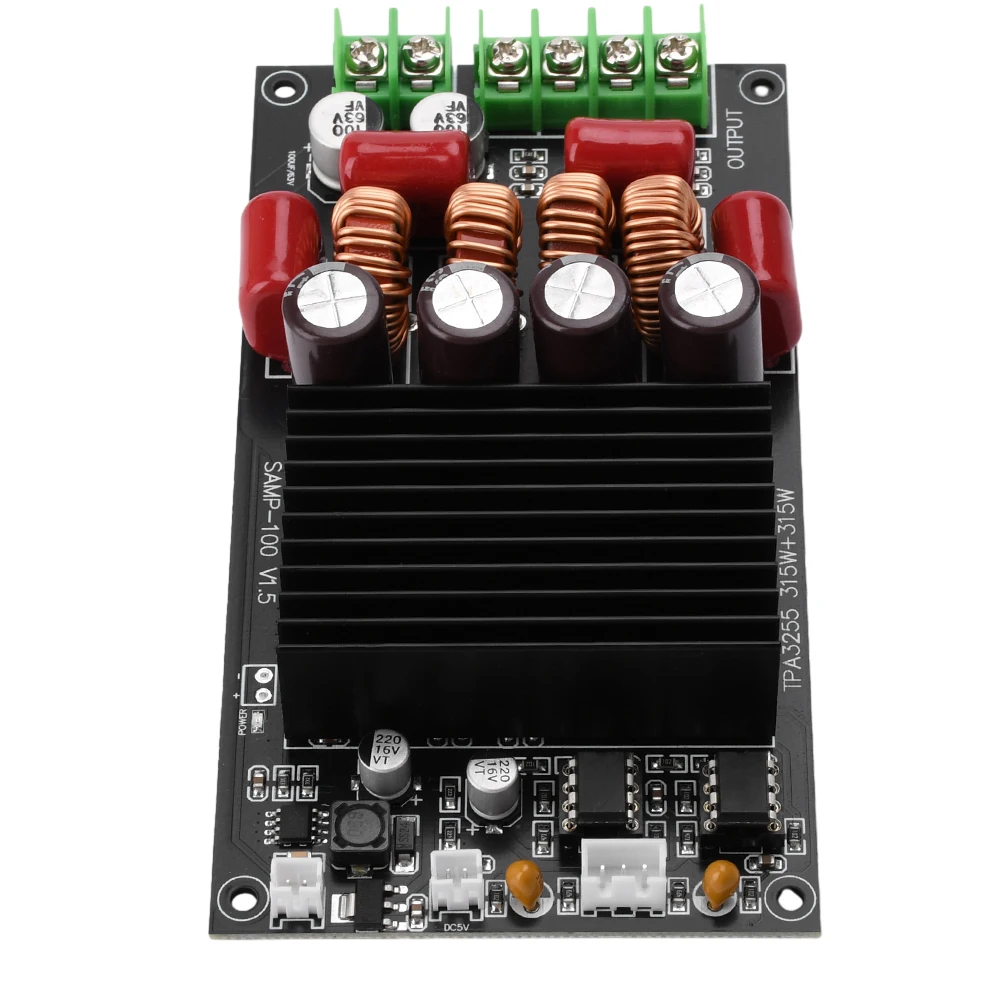

4. TPA3255 adopts a differential input structure, and the operational amplifier adopts a TL072 operational amplifier with field effect input, providing warm sound quality. The input uses HIFI tantalum capacitors, which are delicate and natural.

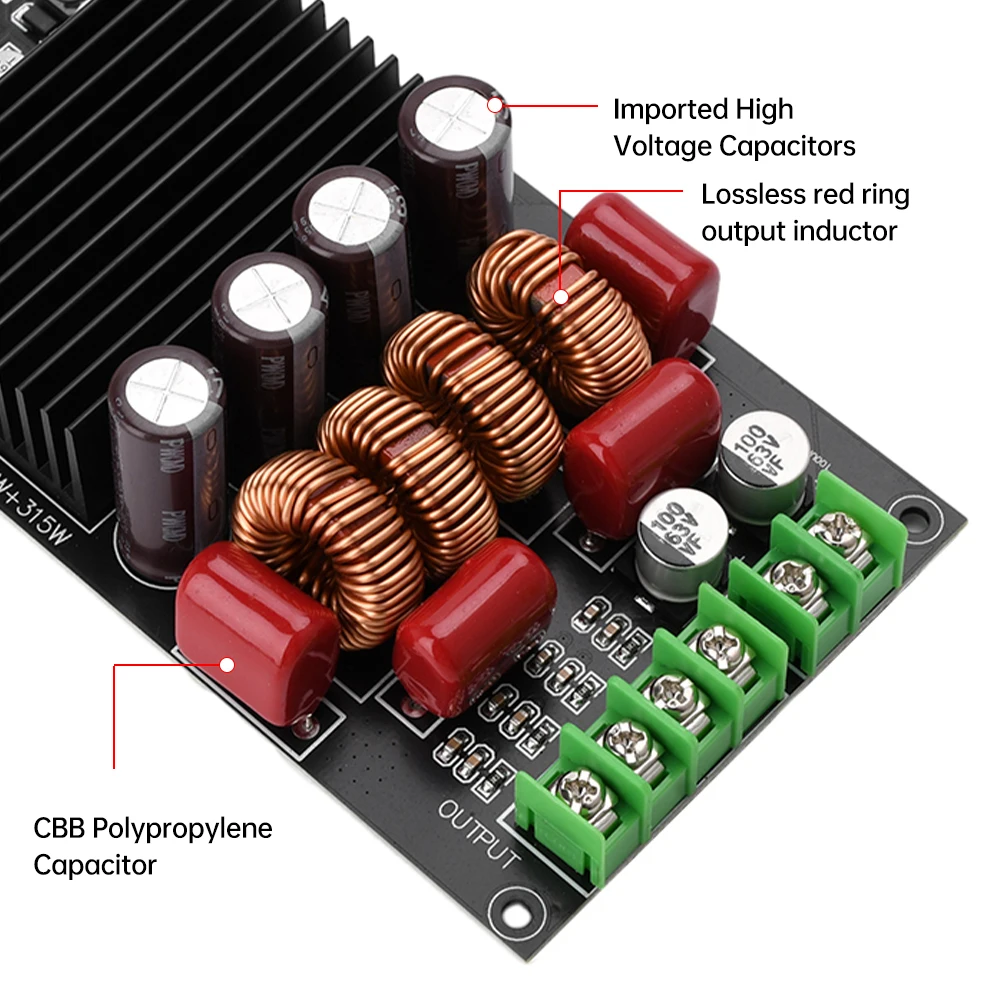

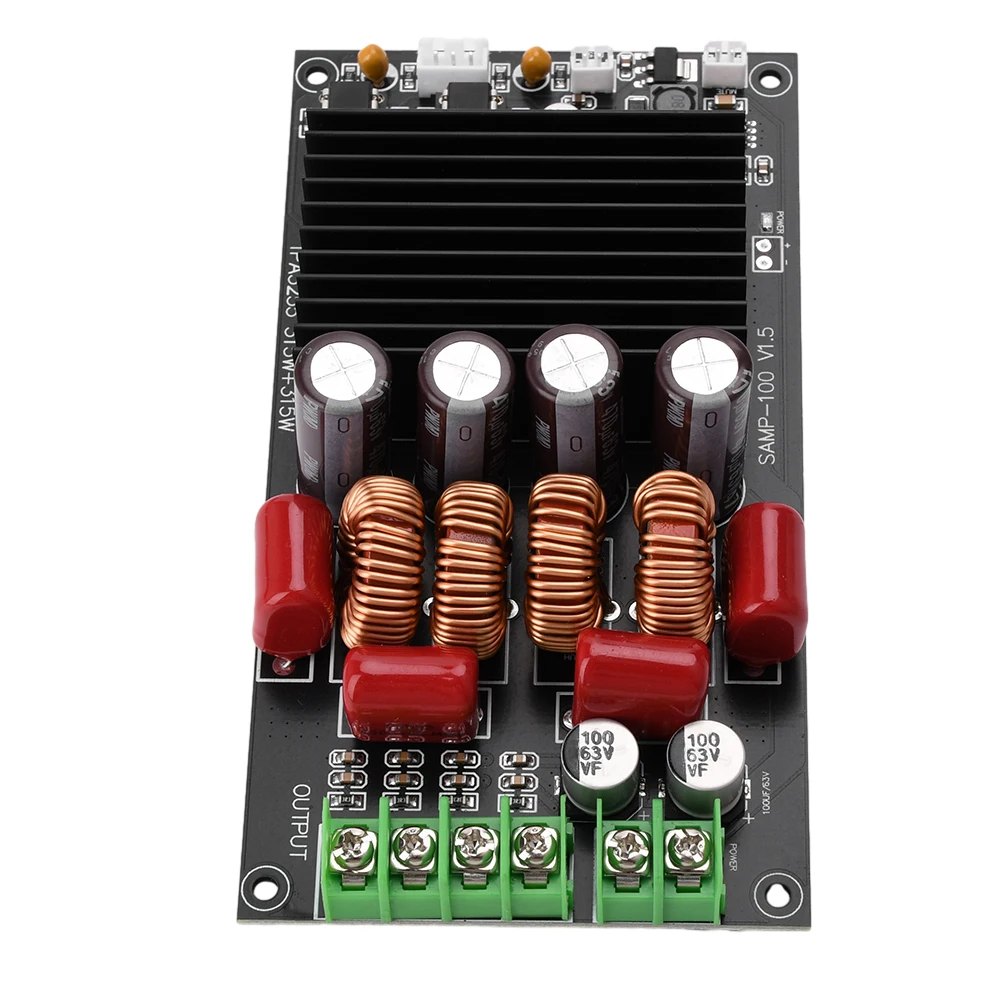

5. The output adopts a lossless red ring inductor and a CBB high current capacitor, and an additional 5V terminal is added to the output, which can be used as a backup for external devices such as Bluetooth and players.

Product Introduction:

TPA3255 is a high-performance Class D power amplifier chip, which has Class D efficiency and can bring true high-end sound quality circuits. The device has advanced integrated feedback design and proprietary high-speed gate driver error correction function. This technology enables the device to maintain ultra-low distortion throughout the entire audio frequency band while showcasing sound quality. This device operates in AD mode and can drive up to 2 315W/4R loads and 2 150W (unshipped power)/8R loads at a THD of 1.5%. It also has a 2VRMS analog input interface and supports seamless connection with high-performance DACs (such as TI's PCM5242).

In addition to excellent audio performance, TPA3255 also has two major advantages: high power efficiency and ultra-low power level idle loss (less than 2.5W). This can be achieved through an 85mR MOSFET and an optimized gate driver scheme. This scheme can significantly reduce idle loss compared to traditional discrete implementation schemes.

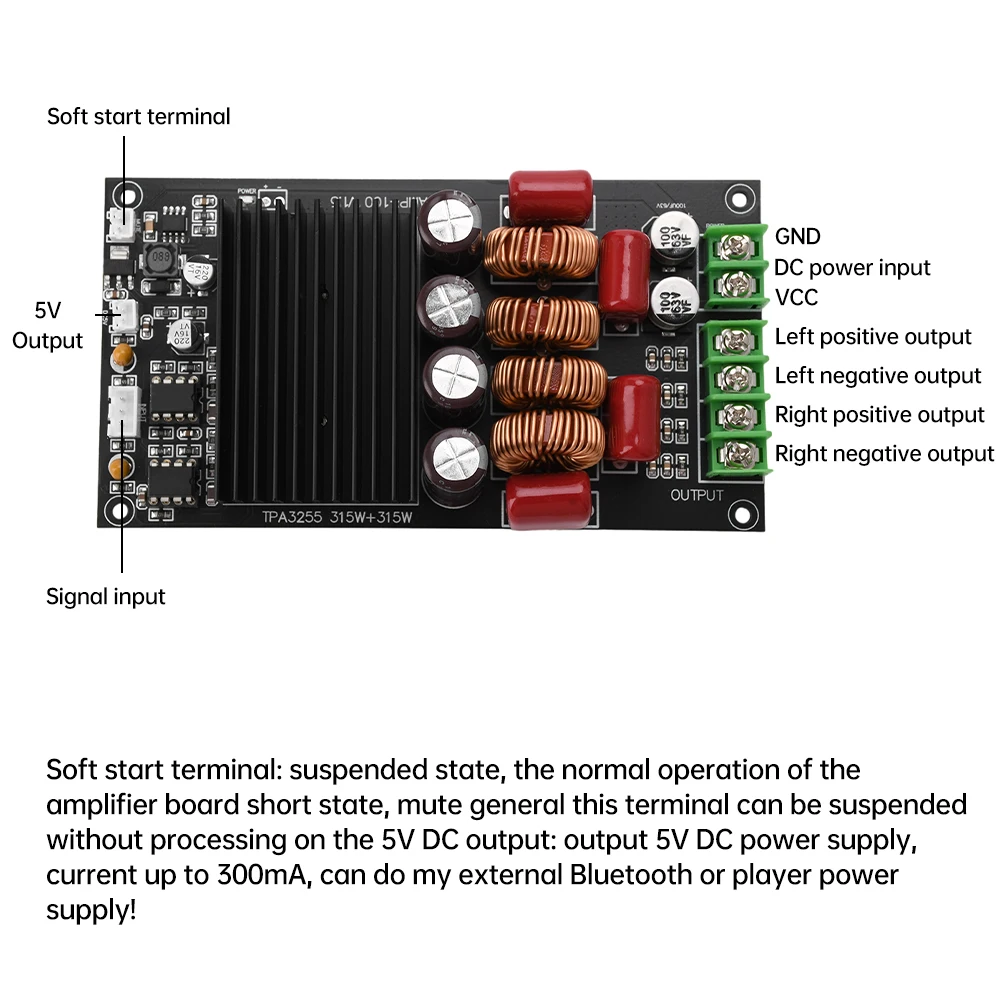

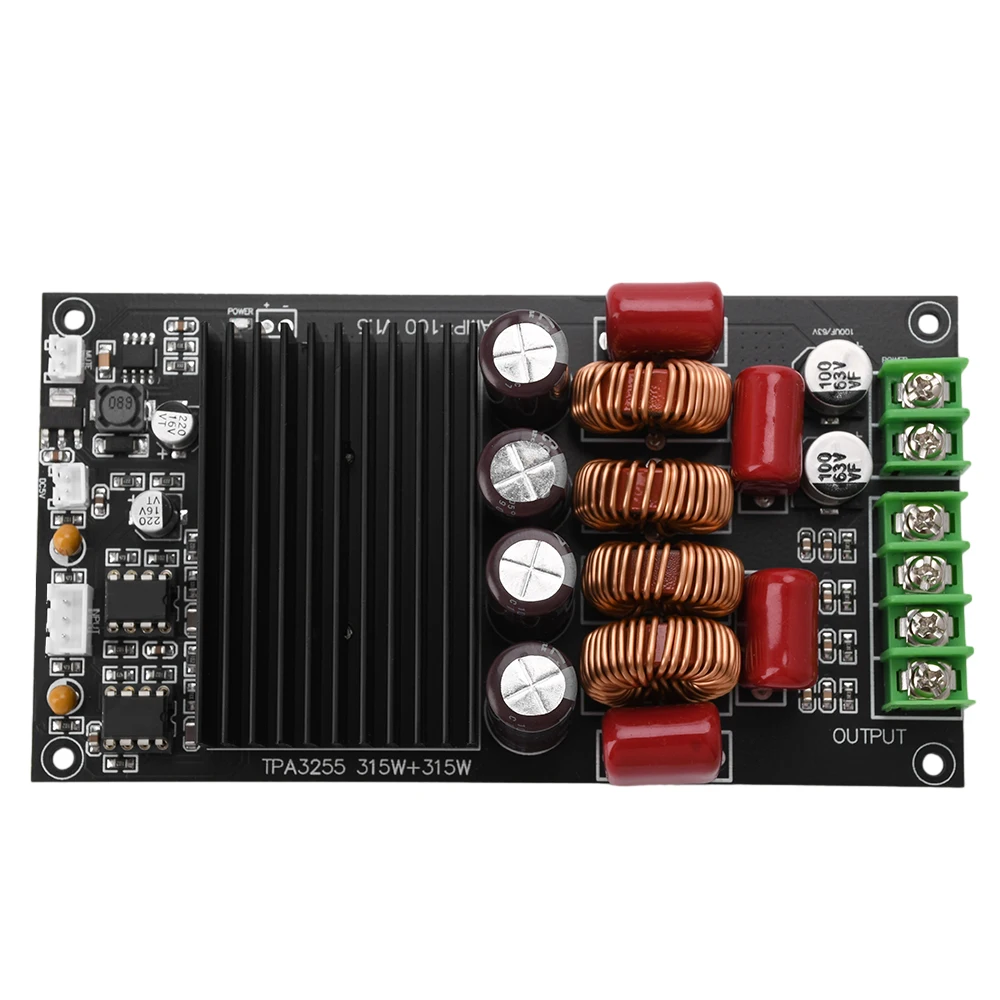

This product adopts excellent circuit design and high-quality components, ensuring its performance and stable operation at DC 52V. It also passed the 60V high-voltage test in laboratory testing. In order to ensure sound quality, TPA3255 adopts a differential input structure, and the operational amplifier adopts a TL072 operational amplifier with field effect input. The sound quality is warm, and the input uses HIFI tantalum capacitors, which are delicate and natural. The main filter is made of Japanese chemical or Nikon capacitors with a voltage resistance of up to 63V, ensuring safety. The output adopts a lossless red ring inductor and a CBB high current capacitor. An additional 5V terminal has been added to the output, which can be used for Bluetooth and playback

Spare external equipment such as amplifiers.

Parameter:

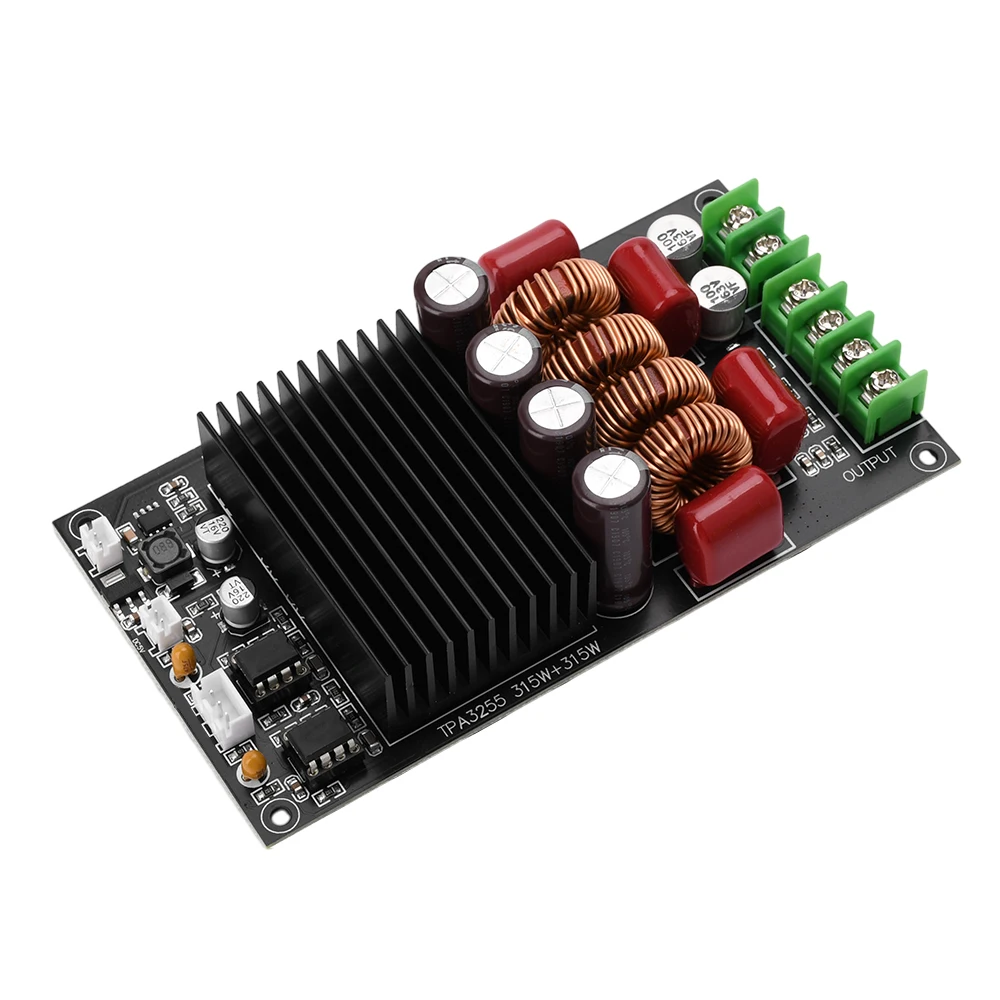

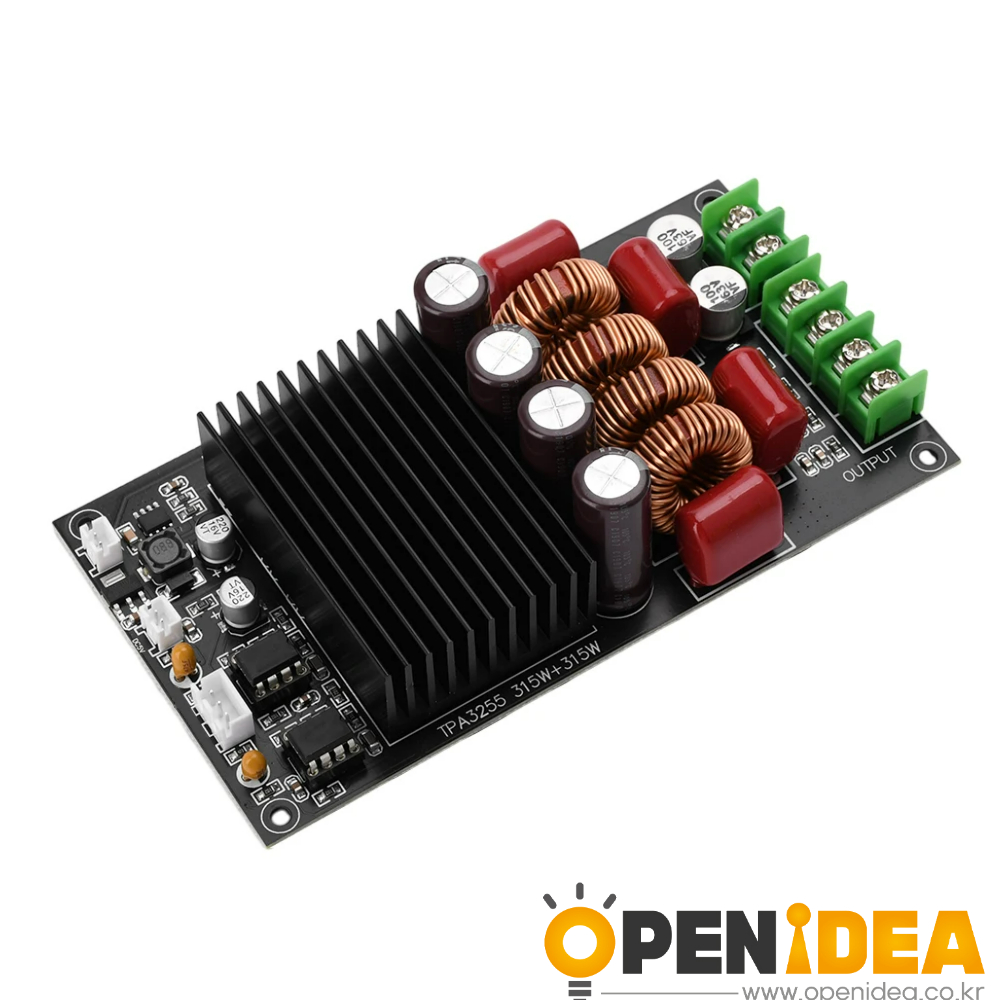

Product Name: 2X300W Audio Amplifier

Amplifier type: HIFI amplifier

Chip model: TPA3255

Power supply voltage: DC19V-DC52V

Output channel: 2-channel stereo

Frequency response from 20Hz to 20KHz

Dynamic range:>100dB

SNR： >111dB

Work efficiency:>90%

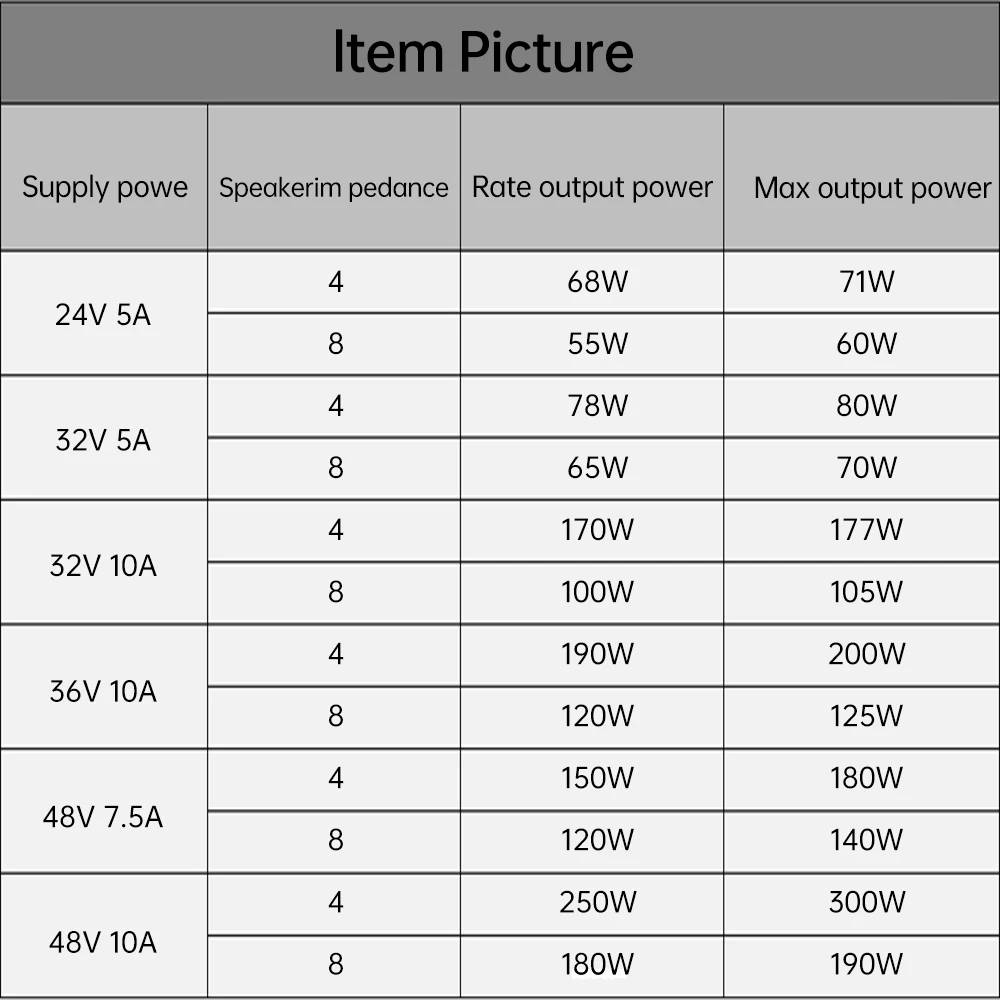

Output power:

315W/4 Ω Distortion of 1.5%

185W/8 Ω Distortion of 1.5%

260W/4 Ω Distortion of 1%

150W/8 Ω Distortion of 1%

Stereo output power X2 above

Impedance: 4-8 Ω

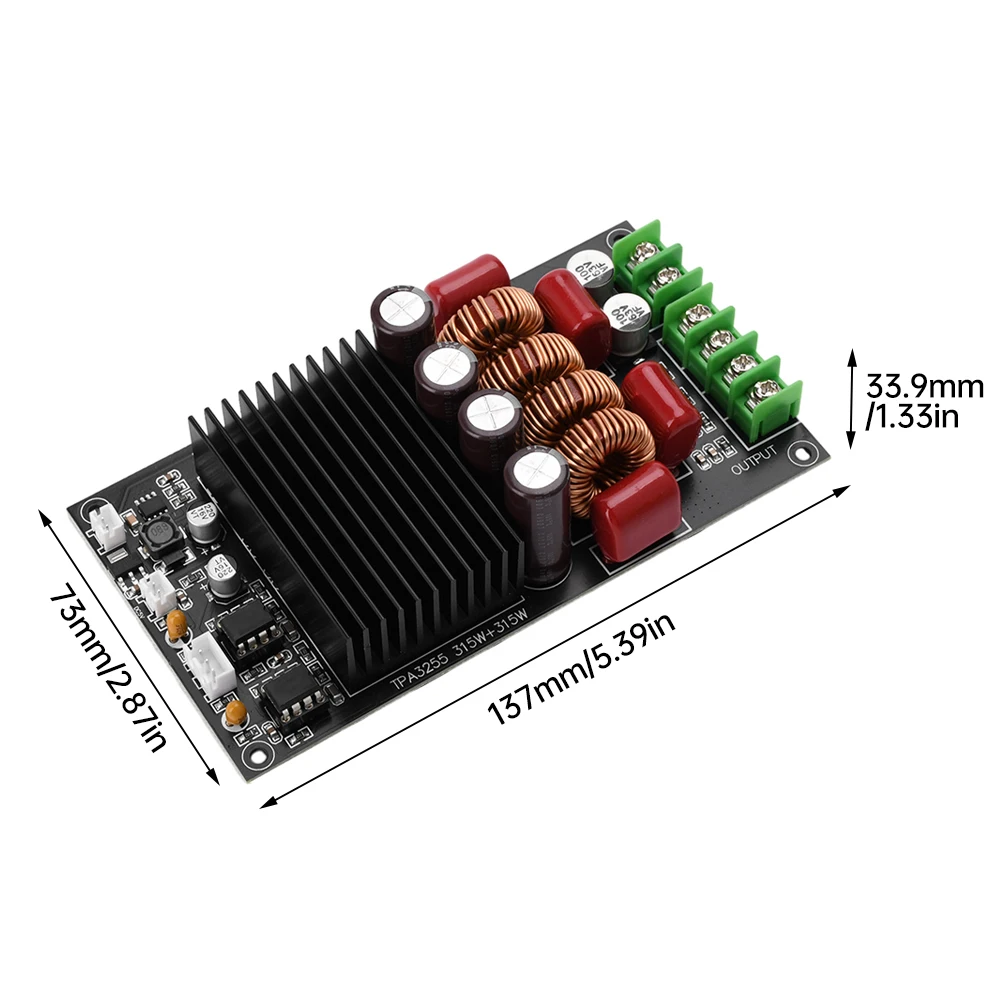

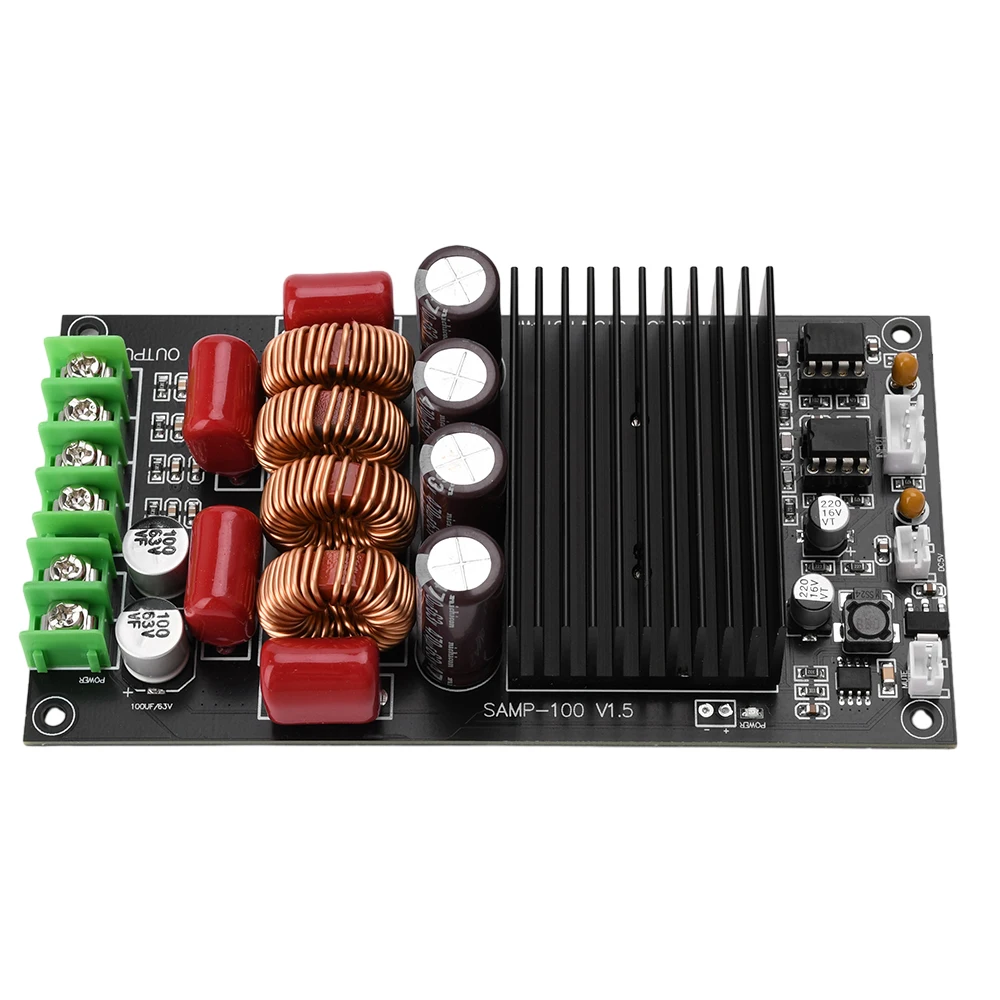

Product size: 136x73mm

Screw hole spacing: 66X128MM

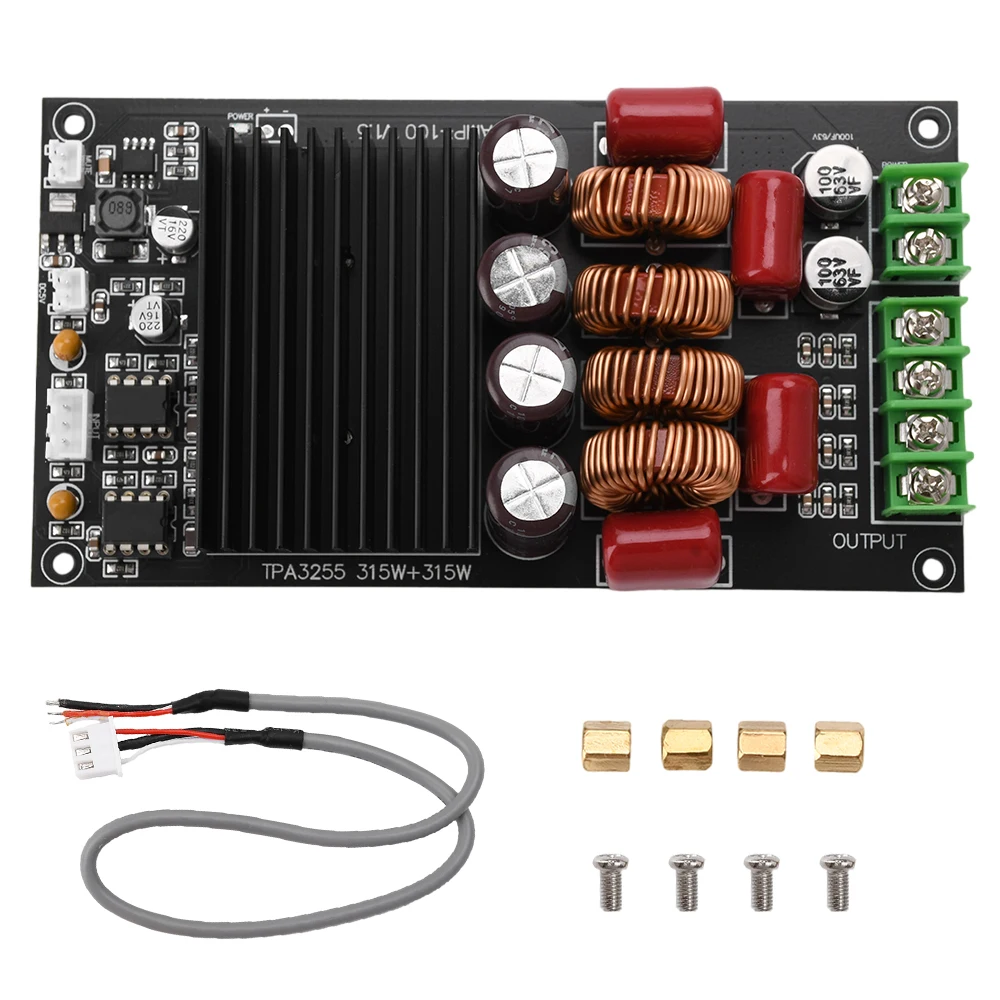

Package include:

1 * Module

1 * Accessories package
