LCD Test Board for ESP32‑C3 Chip Knob Screen Evaluation Development Board with Rotating Encoder Switch

Feature:

1. Description: This is an evaluation test board based on for ESP32‑C3 chip and SPI interface display screen. It achieves screen interaction through a rotating encoder and also has audible playback and infrared control function.

2. Product Features: This evaluation development board has the advantages of low cost, low power consumption, and strong performance, which can meet the basic GUI interaction needs of users, suitable for small sized screens.

3. Rotating Encoder Switch: This LCD evaluation test board is equipped with a rotating encoder switch that supports button switching and 360 degree rotation, to realize the control of the screen GUI.

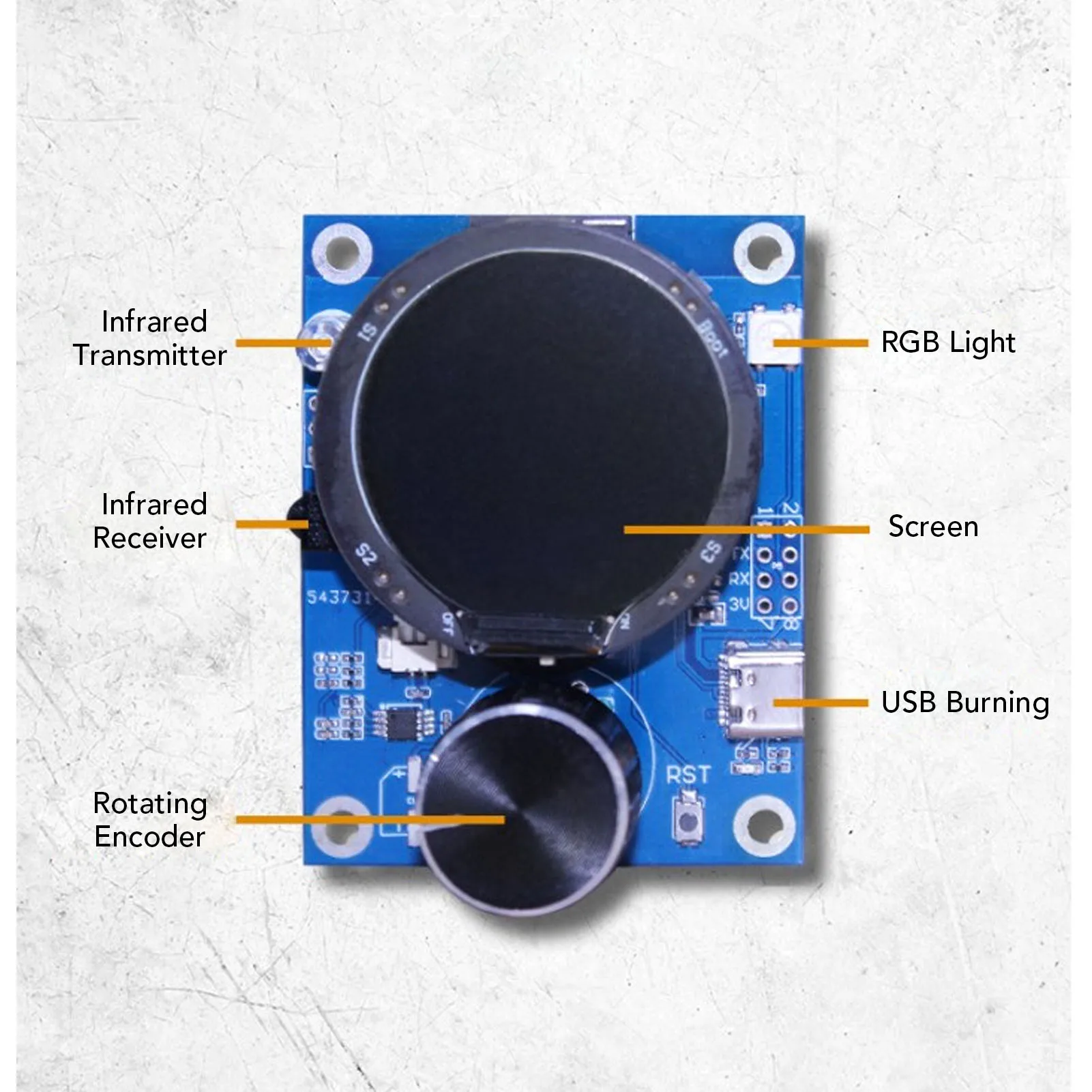

4. Infrared Module: The LCD evaluation development board features built in infrared module that supports infrared transmitters and infrared receivers for infrared control, which is efficient and practical.

5. Audible Playback and USB: Onboard amplifier and speaker, supporting audible playback. This development board supports USB Type C interface download and debugging, meeting more evaluation and testing needs.

Specification:

Item Type: LCD Evaluation Test Board

Material: PCB

How to Use:

Insert the Type C data cable and the screen will display the image. Rotate the encoder to switch functions.

Lighting Mode: Turn on the light and adjust the brightness.

Laundry Mode: Press the encoder to hear language playback.

Compile and burn program:

Please use the following commands to compile the project: idf.py build

After compilation, use the following command to burn the project (change PORT accordingly, for example COM5): idf.py ‑p PORT flash

Alternatively, you can directly burn the compiled firmware in the firmware file.

Package List:

1 x LCD Evaluation Test Board

1 x 4P Double Pin Header

1 x 3P Single Pin Header

1 x Short Circuit Cap
