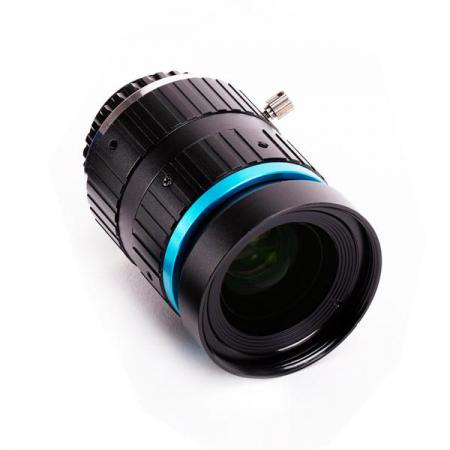

The new High Quality Camera from Raspberry Pi is compatible with C or CS-mount lenses. We have two options available in this listing - 6mm 3MP Wide Angle and 16mm 10MP Telephoto (select option above).

Please note: This listing is for one lens. Select either the 6mm or 16mm from the available options. Raspberry Pi High Quality Camera not included

Which HQ Camera lens do I need?

The 6mm 3MP Wide Angle lens is great for CCTV-style applications with its wide field of view, allowing you to see more of the overall target area (do not use the lens adapter with the 6mm lens or everything will be blurry!)

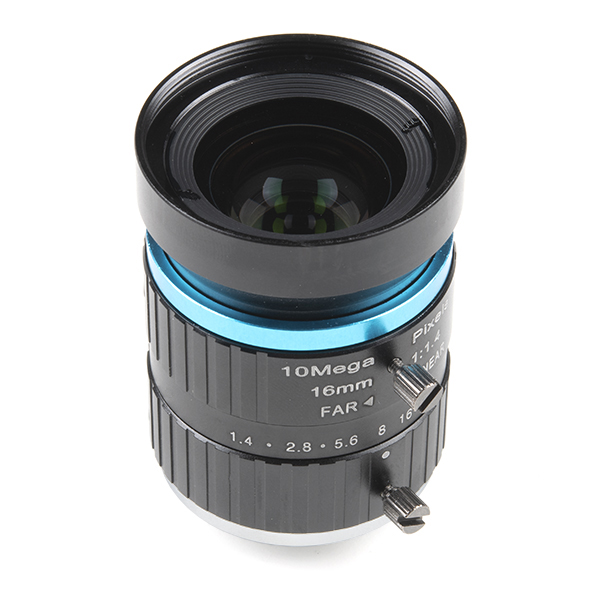

The 16mm 10MP Telephoto lens offers a high level of zoom, for targeting your camera on specific subjects.

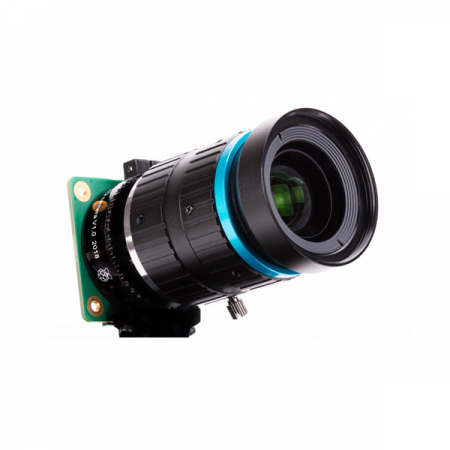

The lenses screw directly onto the Raspberry Pi High Quality Camera and feature multiple adjustment options (via thumbscrews) for greater flexibility and image refinement. Covers for the front and rear of the lenses are included and come pre-fitted.

Features

Compatible with the Raspberry Pi High Quality Camera

Thumbscrew adjustment

Covers on front and back

Specification

Feature          16mm 10MP

Image format    1"

Focal length 16mm

Resolution 10 Megapixel

Aperture         F1.4 to F16

Mount          C

Field Angle         1" 44.6°× 33.6°

                                2/3" 30.0°× 23.2°

                                1/1.8” 24.7°× 18.6°

                                1/2" 21.8°× 16.4°

Distortion         1" (-0.7%)

                                1/2" (-0.5%)

                                1/3" (-0.15%)

M.O.D          0.2m

Back focal length 17.53mm

Optical length 67.53mm

Filter thread size 37mm

Dimensions 39x50mm

Weight          133.7g
