OLED 0.66 Shield

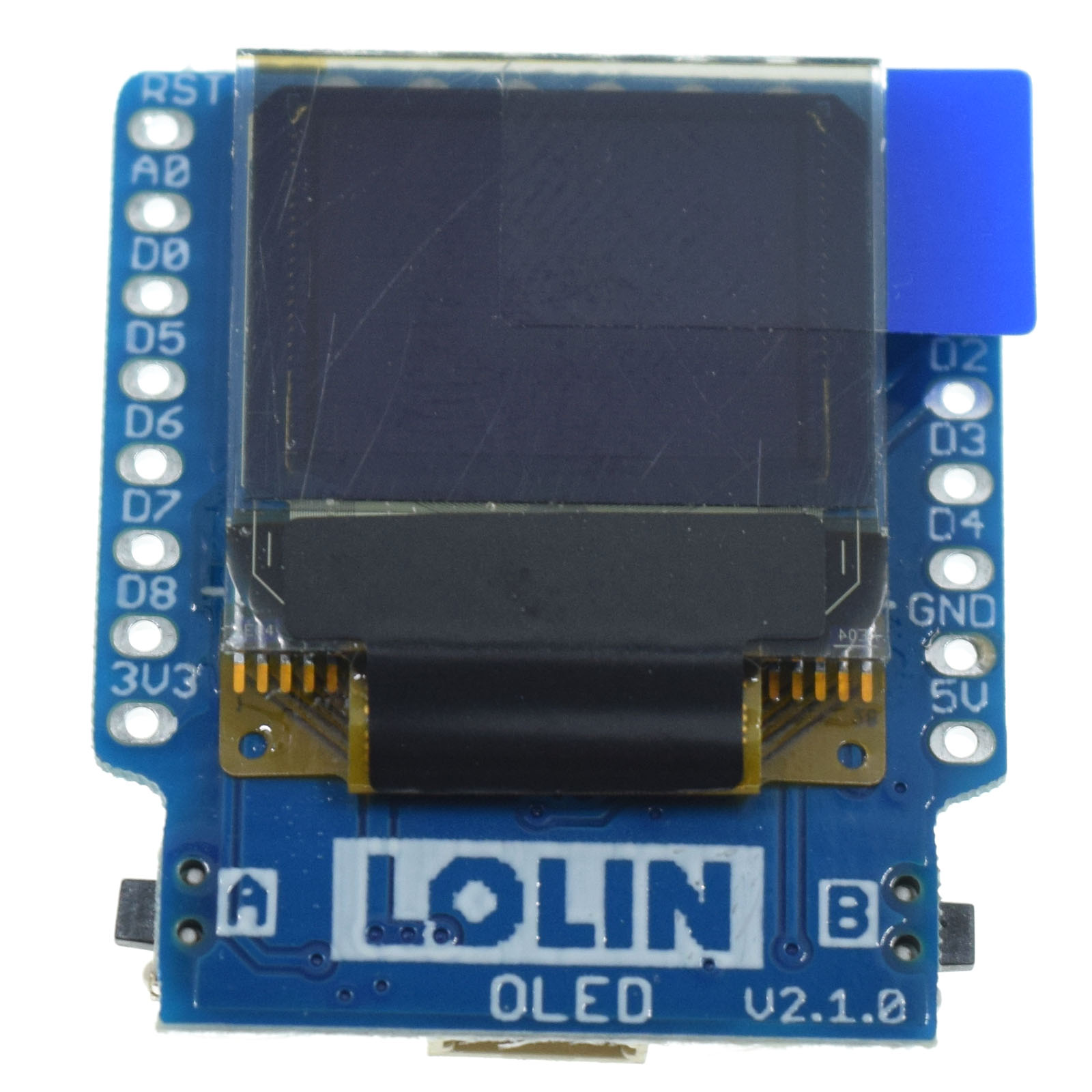

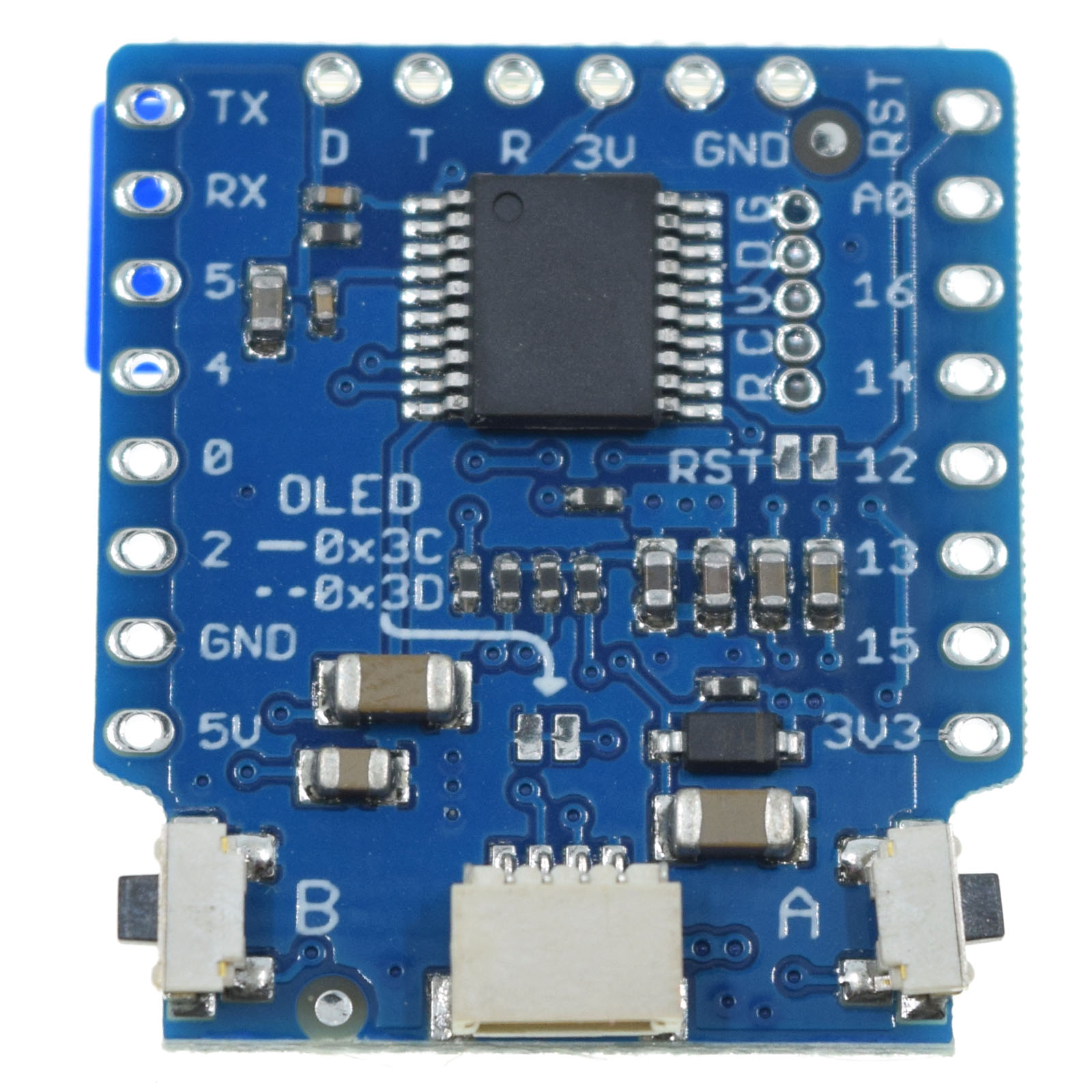

TOP_IMG BOTTOM_IMG

64×48 pixels (0.66” Across) OLED Shield with 2x I2C Button

Features

  • Screen Size: 64x48 pixels (0.66” Across)
  • Operating Voltage: 3.3V
  • Driver IC: SSD1306 (I2C Address: 0x3C or 0x3D)
  • 2x I2C Button (customizable I2C Address, default:0x31)

Pins

D1 mini GPIO Shield
D1 5 SCL
D2 4 SDA

Arduino
