Description

Formerly known as the Zmod ADC 1410: SYZYGY-compatible Dual-channel 14-bit Analog-to-Digital Converter Module.

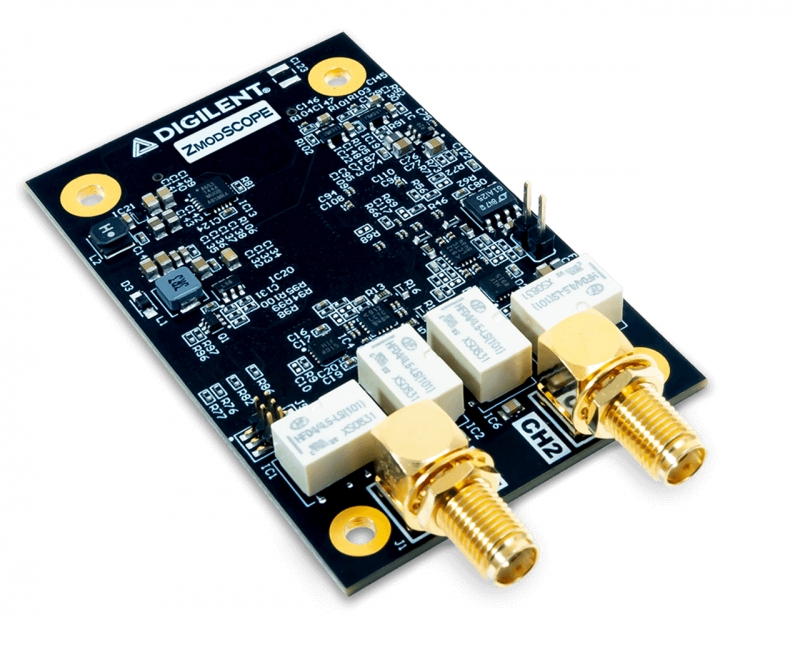

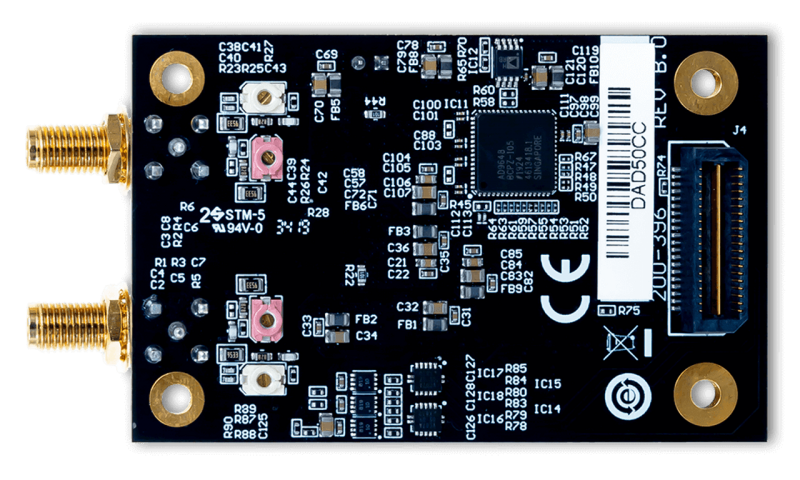

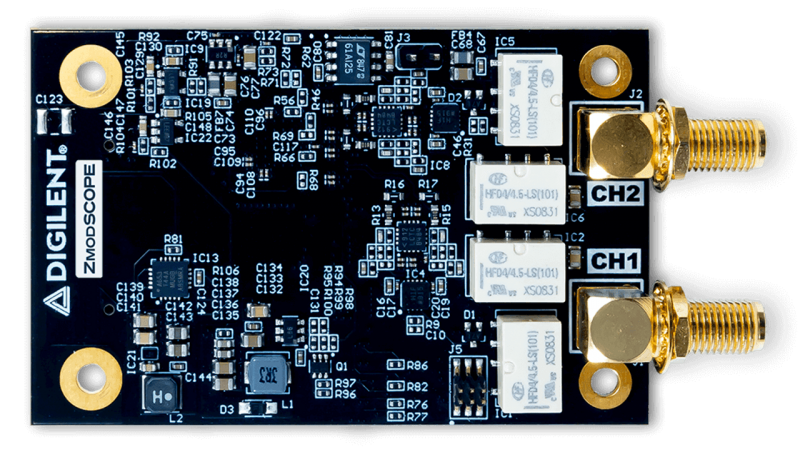

The Zmod Scope 1410 series is one of Digilent's first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application.

Driven by the SYZYGY carrier, the Zmod Scope can simultaneously acquire two ±25V signals with 14 bits of resolution at a sample rate up to 1125MS/s. Analog inputs can be connected to a circuit using SMA cables.

When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR . By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices.

Guides and demos are available to help you get started quickly with the Zmod Scope. These can be found through the Support Materials tab.

Features

• Channels: 2
• Channel type: single-ended
• Resolution: 14-bit
• Input range: ±1V (High Gain) or ±25V (Low Gain)
• Absolute Resolution 0.13mV (High Gain) or 3.21mV (Low Gain)
• Sample rate (real time): 40MS/s for 1410-40, 105MS/s for 1410-105, 125MS/s for 1410-125
• Input impedance: 1MΩ||18pF
• Analog bandwidth:
• 1410-40: 20 MHz @ 3dB, 8 MHz @ 0.5dB, 4 MHz @ 0.1dB
• 1410-105: 70 MHz @ 3dB, 30MHz @ 0.5dB, 20 MHz @ 0.1 dB
• 1410-125: 70 MHz @ 3dB, 30MHz @ 0.5dB, 20 MHz @ 0.1 dB
• Input protected to: ±50V

• Product Compliance:
• HTC: 8473301180
• ECCN: EAR99
