Description

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

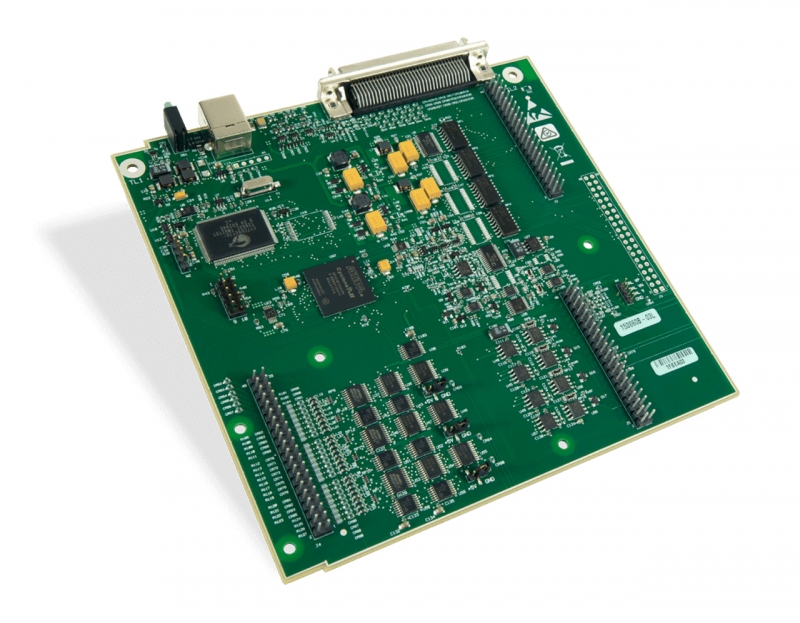

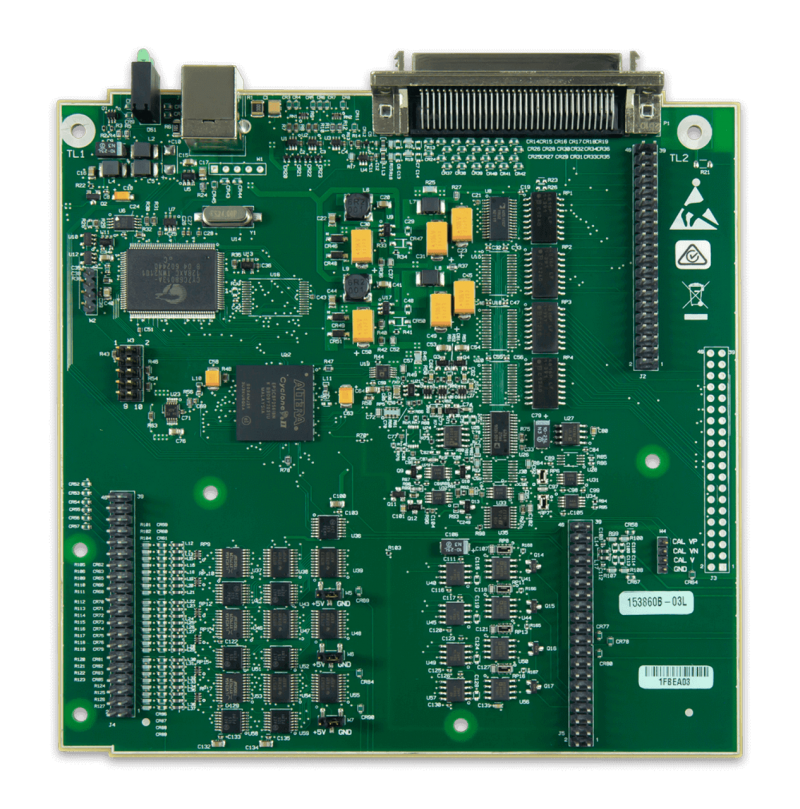

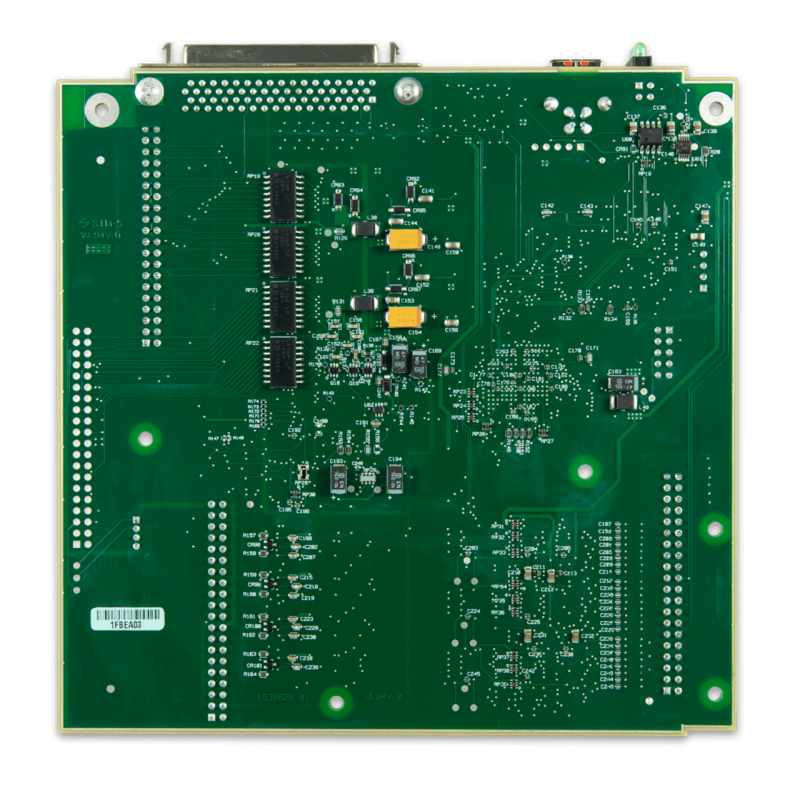

The USB-2600 Series feature up to 64 SE analog inputs, 16-bit resolution, 1 MS/s sample rate, four 16-bit analog outputs, 24 digital I/O, four 32-bit counters, and four 32-bit timers.

USB-2627 features 16 SE analog inputs.

USB-2637 features 64 SE analog inputs.

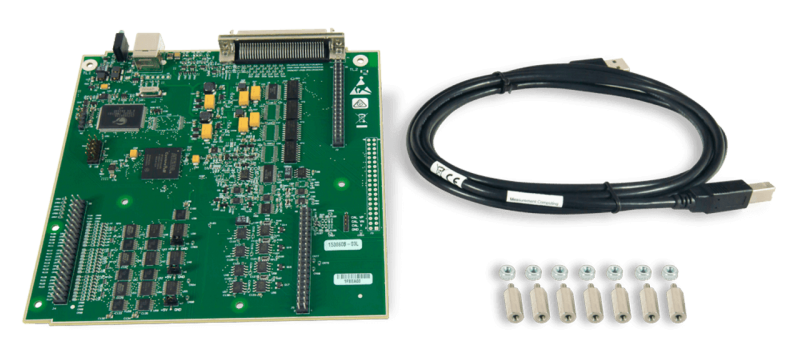

The optional TB-103 screw terminal board connects directly to the 40-pin headers on a USB-2600 Series board, and secures to the board with the included stand-offs, giving access to all signal I/O.

Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

OEM/Embedded Customers- please contact our sales department for volume pricing and assistance with your application.

Features

• USB-2627: 16 SE analog inputs
• USB-2637: 64 SE analog inputs
• 16-bit resolution
• 1 MS/s sample rate
• ±10 V input range
• Four 16-bit analog outputs
• 24 digital I/O
• Four counter inputs
• Four timer outputs
• No external power required
