Description

Digilent Test and Measurement devices use female or male terminated MTE cables to provide a convenient method of probing circuits. When probing small circuits or integrated circuits a more secure connection may be desired. The mini grabber test clips (also known as micro grabber test clips or IC clips) with leads provide a grabber type connection that can be added to the end of the MTE cables to connect to integrated circuits, component leads, and other circuit components.

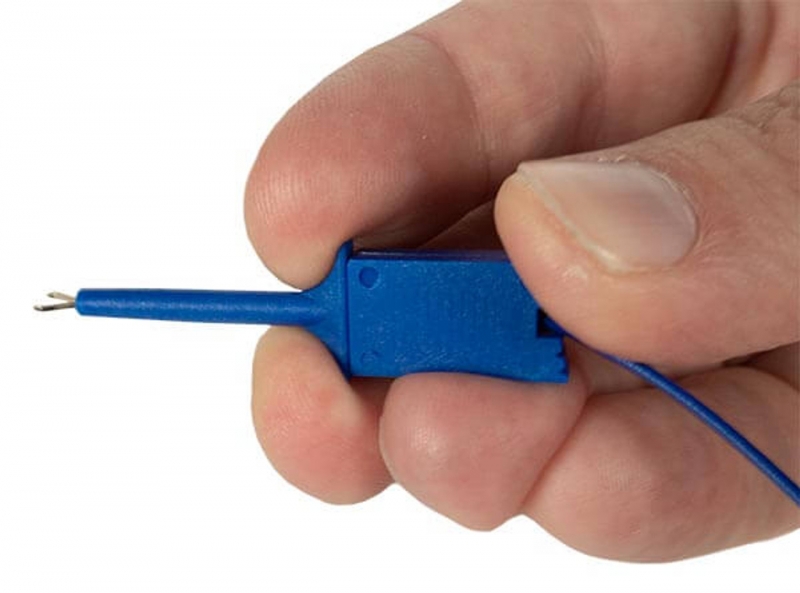

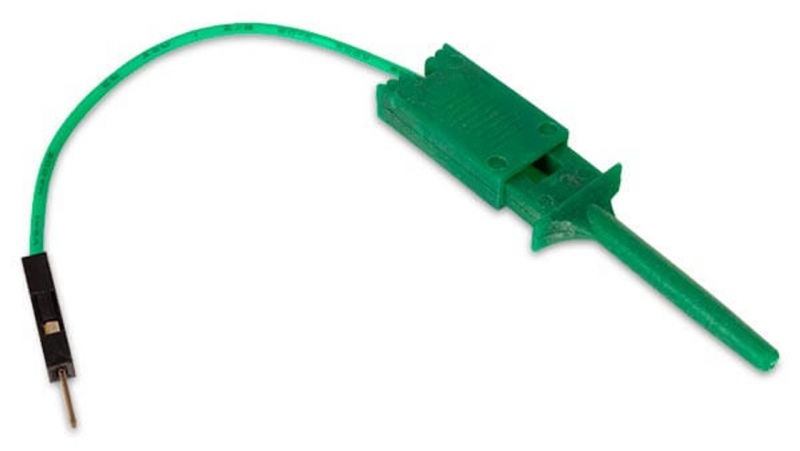

The lead (or pigtail) end slides easily into female breadboard wire and provides a secure connection. The clip end has two small pincers that can grab components and wires up to 1.27mm in diameter. These spring loaded pincers are accessed by pushing on the end of the mini-grabber and when released will hold tight for full electrical contact. If noise is a particular concern the Mini-grabber Test Clips (needs link to other mini-grabbers) provide a direct connection from the grabbers to the MTE cables without the pigtail, but can be harder to connect.

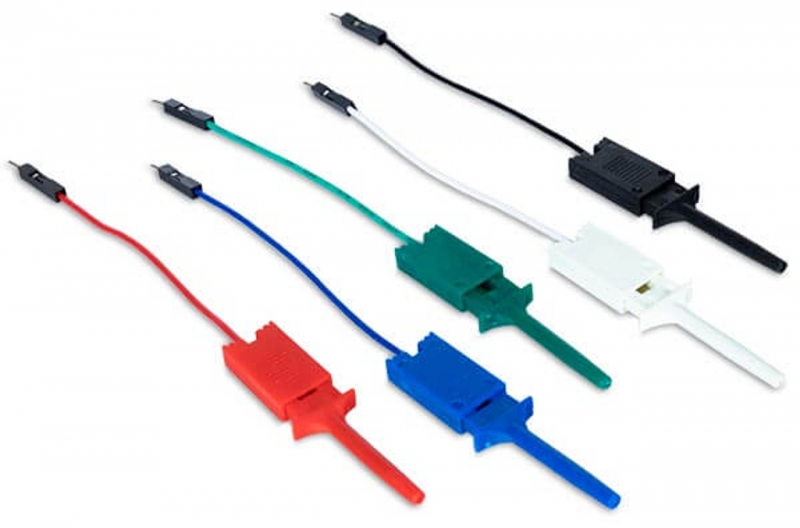

This pack of five includes mini grabbers with leads in five different colors.

Features

• Lightweight construction
• Pig-tail (breadboard wire) connection compatible with female terminated MTE cables
• Able to grasp components up to 1.27mm in diameter

• Product Compliance:
• HTC: 8536908585
• ECCN: EAR99
