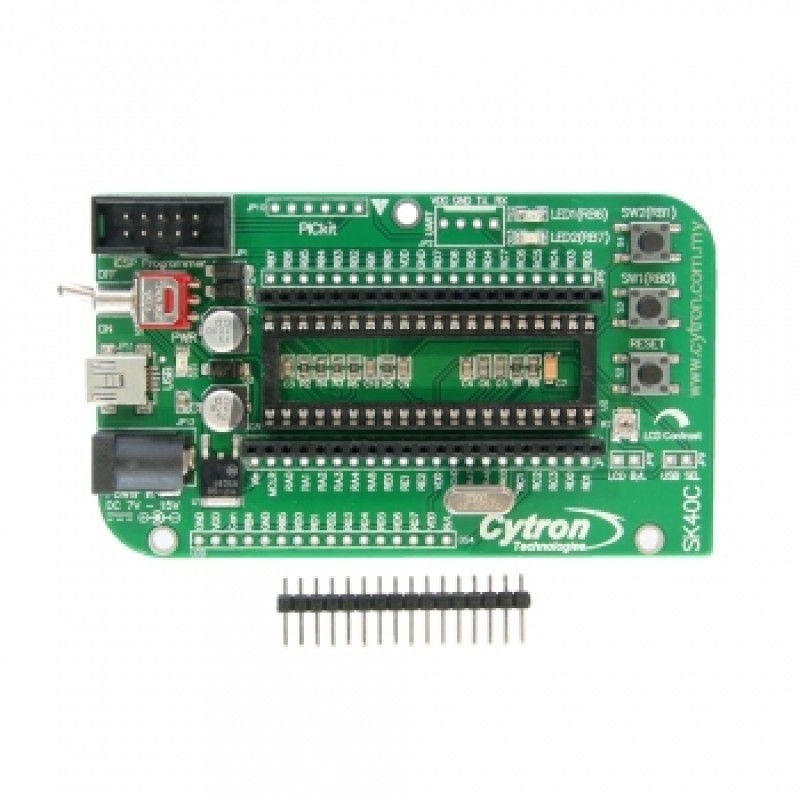

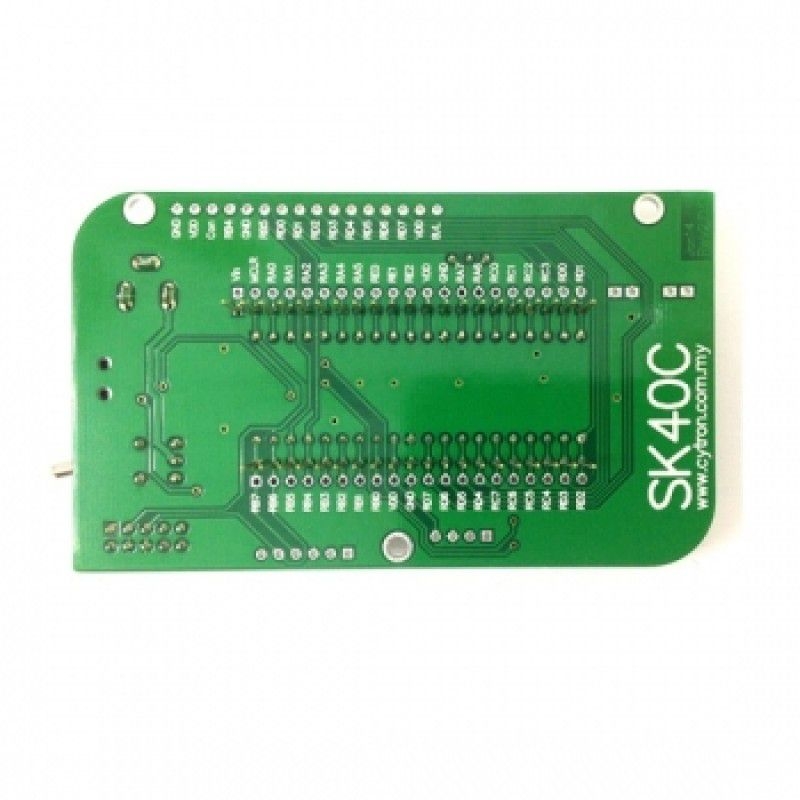

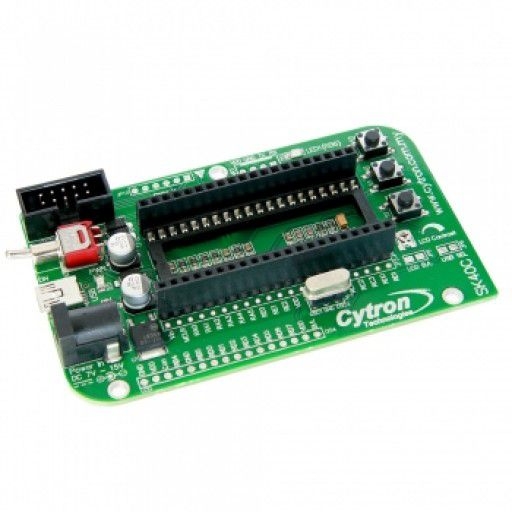

SK40C (new version of SK40B) is a 40pin PIC microcontroller starter kit designed to offer an easy-to-start solution for PIC microcontroller users. This board comes with a basic element for users to begin project development. It offers plug-and-use features.

Features:

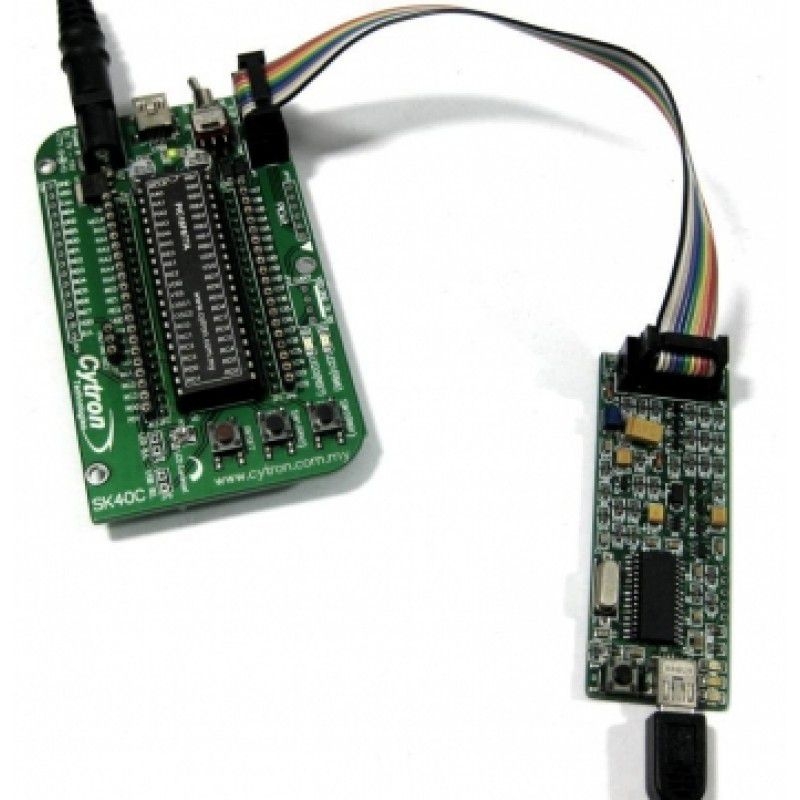

• ICSP connector for UIC00B -simple and fast method to load program.
• Perfect fit for 40 pins PIC16F and PIC18F.
• Operating Voltage Range: 7V - 15VDC
• 2 x programmable switch.
• 2 x LED indicator.
• Exchangeable Crystal.

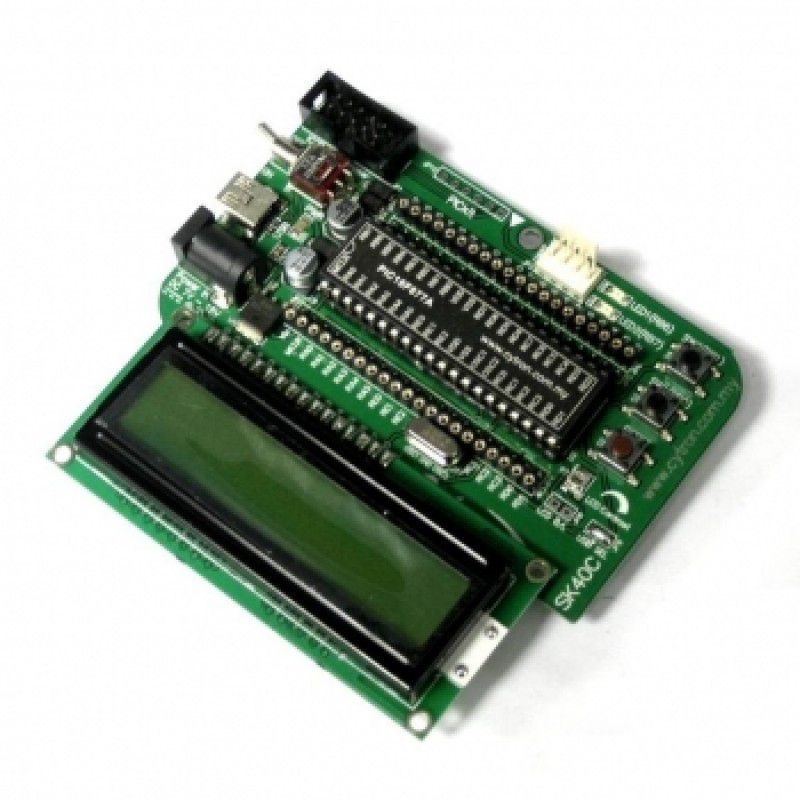

• Existing pad for 16 x 2 characters LCD display.
• UART connection to interface with other controllers or even computers.

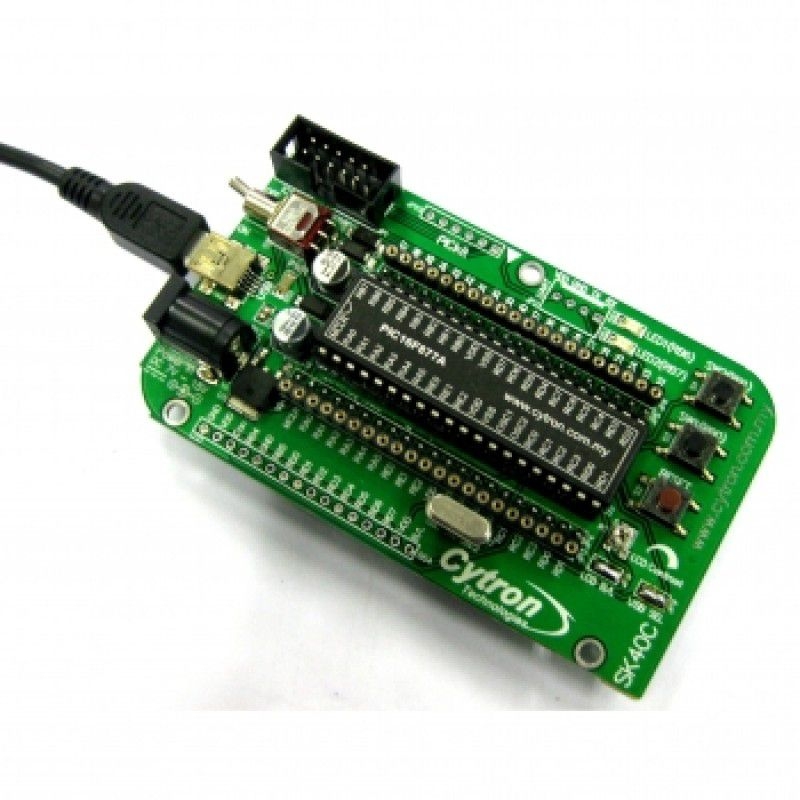

• USB onboard for certain PIC18F.
• Eliminate users difficulty in using PIC
• Users are able to utilize the function of PIC by directly plugging in the I/O components in whatever way that is convenient to the user.
• The bootloader can still be applied in the loading program.
• This kit comes WITHOUT a PIC microcontroller to provide the freedom for users to choose the PIC model.

• User Manual
• Getting Started with SK40C & PIC16F887
